JPR-S7608 Aftermarket Cummins QSB Seawater Pump Sherwood P2701, P2706, P2708 | Sawley's Select Marine Parts

🔧 Product Description

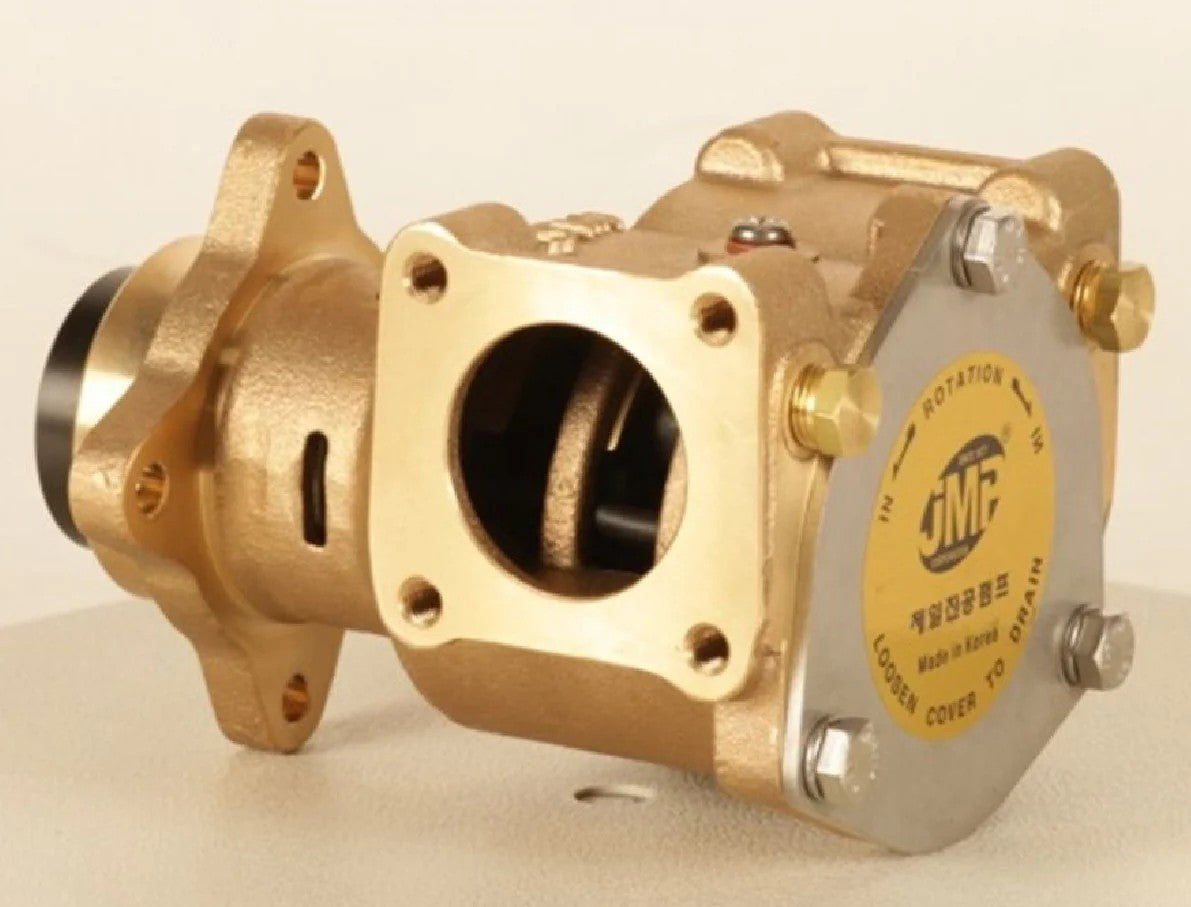

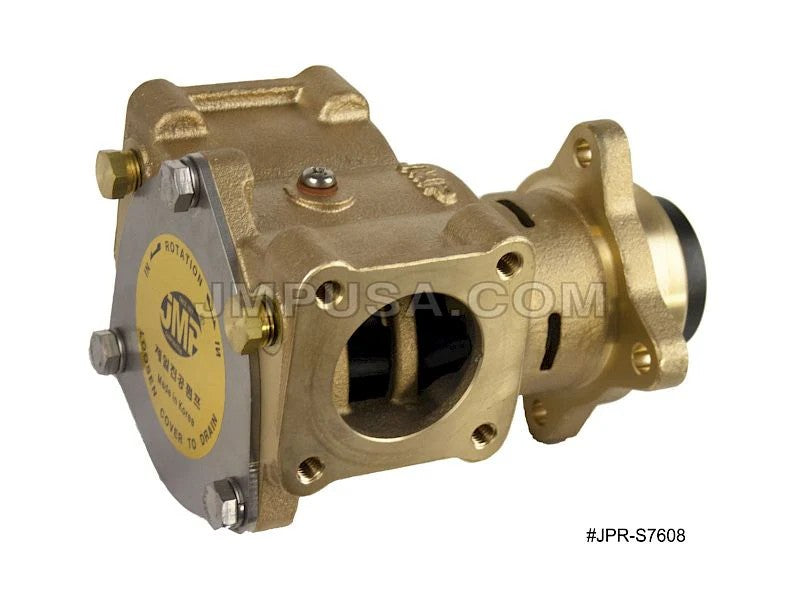

Aftermarket replacement QSB P2701/P2706/P2708 Seawater Pump - Part Number: JPR-S7608

New aftermarket engine-cooling seawater pump for Cummins QSB marine engines using Sherwood P2701, Cummins QSB applications using P2706 or P2708 pump variants. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Confirm port direction and Sherwood suffix before installation.

⚙️ Key Features

• Direct aftermarket replacement for JPR-S7608

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Spline-drive replacement pump

• Port configuration: Universal flange/hose-port pump

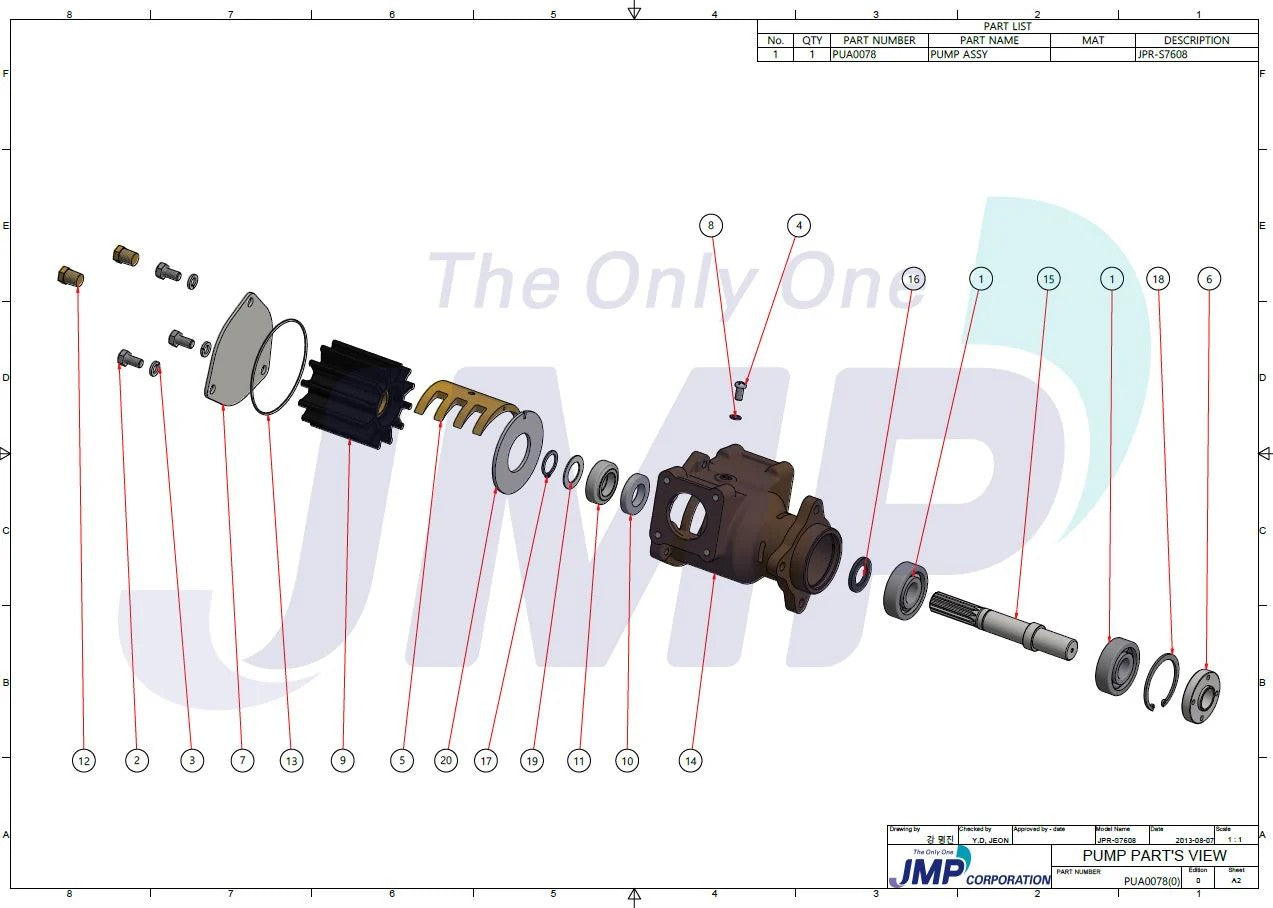

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

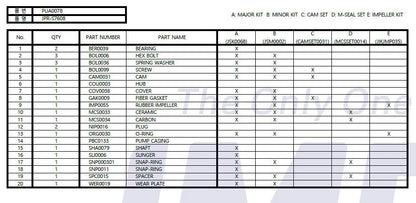

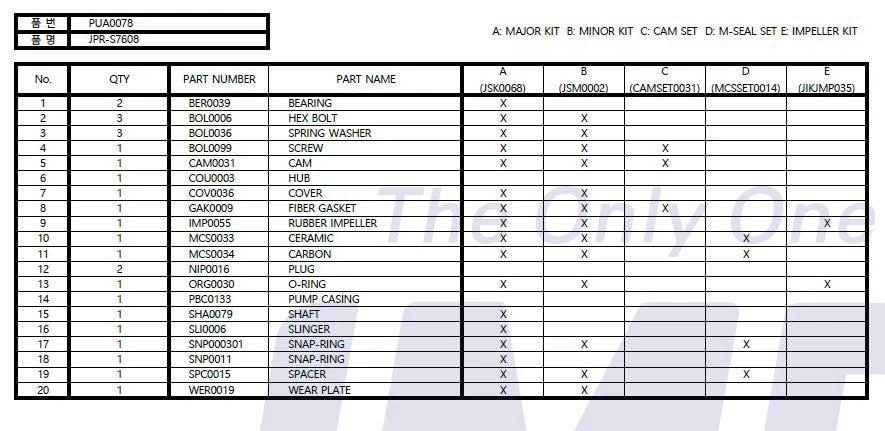

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-S7608

• 1 × Installed impeller - JMP 7608-01K

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Use JMP internal service parts because re-engineered components may differ from OEM

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-S7608 → Replaces / cross-references Cummins QSB Sherwood-P27xx pump family

OEM / Related Numbers:

• Cummins QSB Sherwood-P27xx pump family

Aftermarket / Verified Equivalents:

• Sherwood: P2701

• Sherwood: P2706

• Sherwood: P2708

• JMP Marine: JPR-S7608

Service Parts / Kits:

• Major service kit: JMP JSK0068

• Minor service kit: JMP JSM0002

🚤 Compatibility

Commonly used on:

• JMP Marine / Cummins / Sherwood marine engine-cooling systems

Typically suits:

• Engine models:

• Cummins QSB marine engines using Sherwood P2701

• Cummins QSB applications using P2706 or P2708 pump variants

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

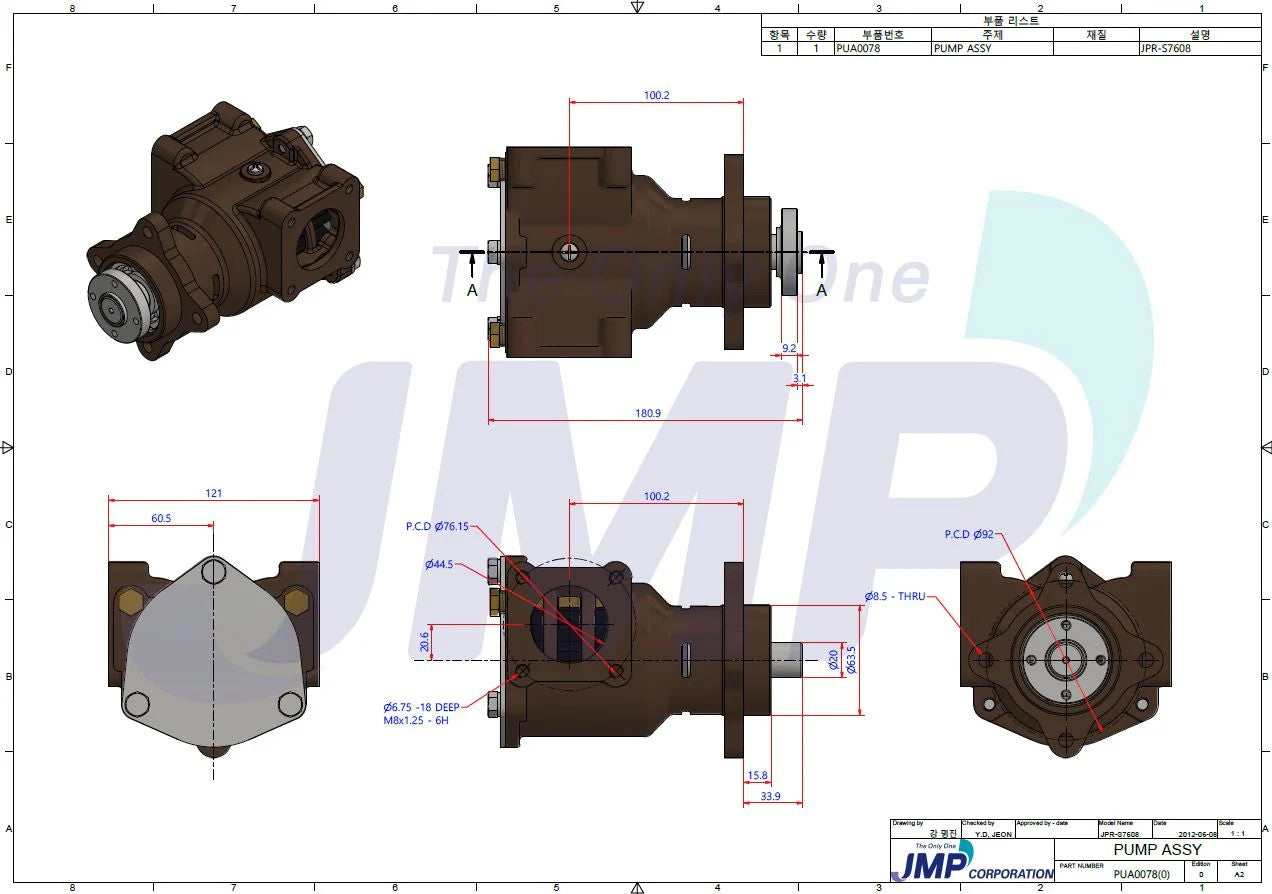

• Port / Drive Identification: Universal flange/hose-port pump; Spline-drive replacement pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
