JPR-S7632 Aftermarket Caterpillar C7, C9, 3116, 3126 Seawater Pump | Sawley's Select Marine Parts

🔧 Product Description

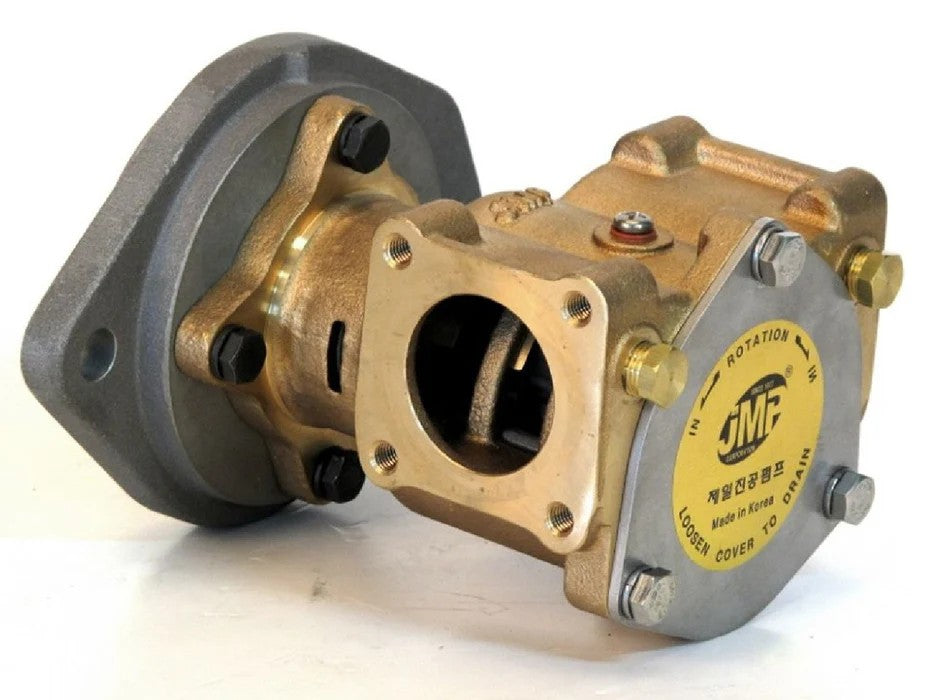

Aftermarket replacement C7/C9/3116/3126 Universal Seawater Pump - Part Number: JPR-S7632

New aftermarket engine-cooling seawater pump for Caterpillar 3116 marine engines, Caterpillar 3126 marine engines, Caterpillar C7 marine engines, Caterpillar C9 marine engines where the JPR-S7632 mounting and shaft are specified. It replaces the listed OEM pump family and is supplied as a complete assembled pump. Service kits for JPR-S7632 are not interchangeable with the genuine Caterpillar pump.

⚙️ Key Features

• Direct aftermarket replacement for JPR-S7632

• Heavy-duty marine-grade bronze or corrosion-resistant pump construction

• Spline-drive universal replacement pump

• Port configuration: Universal flange/hose-port arrangement

• Serviceable flexible-impeller design with replaceable cover, cam, seal, shaft and bearings

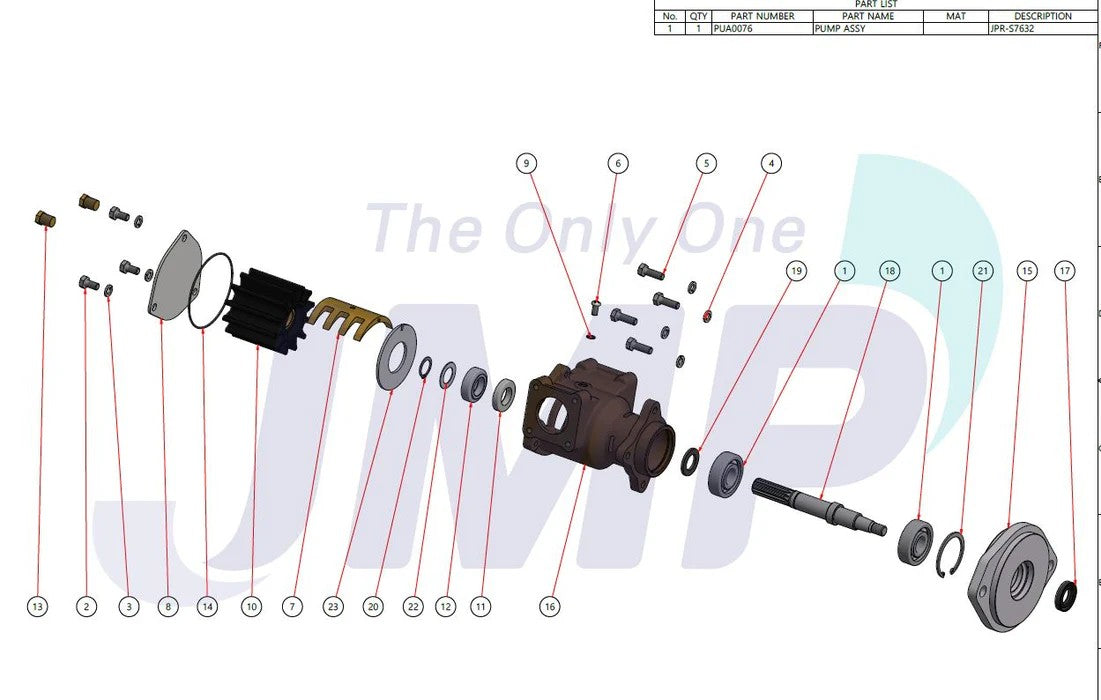

🧰 Kit / Assembly Contents

• 1 × Complete seawater pump assembly - Part Number: JPR-S7632

• 1 × Installed impeller - JMP 7608-01K

• 1 × Installed shaft, bearing, cam and mechanical-seal assembly

• 1 × Installed end cover with gasket or O-ring sealing system

• Mounting / installation: Pump internals differ from the genuine Caterpillar pump; use JMP service parts

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• JPR-S7632 → Replaces / cross-references Caterpillar replacement pump family for 3116/3126/C7/C9

OEM / Related Numbers:

• Caterpillar replacement pump family for 3116/3126/C7/C9

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-S7632

Service Parts / Kits:

• Major service kit: JMP JSK0072

• Minor service kit: JMP JSM0002

🚤 Compatibility

Commonly used on:

• JMP Marine / Caterpillar marine engine-cooling systems

Typically suits:

• Engine models:

• Caterpillar 3116 marine engines

• Caterpillar 3126 marine engines

• Caterpillar C7 marine engines

• Caterpillar C9 marine engines where the JPR-S7632 mounting and shaft are specified

• HP / Output Range: Engine- or generator-rating dependent

• Engine Type: Marine diesel, petrol or generator engine as listed above

• Year Range: Engine-model, arrangement and serial-number dependent

• Port / Drive Identification: Universal flange/hose-port arrangement; Spline-drive universal replacement pump. Confirm rotation, shaft/gear style, flange, port direction and mounting seal before ordering.

🔌 Function

The engine-driven flexible-impeller seawater pump draws raw water through the vessel's intake and strainer, then circulates it through the heat exchanger, charge-air cooler, exhaust mixer and other seawater-cooled components. Adequate flow is essential for controlling engine and exhaust temperatures.

Common signs of failure:

• Engine or exhaust temperature rises above normal

• Weak or absent seawater discharge at the exhaust outlet

• Impeller blades are cracked, missing, swollen or permanently set

• Water leaks from the pump cover, shaft seal, drain hole or mounting flange

• Bearing noise, shaft play or a seized pump drive

📦 Condition

• New aftermarket replacement seawater pump

• Brand new

• Supplied in original or equivalent packaging
