JPR-V1000 Aftermarket Volvo Penta 31/41/42/43 Series Seawater Pump 3583115 | Sawley's Select Marine Parts

🔧 Product Description

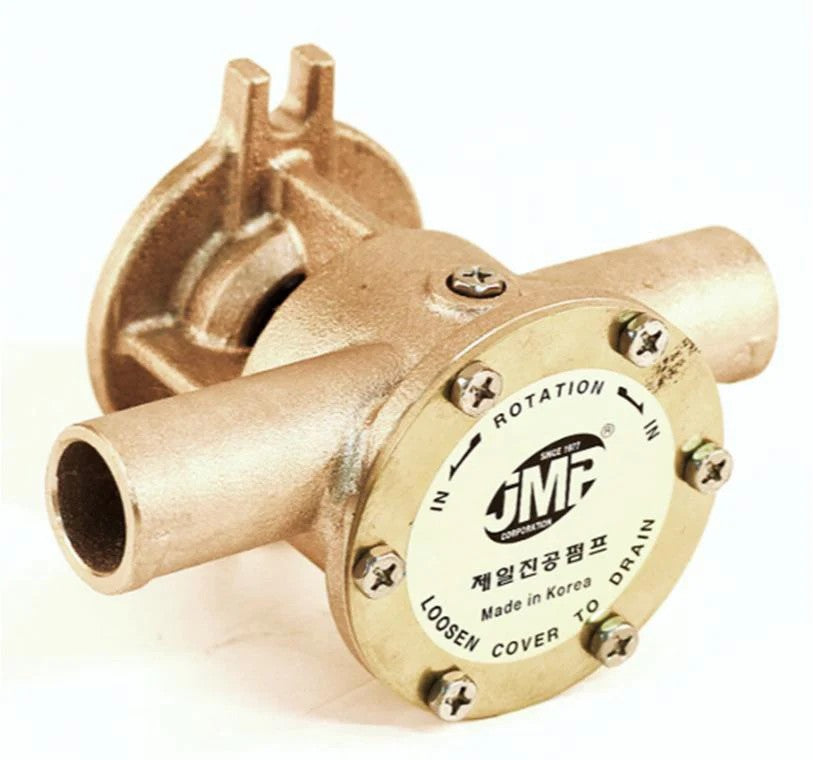

Aftermarket JMP Volvo Penta 31/41/42/43-series seawater pump - Replacement Part Number: JPR-V1000

A complete bronze seawater pump for Volvo Penta 31-, 41-, 42-, 43-, 44- and 300-series diesel engines and related AQ/DP/SP drive installations. It replaces Volvo Penta 3583115 and earlier 3581558/860629 pump assemblies.

⚙️ Key Features

• Heavy-duty marine bronze pump body

• Flexible-impeller positive-displacement design

• Marine-grade non-magnetic stainless-steel shaft

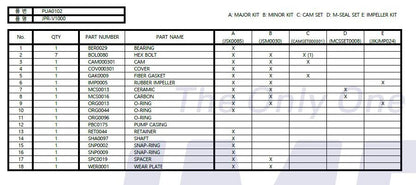

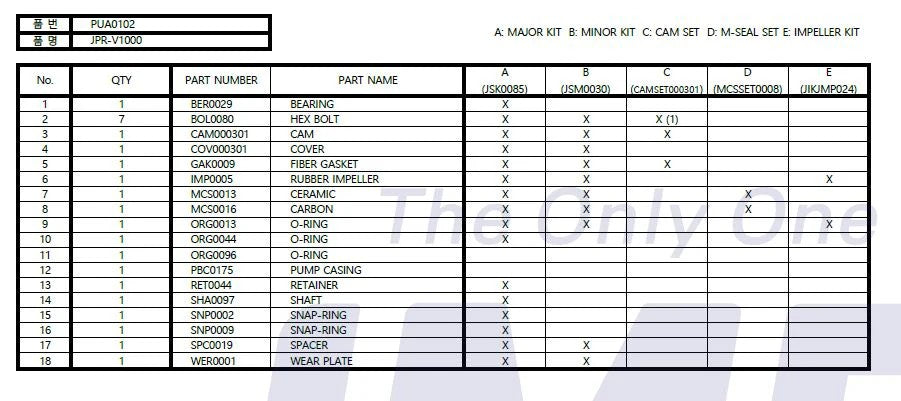

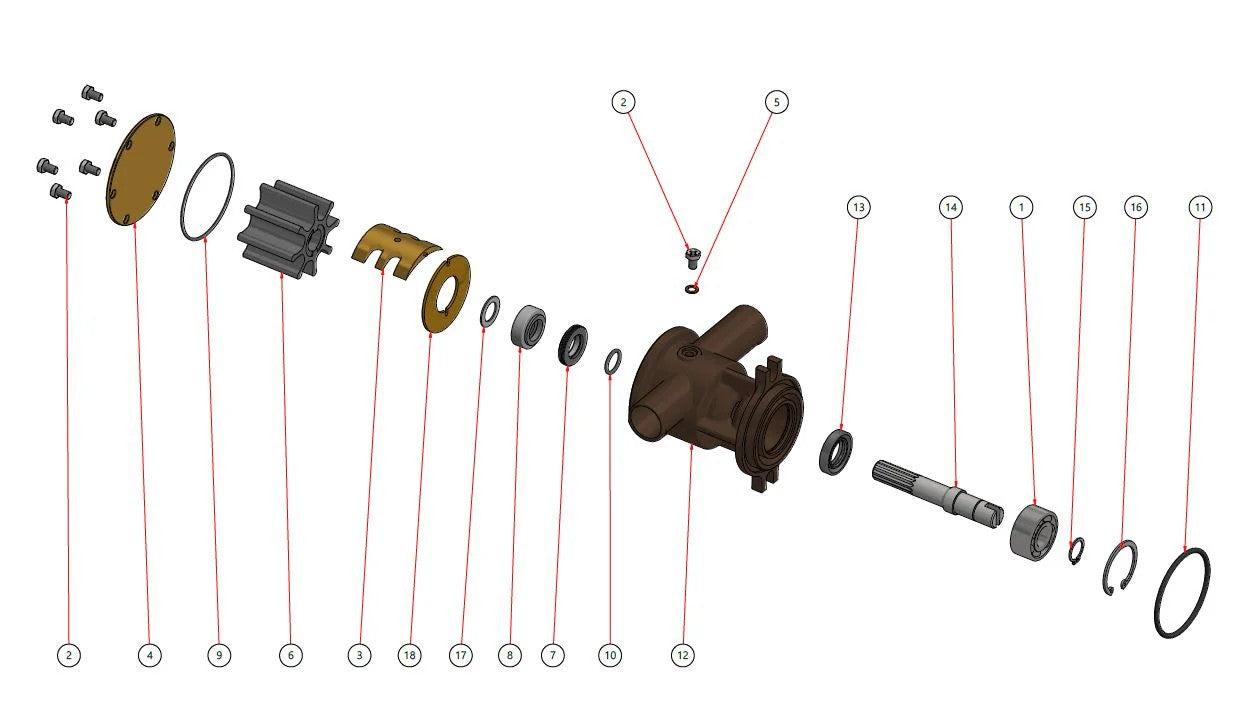

• Replaceable mechanical seal, bearings, cam and wear components

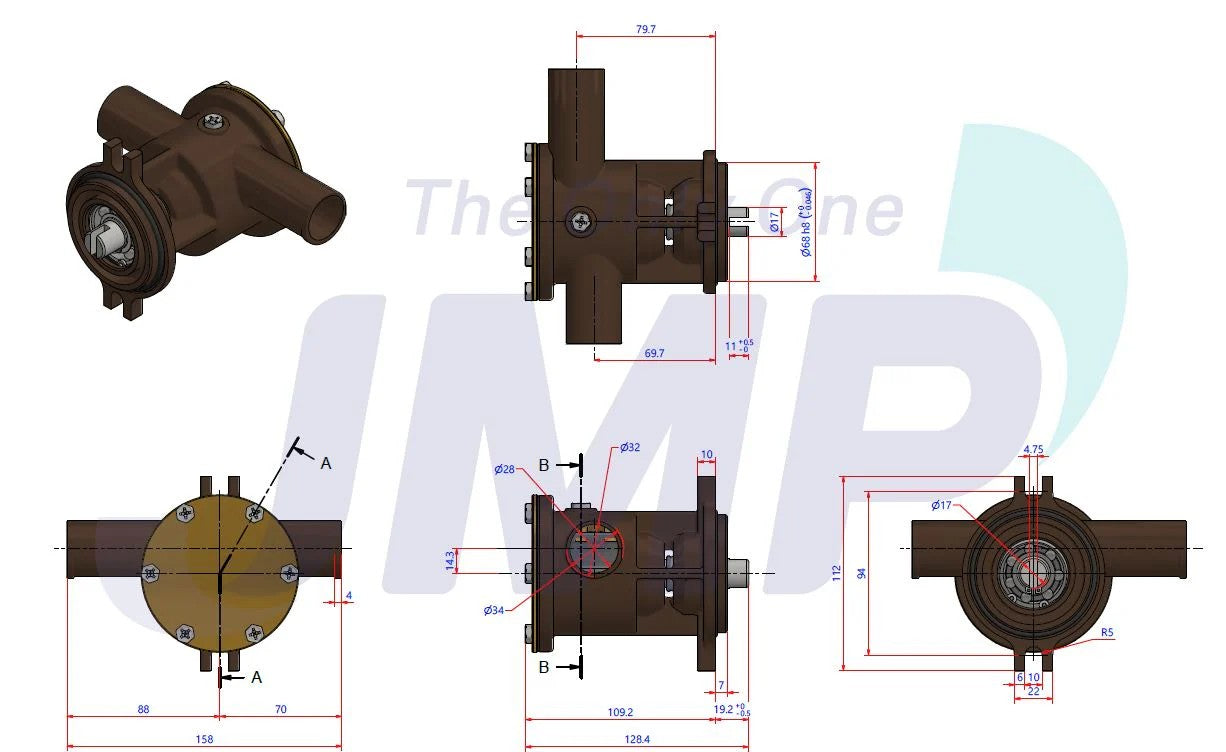

• Designed to match the listed OEM mounting, rotation and connection layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 3583115 → Supersedes 3581558 and 860629

• Johnson 10-24524-02 is the original pump cross-reference

OEM / Related Numbers:

• JPR-V1000

• Volvo Penta 3583115

• Volvo Penta 3581558

• Volvo Penta 860629

• Johnson 10-24524-02

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-V1000

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta AD31L-A, AD31P-A, AD31B, AD31D-A and AD31XD

• Volvo Penta AD41L-A, AD41P-A, AD41A, AD41B and AD41D

• Volvo Penta AQAD41A

• Volvo Penta D41A, D41B, D41D and D41L-A

• Volvo Penta TAMD31L-A, TAMD31M-A, TAMD31P-A, TAMD31S-A, TAMD31B and TAMD31D

• Volvo Penta TMD31L-A, TMD31A, TMD31B and TMD31D

• Volvo Penta TAMD41H-A, TAMD41H-B, TAMD41P-A, TAMD41L-A, TAMD41M-A, TAMD41A, TAMD41B and TAMD41D

• Volvo Penta TMD41L-A, TMD41A, TMD41B and TMD41D

• Volvo Penta KAD42A, KAD42B and KAD42P-A

• Volvo Penta KAMD42, KAMD42A, KAMD42B and KAMD42P-A

• Volvo Penta TAMD42B, TAMD42WJ-A and TAMD42WJ-A

• Volvo Penta AD43, KAD43, KAD43P-A, KAMD43P, KAMD43P-A and KAMD43P-B

• Volvo Penta KAD44, KAD44P-A, KAD44P-B and KAD44P-C

• Volvo Penta KAMD44, KAMD44P-A and KAMD44P-C

• Volvo Penta KAD300-A and KAMD300-A

• Volvo Penta 290A, DP-A, DP-A1, DP-B, DP-B1, SP-A and SP-A1 installations using pump 3583115

• HP Range: Engine-model specific; approximately 100HP-300HP

• Engine Type: Volvo Penta four- or six-cylinder turbocharged marine diesel

• Year Range: Model-specific; confirm OEM pump 3583115, 3581558 or 860629

• Drive: Engine gear-driven

• Original Pump Cross-Reference: Johnson 10-24524-02

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
