JPR-V2000 Aftermarket Volvo Penta TAMD 61/71/100/120/121/122 Seawater Pump 3829311 | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket JMP Volvo Penta TAMD61/71/100/120/121/122 seawater pump - Replacement Part Number: JPR-V2000

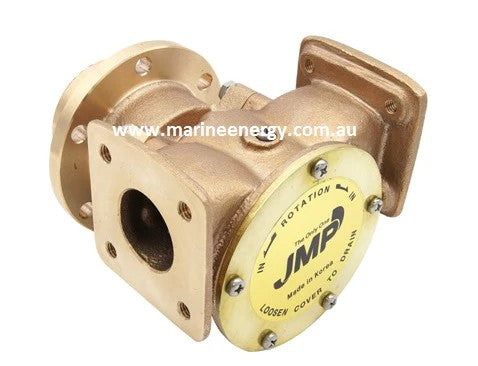

A heavy-duty bronze seawater pump for Volvo Penta MD/TMD/TAMD 61-, 71-, 100-, 120-, 121- and 122-series marine diesel engines. It replaces Volvo Penta 3829311 and earlier 846354/822787 pumps.

⚙️ Key Features

• Heavy-duty marine bronze pump body

• Flexible-impeller positive-displacement design

• Marine-grade non-magnetic stainless-steel shaft

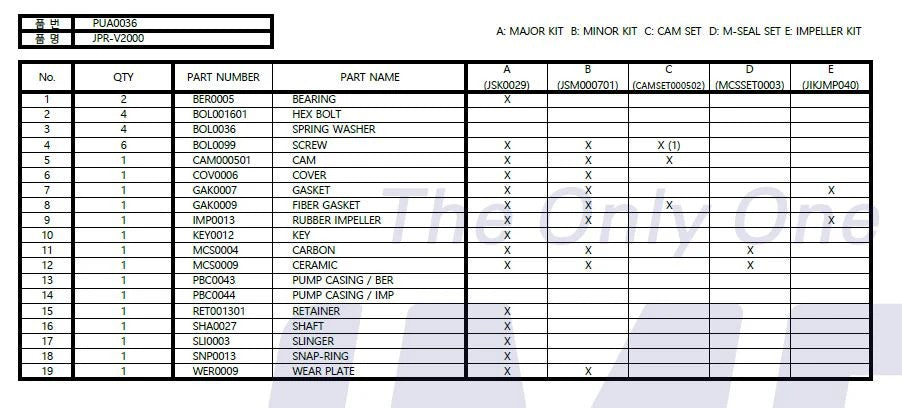

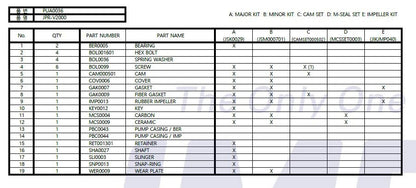

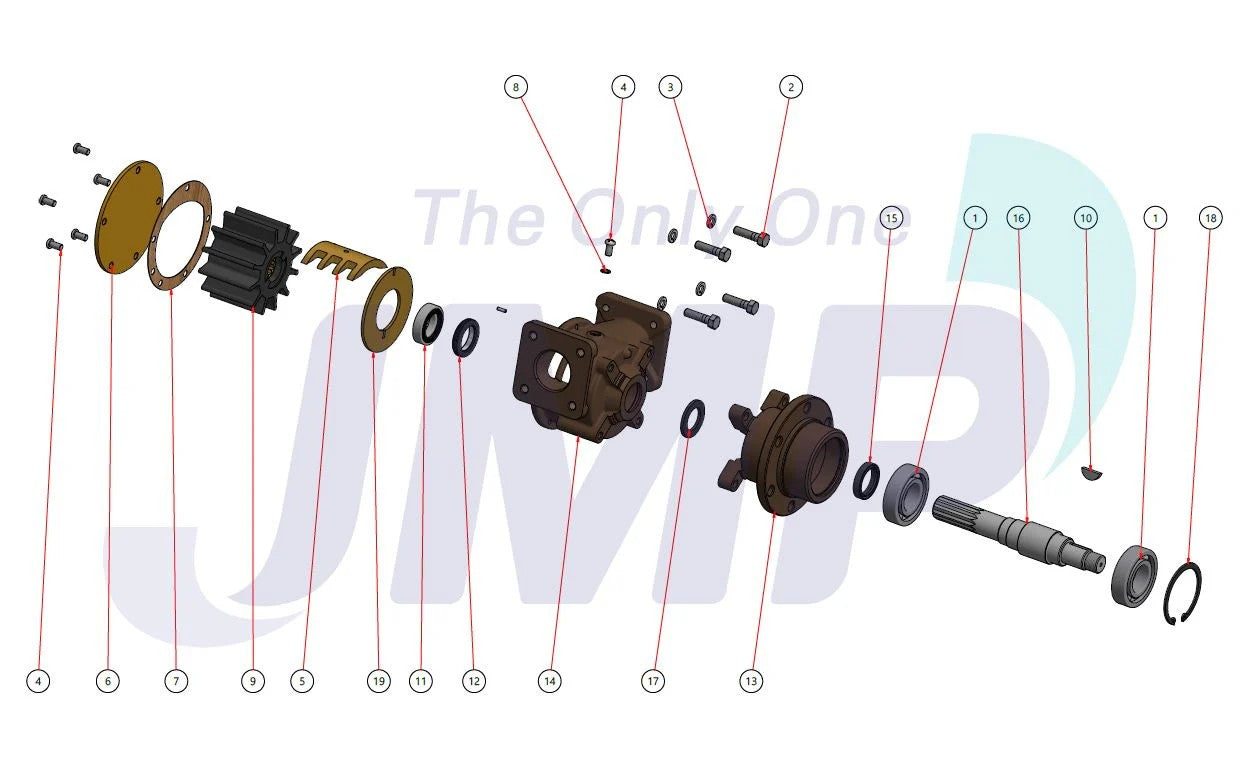

• Replaceable mechanical seal, bearings, cam and wear components

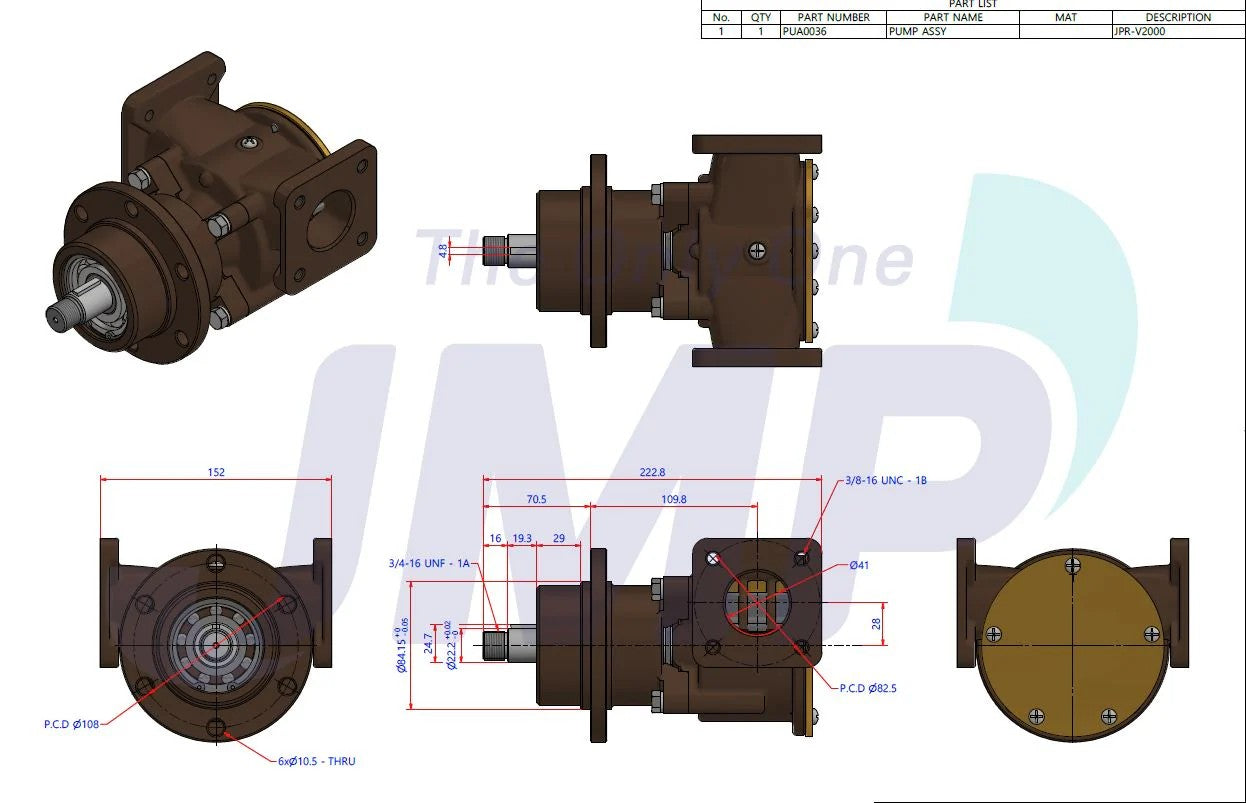

• Designed to match the listed OEM mounting, rotation and connection layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 3829311 → Supersedes 846354 and 822787

• Johnson 10-21915-01 is the original pump cross-reference

OEM / Related Numbers:

• JPR-V2000

• Volvo Penta 3829311

• Volvo Penta 846354

• Volvo Penta 822787

• Johnson 10-21915-01

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-V2000

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta TAMD61 and TAMD71

• Volvo Penta MD100 and MD100A

• Volvo Penta TMD100 and TMD100A

• Volvo Penta TAMD100 and TAMD100A

• Volvo Penta MD120 and MD120A

• Volvo Penta TMD120 and TMD120A

• Volvo Penta TAMD120 and TAMD120A

• Volvo Penta TAMD102D

• Volvo Penta TMD121C and TAMD121C

• Volvo Penta TMD122A, TAMD122A and TAMD122P

• HP Range: Engine-rating specific

• Engine Type: Volvo Penta heavy-duty inline-six marine diesel

• Year Range: Model-specific; confirm OEM pump 3829311

• Drive: Engine gear-driven

• Original Pump Cross-Reference: Johnson 10-21915-01

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
