JPR-V3000 Aftermarket Volvo Penta Seawater Pump 3829313 | Sawley's Select Marine Parts

🔧 Product Description

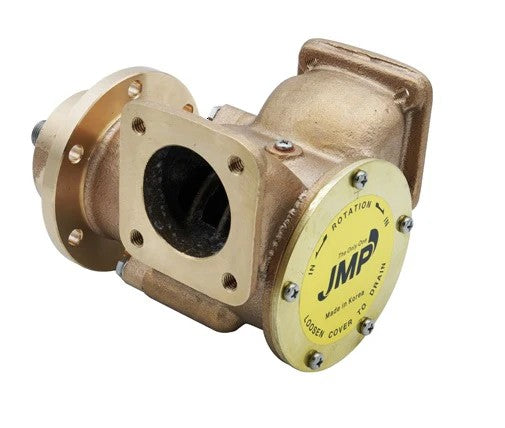

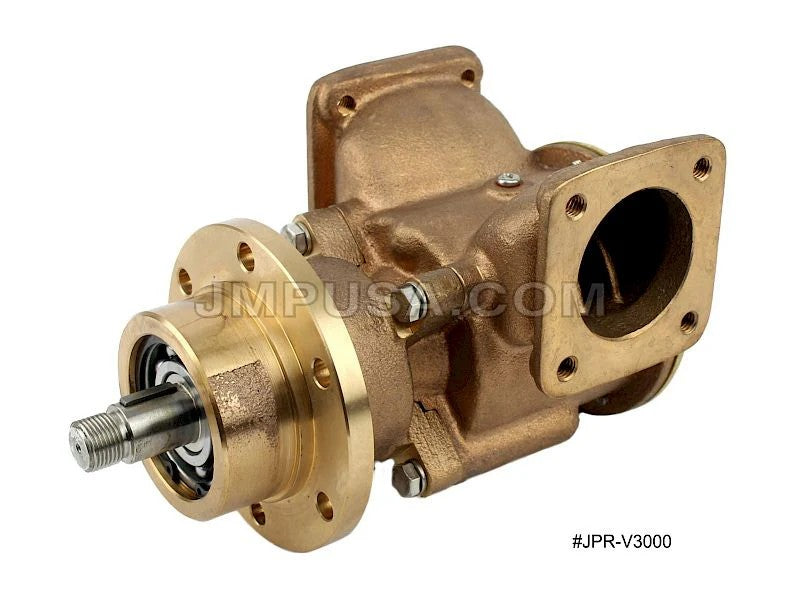

Aftermarket JMP Volvo Penta TAMD120/122 seawater pump - Replacement Part Number: JPR-V3000

A heavy-duty replacement seawater pump for later Volvo Penta TAMD120 and TAMD122 marine diesel engines. It replaces the 3829313/3829312/3583112 pump family and cross-references to Jabsco 10950-0041.

⚙️ Key Features

• Heavy-duty marine bronze pump body

• Flexible-impeller positive-displacement design

• Marine-grade non-magnetic stainless-steel shaft

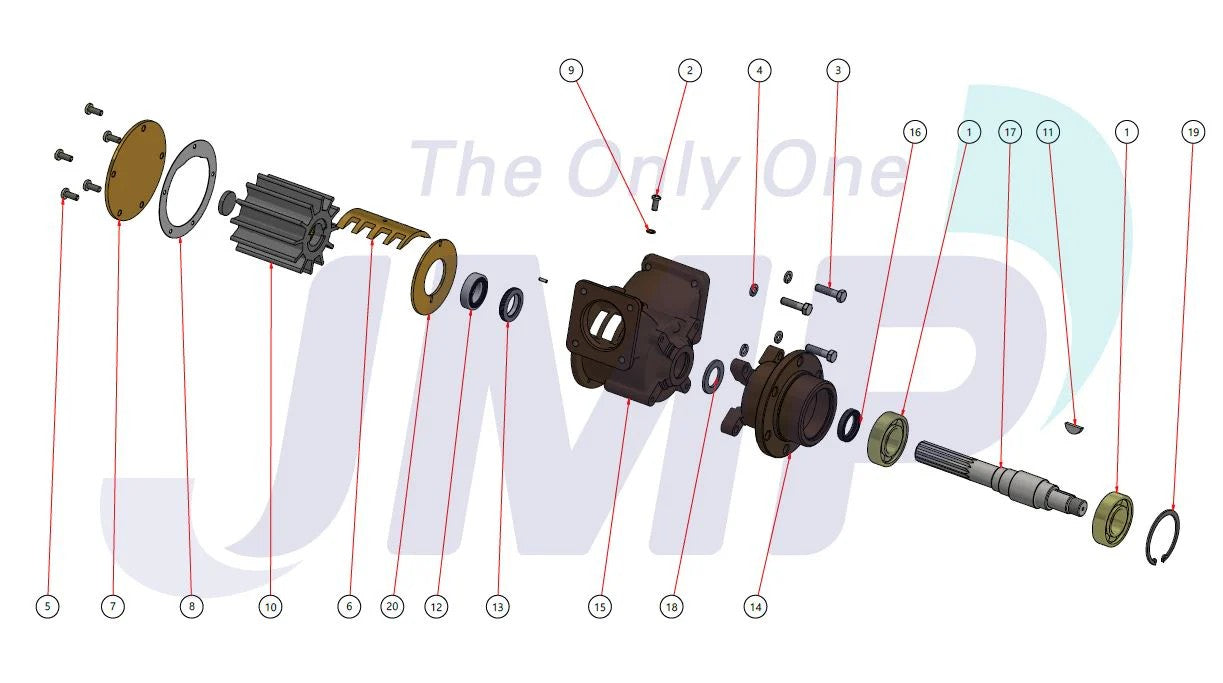

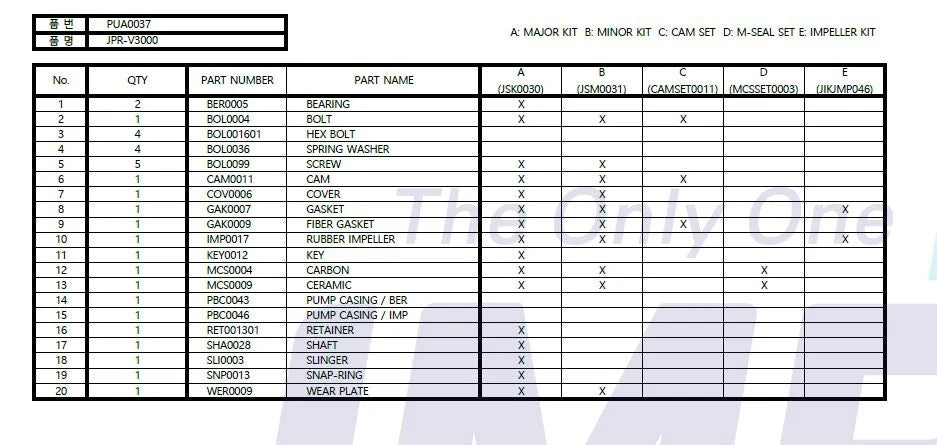

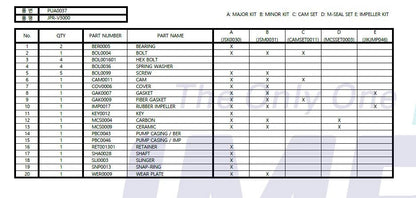

• Replaceable mechanical seal, bearings, cam and wear components

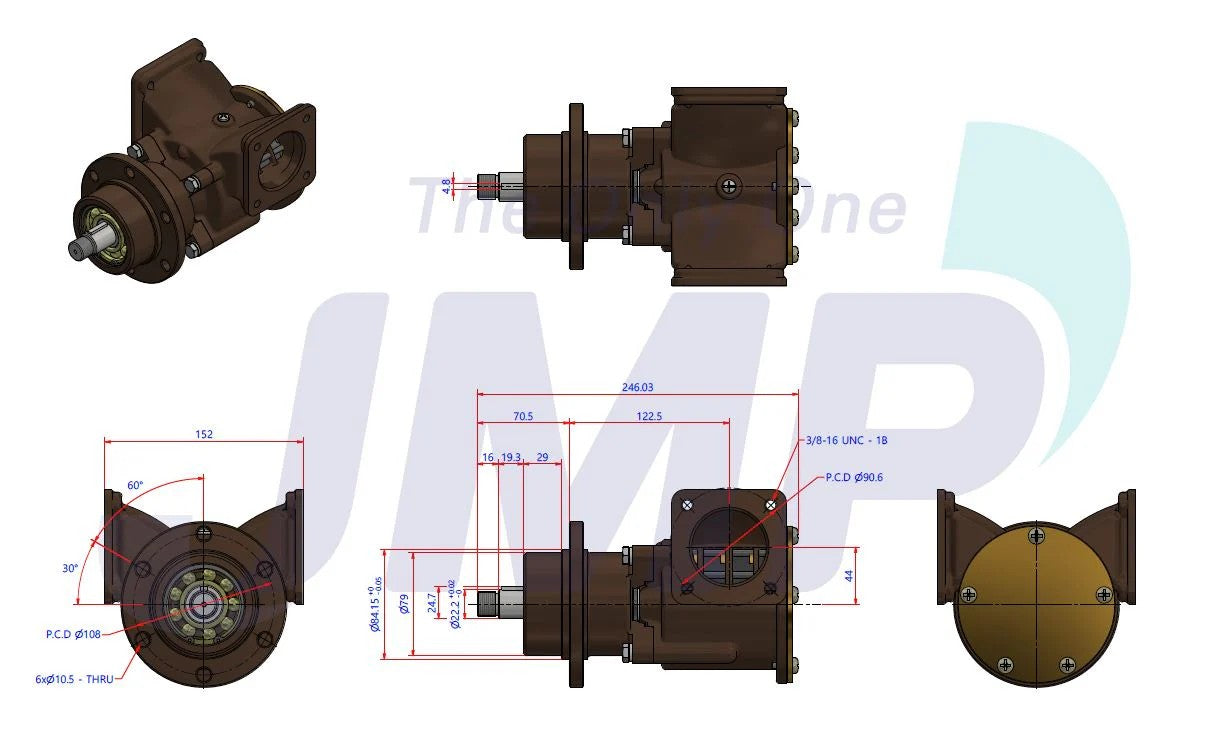

• Designed to match the listed OEM mounting, rotation and connection layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 3829313 → Related later replacement for 3829312 and 3583112 on specified engines

• Jabsco 10950-0041 is the original pump cross-reference

OEM / Related Numbers:

• JPR-V3000

• Volvo Penta 3829313

• Volvo Penta 3829312

• Volvo Penta 3583112

• Jabsco 10950-0041

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-V3000

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta TAMD120A and TAMD120B

• Volvo Penta TAMD122A, TAMD122C, TAMD122D and TAMD122P

• HP Range: Engine-rating specific

• Engine Type: Volvo Penta heavy-duty inline-six marine diesel

• Year Range: Model-specific; confirm OEM pump 3829313 or 3829312

• Drive: Engine gear-driven

• Original Pump Cross-Reference: Jabsco 10950-0041

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
