JPR-VP0030DA Aftermarket Volvo Penta D3 A-C Seawater Pump 21141637 | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket JMP Volvo Penta D3 A-C seawater pump - Replacement Part Number: JPR-VP0030DA

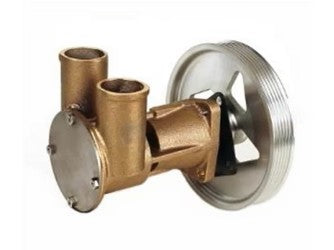

A replacement bronze seawater pump for first-generation Volvo Penta D3 A-, B- and C-series marine diesels. It replaces Volvo Penta 21141637 and earlier 3884694. It does not fit the redesigned D-, E- or F-series engines that require JPR-VP0030DB.

⚙️ Key Features

• Heavy-duty marine bronze pump body

• Flexible-impeller positive-displacement design

• Marine-grade non-magnetic stainless-steel shaft

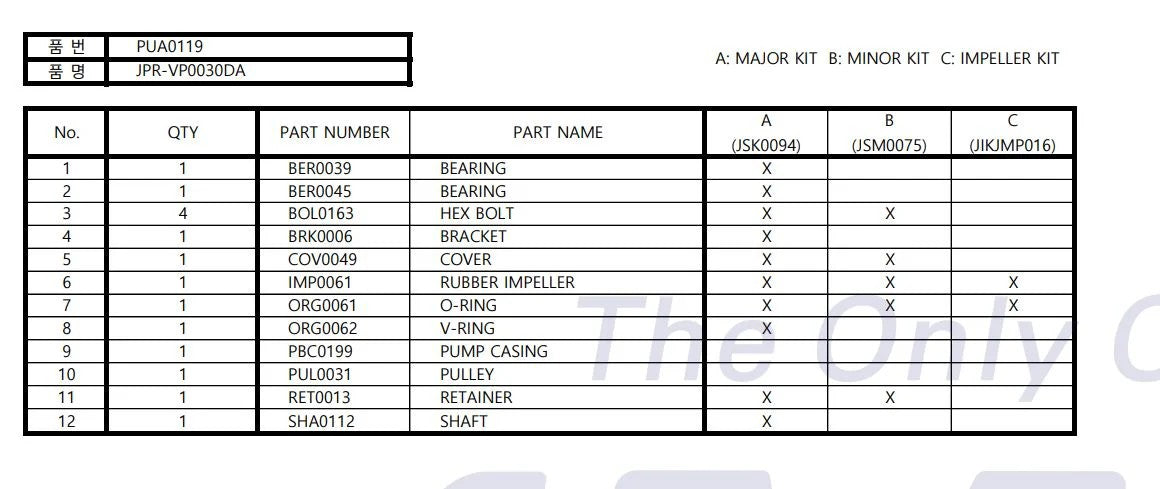

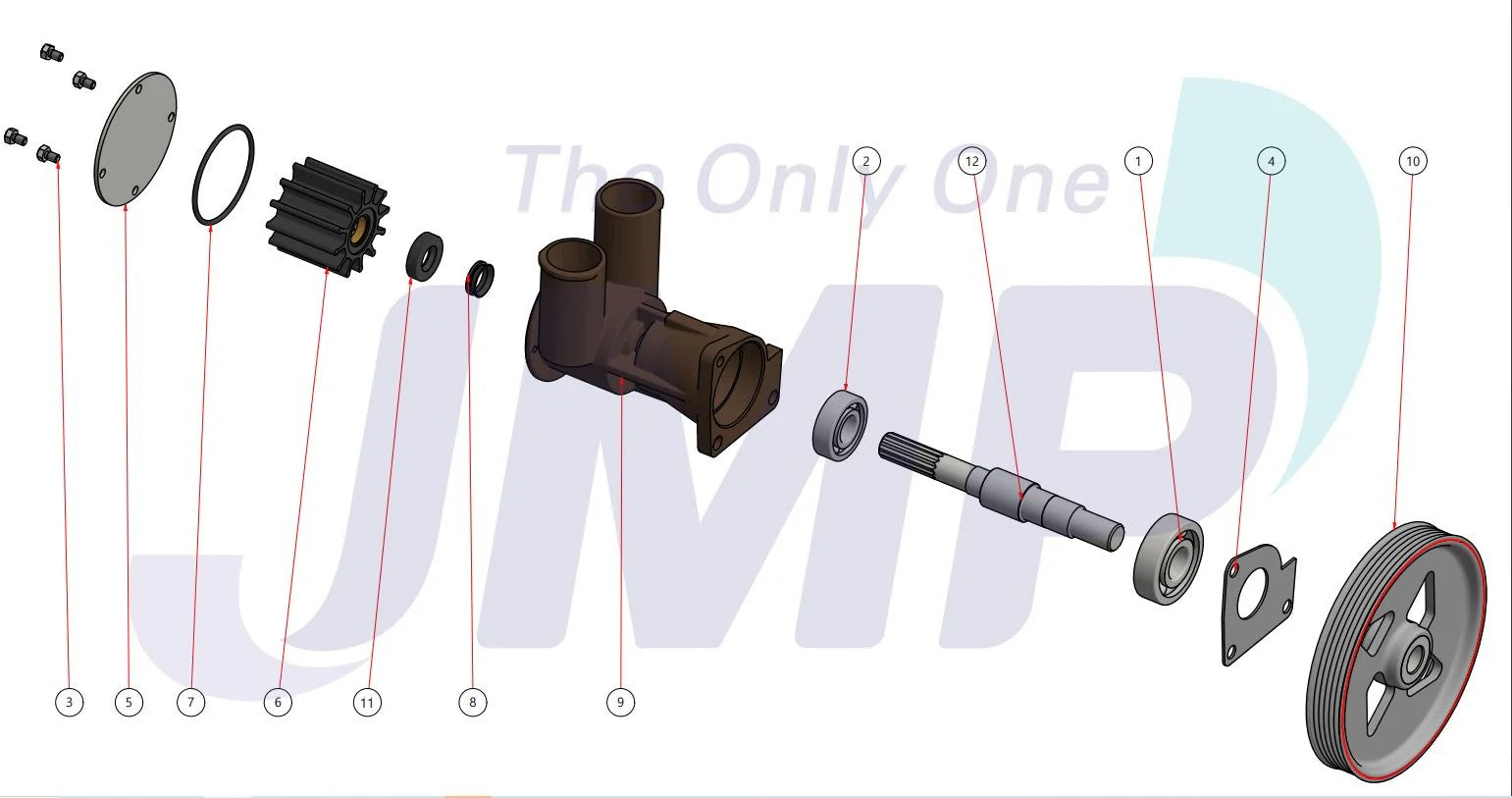

• Replaceable mechanical seal, bearings, cam and wear components

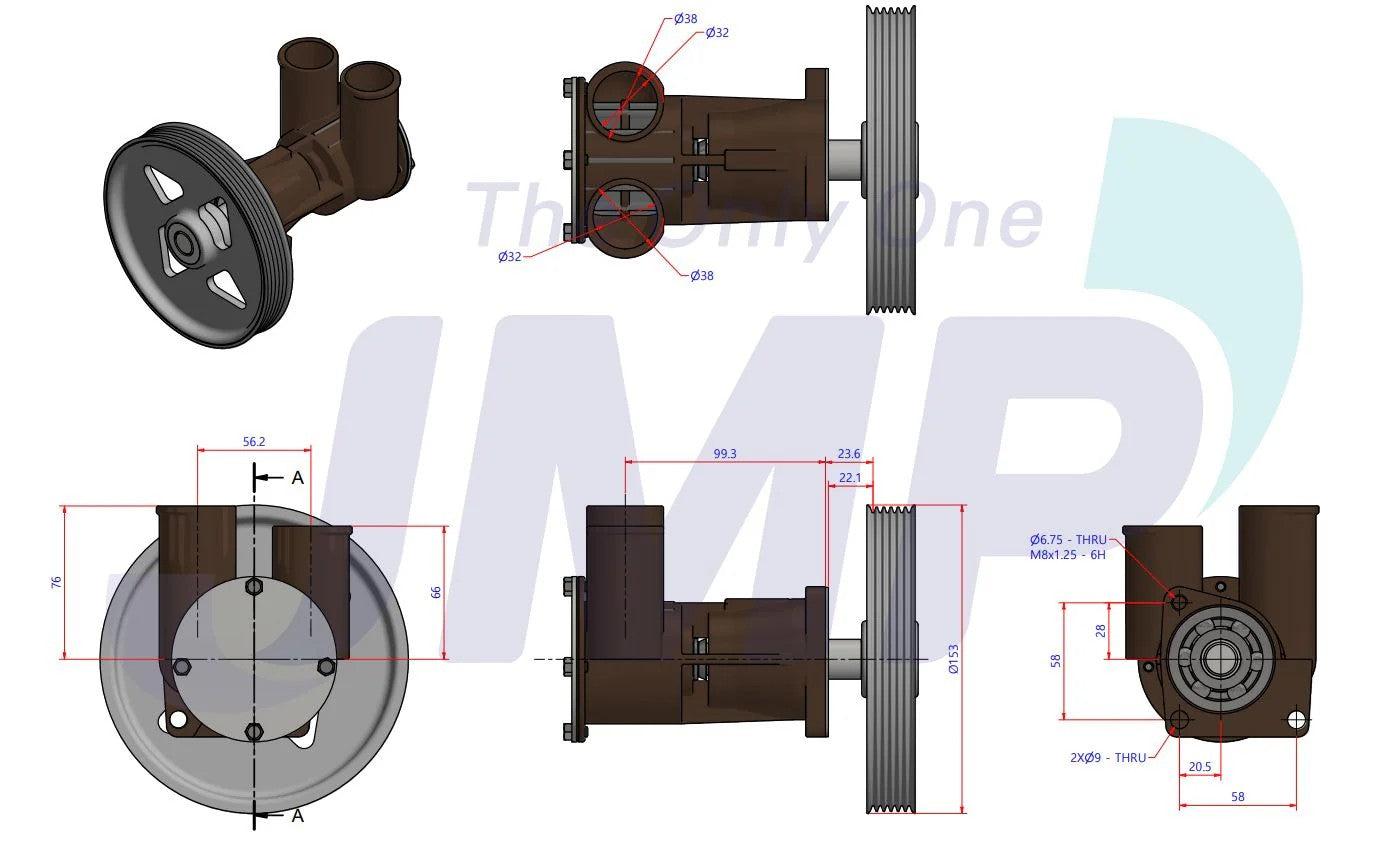

• Designed to match the listed OEM mounting, rotation and connection layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 21141637 → Supersedes 3884694

OEM / Related Numbers:

• JPR-VP0030DA

• Volvo Penta 21141637

• Volvo Penta 3884694

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-VP0030DA

Important Fitment Notes:

• D3 D-, E- and F-series engines require JPR-VP0030DB / Volvo Penta 21379102.

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta D3-110I-A, D3-110I-B and D3-110I-C

• Volvo Penta D3-130A-A/B/C and D3-130I-A/B/C

• Volvo Penta D3-160A-A/B/C and D3-160I-A/B/C

• Volvo Penta D3-190A-B/C and D3-190I-B/C

• HP Range: 110HP-190HP

• Engine Type: First-generation Volvo Penta D3 five-cylinder common-rail marine diesel

• Year Range: D3 A-C generation; confirm OEM pump 21141637 or 3884694

• Generation: D3 A-, B- and C-series only

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
