🔧 Product Description

Aftermarket JMP Volvo Penta D4 E-series seawater pump - Replacement Part Number: JPR-VP0040DB

A later-type bronze seawater pump for selected Volvo Penta D4 E-series engines. It replaces Volvo Penta 21419374 and related 22901573 service references. The supplied 3841697 number is an earlier related reference and must be confirmed against the engine.

⚙️ Key Features

• Heavy-duty marine bronze pump body

• Flexible-impeller positive-displacement design

• Marine-grade non-magnetic stainless-steel shaft

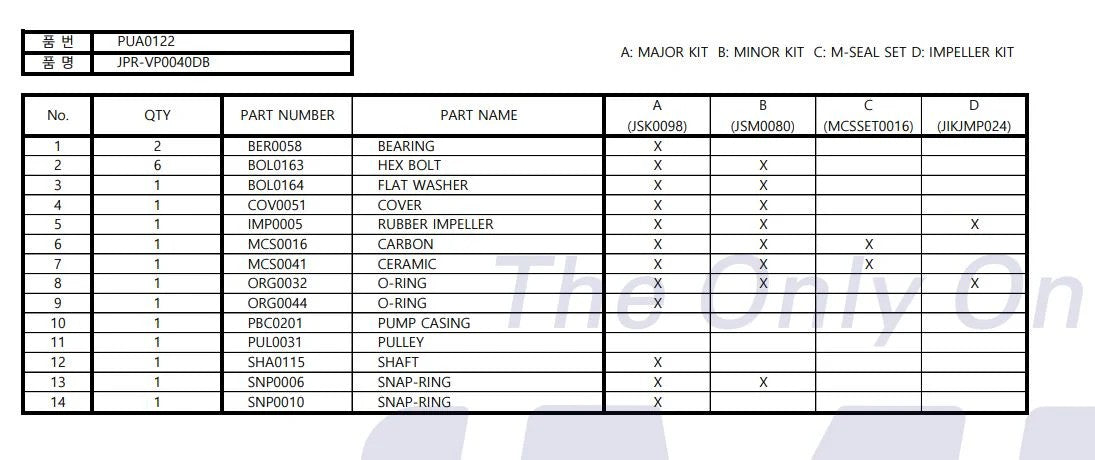

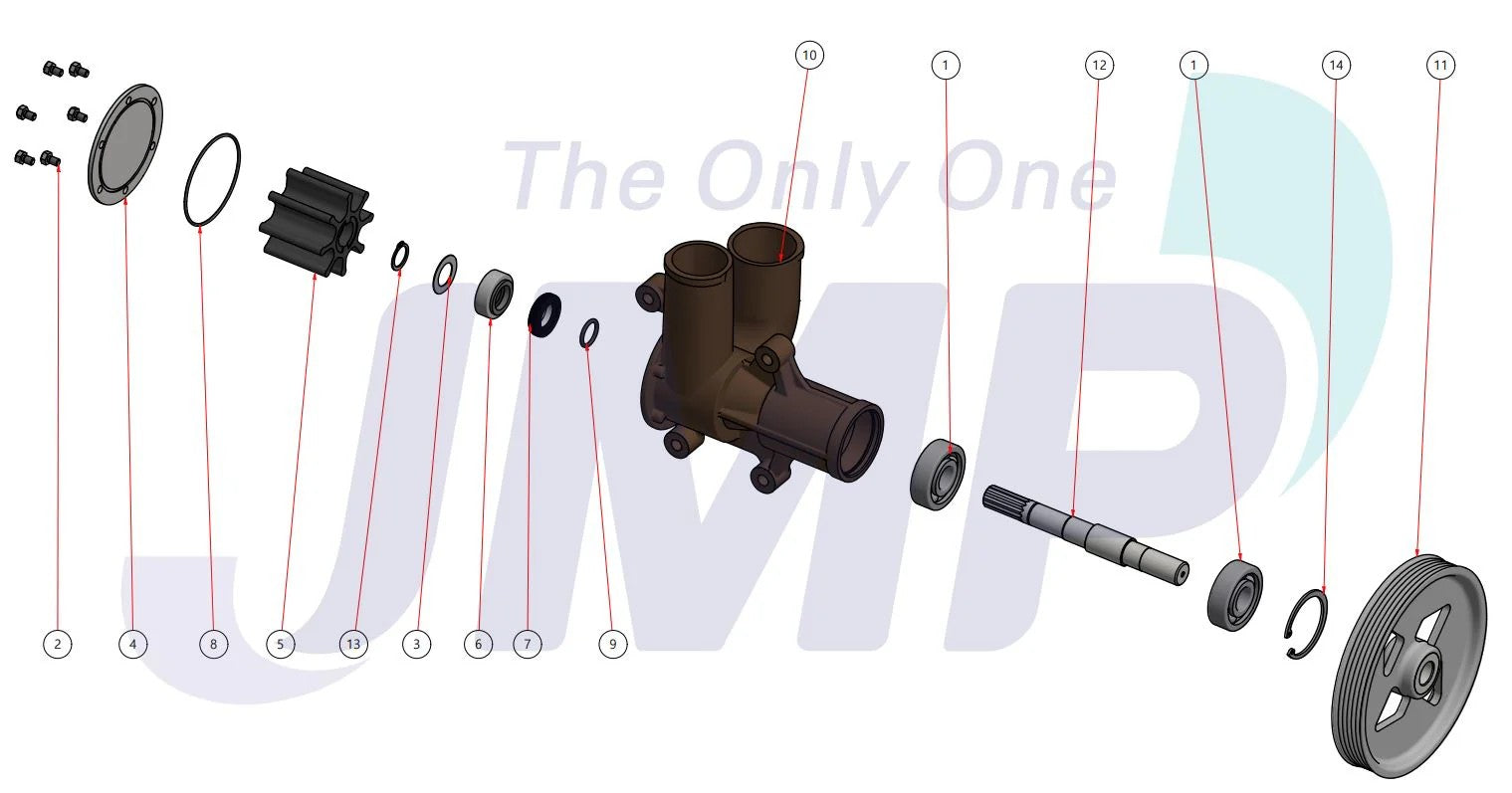

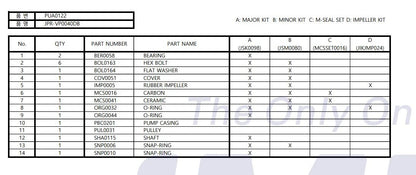

• Replaceable mechanical seal, bearings, cam and wear components

• Designed to match the listed OEM mounting, rotation and connection layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 22901573 → Later related service reference for 21419374

• Volvo Penta 21419374 (later D4 pump reference)

• Volvo Penta 3841697 (earlier related reference; verify before substitution)

OEM / Related Numbers:

• JPR-VP0040DB

• Volvo Penta 21419374

• Volvo Penta 22901573

• Volvo Penta 3841697

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-VP0040DB

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta D4-225A-E

• Volvo Penta D4-260A-E and D4-260D-E

• Volvo Penta D4-300A-E and D4-300D-E

• HP Range: 225HP-300HP

• Engine Type: Volvo Penta D4 four-cylinder common-rail marine diesel

• Year Range: Later D4 E-series; confirm OEM pump 21419374 or 22901573

• Generation: Later D4 E-series pump configuration

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
