🔧 Product Description

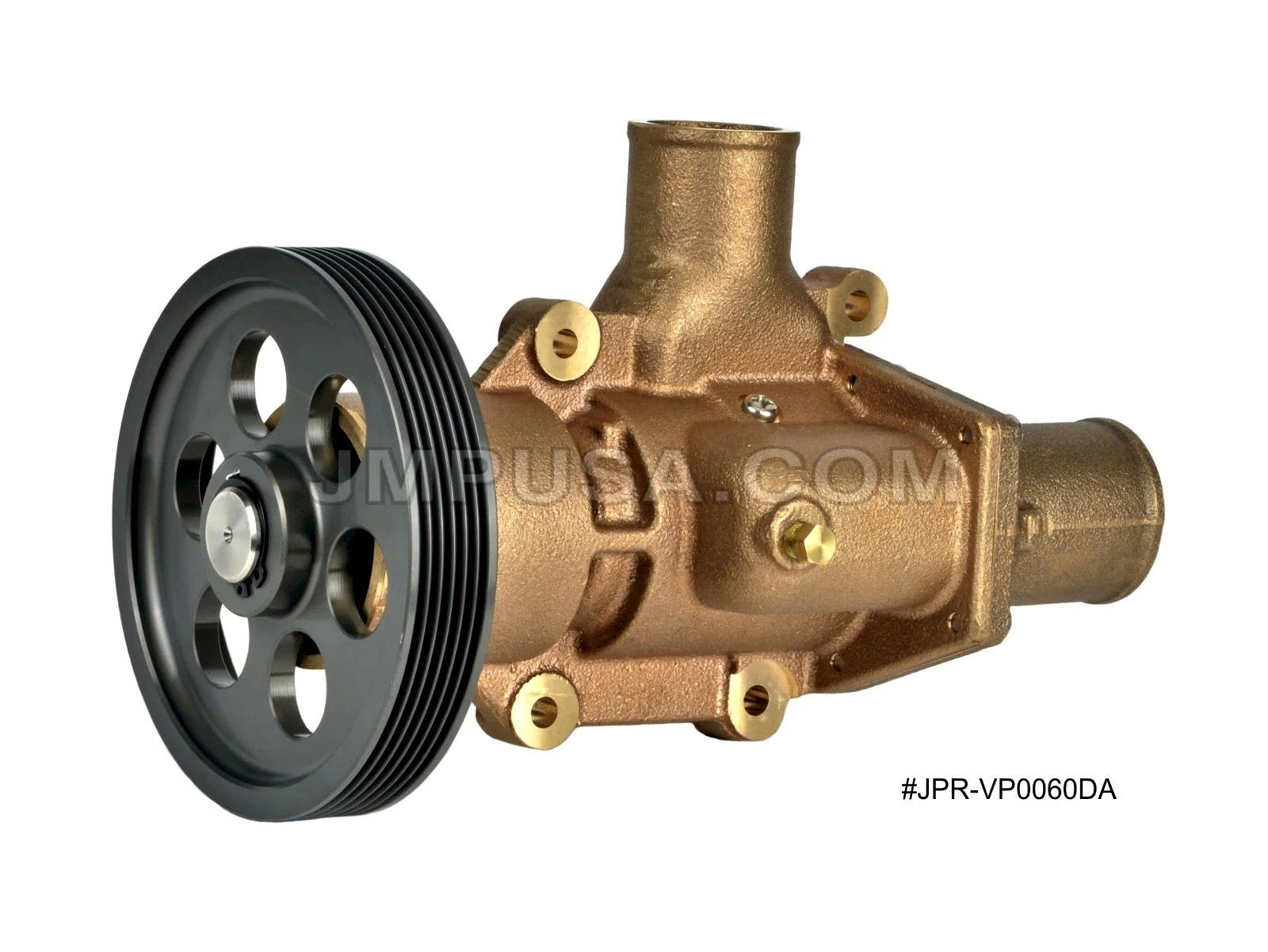

Aftermarket JMP Volvo Penta D6 old-style seawater pump - Replacement Part Number: JPR-VP0060DA

The old-style bronze seawater pump for Volvo Penta D6 F-series engines. It replaces Volvo Penta 21380890 and earlier 3589907 and cross-references to Jabsco 50394-8300/8100. It must not be substituted for the later JPR-VP0060DB pump solely by engine model.

⚙️ Key Features

• Heavy-duty marine bronze pump body

• Flexible-impeller positive-displacement design

• Marine-grade non-magnetic stainless-steel shaft

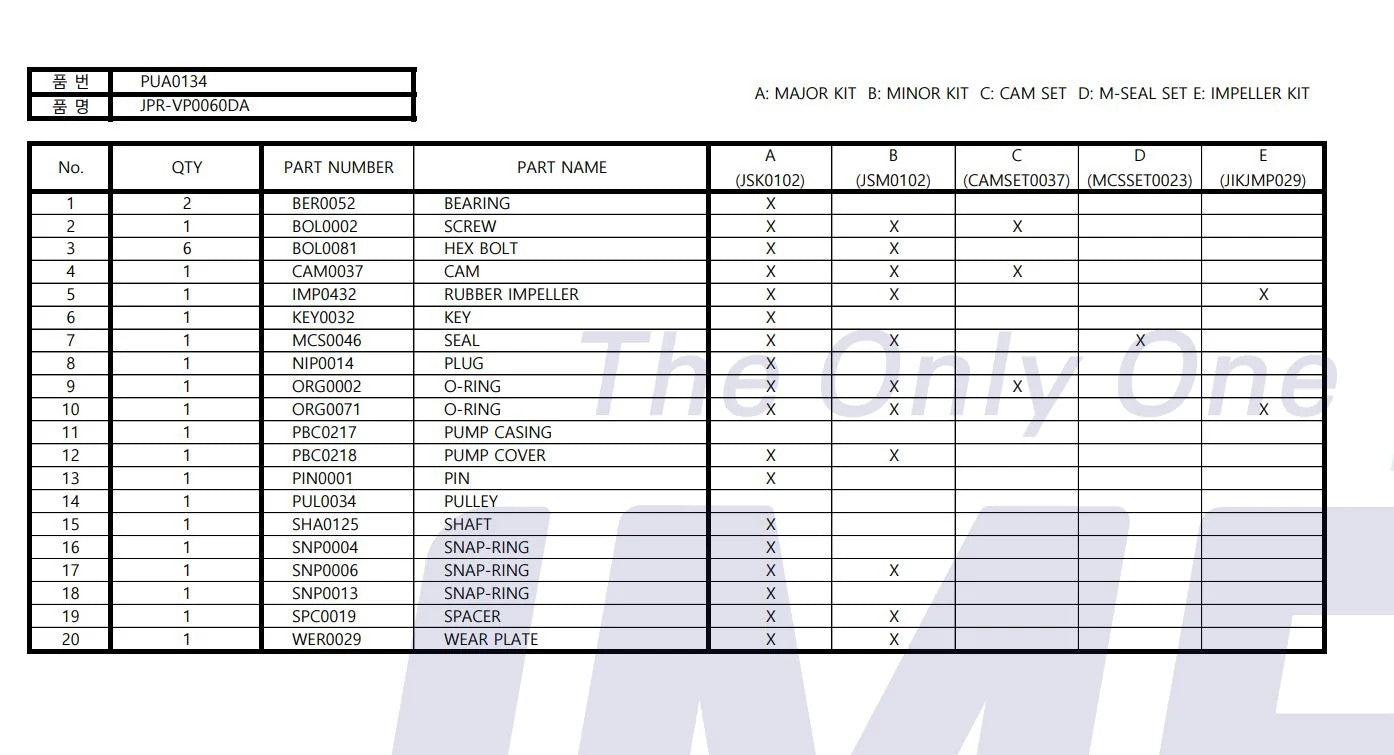

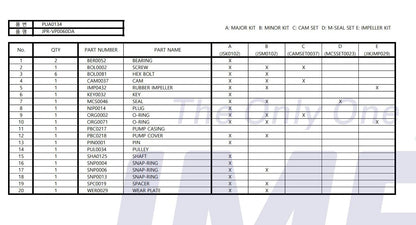

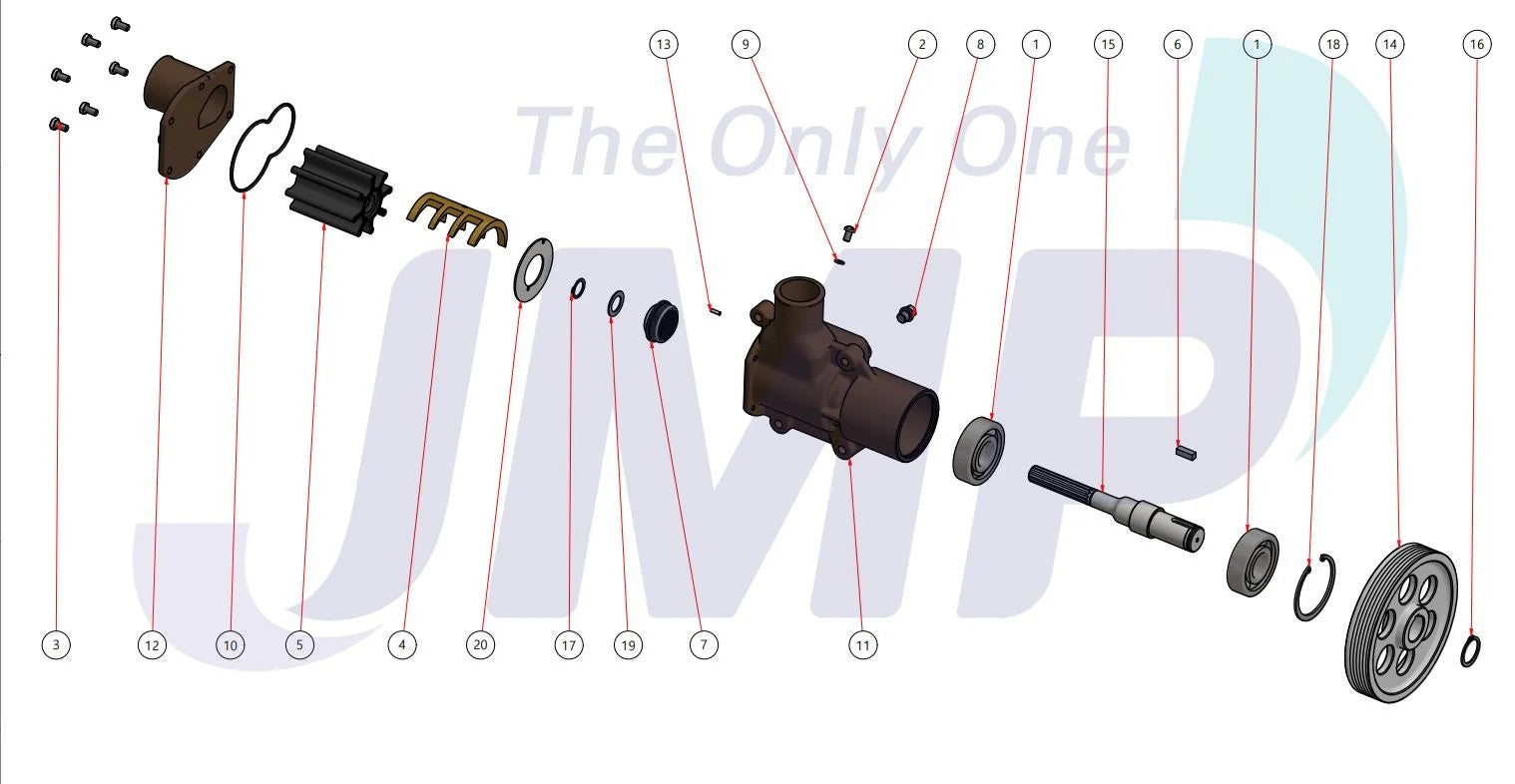

• Replaceable mechanical seal, bearings, cam and wear components

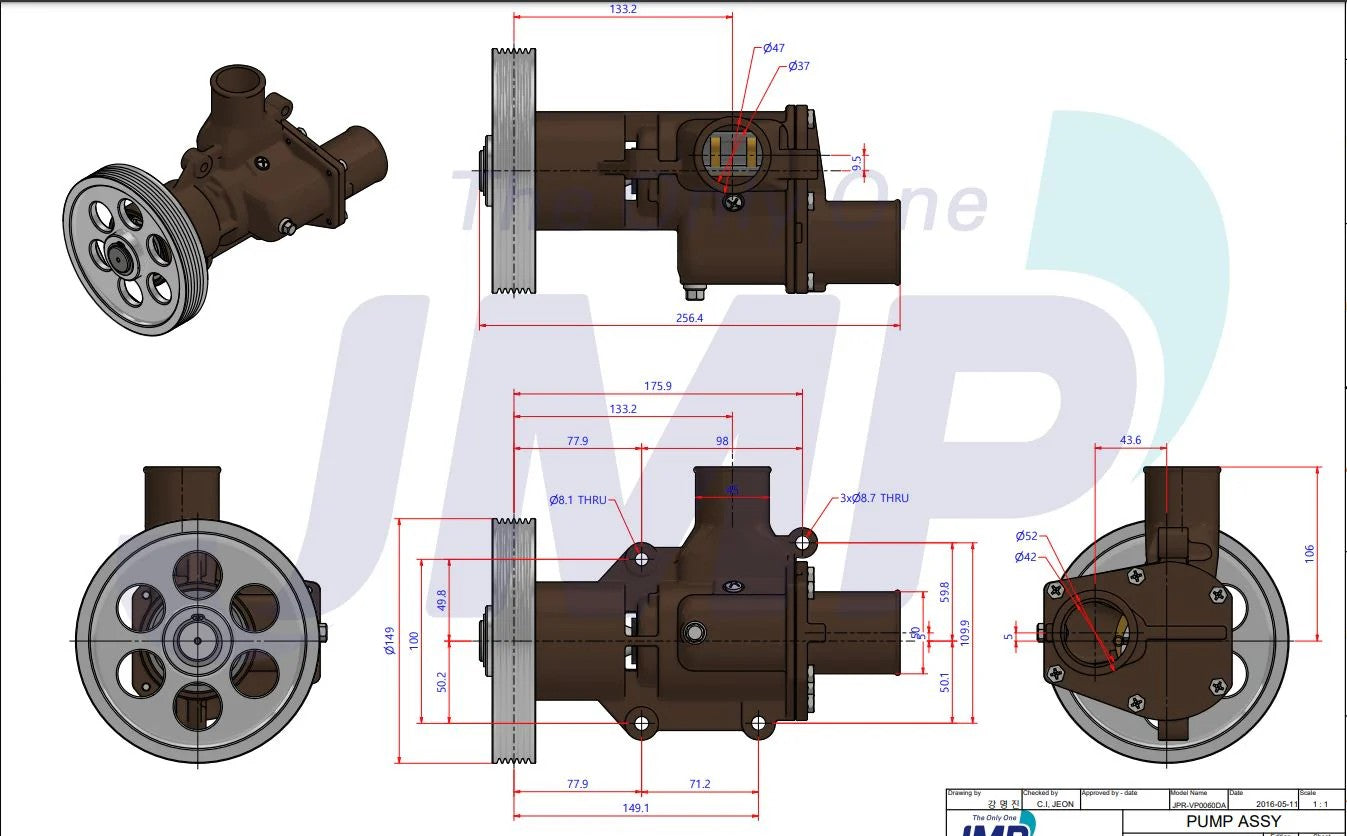

• Designed to match the listed OEM mounting, rotation and connection layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 21380890 → Supersedes 3589907

• Jabsco 50394-8300 / 50394-8100 are original pump cross-references

OEM / Related Numbers:

• JPR-VP0060DA

• Volvo Penta 21380890

• Volvo Penta 3589907

• Jabsco 50394-8300

• Jabsco 50394-8100

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-VP0060DA

Important Fitment Notes:

• The engine model list overlaps the new-style pump; identify the correct pump by OEM number and physical housing before ordering.

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta D6-300A-F, D6-300D-F (MC) and D6-300I-F

• Volvo Penta D6-330A-F, D6-330D-F and D6-330I-F

• Volvo Penta D6-370A-F, D6-370D-F and D6-370I-F

• Volvo Penta D6-400A-F

• Volvo Penta D6-435D-F

• Volvo Penta D6-435I-SC-F, D6-435I-TC-F and D6-435I-WJ-F

• HP Range: 300HP-435HP

• Engine Type: Volvo Penta D6 six-cylinder common-rail marine diesel

• Year Range: Old-style D6 pump production; confirm OEM 21380890/3589907

• Pump Version: Old style

• Original Pump Cross-Reference: Jabsco 50394-8300 / 50394-8100

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
