🔧 Product Description

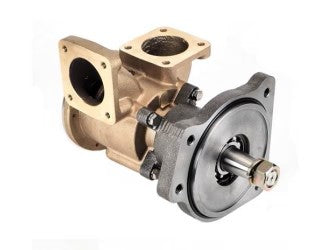

Aftermarket JMP Volvo Penta D12 seawater pump - Replacement Part Number: JPR-VP0120D

A heavy-duty bronze seawater pump for Volvo Penta D12C and D12D propulsion and marine-commercial engines. It replaces Volvo Penta 3838207 and earlier 865295 and cross-references to Jabsco 29830-0001.

⚙️ Key Features

• Heavy-duty marine bronze pump body

• Flexible-impeller positive-displacement design

• Marine-grade non-magnetic stainless-steel shaft

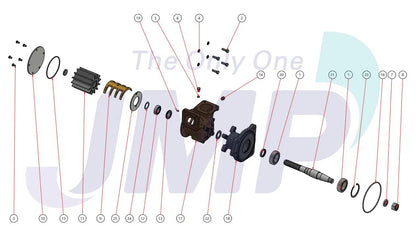

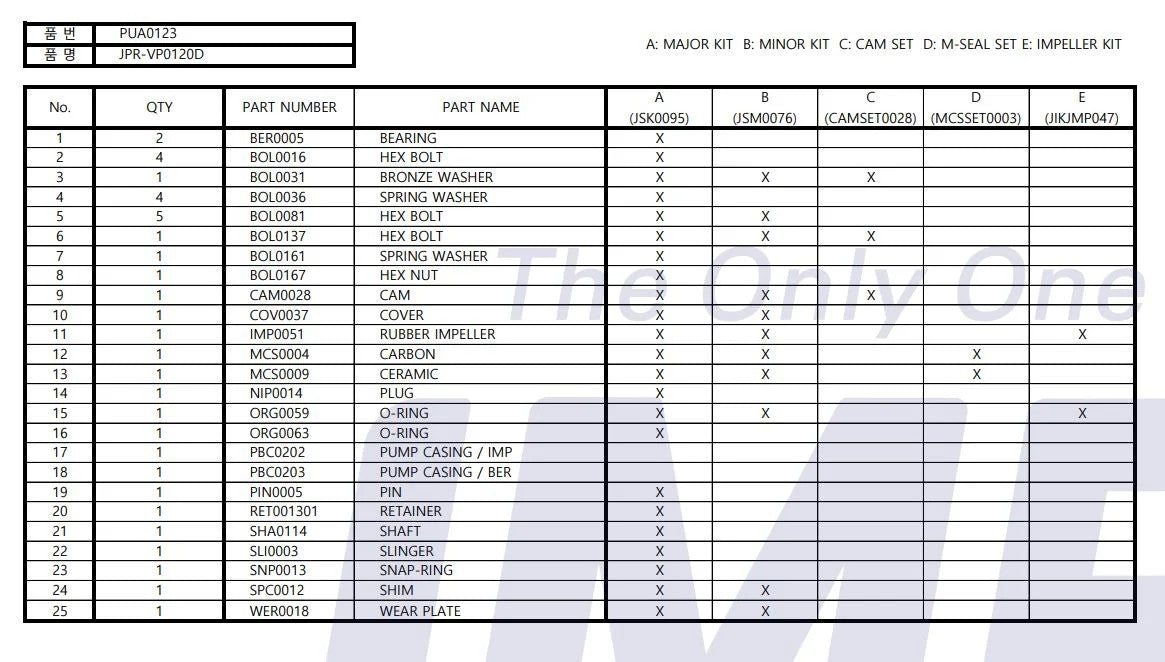

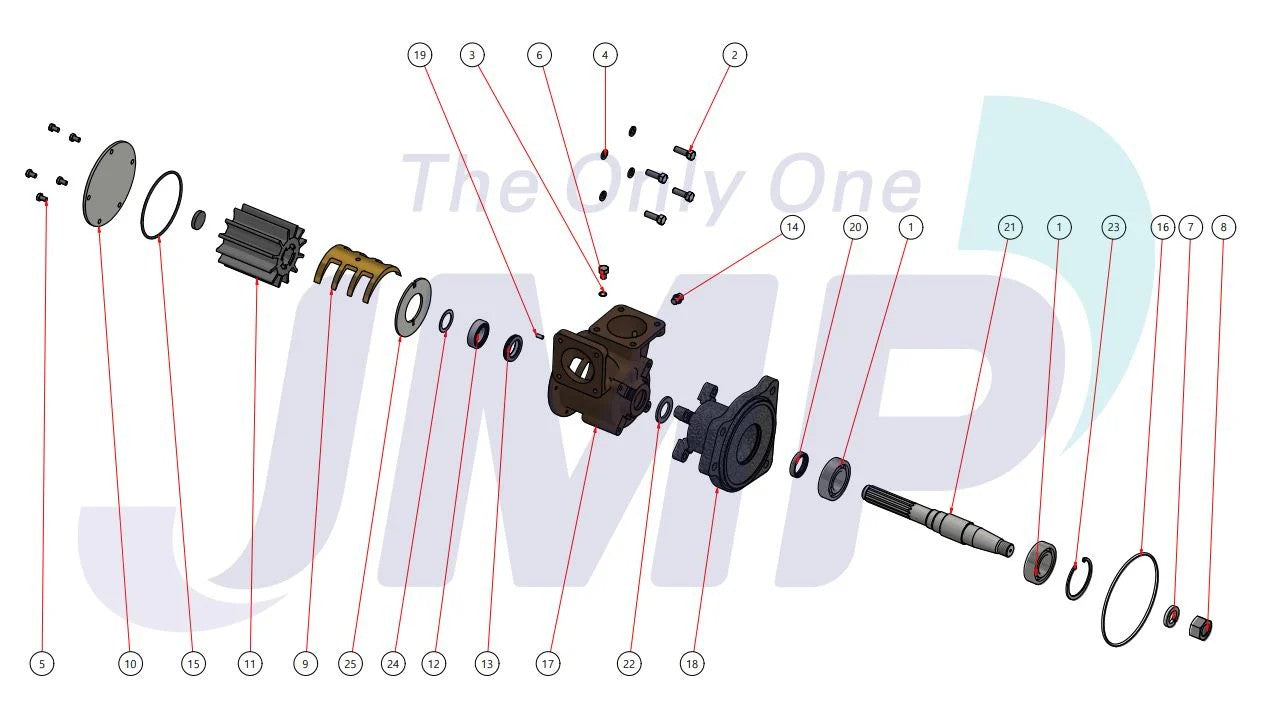

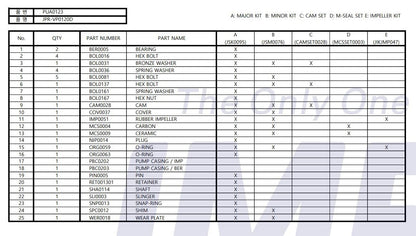

• Replaceable mechanical seal, bearings, cam and wear components

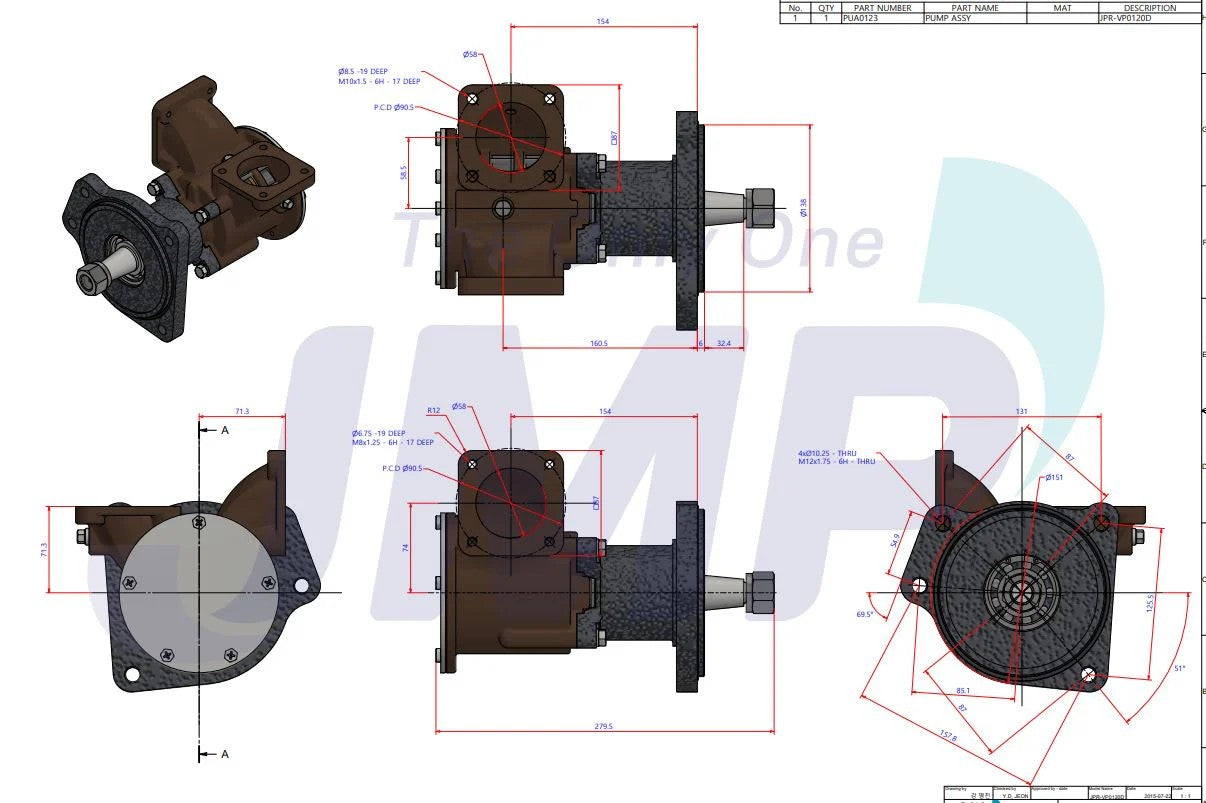

• Designed to match the listed OEM mounting, rotation and connection layout

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 3838207 → Supersedes 865295

• Jabsco 29830-0001 is the original pump cross-reference

OEM / Related Numbers:

• JPR-VP0120D

• Volvo Penta 3838207

• Volvo Penta 865295

• Jabsco 29830-0001

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-VP0120D

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta D12C-A MP

• Volvo Penta D12D-A, D12D-B, D12D-C, D12D-D, D12D-E, D12D-F, D12D-G and D12D-H MP

• Volvo Penta D12D-A, D12D-B and D12D-C MH

• Volvo Penta D12D-C, D12D-E and D12D-G MH

• HP Range: Engine-rating specific

• Engine Type: Volvo Penta D12 inline-six heavy-duty marine diesel

• Year Range: Model-specific; confirm OEM pump 3838207 or 865295

• Original Pump Cross-Reference: Jabsco 29830-0001

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
