JPR-VP4596G Aftermarket Volvo Penta 4.3/5.0/5.7 GL Seawater Pump 21214596 | Sawley's Select Marine Parts

🔧 Product Description

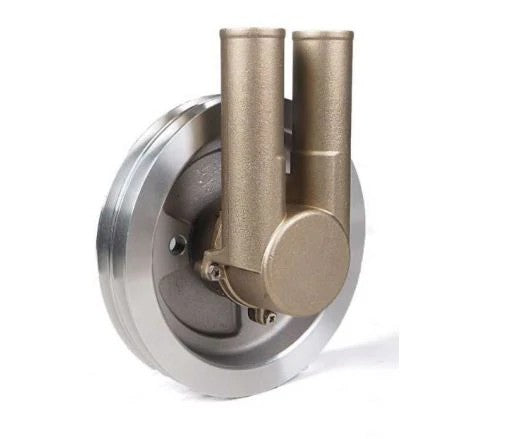

Aftermarket JMP Volvo Penta V-belt gasoline seawater pump with long hose - Replacement Part Number: JPR-VP4596G

A two-groove V-belt seawater pump for Volvo Penta 4.3L, 5.0L and 5.7L GL/GS/Gi petrol engines. It replaces Volvo Penta 21214596, 3862487, 3858229 and 3812697 and uses the long-hose connection layout.

⚙️ Key Features

• Bronze V-belt-driven pump body

• Two-groove drive pulley configuration

• Long-hose connection layout

• JMP 7100H-01K impeller

• Cross-references to Johnson 10-13469-01

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Volvo Penta 21214596 → Supersedes 3862487, 3858229 and 3812697

• Johnson 10-13469-01 is the original pump cross-reference

OEM / Related Numbers:

• JPR-VP4596G

• Volvo Penta 21214596

• Volvo Penta 3862487

• Volvo Penta 3858229

• Volvo Penta 3812697

• Johnson 10-13469-01

• Impeller: JMP 7100H-01K

Aftermarket / Verified Equivalents:

• JMP Marine: JPR-VP4596G

🚤 Compatibility

Commonly used on:

• Flexible-impeller raw-water cooling systems

Typically suits:

• Engine models:

• Volvo Penta 4.3GL, 5.0GL and 5.7GL

• Volvo Penta 4.3GS, 5.0GS and 5.7GS

• Volvo Penta 4.3Gi and 5.0Gi

• HP Range: Engine-rating specific

• Engine Type: Volvo Penta GM-based petrol V6/V8 with V-belt pump drive

• Year Range: Model- and serial-specific; confirm OEM pump 21214596

• Pulley: Two-groove V-belt

• Hose Layout: Long hose

• Impeller Reference: JMP 7100H-01K

🔌 Function

The seawater pump draws raw water through the intake and circulates it through the engine, heat exchanger, oil cooler, aftercooler and wet-exhaust circuit as applicable. Its flexible impeller must maintain adequate flow from idle through full load while the shaft, bearings and mechanical seal keep the drive and water sections correctly supported and separated.

Common signs of failure:

• Engine temperature rises under load or at higher RPM

• Reduced or intermittent water discharge from the exhaust

• Missing, cracked, swollen or permanently set impeller vanes

• Seawater leakage or salt tracks from the shaft seal or weep area

• Bearing noise, pulley or gear wobble, or excessive shaft movement

• Scored cover plate, worn cam or damaged pump housing reduces suction

• Internal corrosion, air leakage or blocked inlet passages cause loss of prime

📦 Condition

• Brand new aftermarket replacement part

• New and unused

• Supplied in manufacturer or equivalent protective packaging
