KCA346 Whiteline Front Lower Inner Rear Bushings Caster & Anti Lift to Suit Holden Astra LD and Nissan Pulsar N13, N14 | Genuine Whiteline Suspension Component
KCA346 Whiteline Front Lower Inner Rear Bushings Caster & Anti Lift to Suit Holden Astra LD and Nissan Pulsar N13, N14 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

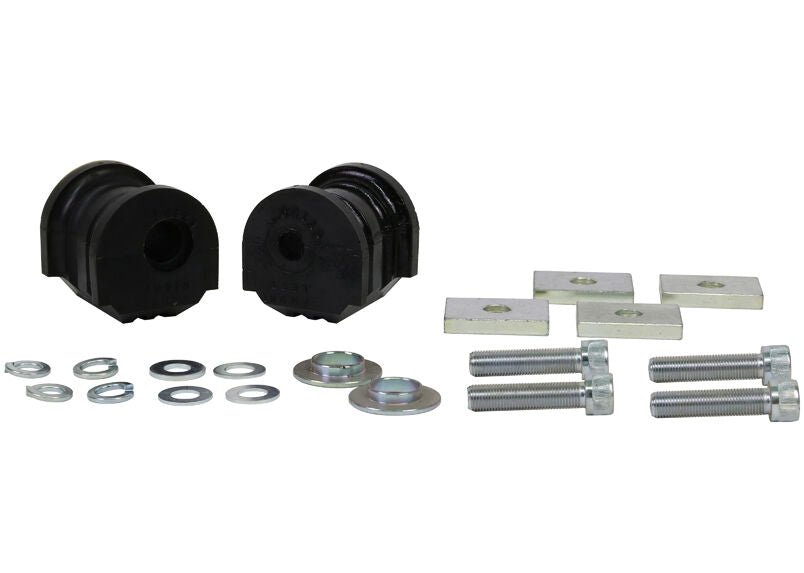

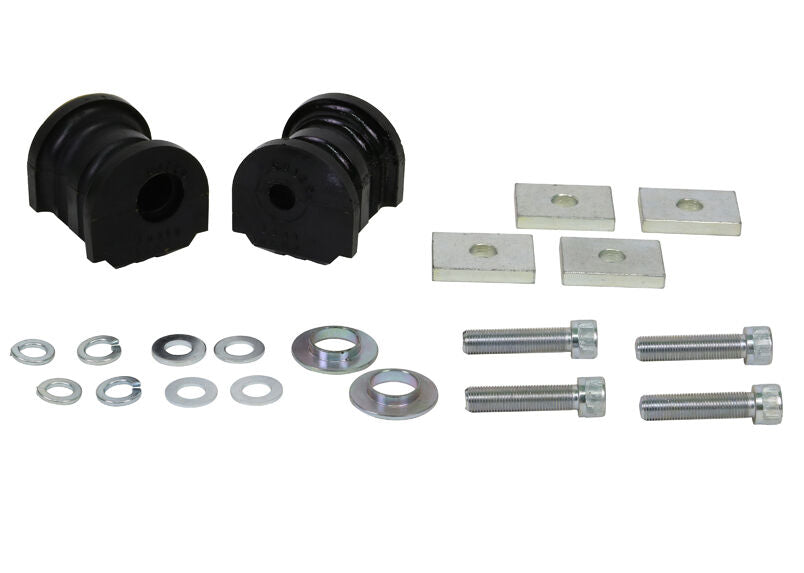

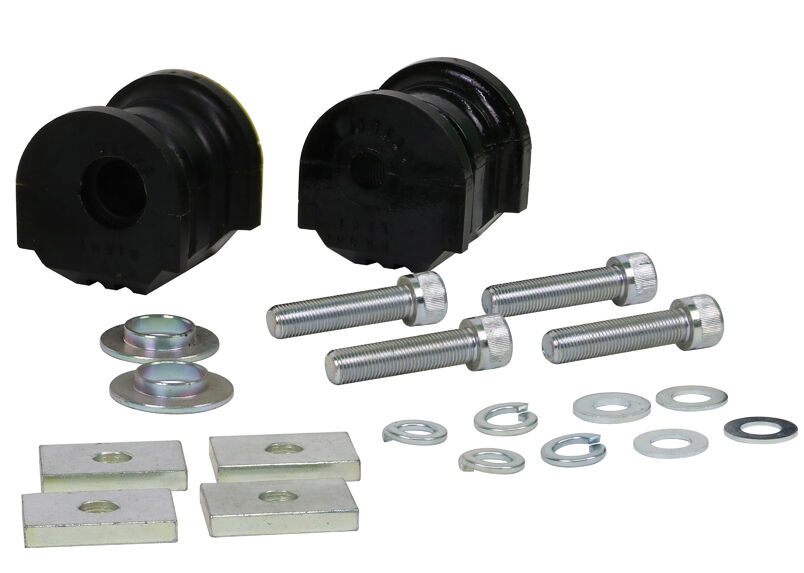

- Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 4 Plates, 4 Bolts, 10 Washers
Benefit Note: Whiteline Anti Lift Kits are primarily designed to improve traction and cornering grip under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.
Kit Specifications
| Bush Type | 4 - D-bushing With Flange | 4 - D-bushing With Flange |
|---|---|---|
| Bush Quantity | 1 mm | 1 mm |
| OD (A) | 56 mm | 56 mm |
| ID (B) | 20.2 mm | 20.2 mm |
| Length (C) | 65 mm | 65 mm |
| Flange Thickness (D) | 7.8 mm | 7.8 mm |
| Flange OD (E) | ||
| C/Tube Quantity | ||
| C/Tube ODxIDxL |
| Alignment | Alignment Adjustment Type | Alignment On Car Adjustable |
|---|---|---|
| Caster / Anti-Lift | Offset | No |
| Caster / Anti-Lift | Offset | No |

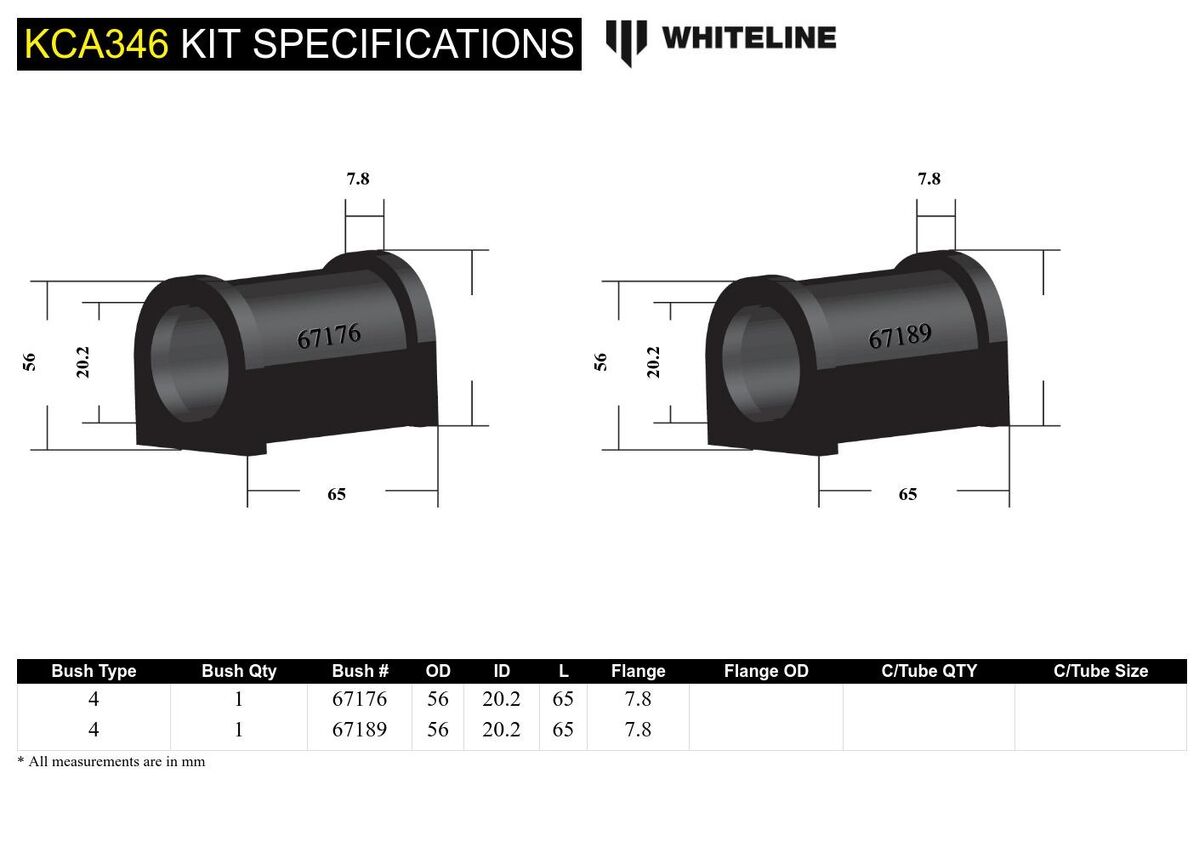

Bushing Design Dimensions (mm)
| Bush Type | 4 | 4 |
|---|---|---|
| QTY | 1 | 1 |
| OD (A) | 56 | 56 |
| ID (B) | 20.2 | 20.2 |
| Length (C) | 65.0 | 65.0 |
| FL (D) | 7.8 | 7.8 |
| FLOD (E) | ||
| C/Tube Qty | ||
| C/Tube Size |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.04kg | 2.29lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | KCA346 |
| Components Per | 2 Bushings, 4 Plates, 4 Bolts, 10 Washers |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Bushings, 4 Plates, 4 Bolts, 10 Washers |
| EAN | 9319924342518 |
