KCA349 Whiteline Rear Subframe - Align and Lock Bushing Kit to Suit Nissan 180SX, 200SX. 300ZX and Skyline | Genuine Whiteline Suspension Component
KCA349 Whiteline Rear Subframe - Align and Lock Bushing Kit to Suit Nissan 180SX, 200SX. 300ZX and Skyline | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

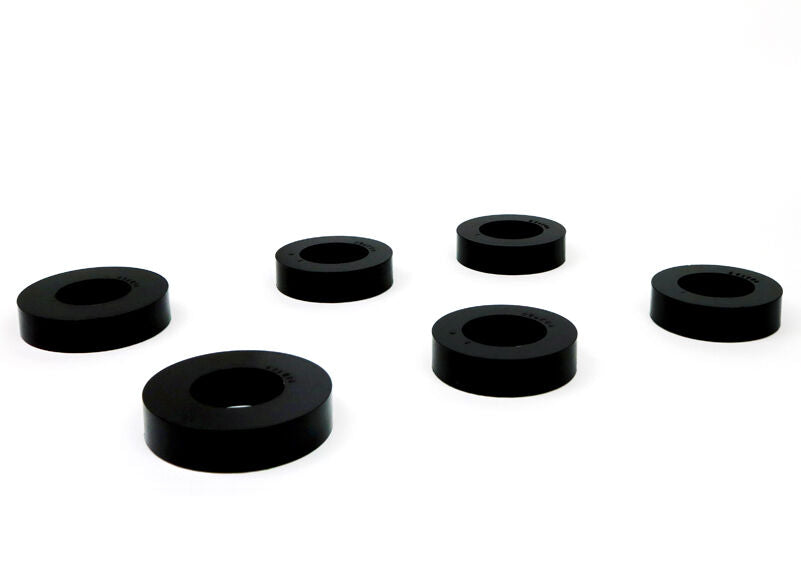

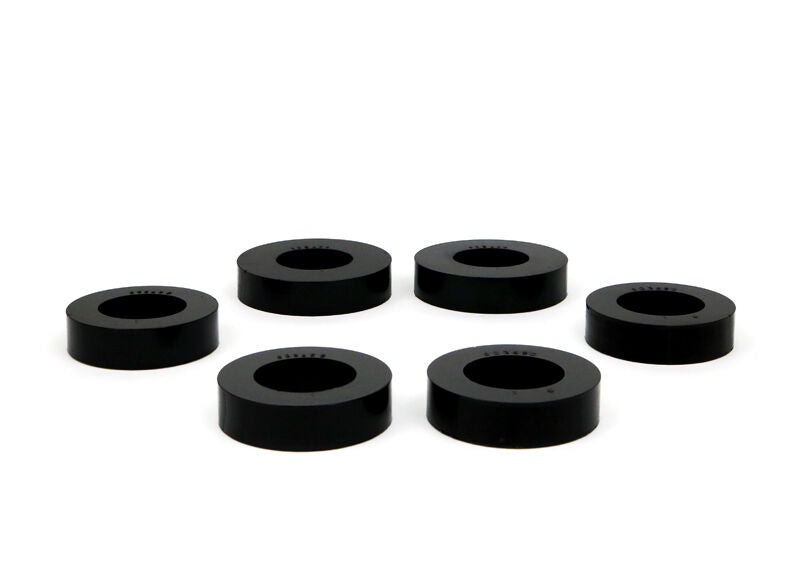

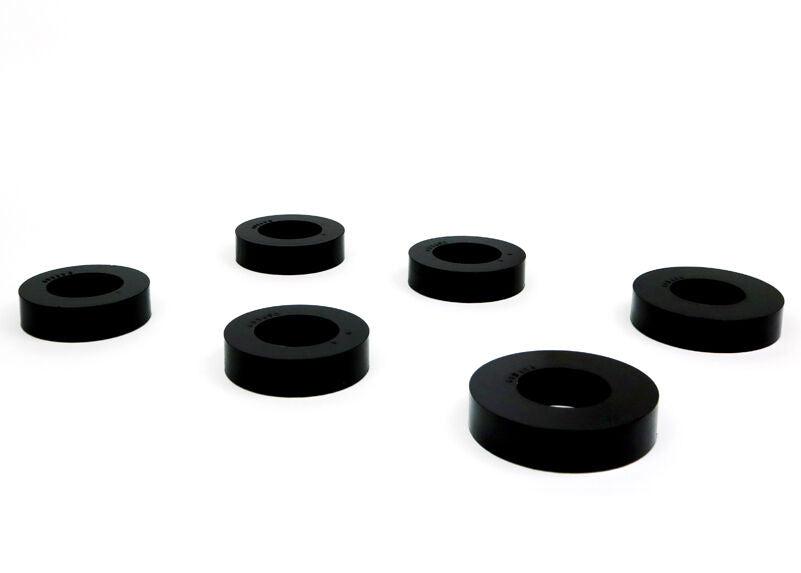

- Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 6 Bushings

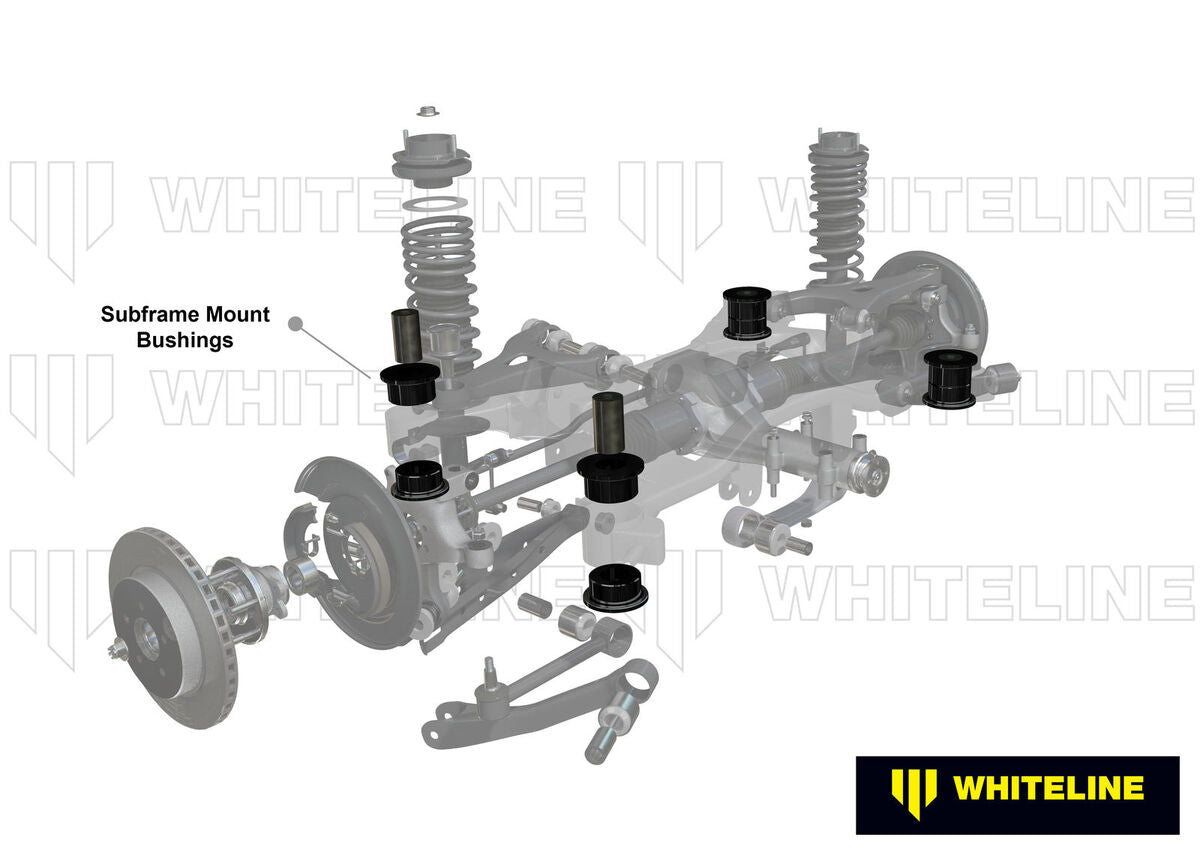

Benefit Note: This easy to install kit is designed to change the inclination of the rear sub-frame whilst reducing bushing compliance. By locating the rings in different planes it possible to induce rear squat (maximum traction) or anti-squat (drift) properties. This product may induce increased NVH levels.
Kit Specifications
| Bush Type | 7 - Pin Bush With & Without Spigot | 7 - Pin Bush With & Without Spigot | 7 - Pin Bush With & Without Spigot |
|---|---|---|---|
| Bush Quantity | 2 mm | 2 mm | 2 mm |
| OD (A) | 80.2 mm | 69.4 mm | 69.6 mm |
| ID (B) | 39.4 mm | 40.6 mm | 40.6 mm |
| Length (C) | 18.2 mm | 18.2 mm | 18.5 mm |
| Flange Thickness (D) | |||
| Flange OD (E) | |||
| C/Tube Quantity | |||
| C/Tube ODxIDxL |
| Alignment | Alignment Adjustment Type | Alignment On Car Adjustable |
|---|---|---|
| Anti Squat | Spacer | No |
| Anti Squat | Spacer | No |
| Anti Squat | Spacer | No |

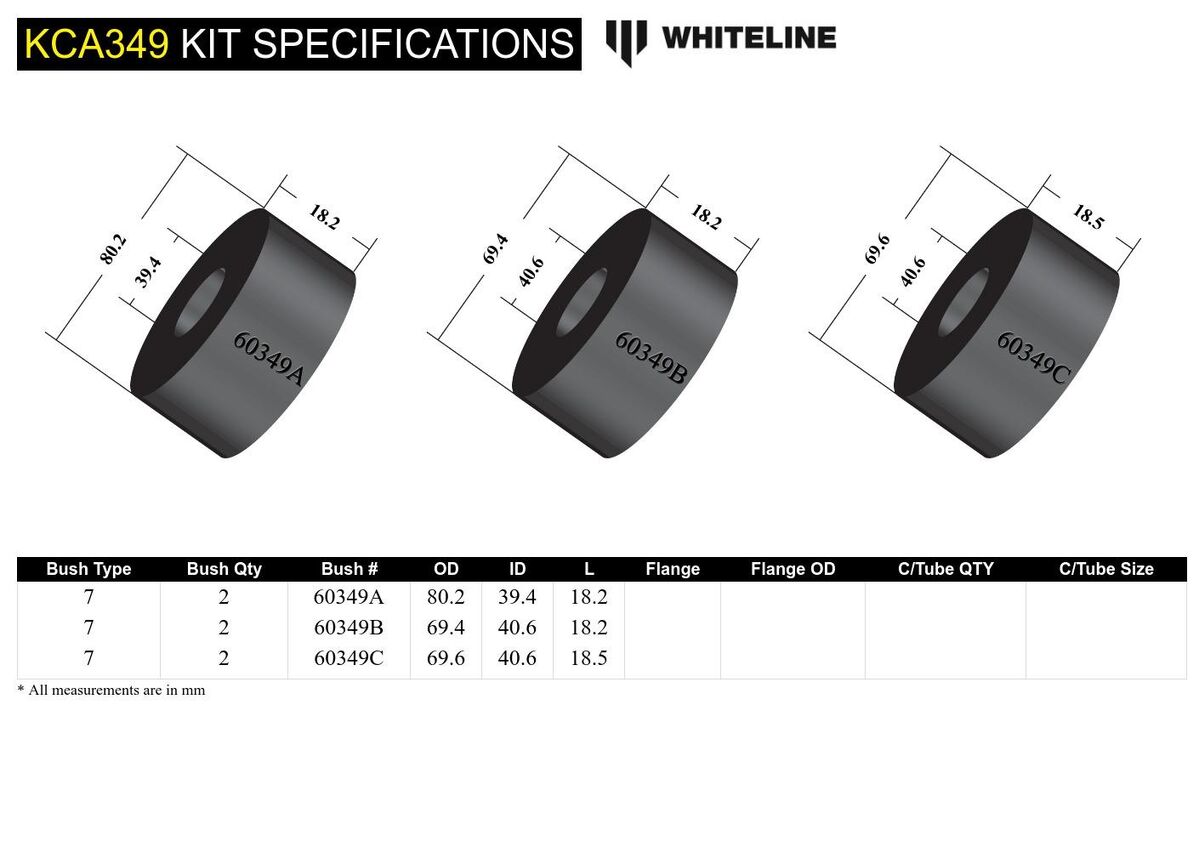

Bushing Design Dimensions (mm)
| Bush Type | 7 | 7 | 7 |
|---|---|---|---|
| QTY | 2 | 2 | 2 |
| OD (A) | 80.2 | 69.4 | 69.6 |
| ID (B) | 39.4 | 40.6 | 40.6 |
| Length (C) | 18.2 | 18.2 | 18.5 |
| FL (D) | |||
| FLOD (E) | |||
| C/Tube Qty | |||
| C/Tube Size |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.38kg | 0.84lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | KCA349 |
| Components Per | 6 Bushings |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 6 Bushings |
| EAN | 9319924342549 |
