KCA434 Whiteline Front Lower Control Arm - Inner Front Bushing Kit Double Offset to Suit Subaru BRZ and Toyota 86 | Genuine Whiteline Suspension Component
KCA434 Whiteline Front Lower Control Arm - Inner Front Bushing Kit Double Offset to Suit Subaru BRZ and Toyota 86 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

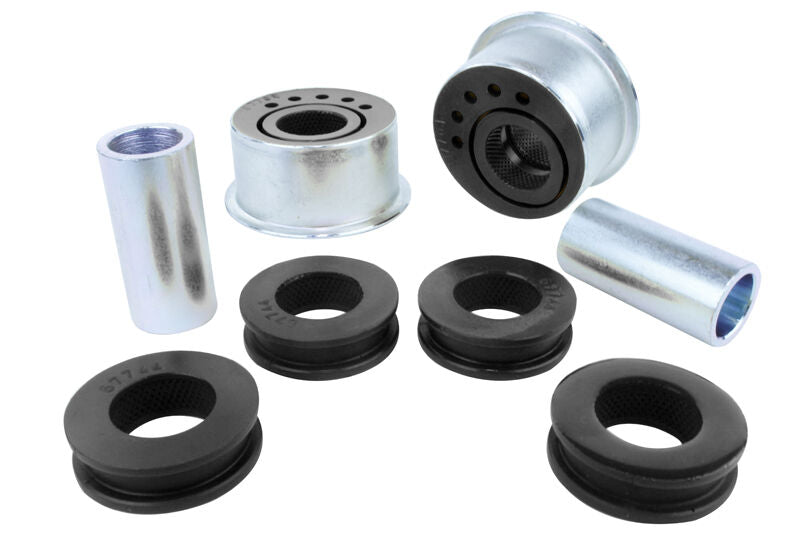

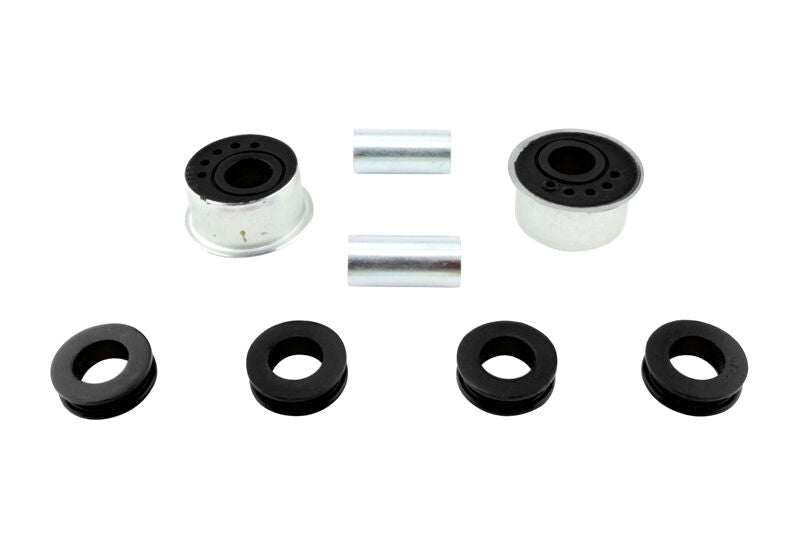

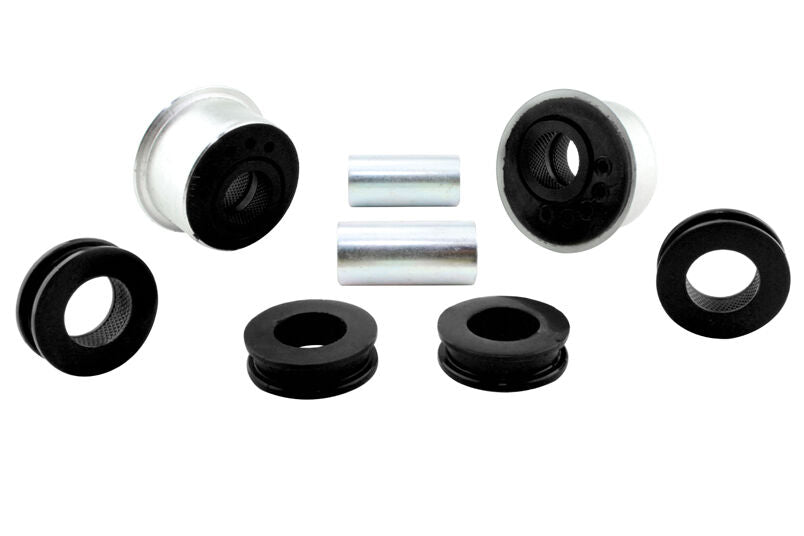

- Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes
Benefit Note: Whiteline Anti Dive Kits are primarily designed to improve traction, cornering grip and minimise toe change under power. Increasing static caster to both front wheels. The special low compliance bushings reduce caster wind-back and maintain tighter tolerances between static and dynamic alignment settings. The additional caster coupled with the firmer bushings serve to dramatically sharpen initial turn-in response - forcing more consistent alignment angles through the corner due to the reduced bush compliance.

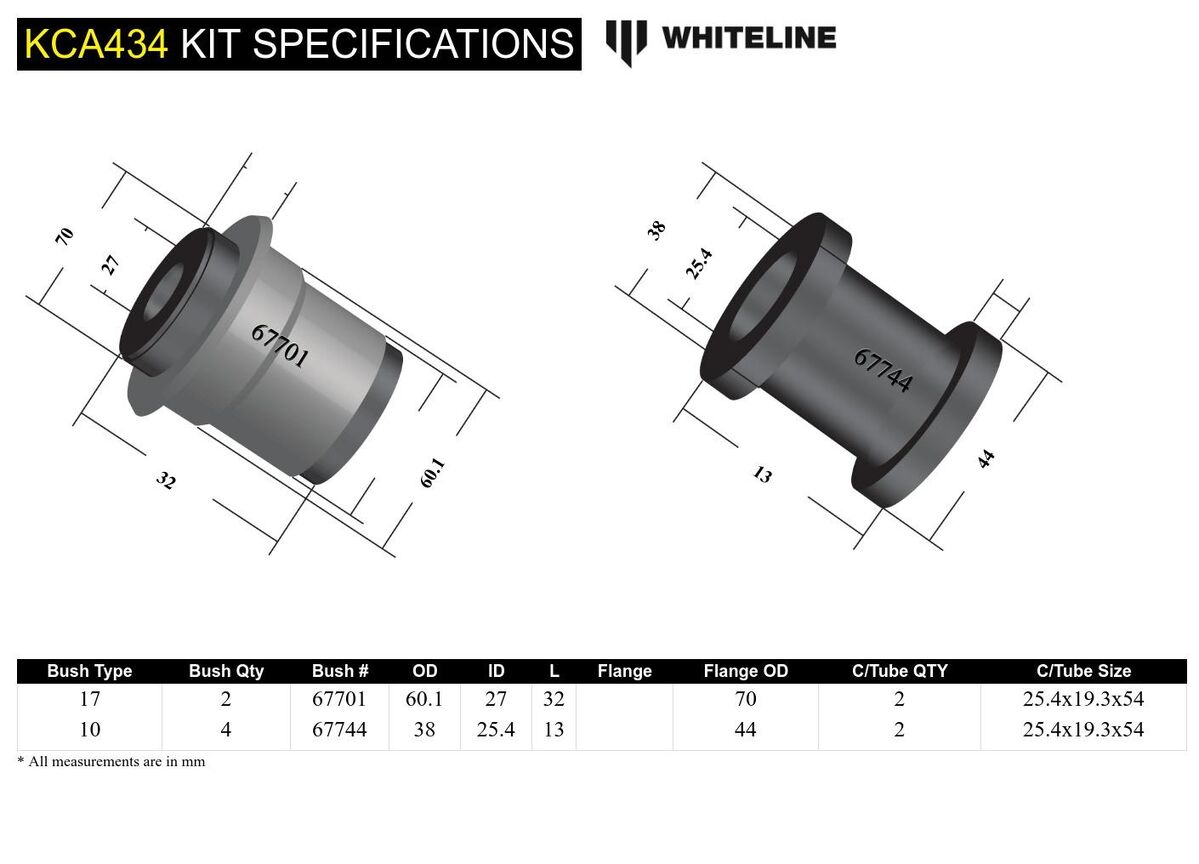

Kit Specifications
| Bush Type | 17 - Shell With Flange Bushing | 10 - Cotton Reel With & Without Tapper Bushing |
|---|---|---|
| Bush Quantity | 2 mm | 4 mm |
| OD (A) | 60.1 mm | 38 mm |
| ID (B) | 27 mm | 25.4 mm |
| Length (C) | 32 mm | 13 mm |
| Flange Thickness (D) | ||
| Flange OD (E) | 70 mm | 44 mm |
| C/Tube Quantity | 2 | 2 |
| C/Tube ODxIDxL | 25.4x19.3x54 mm | 25.4x19.3x54 mm |
| Alignment | Alignment Adjustment Type | Alignment On Car Adjustable |
|---|---|---|
| Caster / Anti-dive | Offset | No |
| Caster / Anti-dive | Offset | No |
Bushing Design Dimensions (mm)
| Bush Type | 17 | 10 |
|---|---|---|
| QTY | 2 | 4 |
| OD (A) | 60.1 | 38 |
| ID (B) | 27 | 25.4 |
| Length (C) | 32.0 | 13.0 |
| FL (D) | ||
| FLOD (E) | 70 | 44 |
| C/Tube Qty | 2 | 2 |
| C/Tube Size | 25.4x19.3x54 | 25.4x19.3x54 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.596kg | 1.31lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | KCA434 |
| Components Per | 2 Shell Bushings, 4 Bushings, 2 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Bushings, 2 Tubes |
| EAN | 9319924388516 |
