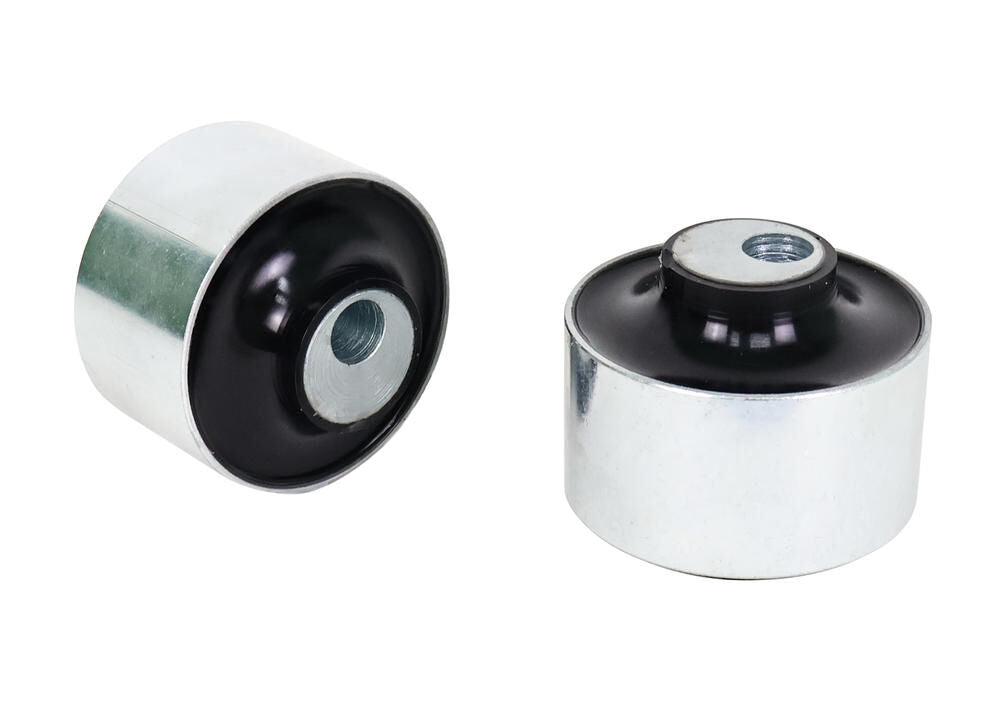

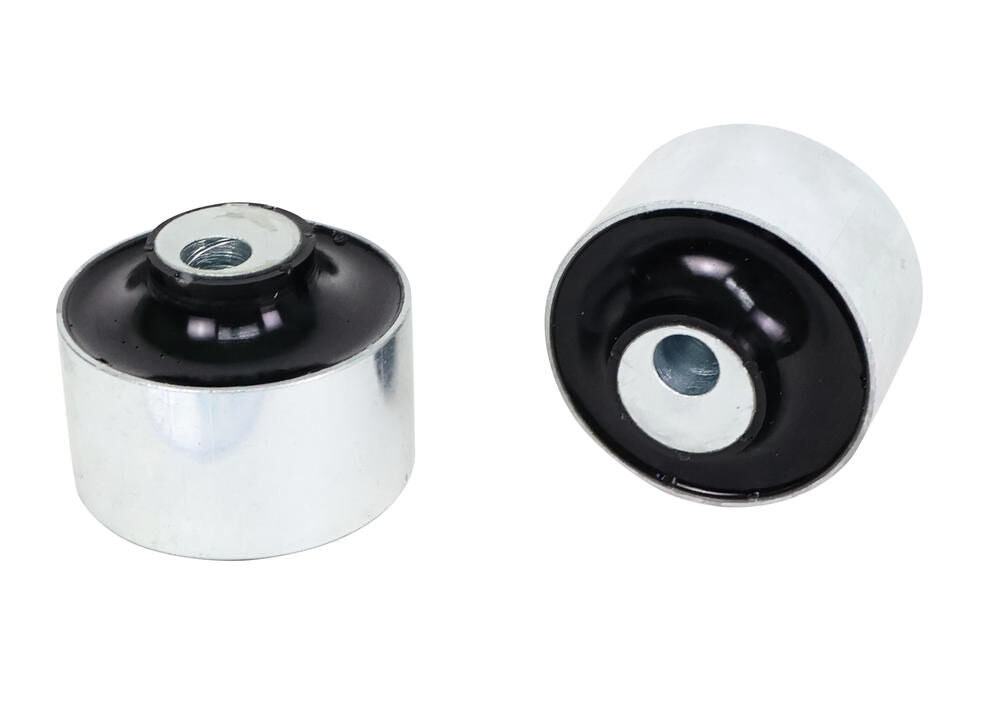

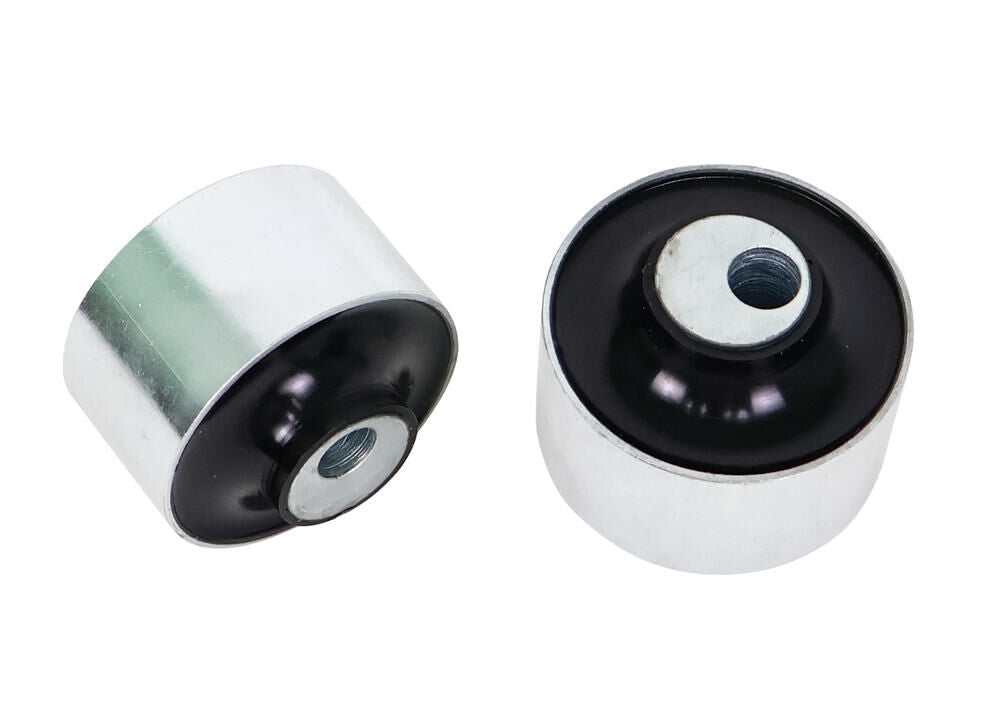

KCA567 Whiteline Front Lower Inner Rear Bushing Double Offset Caster Kit to Suit Toyota Camry XV70 and Rav 4 XA50 | Genuine Whiteline Suspension Component
KCA567 Whiteline Front Lower Inner Rear Bushing Double Offset Caster Kit to Suit Toyota Camry XV70 and Rav 4 XA50 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Delivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Spacers, 2 Tubes
Benefit Note: Whiteline camber and caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Whiteline bushings provide improved braking performance, and less under load alignment change.
Kit Specifications
| Bush Type | 16 - Shell Without Flange Bushing | 3 - Half Tapered Cotton Reel Bush |
|---|---|---|
| Bush Quantity | 2 mm | 4 mm |
| OD (A) | 72.1 mm | 60 mm |
| ID (B) | 22 mm | 24.5 mm |
| Length (C) | 40 mm | 13.5 mm |
| Flange Thickness (D) | 2 mm | |
| Flange OD (E) | ||
| C/Tube Quantity | 2 | 2 |
| C/Tube ODxIDxL | 25x14.3x67 mm | 25x14.3x67 mm |
| Alignment | Alignment Adjustment Type | Alignment On Car Adjustable |
|---|---|---|
| Caster | Offset | No |
| Caster | Offset | No |
Bushing Design Dimensions (mm)
| Bush Type | 16 | 3 |
|---|---|---|
| QTY | 2 | 4 |
| OD (A) | 72.1 | 60 |
| ID (B) | 22 | 24.5 |
| Length (C) | 40.0 | 13.5 |
| FL (D) | 2 | |
| FLOD (E) | ||
| C/Tube Qty | 2 | 2 |
| C/Tube Size | 25x14.3x67 | 25x14.3x67 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.1kg | 2.43lbs |
| Length | 10cm | 3.94" |
| Width | 16cm | 6.3" |
| Height | 26cm | 10.24" |
Misc. Product Information
| SKU | KCA567 |
| Components Per | 2 Shell Bushings |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Delivers a balanced mix of comfort, precision, and durability; the perfect, complete upgrade. Includes: 2 Shell Bushings, 4 Spacers, 2 Tubes |
| EAN | 9319924478965 |
