KDT917 Whiteline Rear Subframe - Bushing Kit to Suit BMW 1, 2, 3, 4 Series and X1 | Genuine Whiteline Suspension Component
KDT917 Whiteline Rear Subframe - Bushing Kit to Suit BMW 1, 2, 3, 4 Series and X1 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

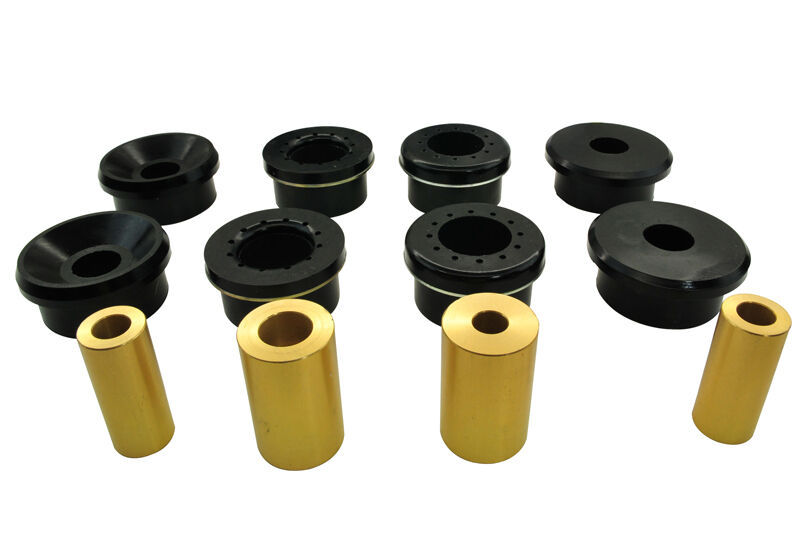

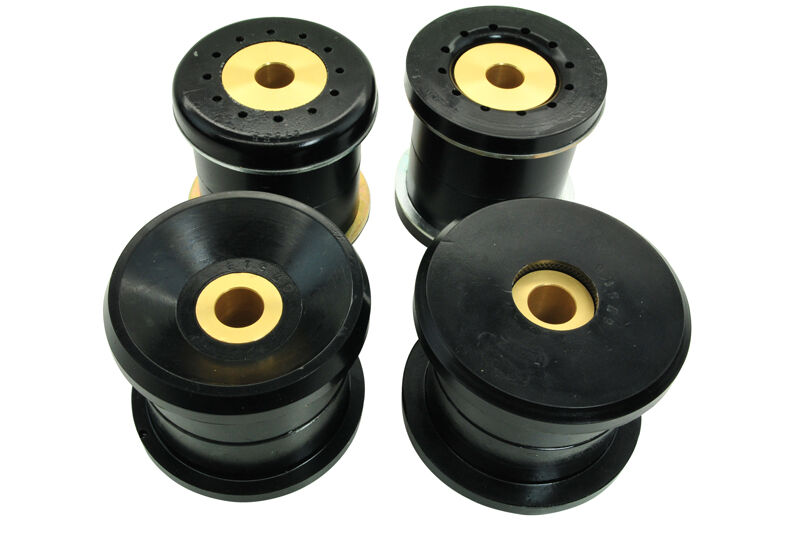

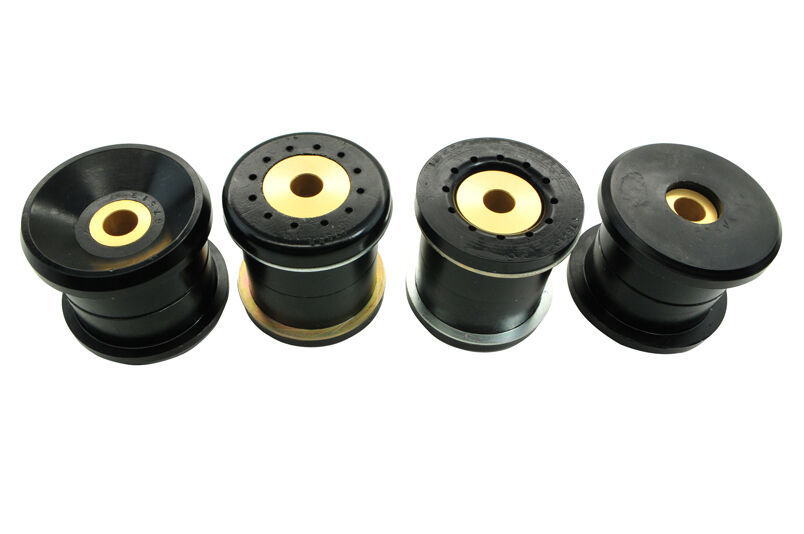

- Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes

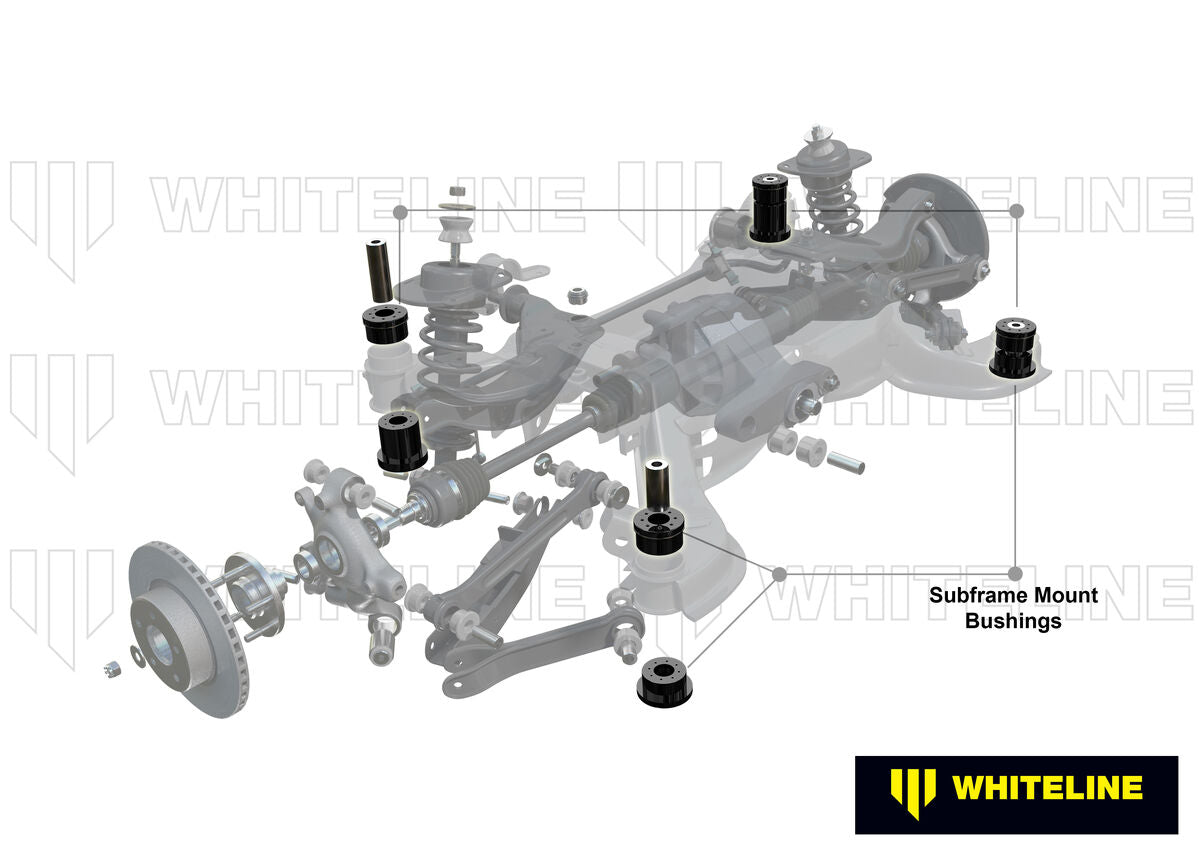

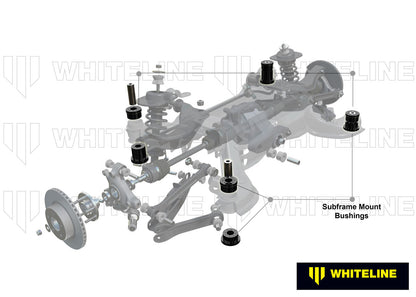

Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|---|---|
| Bush Quantity | 2 mm | 2 mm | 2 mm | 2 mm |
| OD (A) | 80 mm | 74.8 mm | 80 mm | 74.8 mm |
| ID (B) | 31.2 mm | 43.9 mm | 31.2 mm | 43.9 mm |
| Length (C) | 40 mm | 45.6 mm | 39.7 mm | 42 mm |
| Flange Thickness (D) | 13.7 mm | 15.3 mm | 11.2 mm | 11.2 mm |
| Flange OD (E) | 93.5 mm | 86 mm | 99.5 mm | 86 mm |
| C/Tube Quantity | 2 / 2 | 2 / 2 | 2 / 2 | 2 / 2 |
| C/Tube ODxIDxL | 31.5x17.5x71.3 / 44.3x16.2x70.5 mm | 31.5x17.5x71.3 / 44.3x16.2x70.5 mm | 31.5x17.5x71.3 / 44.3x16.2x70.5 mm | 31.5x17.5x71.3 / 44.3x16.2x70.5 mm |

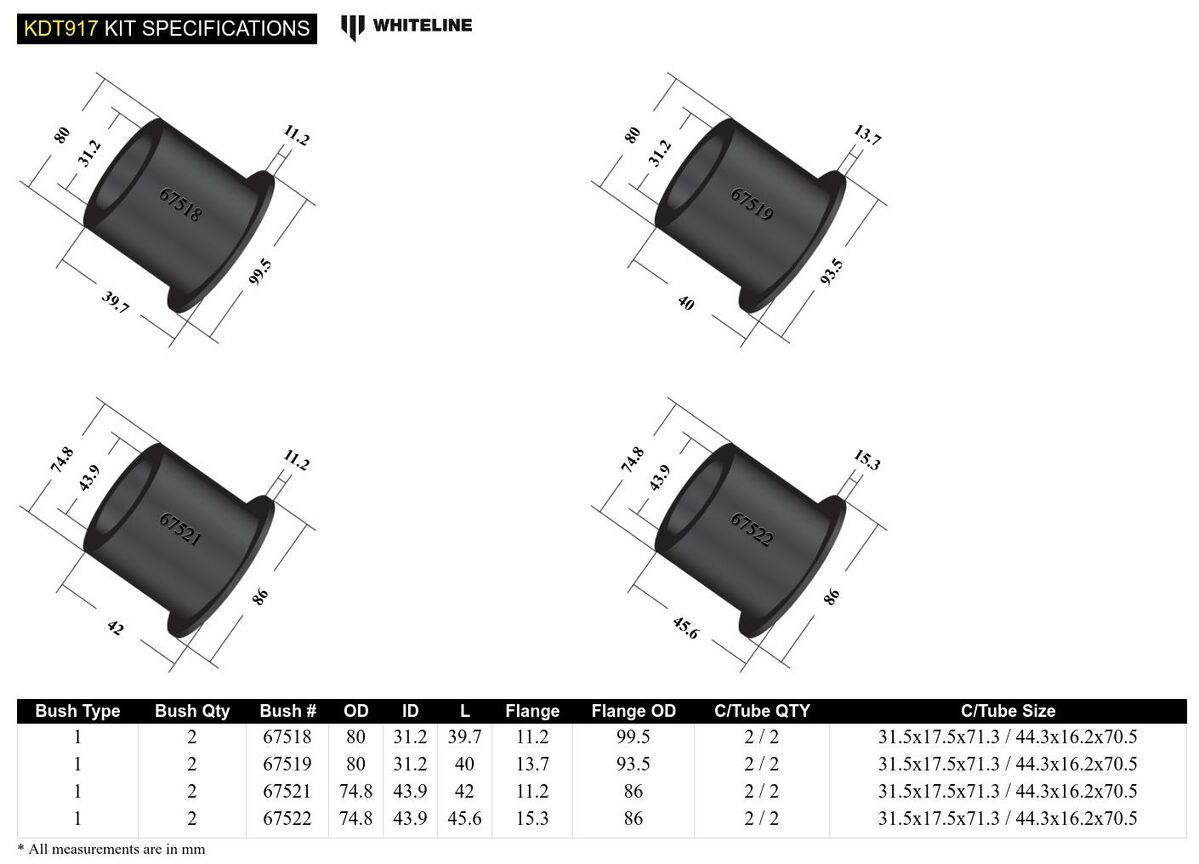

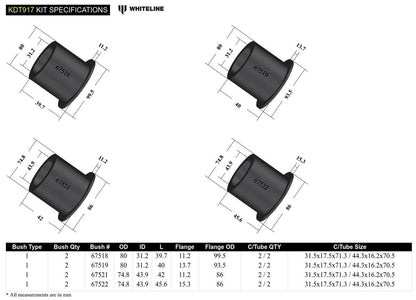

Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 | 1 | 1 |
|---|---|---|---|---|
| QTY | 2 | 2 | 2 | 2 |
| OD (A) | 80 | 74.8 | 80 | 74.8 |
| ID (B) | 31.2 | 43.9 | 31.2 | 43.9 |
| Length (C) | 40.0 | 45.6 | 39.7 | 42.0 |
| FL (D) | 13.7 | 15.3 | 11.2 | 11.2 |
| FLOD (E) | 93.5 | 86 | 99.5 | 86 |
| C/Tube Qty | 2 / 2 | 2 / 2 | 2 / 2 | 2 / 2 |
| C/Tube Size | 31.5x17.5x71.3 / 44.3x16.2x70.5 | 31.5x17.5x71.3 / 44.3x16.2x70.5 | 31.5x17.5x71.3 / 44.3x16.2x70.5 | 31.5x17.5x71.3 / 44.3x16.2x70.5 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 2.224kg | 4.9lbs |
| Length | 40cm | 15.75" |
| Width | 10cm | 3.94" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | KDT917 |
| Components Per | 8 Bushings, 4 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes |
| EAN | 9319924387502 |
