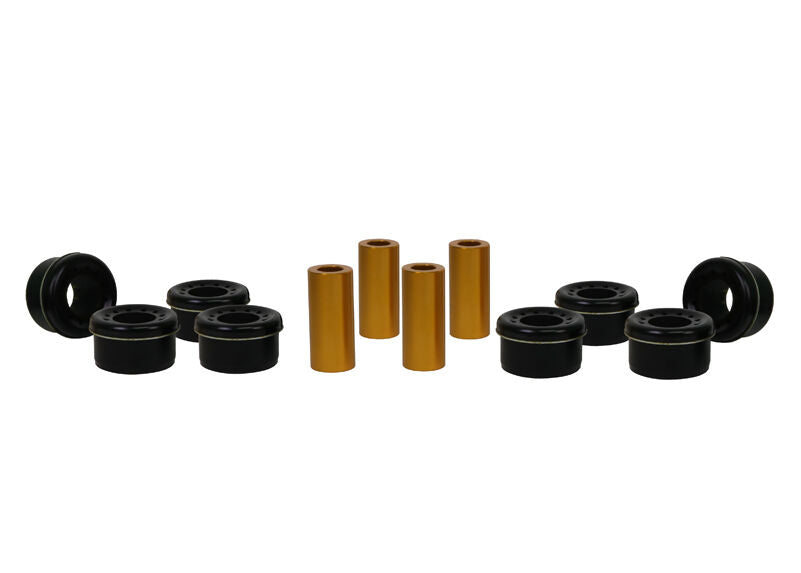

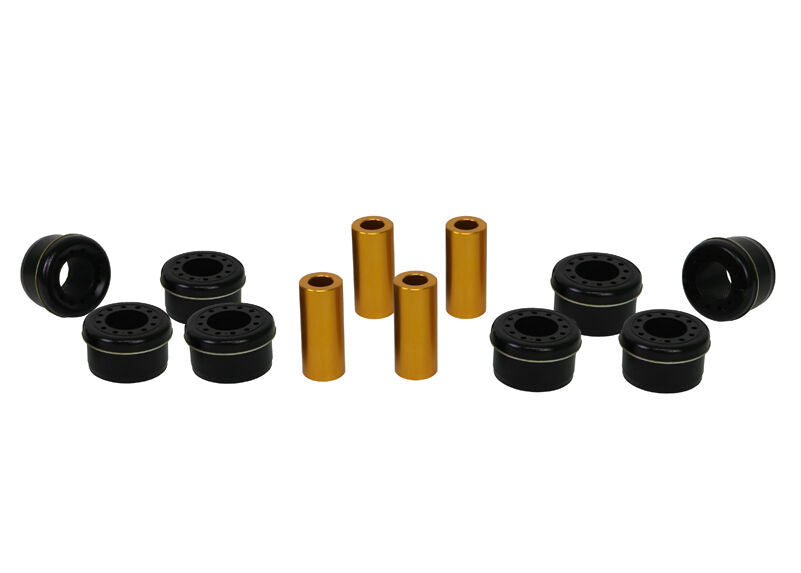

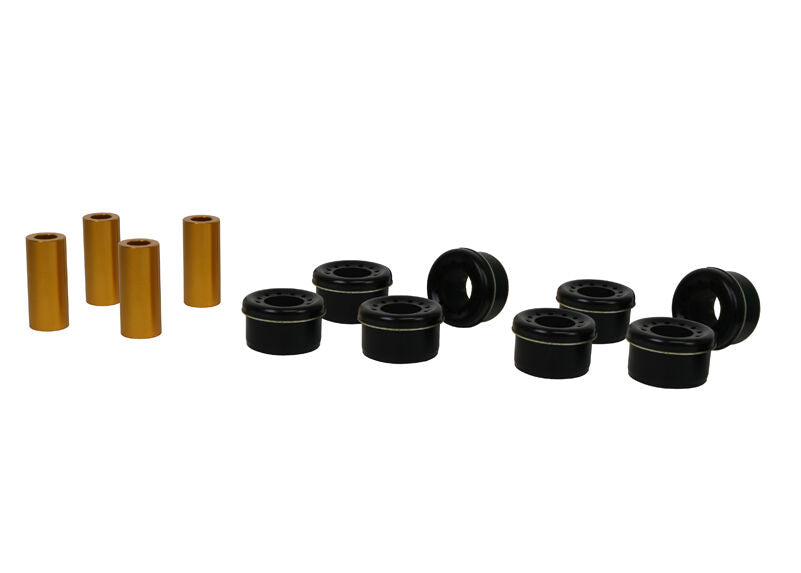

- Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes

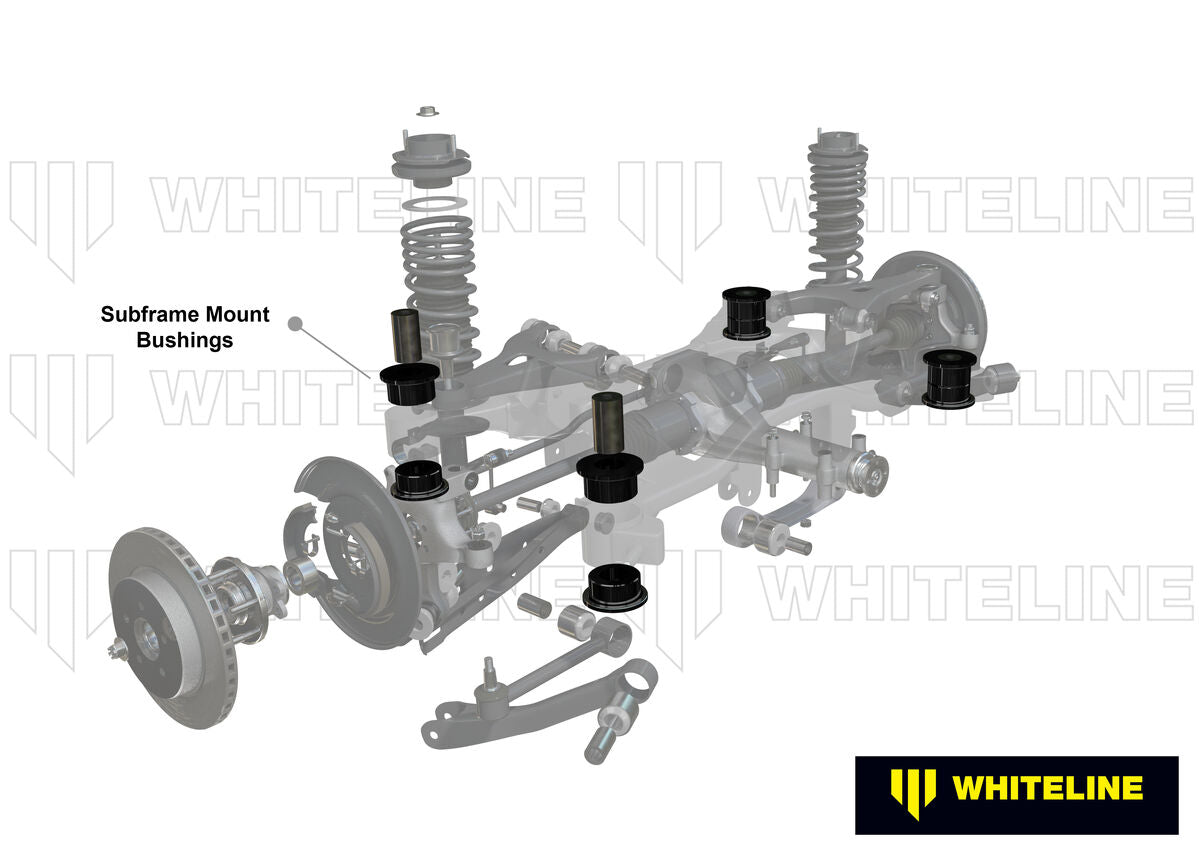

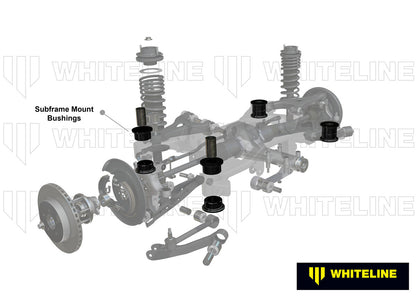

Benefit Note: Not your typical remove and replace bushing kit but simple installation means great for the DIYer's. Designed to work with the original bushing and eliminate over compliance or better known in motorsport as 'lost motion' of the rear crossmember. This Whiteline kit dramatically reduces rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.

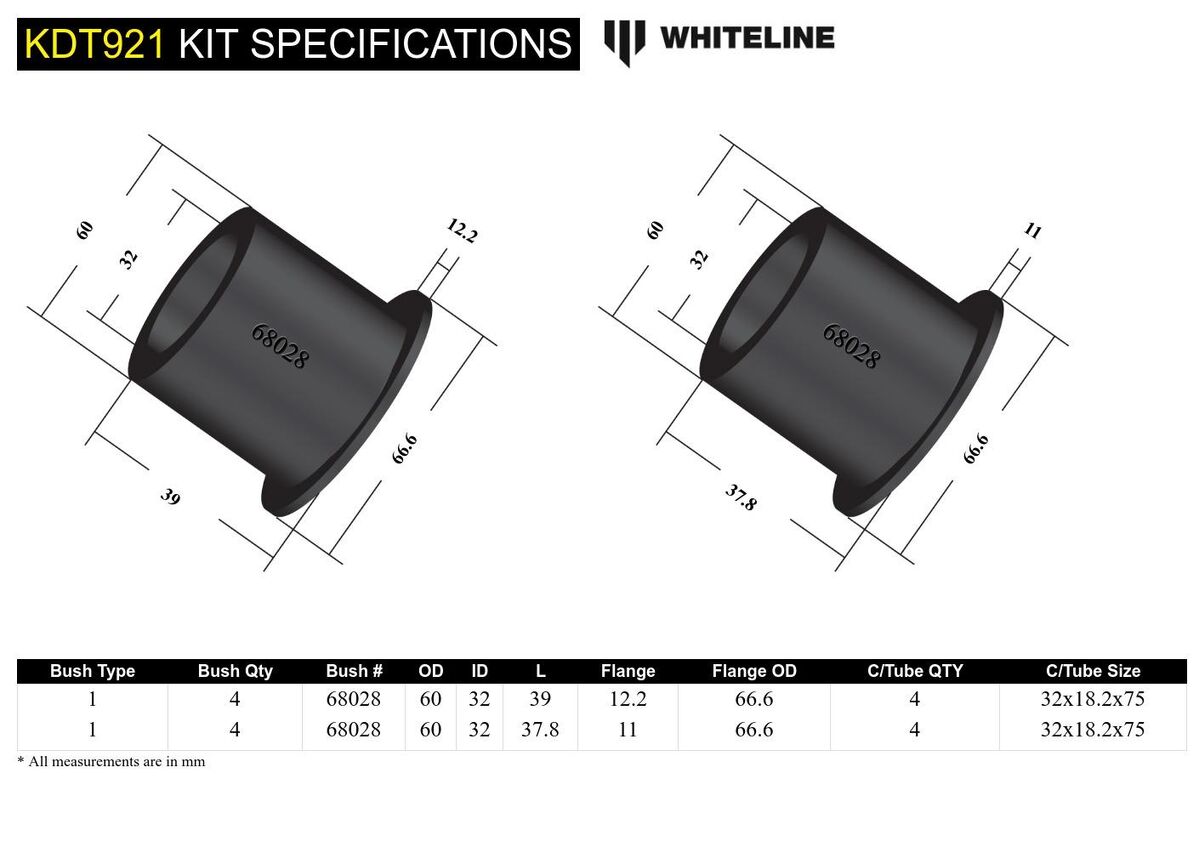

Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|
| Bush Quantity | 4 mm | 4 mm |
| OD (A) | 60 mm | 60 mm |
| ID (B) | 32 mm | 32 mm |
| Length (C) | 39 mm | 37.8 mm |
| Flange Thickness (D) | 12.2 mm | 11 mm |
| Flange OD (E) | 66.6 mm | 66.6 mm |
| C/Tube Quantity | 4 | 4 |
| C/Tube ODxIDxL | 32x18.2x75 mm | 32x18.2x75 mm |
Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 |
|---|---|---|
| QTY | 4 | 4 |
| OD (A) | 60 | 60 |
| ID (B) | 32 | 32 |
| Length (C) | 39.0 | 37.8 |
| FL (D) | 12.2 | 11 |
| FLOD (E) | 66.6 | 66.6 |
| C/Tube Qty | 4 | 4 |
| C/Tube Size | 32x18.2x75 | 32x18.2x75 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.246kg | 2.75lbs |
| Length | 35cm | 13.78" |
| Width | 10cm | 3.94" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | KDT921 |
| Components Per | 8 Bushings, 4 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Boosts handling and performance, while optimising suspension geometry; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes |
| EAN | 9319924388882 |
