KDT937 Whiteline Rear Subframe - Bushing Kit to Suit Subaru Forester, Impreza WRX/STi, Levorg, Liberty and Outback | Genuine Whiteline Suspension Component

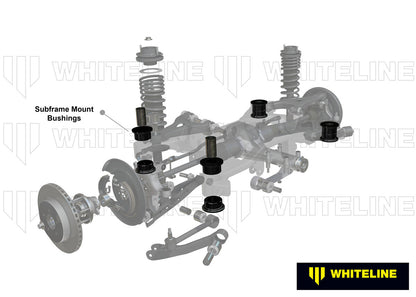

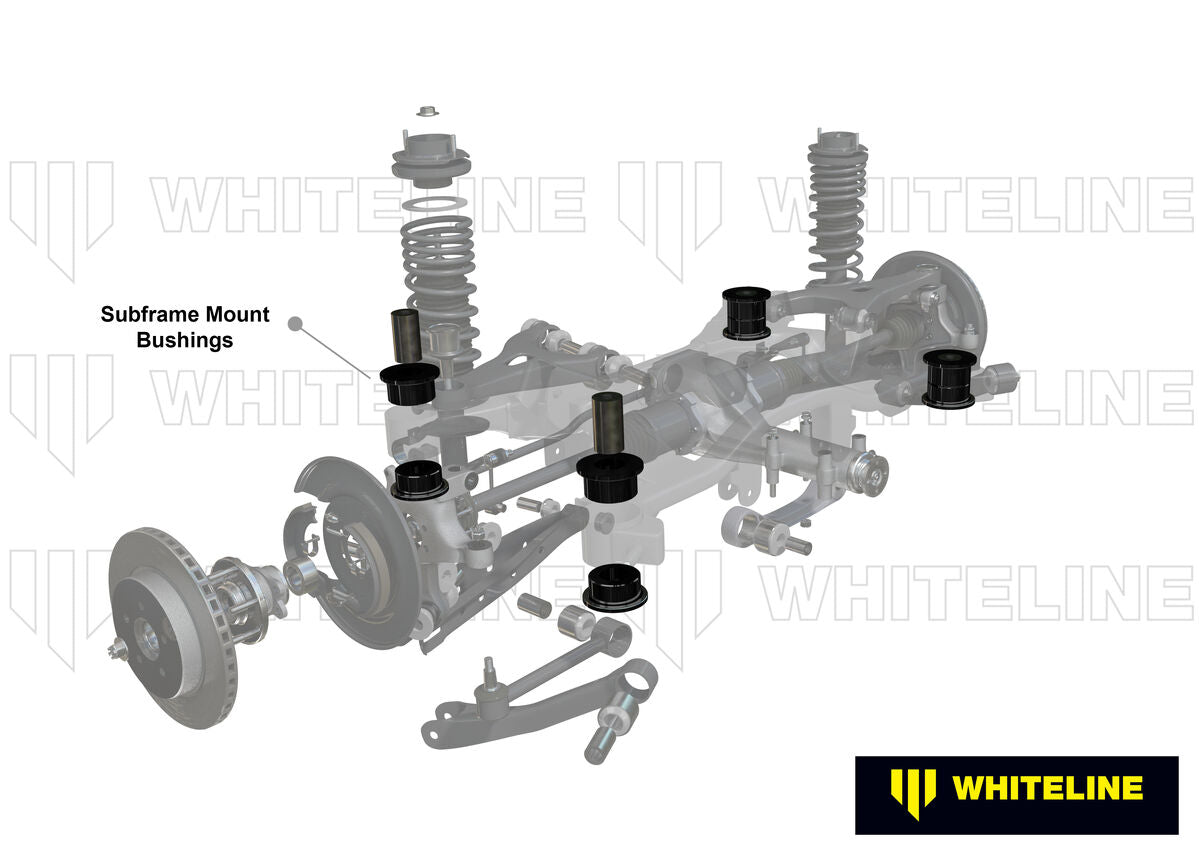

Benefit Note: Subaru's rear subframe is mounted on rubber voided bushings which allows for a significant amount of compliance/movement in the frame during high cornering loads. Whiteline's low compliance polymer bushings eliminate this condition by positively locking in the frame position and removing the 'lateral walking' found when using high grip tyres. The polymer bushing design has soft 'stand-off' buffers on the top and bottom surfaces of the bushing to allow slight vertical bushing movement of the subframe to eliminate that 'rock-solid' NVH feel and cushion against minor bumps and allow solid positive location when high torque and power is applied.

Kit Specifications

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	4 mm	2 mm
OD (A)	60 mm	60 mm	60 mm
ID (B)	31.8 mm	18.2 mm	31.8 mm
Length (C)	43.3 mm	72.8 mm	40 mm
Flange Thickness (D)	17.6 mm	6.3 mm	14.8 mm
Flange OD (E)	65.1 mm	66.7 mm	65.4 mm
C/Tube Quantity
C/Tube ODxIDxL

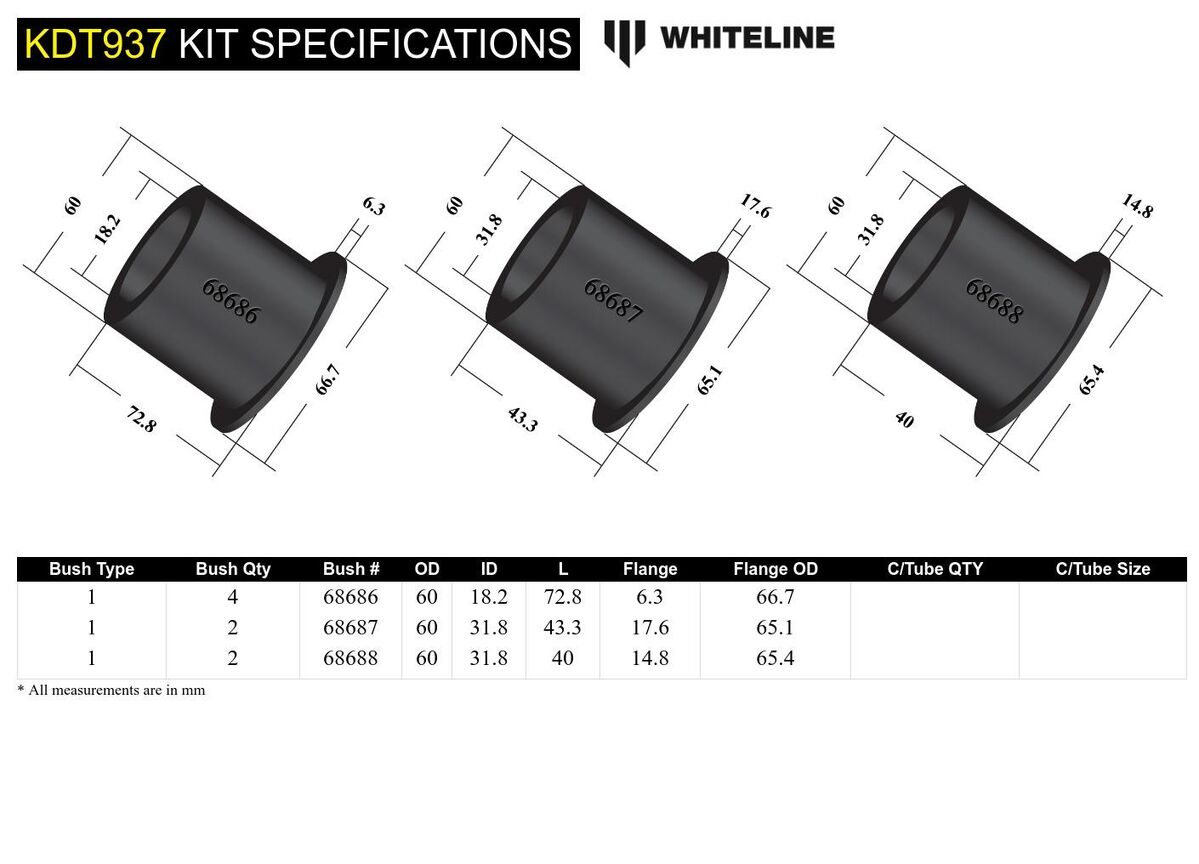

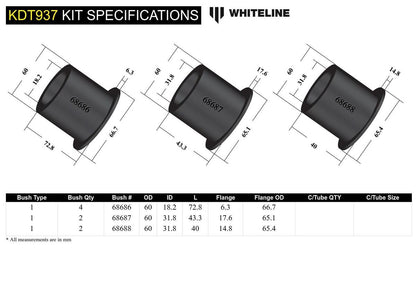

Bushing Design Dimensions (mm)

Bush Type	1	1	1
QTY	2	4	2
OD (A)	60	60	60
ID (B)	31.8	18.2	31.8
Length (C)	43.3	72.8	40.0
FL (D)	17.6	6.3	14.8
FLOD (E)	65.1	66.7	65.4
C/Tube Qty
C/Tube Size

Packaged Weight and Dimensions

Units	cm/kg	in/lbs
Weight	1.2kg	2.65lbs
Length	30cm	11.81"
Width	10cm	3.94"
Height	20cm	7.87"

Misc. Product Information

More Information

SKU	KDT937

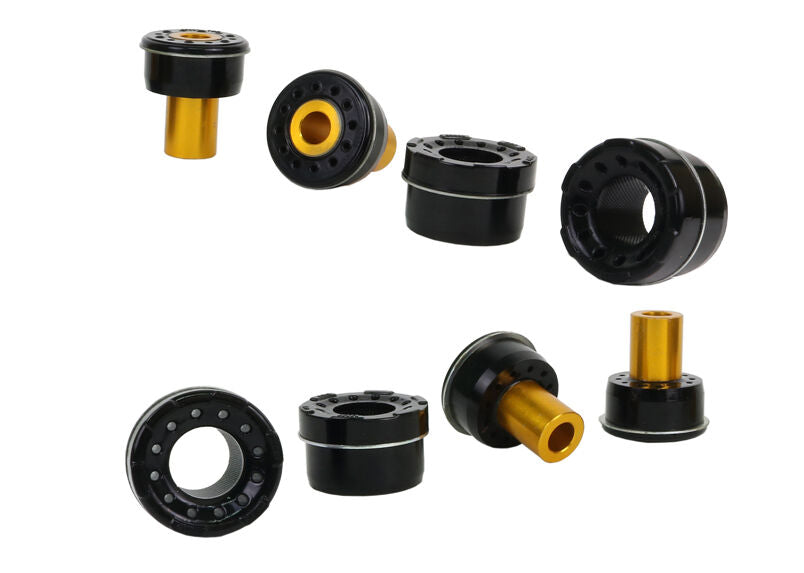

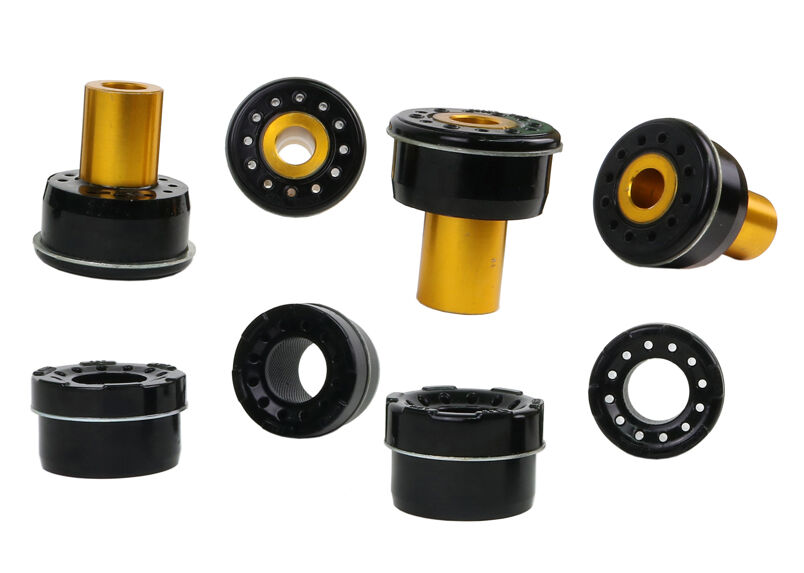

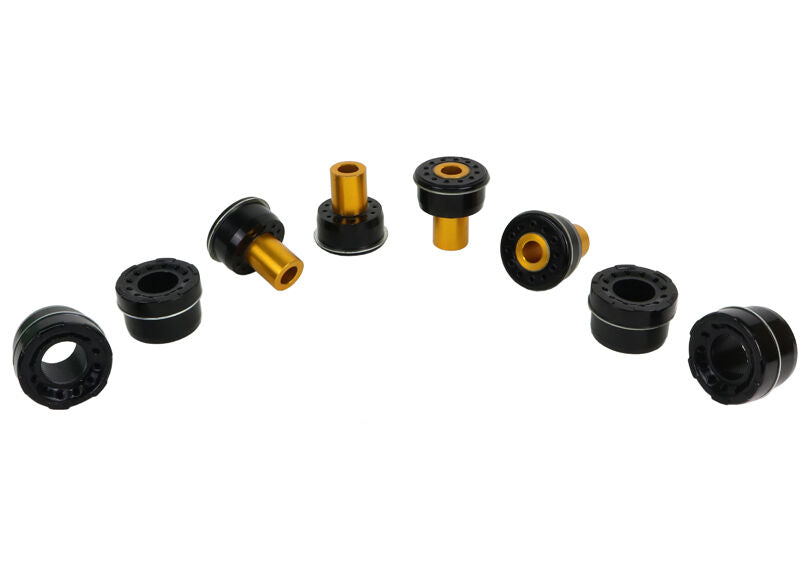

Components Per	8 Bushings, 4 Tubes
Kits Required	1
Sub brand	Performance
Product Note	Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes
EAN	9319924402595
