KDT946 Whiteline Rear Beam Axle - Bushing Kit to Suit Abarth, Chevrolet, Citroen, Fiat, Opel and Peugeot | Genuine Whiteline Suspension Component
KDT946 Whiteline Rear Beam Axle - Bushing Kit to Suit Abarth, Chevrolet, Citroen, Fiat, Opel and Peugeot | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

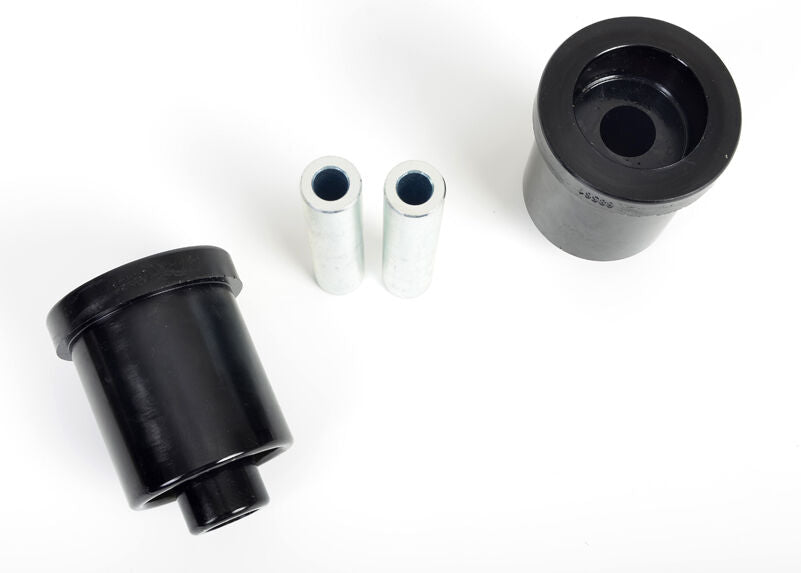

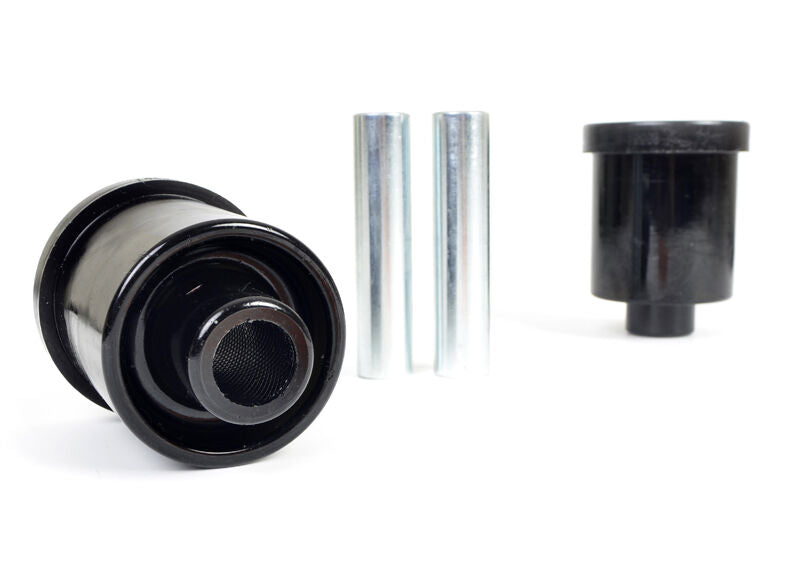

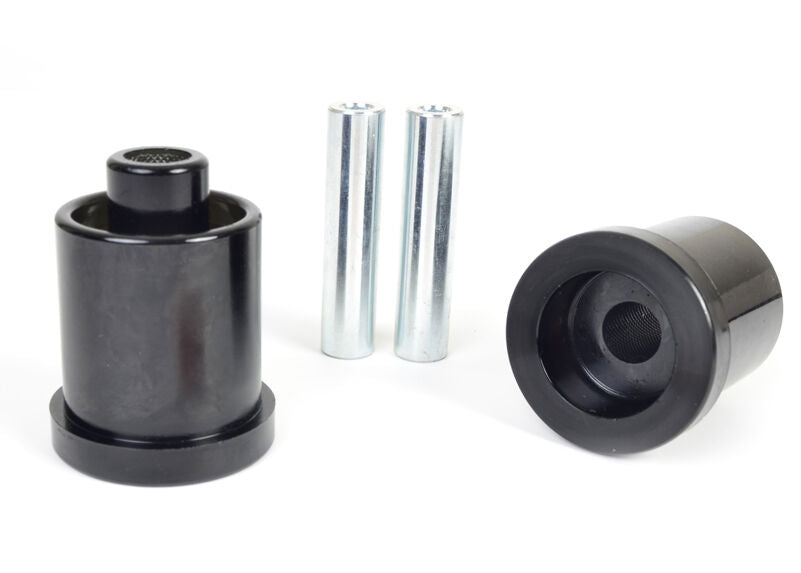

- Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes

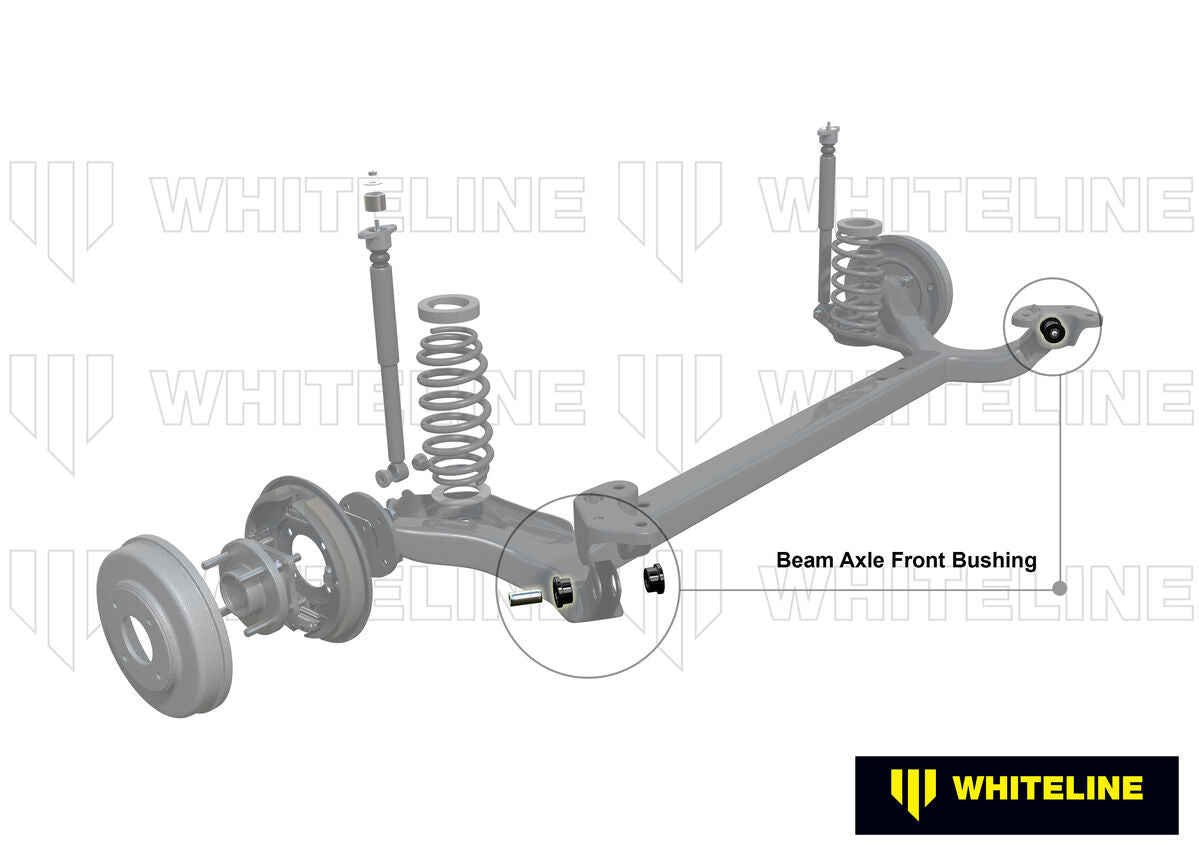

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.
Kit Specifications
| Bush Type | 8 - Stepped OD Shackle Bushing |
|---|---|
| Bush Quantity | 2 mm |
| OD (A) | 67.1 mm |
| ID (B) | 22 mm |
| Length (C) | 98.2 mm |
| Flange Thickness (D) | 13.8 mm |
| Flange OD (E) | 76.4 mm |
| C/Tube Quantity | 2 |
| C/Tube ODxIDxL | 22.2x12.2x100 mm |

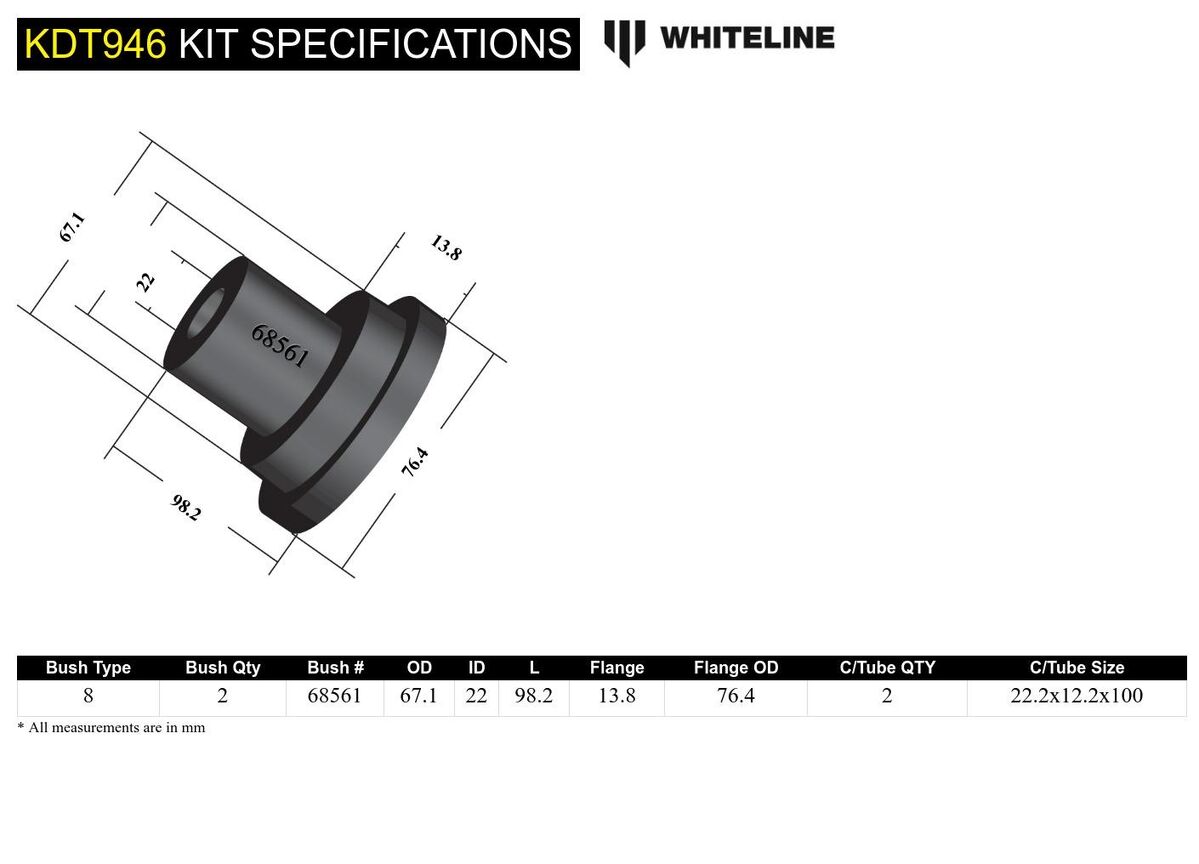

Bushing Design Dimensions (mm)
| Bush Type | 8 |
|---|---|
| QTY | 2 |
| OD (A) | 67.1 |
| ID (B) | 22 |
| Length (C) | 98.2 |
| FL (D) | 13.8 |
| FLOD (E) | 76.4 |
| C/Tube Qty | 2 |
| C/Tube Size | 22.2x12.2x100 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.91kg | 2.01lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | KDT946 |
| Components Per | 2 Bushings, 2 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes |
| EAN | 9319924406166 |
