KDT951 Whiteline Rear Beam Axle - Bushing Kit to Suit Holden, Daewoo, Chevrolet and Opel | Genuine Whiteline Suspension Component
KDT951 Whiteline Rear Beam Axle - Bushing Kit to Suit Holden, Daewoo, Chevrolet and Opel | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Creates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes

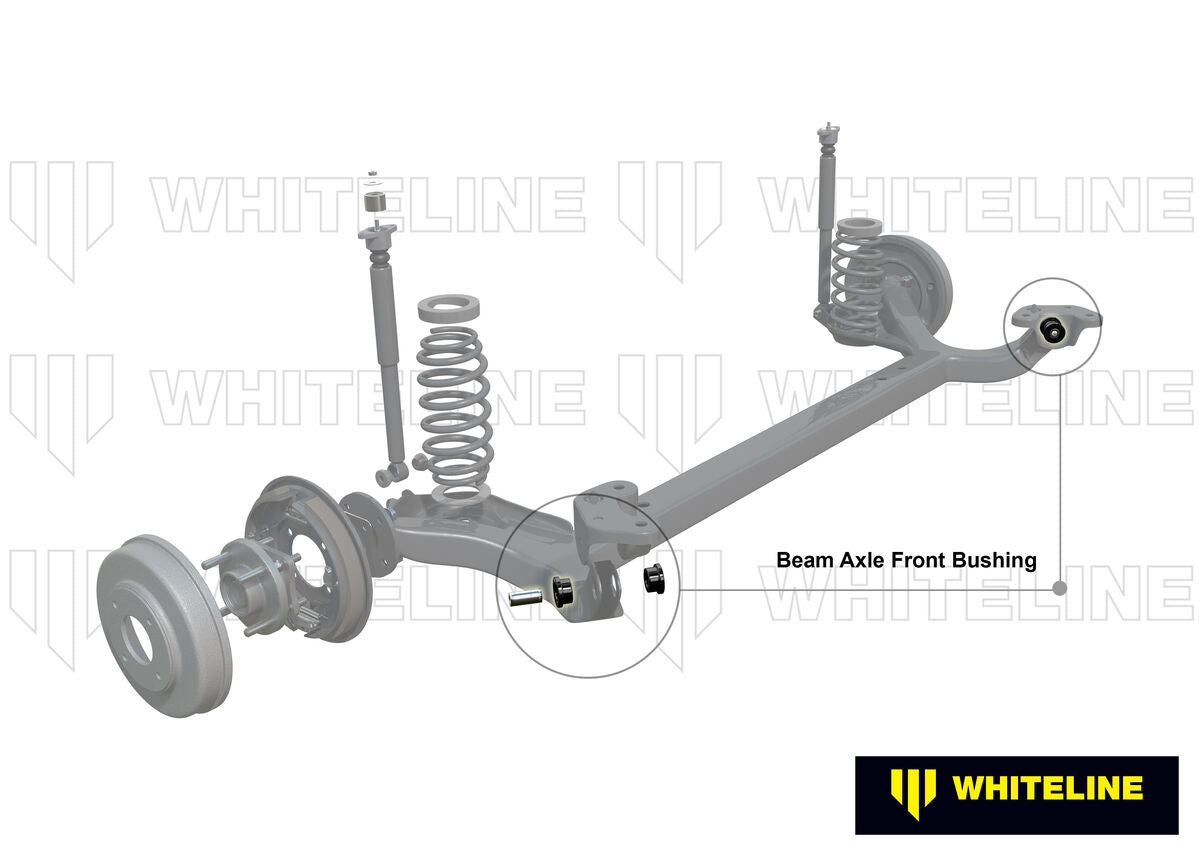

Benefit Note: A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Whiteline beam axle kit.
Kit Specifications
| Bush Type | 1 - Shackle Bushing |
|---|---|
| Bush Quantity | 2 mm |
| OD (A) | 67.8 mm |
| ID (B) | 22.2 mm |
| Length (C) | 89 mm |
| Flange Thickness (D) | 13.8 mm |
| Flange OD (E) | 77.9 mm |
| C/Tube Quantity | 2 |
| C/Tube ODxIDxL | 25.4x12.2x90 mm |

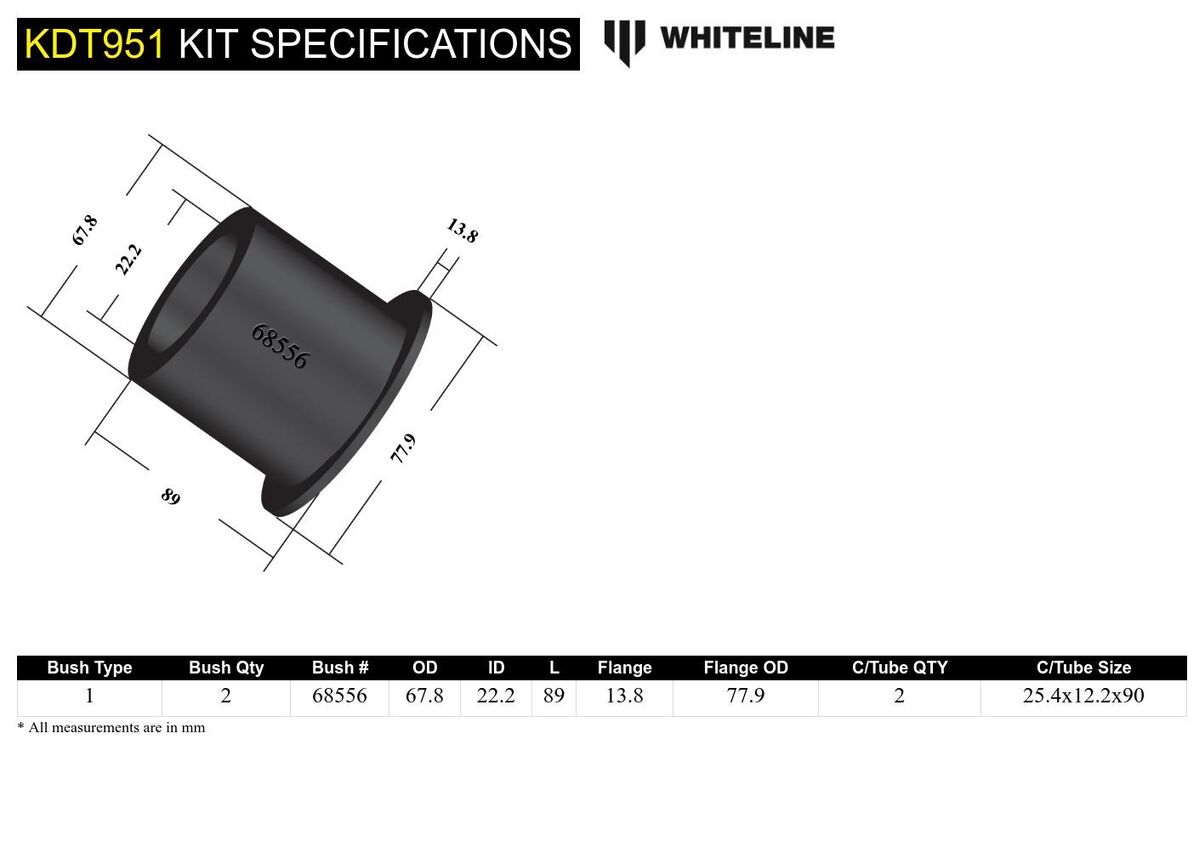

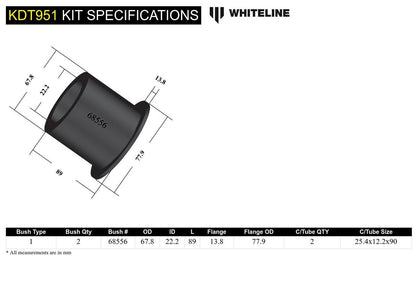

Bushing Design Dimensions (mm)
| Bush Type | 1 |
|---|---|
| QTY | 2 |
| OD (A) | 67.8 |
| ID (B) | 22.2 |
| Length (C) | 89.0 |
| FL (D) | 13.8 |
| FLOD (E) | 77.9 |
| C/Tube Qty | 2 |
| C/Tube Size | 25.4x12.2x90 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.87kg | 1.92lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | KDT951 |
| Components Per | 2 Bushings, 2 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Creates a consistent drive no matter the surface; the perfect, complete upgrade. Includes: 2 Bushings & 2 Tubes |
| EAN | 9319924406128 |
