KDT953 Whiteline Rear Subframe - Bushing Kit to Suit Ford Mustang S550 and S650 | Genuine Whiteline Suspension Component
KDT953 Whiteline Rear Subframe - Bushing Kit to Suit Ford Mustang S550 and S650 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

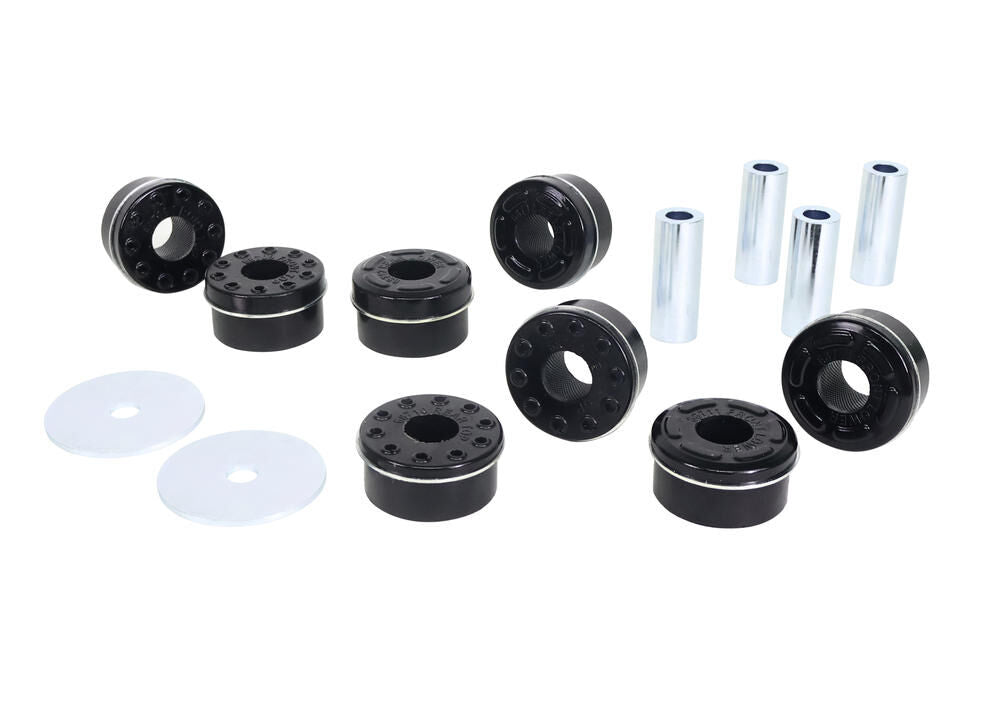

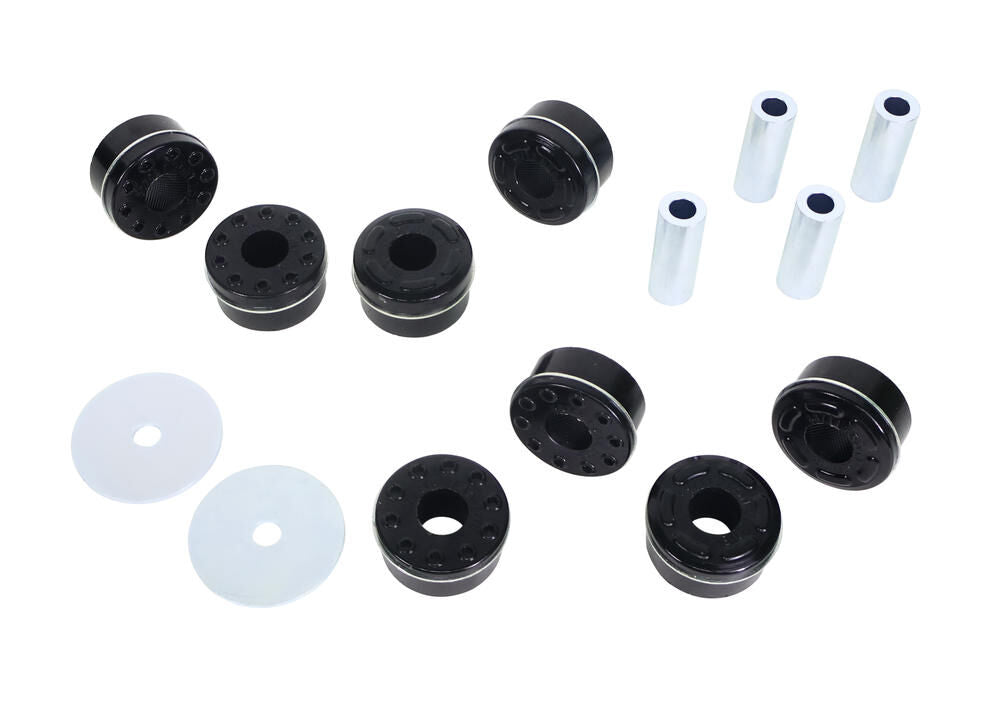

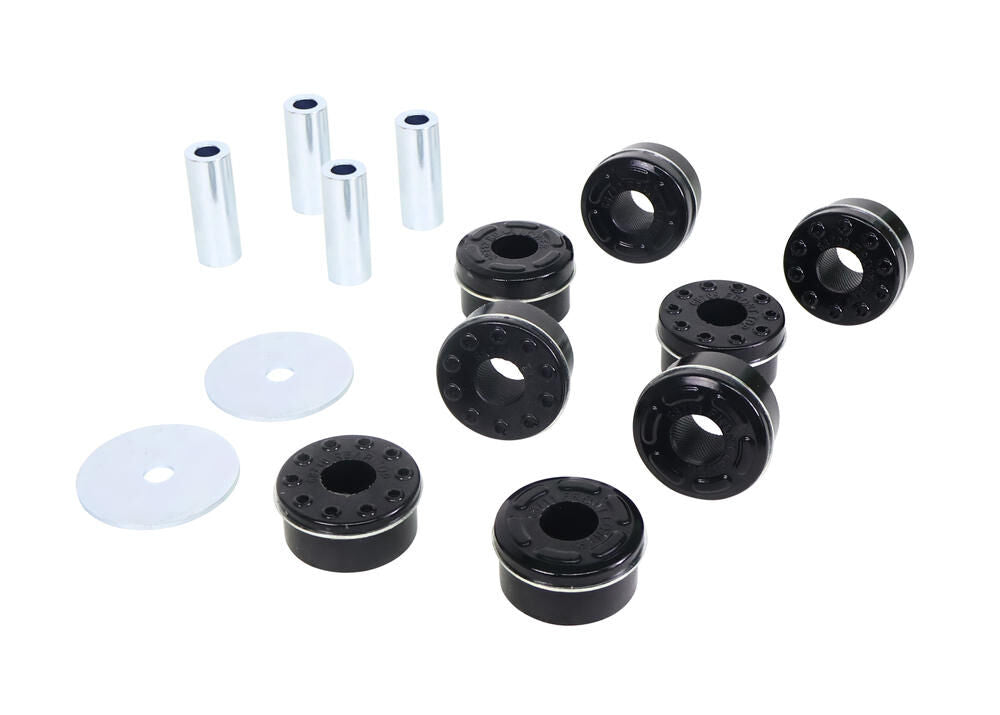

- Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 2 Washers
Benefit Note: Not your typical remove and replace bushing kit but simple installation means great for the DIYer's. Designed to work with the original bushing and eliminate over compliance or better known in motorsport as 'lost motion' of the rear crossmember. This Whiteline kit dramatically reduces rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|---|---|
| Bush Quantity | 2 mm | 2 mm | 2 mm | 2 mm |
| OD (A) | 60 mm | 60 mm | 60 mm | 60 mm |
| ID (B) | 25.2 mm | 25.2 mm | 25.2 mm | 25.2 mm |
| Length (C) | 29.7 mm | 38 mm | 35.2 mm | 32.8 mm |
| Flange Thickness (D) | 7.2 mm | 13.3 mm | 12 mm | 8 mm |
| Flange OD (E) | 64 mm | 64 mm | 64 mm | 64 mm |
| C/Tube Quantity | 4 | 4 | 4 | 4 |
| C/Tube ODxIDxL | 25.4x14.3x69 mm | 25.4x14.3x69 mm | 25.4x14.3x69 mm | 25.4x14.3x69 mm |
Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 | 1 | 1 |
|---|---|---|---|---|
| QTY | 2 | 2 | 2 | 2 |
| OD (A) | 60 | 60 | 60 | 60 |
| ID (B) | 25.2 | 25.2 | 25.2 | 25.2 |
| Length (C) | 29.7 | 38.0 | 35.2 | 32.8 |
| FL (D) | 7.2 | 13.3 | 12 | 8 |
| FLOD (E) | 64 | 64 | 64 | 64 |
| C/Tube Qty | 4 | 4 | 4 | 4 |
| C/Tube Size | 25.4x14.3x69 | 25.4x14.3x69 | 25.4x14.3x69 | 25.4x14.3x69 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.804kg | 3.98lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | KDT953 |
| Components Per | 8 Bushings, 4 Tubes, 2 Washers |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 8 Bushings, 4 Tubes & 2 Washers |
| EAN | 9319924410668 |
