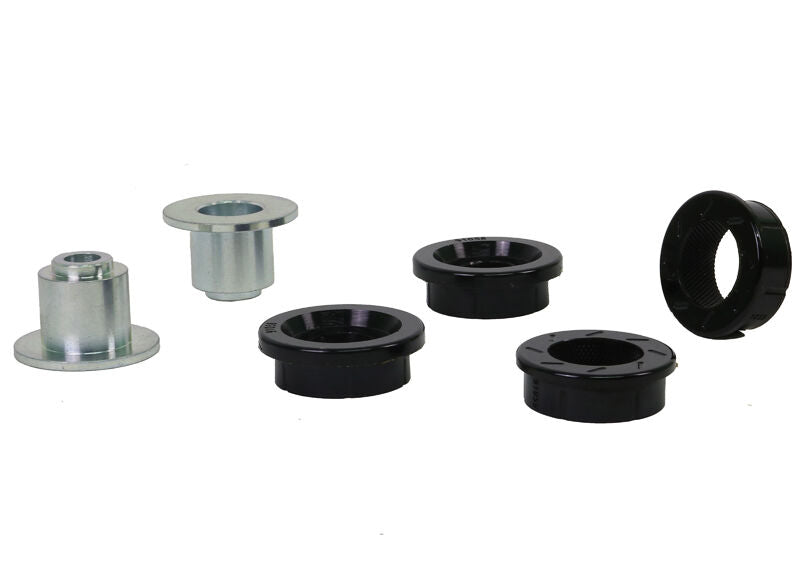

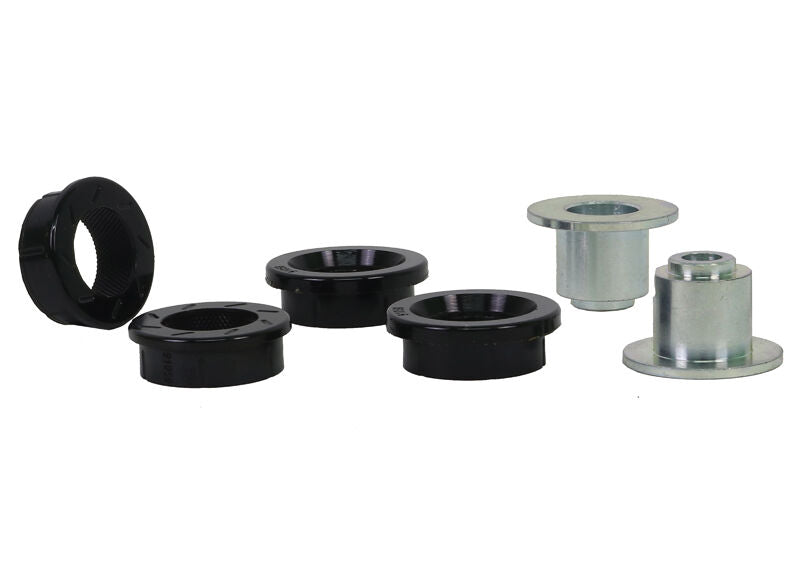

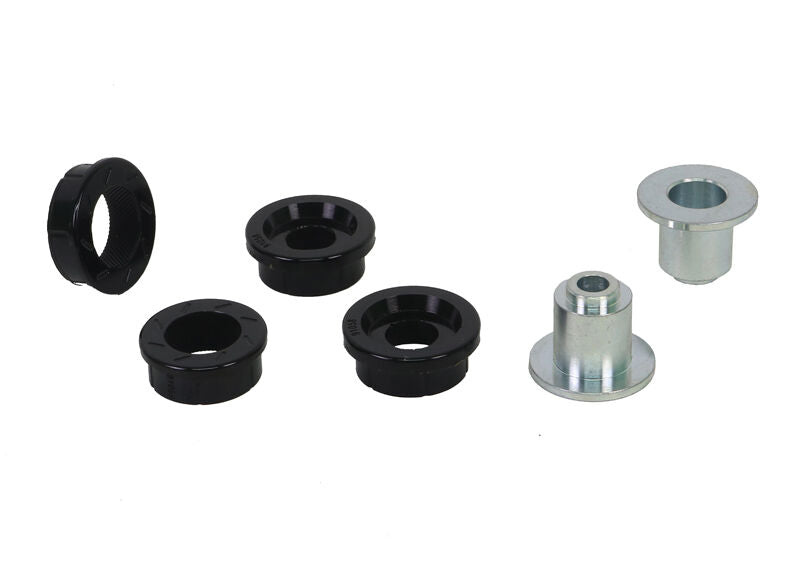

KDT969 Whiteline Rear Differential Mount - Rear Bushing Kit to Suit BMW 3 Series and M3 E36 | Genuine Whiteline Suspension Component
KDT969 Whiteline Rear Differential Mount - Rear Bushing Kit to Suit BMW 3 Series and M3 E36 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes
Benefit Note: Whiteline's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|
| Bush Quantity | 2 mm | 2 mm |
| OD (A) | 51 mm | 51 mm |
| ID (B) | 34.8 mm | 36 mm |
| Length (C) | 18.3 mm | 20.5 mm |
| Flange Thickness (D) | 4.2 mm | 6.4 mm |
| Flange OD (E) | 57.2 mm | 62 mm |
| C/Tube Quantity | 2 | 2 |
| C/Tube ODxIDxL | 35x27x37.4 mm | 35x27x37.4 mm |

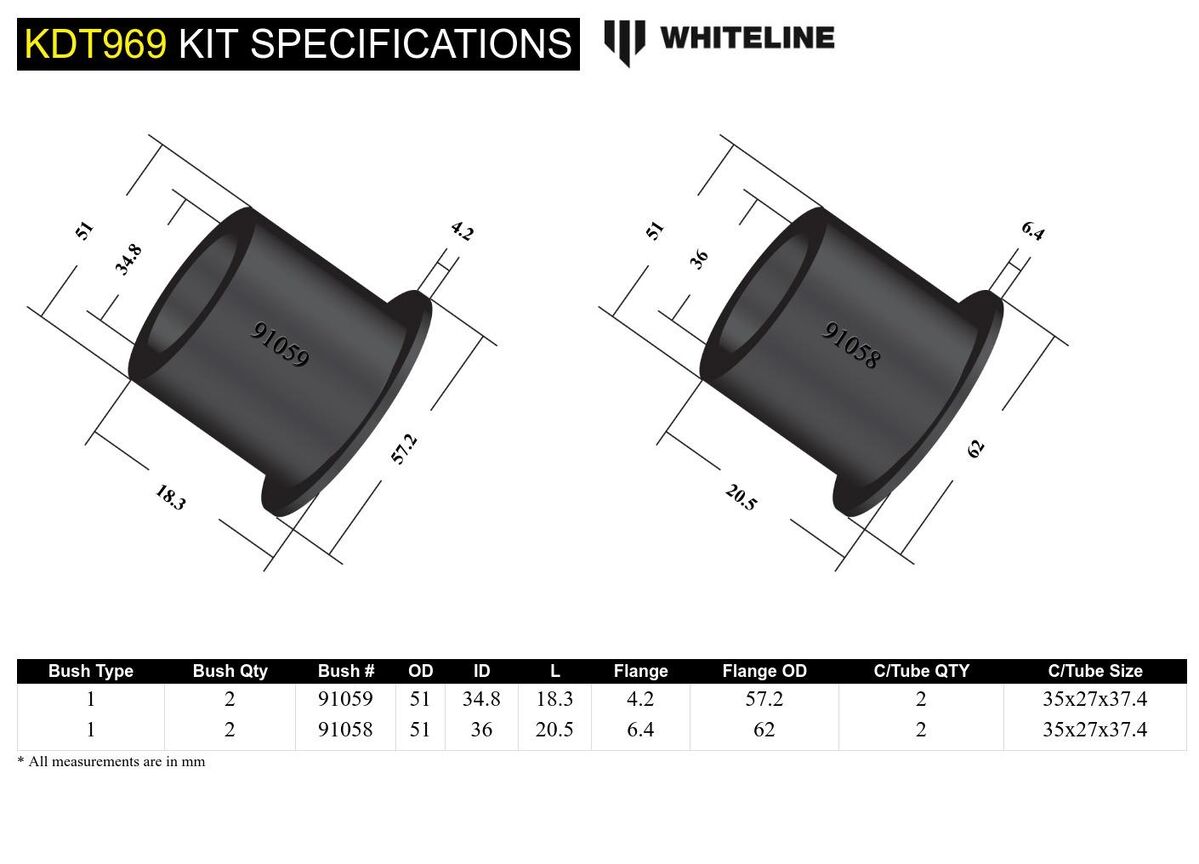

Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 |
|---|---|---|
| QTY | 2 | 2 |
| OD (A) | 51 | 51 |
| ID (B) | 34.8 | 36 |
| Length (C) | 18.3 | 20.5 |
| FL (D) | 4.2 | 6.4 |
| FLOD (E) | 57.2 | 62 |
| C/Tube Qty | 2 | 2 |
| C/Tube Size | 35x27x37.4 | 35x27x37.4 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.52kg | 1.15lbs |
| Length | 7cm | 2.76" |
| Width | 20cm | 7.87" |
| Height | 14cm | 5.51" |
Misc. Product Information
| SKU | KDT969 |
| Components Per | 4 Bushings, 2 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Balances comfort with performance while minimising noise and vibrations; the perfect, complete upgrade. Includes: 4 Bushings & 2 Tubes |
| EAN | 9319924454426 |
