KDT988 Whiteline Rear Subframe - Bushing Kit to Suit BMW 3 Series E36 | Genuine Whiteline Suspension Component
KDT988 Whiteline Rear Subframe - Bushing Kit to Suit BMW 3 Series E36 | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

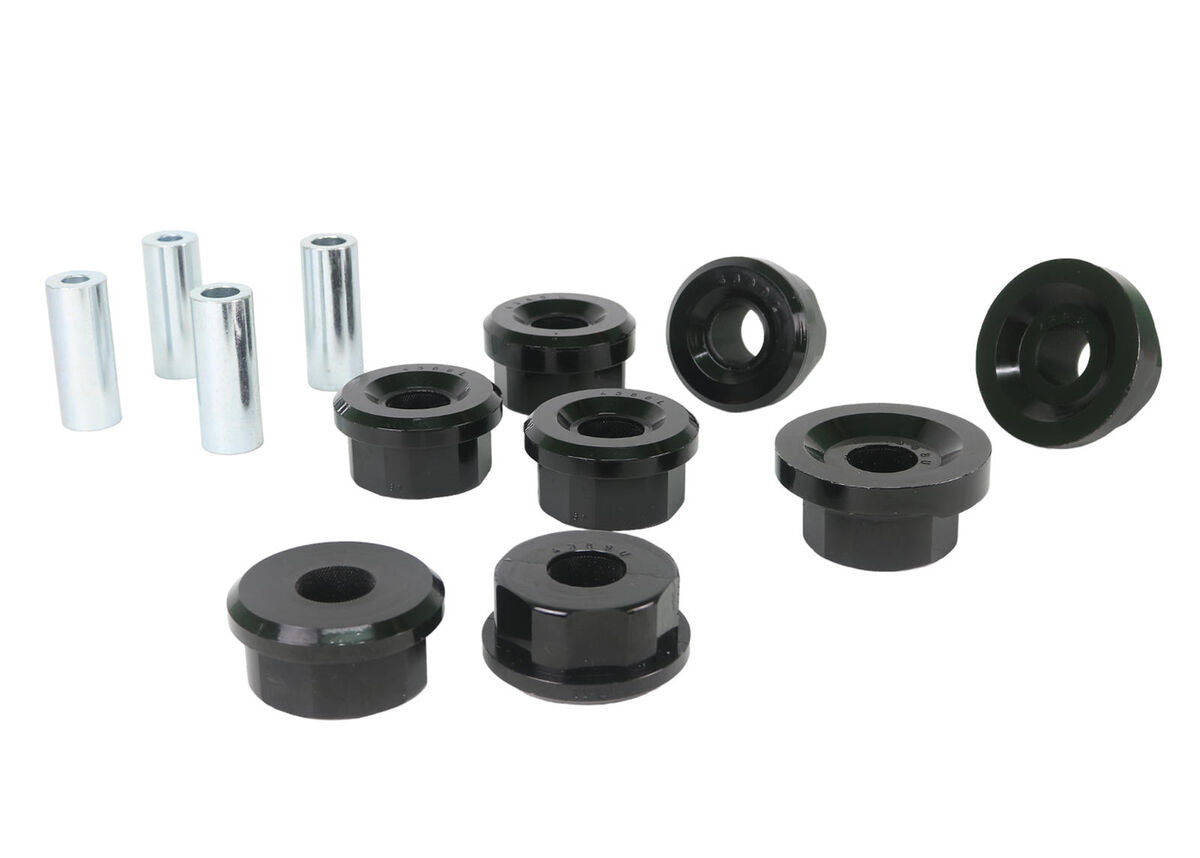

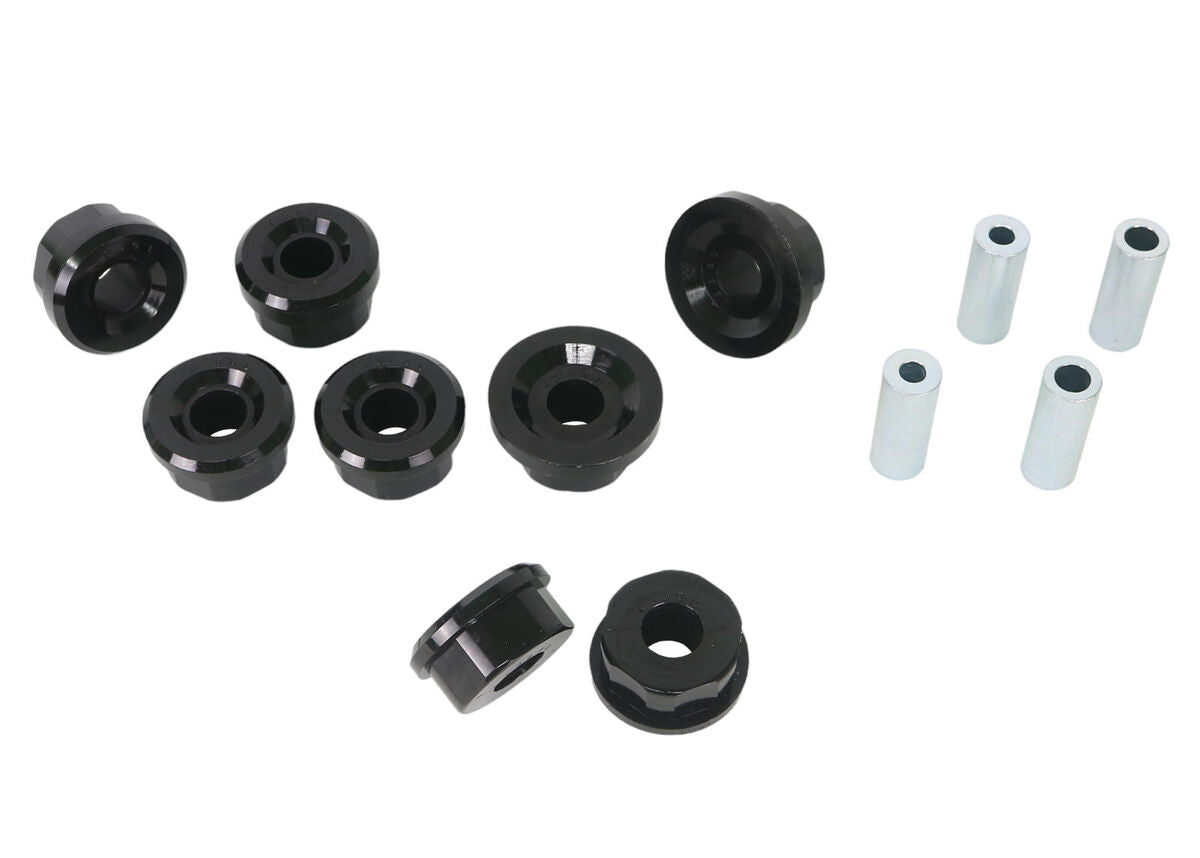

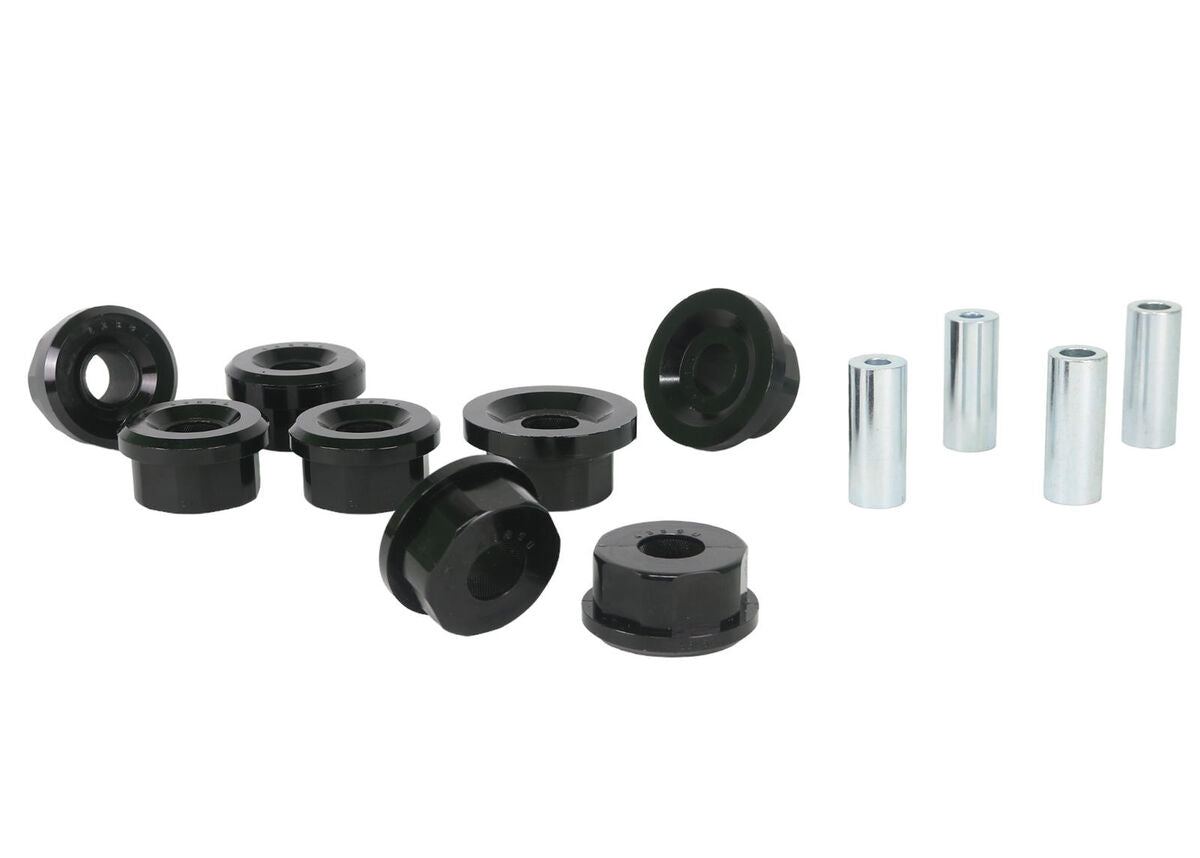

- Built tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes
Benefit Note: The Whiteline kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for motorsport applications.
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing | 1 - Shackle Bushing |
|---|---|---|---|---|
| Bush Quantity | 2 mm | 2 mm | 2 mm | 2 mm |
| OD (A) | 59.5 mm | 61.5 mm | 59.5 mm | 61.5 mm |
| ID (B) | 26.8 mm | 26.8 mm | 26.8 mm | 26.8 mm |
| Length (C) | 37 mm | 40 mm | 33.5 mm | 33.5 mm |
| Flange Thickness (D) | 11.5 mm | 16.5 mm | 14.2 mm | 10 mm |
| Flange OD (E) | 69.5 mm | 70 mm | 82 mm | 70 mm |
| C/Tube Quantity | 2 / 2 | 2 / 2 | 2 / 2 | 2 / 2 |
| C/Tube ODxIDxL | 27x12.3x67.5 / 27x16.3x70 mm | 27x12.3x67.5 / 27x16.3x70 mm | 27x12.3x67.5 / 27x16.3x70 mm | 27x12.3x67.5 / 27x16.3x70 mm |
Bushing Design Dimensions (mm)
| Bush Type | 1 | 1 | 1 | 1 |
|---|---|---|---|---|
| QTY | 2 | 2 | 2 | 2 |
| OD (A) | 59.5 | 61.5 | 59.5 | 61.5 |
| ID (B) | 26.8 | 26.8 | 26.8 | 26.8 |
| Length (C) | 37.0 | 40.0 | 33.5 | 33.5 |
| FL (D) | 11.5 | 16.5 | 14.2 | 10 |
| FLOD (E) | 69.5 | 70 | 82 | 70 |
| C/Tube Qty | 2 / 2 | 2 / 2 | 2 / 2 | 2 / 2 |
| C/Tube Size | 27x12.3x67.5 / 27x16.3x70 | 27x12.3x67.5 / 27x16.3x70 | 27x12.3x67.5 / 27x16.3x70 | 27x12.3x67.5 / 27x16.3x70 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.77kg | 3.9lbs |
| Length | 10cm | 3.94" |
| Width | 26cm | 10.24" |
| Height | 16cm | 6.3" |
Misc. Product Information
| SKU | KDT988 |
| Components Per | 8 Bushings, 4 Tubes |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Built tough for better durability and long-lasting performance; the perfect, complete upgrade. Includes: 8 Bushings & 4 Tubes |
| EAN | 9319924471287 |
