KIT5360CADJK SuperPro Front Control Arm - Geometry Correction Kit to Suit Audi, Seat, Skoda and Volkswagen MQB Fwd/Awd | Genuine SuperPro Suspension Component
KIT5360CADJK SuperPro Front Control Arm - Geometry Correction Kit to Suit Audi, Seat, Skoda and Volkswagen MQB Fwd/Awd | Genuine SuperPro Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

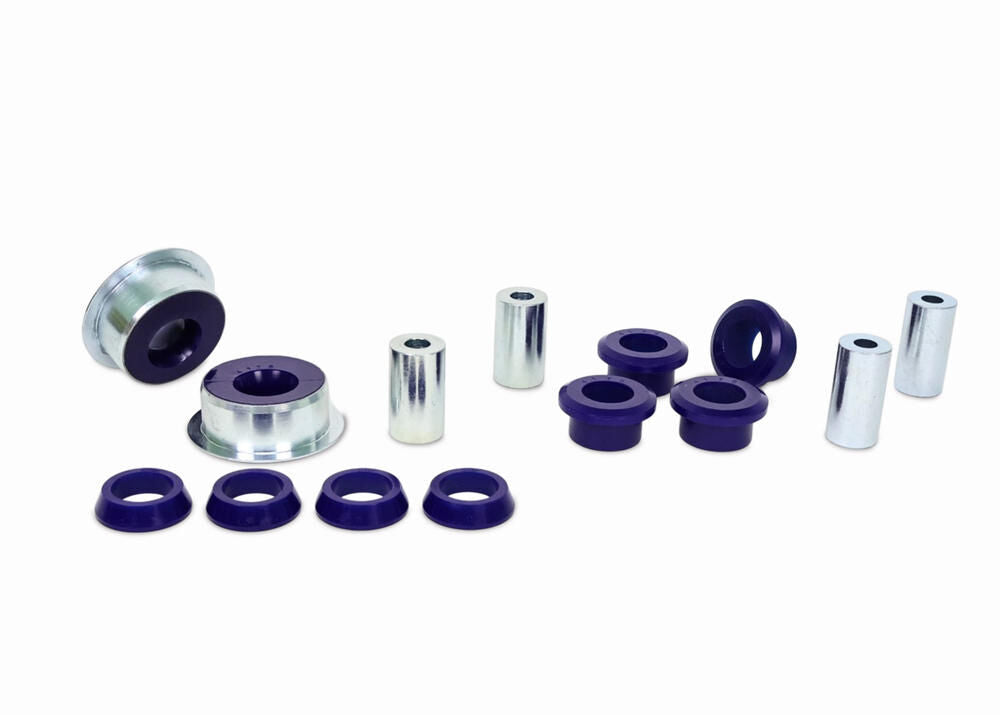

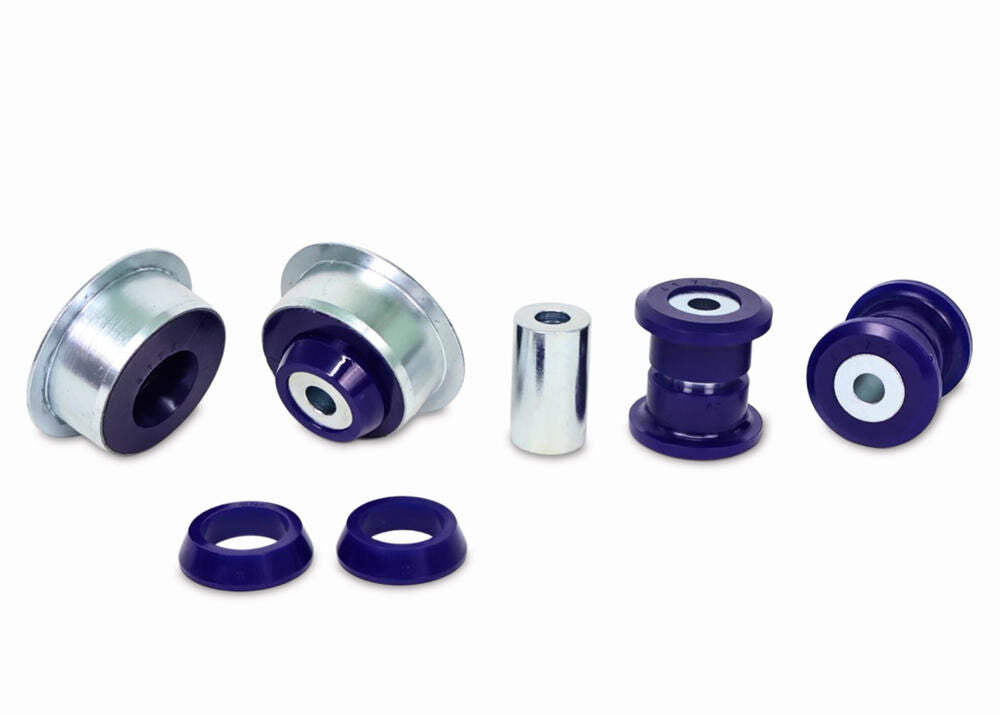

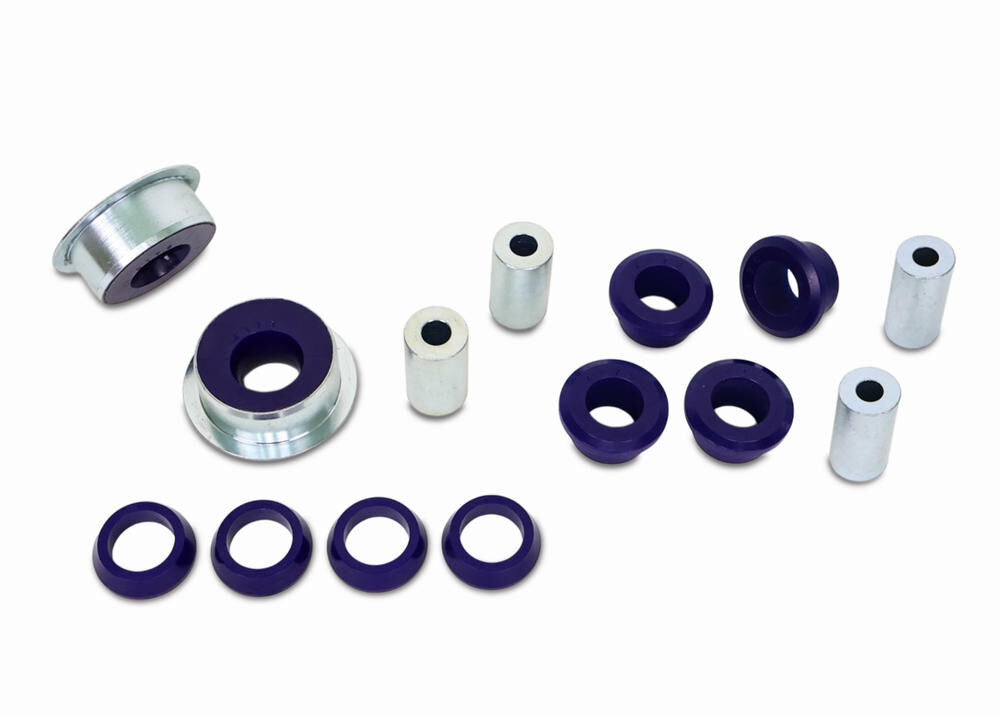

Kit Content: SPF4175K and SPF4178K
This kit has all the essential bushes needed to effectively increase the handling performance of a modified vehicle. Ideally suited as an entry level kit for a modified vehicle with bigger wheels or tyres, brakes and lowered suspension.
Kit Contains:
- Front Control Arm Lower-Inner Front Bush Kit
- Front Control Arm Lower-Inner Rear Anti Lift Bush Kit - Performance Option
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 3 - Half Tapered Cotton Reel Bush | 17 - Shell With Flange Bushing |
|---|---|---|---|
| Bush Quantity | 4 mm | 4 mm | 2 mm |
| OD (A) | 37 mm | AI=44 AII=36.5 mm | 64.4 mm |
| ID (B) | 27 mm | 28.5 mm | 28.57 mm |
| Length (C) | 25 mm | 11 mm | 28 mm |
| Flange Thickness (D) | 7 mm | 2 mm | 11 mm |
| Flange OD (E) | 50 mm | ||
| C/Tube Quantity | 2 / 2 | 2 / 2 | 2 / 2 |
| C/Tube ODxIDxL | 27x12.3x54 / 28.57x13x50 mm | 27x12.3x54 / 28.57x13x50 mm | 27x12.3x54 / 28.57x13x50 mm |
| Similar Bushing Size | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here SuperPro Bushing Type & Size Register
| Alignment | Alignment Adjustment Type | Alignment On Car Adjustable |
|---|---|---|
| Caster | Offset | No |
| Caster | Offset | No |
| Caster | Offset | No |
Bushing Design Dimensions (mm)
| Bush Type | 1 | 3 | 17 |
|---|---|---|---|
| QTY | 4 | 4 | 2 |
| OD (A) | 37 | AI=44 AII=36.5 | 64.4 |
| ID (B) | 27 | 28.5 | 28.57 |
| Length (C) | 25.0 | 11.0 | 28.0 |
| FL (D) | 7 | 2 | 11 |
| FLOD (E) | 50 | ||
| C/Tube Qty | 2 / 2 | 2 / 2 | 2 / 2 |
| C/Tube Size | 27x12.3x54 / 28.57x13x50 | 27x12.3x54 / 28.57x13x50 | 27x12.3x54 / 28.57x13x50 |
| Similar Bushings | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here SuperPro Suspensions Bushing Type & Size Register
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.5kg | 3.31lbs |
| Length | 22cm | 8.66" |
| Width | 14cm | 5.51" |
| Height | 14cm | 5.51" |
Misc. Product Information
 SKU |
KIT5360CADJK |
|---|---|
 Kit Contents |
10 Bushings, 4 Tubes |
| Kits Required |
1 |
 Fitting Position |
Front Axle |
| Foot Note 1 |
Performance Alignment |
| Foot Note 3 |
lifetime warranty |
| Sub brand |
SuperPro Kits |
| EAN |
9317745811992 |
| Product Note |
