KSR207 Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Subaru Forester, Impreza, Liberty, Outback and XV | Genuine Whiteline Suspension Component
KSR207 Whiteline Front Steering Rack and Pinion - Mount Bushing Kit to Suit Subaru Forester, Impreza, Liberty, Outback and XV | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

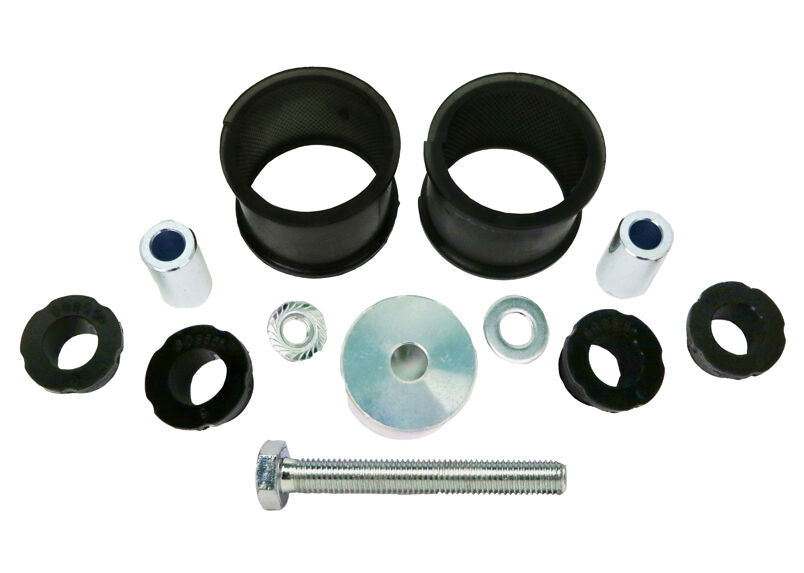

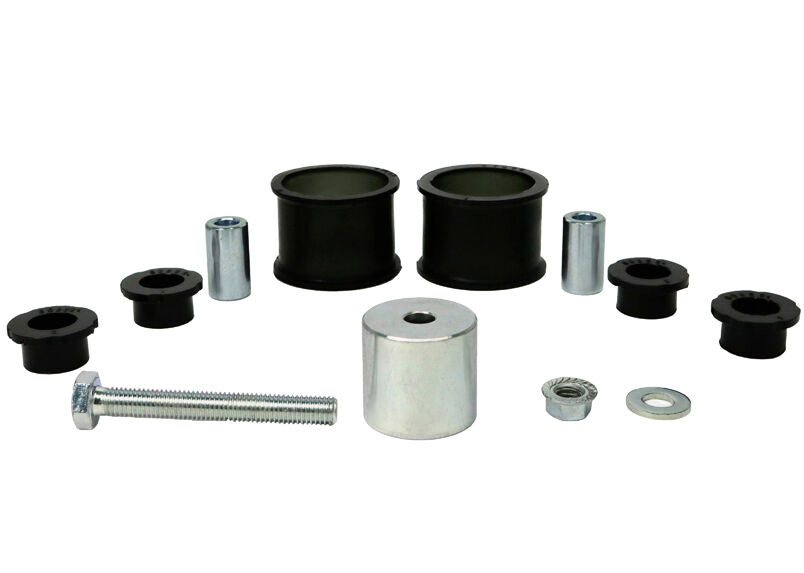

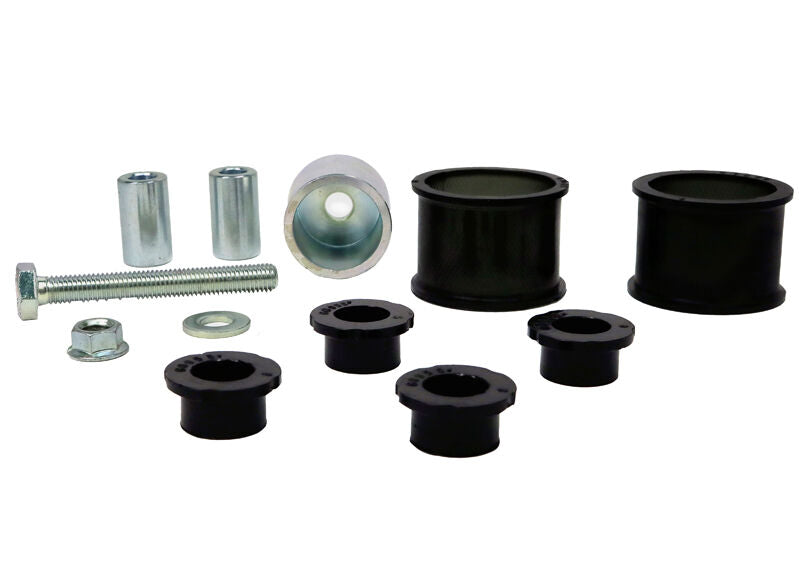

- Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 6 Bushings, 2 Tubes & Removal Tool
Benefit Note: Power steering, aggressive wheel alignment geometry, wider wheels and lower profile tyres have all put radically increased loading on the steering systems of modern cars. Add to that engine bay contaminants such as oil leaks that also help to degrade the performance of steering rack mount bushings. Whiteline steering rack mounts are engineered to outlast and enhance steering precision and feedback.
Kit Specifications
| Bush Type | 1 - Shackle Bushing | 10 - Cotton Reel With & Without Tapper Bushing | 10 - Cotton Reel With & Without Tapper Bushing |
|---|---|---|---|
| Bush Quantity | 4 mm | 1 mm | 1 mm |
| OD (A) | 24 mm | 51 mm | 51 mm |
| ID (B) | 17.8 mm | 45.5 mm | 47 mm |
| Length (C) | 15.8 mm | 41 mm | 41 mm |
| Flange Thickness (D) | 3.5 mm | 4 mm | 5 mm |
| Flange OD (E) | 32.8 mm | 58.5 mm | 57 mm |
| C/Tube Quantity | 2 | 2 | 2 |
| C/Tube ODxIDxL | 18x10.2x32 mm | 18x10.2x32 mm | 18x10.2x32 mm |

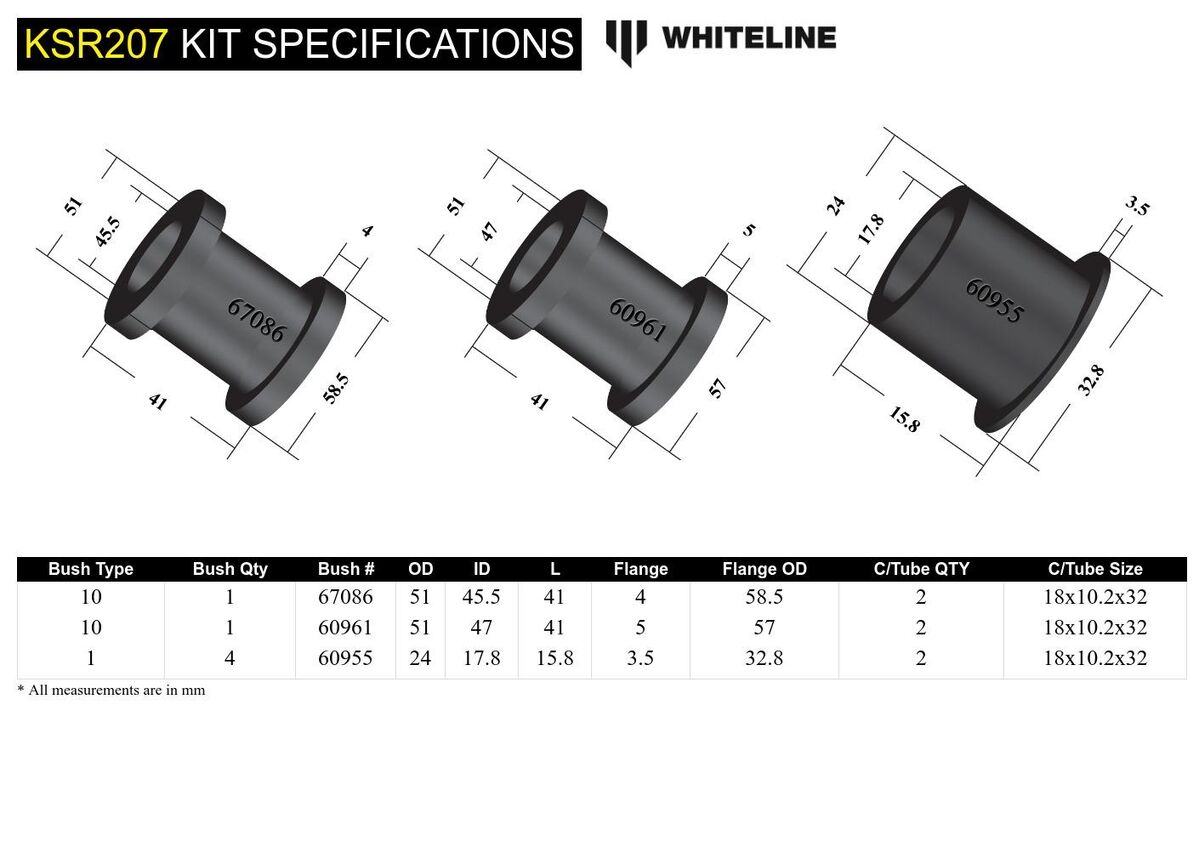

Bushing Design Dimensions (mm)
| Bush Type | 1 | 10 | 10 |
|---|---|---|---|
| QTY | 4 | 1 | 1 |
| OD (A) | 24 | 51 | 51 |
| ID (B) | 17.8 | 45.5 | 47 |
| Length (C) | 15.8 | 41.0 | 41.0 |
| FL (D) | 3.5 | 4 | 5 |
| FLOD (E) | 32.8 | 58.5 | 57 |
| C/Tube Qty | 2 | 2 | 2 |
| C/Tube Size | 18x10.2x32 | 18x10.2x32 | 18x10.2x32 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.372kg | 0.82lbs |
| Length | 7cm | 2.76" |
| Width | 20cm | 7.87" |
| Height | 14cm | 5.51" |
Misc. Product Information
| SKU | KSR207 |
| Components Per | 6 Bushings, 2 Tubes, Removal Tool |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Maximises grip and stability for better control; the perfect, complete upgrade. Includes: 6 Bushings, 2 Tubes & Removal Tool |
| EAN | 9319924347384 |
