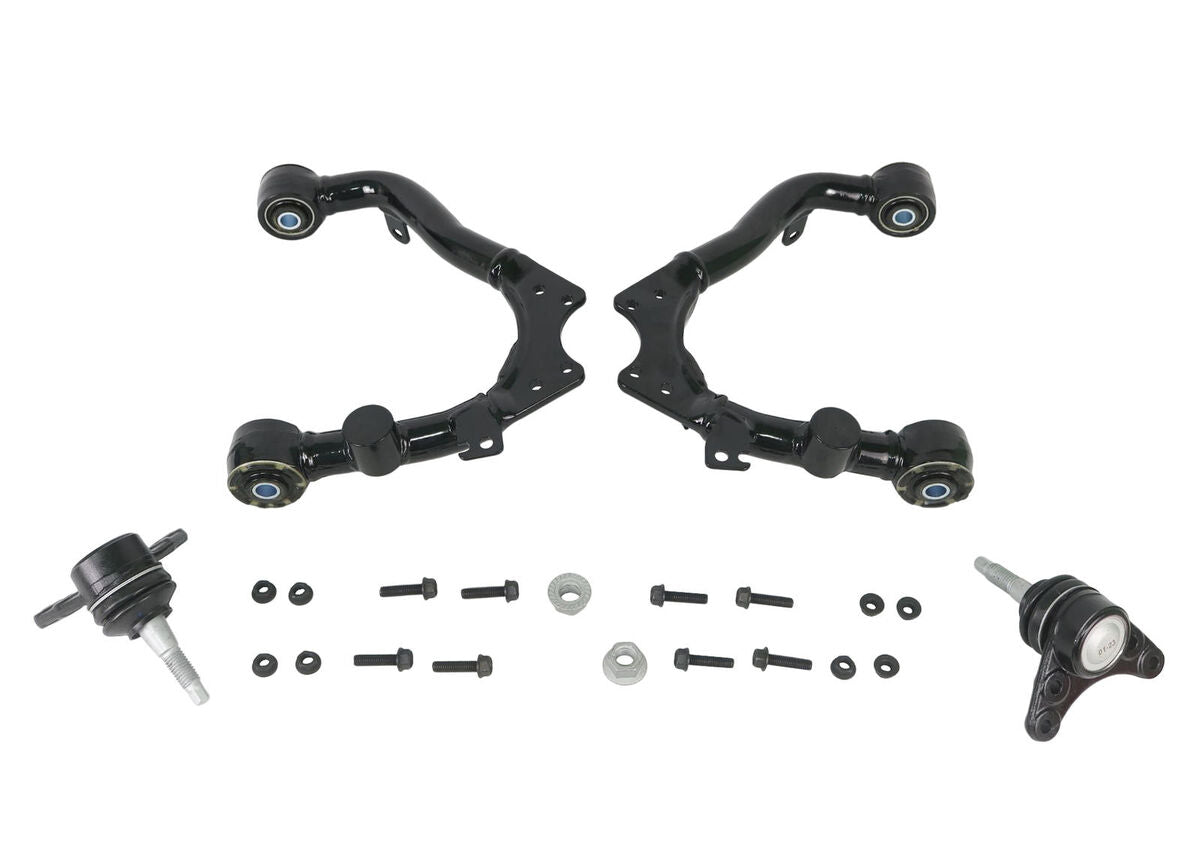

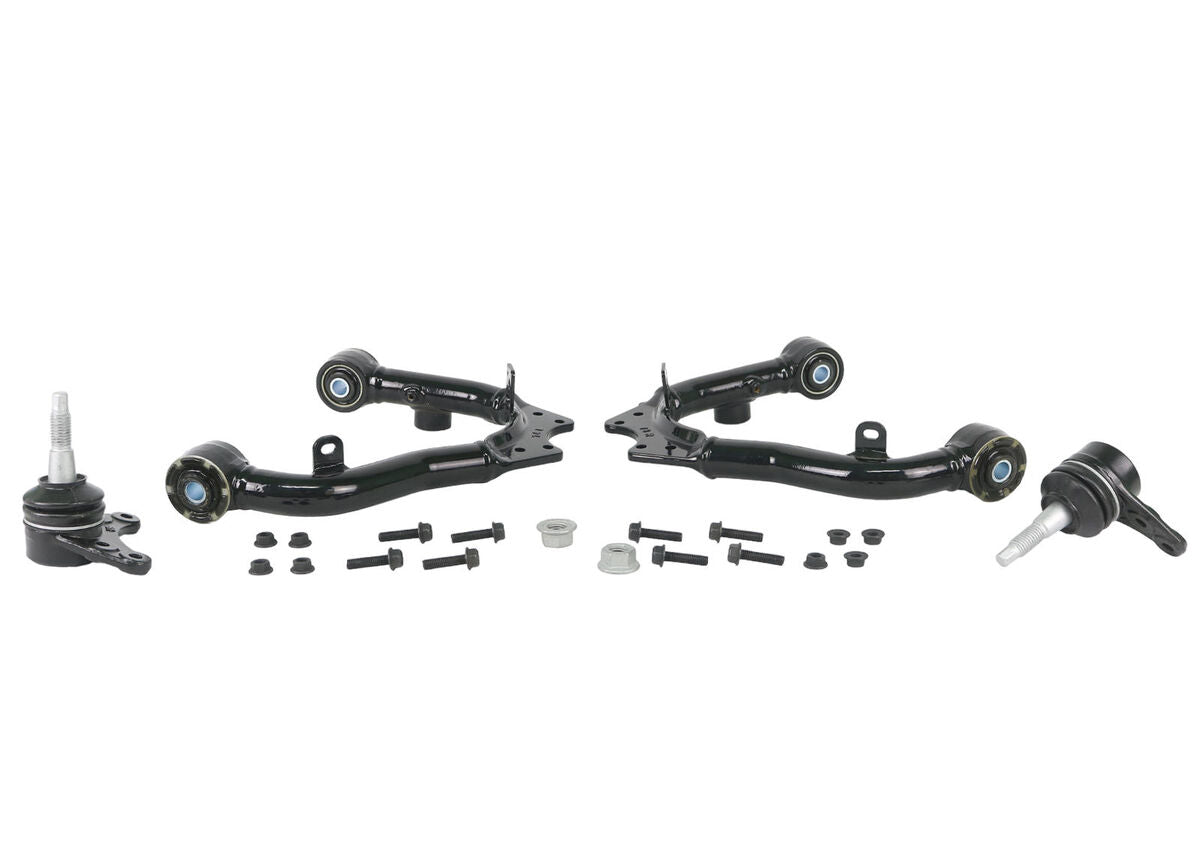

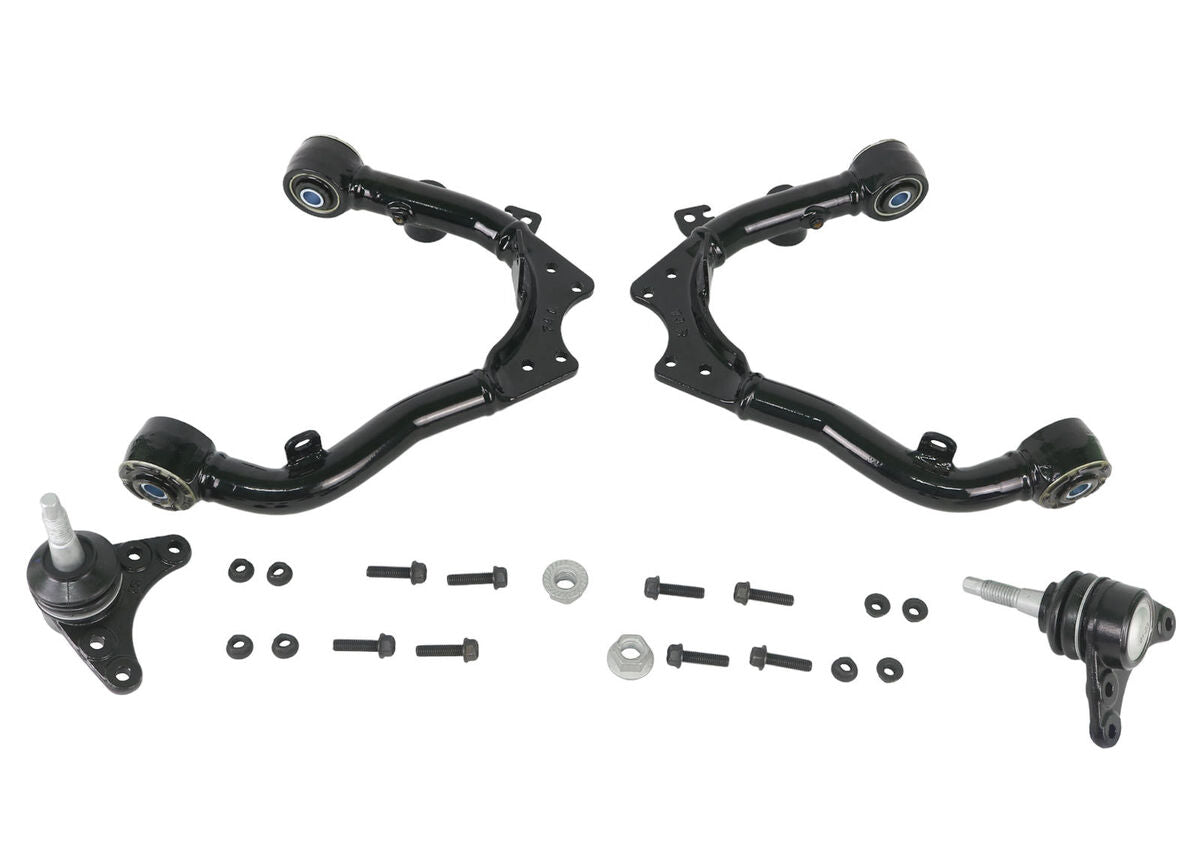

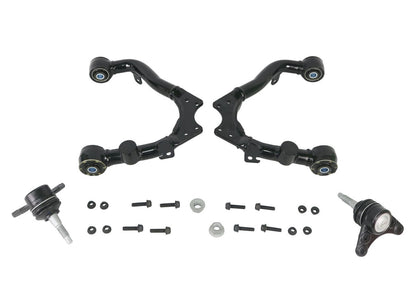

KTA297 Whiteline Front Upper Control Arms Fixed Offset to Suit Holden Colorado RG2 and Trailblazer | Genuine Whiteline Suspension Component
KTA297 Whiteline Front Upper Control Arms Fixed Offset to Suit Holden Colorado RG2 and Trailblazer | Genuine Whiteline Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Arms
Benefit Note: A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Whiteline offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.
Kit Specifications
| Arm Type | Alignment |
|---|---|
| Units | Pair |
| Ball Joint Included | Yes |
| Adjustable (Arms) | No |
| Alignment Type | Camber / Caster |
| Adjustment Type | Fixed |
| On Car Adjustable | No |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 9.5kg | 20.94lbs |
| Length | 17cm | 6.69" |
| Width | 34cm | 13.39" |
| Height | 42.5cm | 16.73" |
Misc. Product Information
| SKU | KTA297 |
| Components Per | 2 Arms |
| Kits Required | 1 |
| Sub brand | Performance |
| Product Note | Maximises tyre contact with the road, improving cornering and grip; the perfect, complete upgrade. Includes: 2 Arms |
| EAN | 9319924469505 |
