3534373 Cummins Marine Aftermarket Turbocharger 6BT TURBOCHARGER 3534373 HOLSET H1C | Sawley's Select Marine Parts

🔧 Product Description

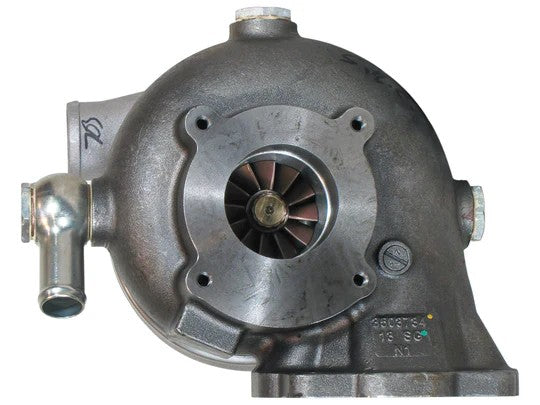

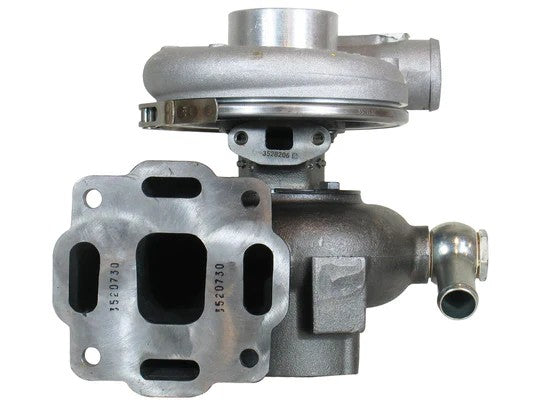

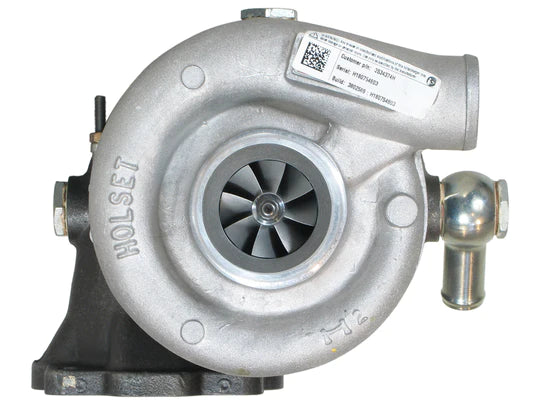

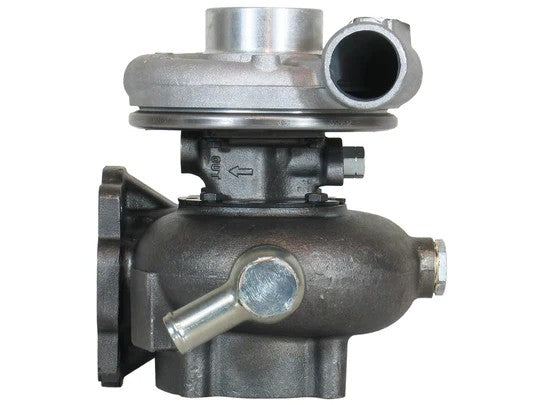

Sawley's Select Marine Parts Aftermarket Cummins 6BT 5.9L H1C Marine Turbocharger - Replacement for Part Numbers: 3534373 and 3802589

A new aftermarket fixed-geometry marine turbocharger engineered as a replacement for the Holset H1C unit used on selected Cummins 6BT 5.9-litre marine diesel engines.

The H1C turbocharger features a water-cooled marine turbine housing and uses exhaust-gas energy to drive its turbine and compressor wheels. It increases the quantity of air supplied to the engine, supporting normal power output, combustion efficiency and exhaust-smoke control.

Multiple H1C turbochargers were used on Cummins 6BT engines, so the original turbo data plate and Cummins engine serial number must be confirmed before installation.

⚙️ Key Features

• New aftermarket Cummins marine turbocharger

• Replaces Holset part number 3534373

• Replaces Cummins service turbocharger 3802589

• Holset H1C fixed-geometry configuration

• Water-cooled marine turbine housing

• Designed for selected Cummins 6BT 5.9L engines

• Direct replacement where the listed turbo numbers are fitted

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Holset 3533732 - Earlier H1C turbocharger reference

• Holset 3533733 - Earlier related reference

• Holset 3533734 - Earlier related reference

• Holset 3534373 - Later H1C turbocharger reference

• Holset 3534374 / 3534374H - Current related new-unit reference

• Cummins 3802589 - Cummins complete turbocharger service reference

• Cummins 3802589RX - Cummins ReCon exchange reference

• Cummins 3802589NX - Cummins new exchange reference

OEM / Related Numbers:

• 3534373

• 3534374

• 3534374H

• 3533732

• 3533733

• 3533734

• 3802589

• 3802589RX

• 3802589NX

• Turbo Model: H1C

• Turbo Specification: H1C-8253AF/J13S11

• Centre Housing Rotating Assembly: 3523754

• Bearing Housing: 3530591 / 3530592

• Repair Kit: 4027309 / 4027309H

• Related Repair Kit: 3545652

• Related Gasket Kit: DGK0121

Aftermarket / Verified Equivalents:

• Aftermarket H1C replacement for Holset 3534373

• Aftermarket H1C replacement for Holset 3534374H

• Aftermarket replacement for Cummins 3802589

• Aftermarket Cummins 6BT 5.9L marine turbocharger

• Rebuild cartridge and repair kits available separately

🚤 Compatibility

Commonly used on:

• Cummins 6BT marine diesel engines

• Cummins B-Series 5.9L marine engines

• Inboard shaft-drive propulsion installations

• Commercial and recreational marine applications

Typically suits:

• Engine models and families:

• Cummins 6BT marine engines using turbocharger 3534373

• Cummins 6BT marine engines using turbocharger 3534374H

• Cummins 6BT engines specifying Cummins service number 3802589

• Cummins B-Series six-cylinder marine installations using the H1C-8253AF/J13S11 turbo configuration

• Engine Displacement: Approximately 5.9 litres

• Engine Configuration: Inline six-cylinder, four-stroke diesel

• Induction System: Turbocharged

• Turbocharger Type: Holset H1C fixed geometry

• Turbine Housing: Water-cooled marine configuration

• Fuel Type: Diesel

• Power Rating: Controlled by the engine CPL, fuel calibration and engine serial number

Important fitment note:

• Cummins used several H1C, H1E, HX35 and other turbochargers across 6BT marine engines.

• Do not order solely by the 6BT engine designation.

• Confirm Holset number 3534373, 3534374H or Cummins number 3802589 on the original unit.

• Check the compressor-housing and turbine-housing orientation before installation.

🔌 Function

The turbocharger supplies compressed air to the engine intake so the cylinders receive enough oxygen for efficient fuel combustion.

Correct turbocharger performance is required for normal torque, loaded engine speed, exhaust temperature and smoke control.

Common signs of turbocharger failure:

• Reduced engine power

• Engine cannot reach rated loaded rpm

• Slow vessel acceleration

• Excessive black exhaust smoke

• Blue smoke or increased engine-oil consumption

• Oil contamination in the compressor outlet

• High-pitched whistle or siren noise

• Grinding or wheel-contact noise

• Excessive turbocharger shaft movement

• Compressor or turbine wheel damage

• High exhaust-gas temperature

• Water or corrosion damage inside the turbine housing

Installation considerations:

• Confirm the Cummins engine serial number and CPL

• Match the original Holset identification plate

• Identify and correct the cause of the original failure

• Replace the engine oil and oil filter

• Inspect or replace the turbocharger oil-feed pipe

• Inspect the oil-return pipe for restriction

• Clean the intake piping and aftercooler where fitted

• Check the air cleaner and crankcase breather

• Inspect the exhaust manifold, elbow and downstream exhaust

• Flush and inspect the turbine-housing coolant passages

• Prime the turbocharger bearing housing with clean engine oil

• Replace the turbine-inlet, turbine-outlet and oil-line gaskets

• Establish oil pressure before operating the engine at speed

• Check boost pressure and loaded engine rpm after installation

📦 Condition

• Sawley's Select Marine Parts aftermarket replacement

• Brand new

• Supplied in protective packaging

• Gasket kit DGK0121 not included unless specifically listed
