🔧 Product Description

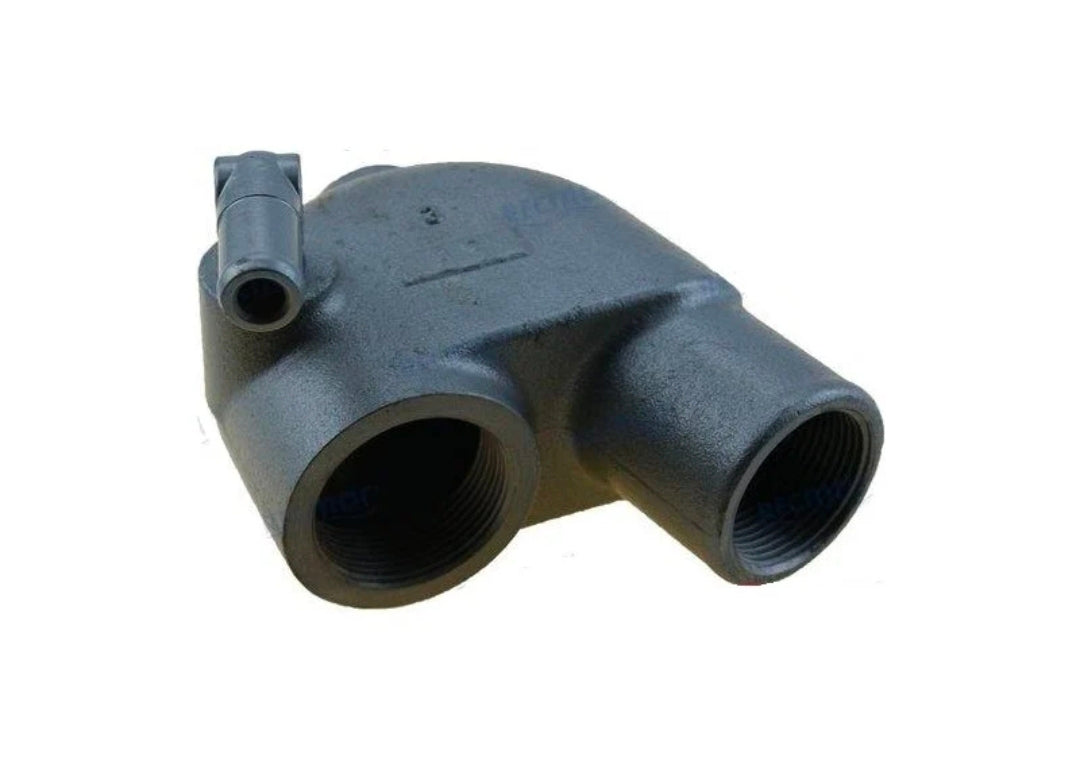

Aftermarket Yanmar Exhaust Elbow - Part Number: MAR3520
A replacement Yanmar GM/HM-series exhaust mixing elbow cross-referencing to 104070-13520, 104214-13521, 104214-13531, 124070-13520, 127070-13520, 128370-13600 and 128990-13520. It uses gasket REC128370-13201.
⚙️ Key Features
• GM/HM/YM threaded mixing-elbow pattern
• Replaces seven Yanmar elbow references
• For 1GM, 2GM, 3GM and 3HM families
• Uses gasket 128370-13201
• Recmar and HGE cross-references available
🔄 Supersession & Cross Reference
OEM Supersession Chain:
• MAR3520 → Replaces 104070-13520, 104214-13521, 104214-13531, 124070-13520, 127070-13520, 128370-13600 and 128990-13520
OEM / Related Numbers:
• MAR3520
• 104070-13520
• 104214-13521
• 104214-13531
• 124070-13520
• 127070-13520
• 128370-13600
• 128990-13520
• 128370-13201
• HGE3520
Aftermarket / Verified Equivalents:
• Recmar: MAR3520
• HGE: HGE3520
• HDI Marine: GM
🚤 Compatibility
Commonly used on:
• Yanmar GM/HM threaded wet-exhaust systems
Typically suits:
• Engine models:
• Yanmar 1GM
• Yanmar 1GM10
• Yanmar 2GM
• Yanmar 2GM10
• Yanmar 2GM20
• Yanmar 2GM30
• Yanmar 3GM
• Yanmar 3GM30
• Yanmar 3HM
• Yanmar 3HM35F
• Overall Height: approximately 15.5cm
• Overall Width: approximately 15.5cm
• Overall Length: approximately 16cm
• Weight: approximately 2.5kg
• Associated Gasket: REC128370-13201
🔌 Function
The mixing elbow injects raw cooling water into the exhaust gas before discharge into the wet exhaust hose.
Common signs of failure:
• External corrosion, cracking or pin-hole leakage
• Internal carbon, rust or salt restriction
• Cooling water entering the manifold, turbocharger or cylinders
• Steam, reduced cooling-water discharge or an abnormally hot exhaust hose
• Loss of power caused by excessive exhaust back-pressure
📦 Condition
• Brand new aftermarket replacement part
• New and unused
• Supplied in manufacturer or equivalent protective packaging
