Aftermarket Mercury 135-150-175 OptiMax Service Kit All Models | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Mercury 135-175 HP OptiMax Service Kit - Kit Reference: Application-matched OptiMax 2.4/2.5 L V6 kit

Comprehensive aftermarket routine-maintenance kit assembled for 135-175 HP Mercury 2.4/2.5 L V6 direct-fuel-injected two-stroke outboard applications. It combines the ignition, cooling, filtration and drain-sealing components listed below so the main scheduled-service items can be renewed together.

⚙️ Key Features

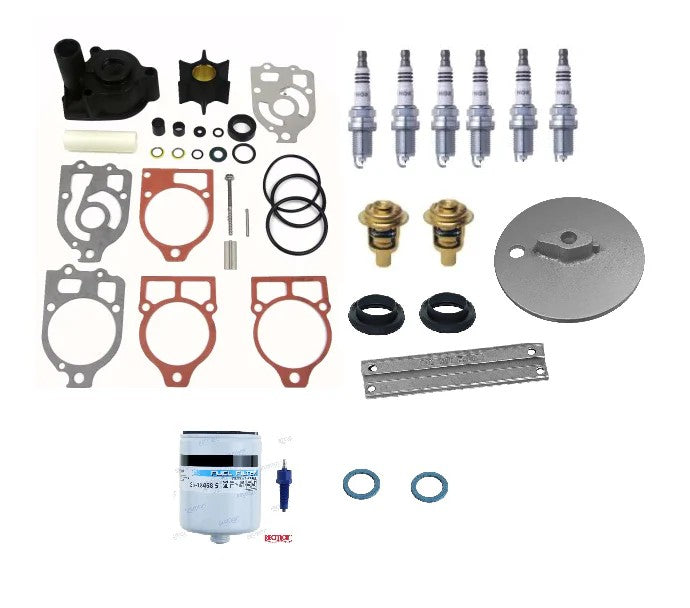

Kit contents:

• 6 × NGK iridium spark plug - Part Number: IZFR5G (Mercury 889597Q)

• 1 × Major water-pump repair kit - Part Number: 96148Q8

• 2 × Fuel filter with water sensor - Part Number: 35-18458Q4

• 2 × Gearcase drain-plug seal - Part Number: 12-191833

• 2 × Thermostat - Part Number: 833072003

• 1 × Thermostat seal - Part Number: 27-887978

• 1 × Sacrificial anode - Part Number: 818298

• 1 × Trim-tab anode - Part Number: 76214Q5 / 76214Q5AL

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Mercury/Quicksilver hyphenated and compact-number formats identify the same listed component

OEM / Related Numbers:

• IZFR5G

• 96148Q8

• 35-18458Q4

• 12-191833

• 833072003

• 27-887978

• 818298

• 76214Q5

• 76214Q5AL

Aftermarket / Verified Equivalents:

• Recmar, Sierra and Outboard Spares component-level replacements are available where the listed OEM reference is cross-matched

🚤 Compatibility

Commonly used on:

• Mercury 135 HP, 150 HP and 175 HP OptiMax/DFI V6 outboards using the 96148Q8 pump family

Typically suits:

• HP Range: 135-175 HP

• Engine Type: Mercury 2.4/2.5 L V6 direct-fuel-injected two-stroke outboard

• Year / Serial Range: All model years only where the listed component numbers match the engine serial

• Identification: Confirm the complete engine model and serial number before ordering, particularly where shaft length, gear ratio or gearcase family changes the water-pump components.

🔌 Function

Provides the principal routine-service components used to maintain correct ignition, fuel delivery, cooling-water flow and fluid sealing. Renewing these items at the proper service interval helps support reliable starting, stable running, normal operating temperature and protection against contaminated oil or water-pump failure.

Common signs service is required:

• Hard starting, misfire, poor idle or reduced throttle response

• Restricted fuel flow, dirty filters or fuel starvation under load

• Weak or intermittent tell-tale flow, rising temperature or an overheat warning

• Cracked, hardened or missing impeller vanes

• Oil or gear-lubricant leakage from deteriorated drain-plug seals

• Scheduled annual, 100-hour or storage-return maintenance interval reached

📦 Condition

• Brand-new aftermarket service kit

• Supplied as new replacement components

• Supplied in suitable retail or equivalent packaging
