Aftermarket Mercury 200-225-250 OptiMax Service Kit | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Mercury 200-250 HP OptiMax Service Kit - Kit Reference: Application-matched 3.0 L OptiMax kit

Comprehensive aftermarket routine-maintenance kit assembled for 200-250 HP Mercury 3.0 L V6 direct-fuel-injected two-stroke outboard applications. It combines the ignition, cooling, filtration and drain-sealing components listed below so the main scheduled-service items can be renewed together.

⚙️ Key Features

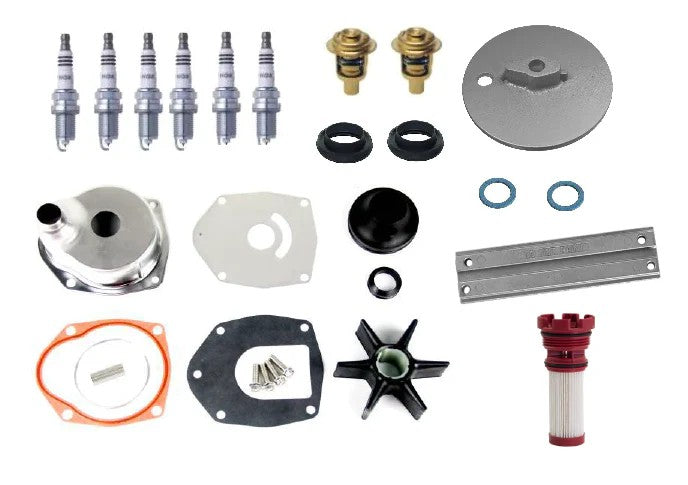

Kit contents:

• 1 × Sacrificial anode - Part Number: 818298

• 1 × Trim-tab anode - Part Number: 76214Q5 / 76214Q5AL

• 1 × Fuel filter - Part Number: 35-884380T

• 6 × NGK iridium spark plug - Part Number: IZFR5G (Mercury 889597Q)

• 1 × Gearcase drain-plug seal - Part Number: 12-191833

• 1 × Major water-pump kit with upper cap - Part Number: 817275A09

• 2 × Thermostat - Part Number: 8M0067307

• 2 × Internal anode - Part Number: 826134

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• Mercury/Quicksilver hyphenated and compact-number formats identify the same listed component

OEM / Related Numbers:

• 818298

• 76214Q5

• 76214Q5AL

• 35-884380T

• IZFR5G

• 12-191833

• 817275A09

• 8M0067307

• 826134

Aftermarket / Verified Equivalents:

• Recmar, Sierra and Outboard Spares component-level replacements are available where the listed OEM reference is cross-matched

🚤 Compatibility

Commonly used on:

• Mercury 200 HP, 225 HP and 250 HP 3.0 L OptiMax/DFI outboards using the listed components

Typically suits:

• HP Range: 200-250 HP

• Engine Type: Mercury 3.0 L V6 direct-fuel-injected two-stroke outboard

• Year / Serial Range: Model and serial controlled; confirm standard or high-performance gearcase

• Identification: Confirm the complete engine model and serial number before ordering, particularly where shaft length, gear ratio or gearcase family changes the water-pump components.

🔌 Function

Provides the principal routine-service components used to maintain correct ignition, fuel delivery, cooling-water flow and fluid sealing. Renewing these items at the proper service interval helps support reliable starting, stable running, normal operating temperature and protection against contaminated oil or water-pump failure.

Common signs service is required:

• Hard starting, misfire, poor idle or reduced throttle response

• Restricted fuel flow, dirty filters or fuel starvation under load

• Weak or intermittent tell-tale flow, rising temperature or an overheat warning

• Cracked, hardened or missing impeller vanes

• Oil or gear-lubricant leakage from deteriorated drain-plug seals

• Scheduled annual, 100-hour or storage-return maintenance interval reached

📦 Condition

• Brand-new aftermarket service kit

• Supplied as new replacement components

• Supplied in suitable retail or equivalent packaging
