Aftermarket Mercury 60HP 2-Stroke BigFoot Service Kit | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket major service kit for selected Mercury and Mariner 60HP inline three-cylinder carburetted two-stroke outboards fitted with the BigFoot large gearcase. The verified application is the 60HP BigFoot family within serial range 0G590000-0T979999, using the large-gearcase 47-43026Q06 / 8M0100526 water-pump system.

BigFoot gearcases use a different pump, impeller, key, wear plate and seal arrangement from the standard 1.64:1 or small-gearcase models. Horsepower and cylinder count alone are therefore not sufficient for selection.

⚙️ Key Features

• Major service bundle for 60HP three-cylinder two-stroke BigFoot outboards

• Includes a complete large-gearcase water-pump repair kit rather than an impeller-only package

• Includes spark plugs, fuel filter, thermostat, thermostat gasket and gearcase drain seals

• Uses the current Mercury 8M0100526 pump-kit succession

• Provides extensive OEM and aftermarket cross-reference coverage

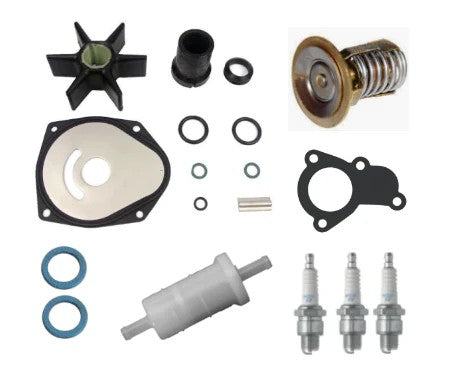

📋 Kit Contents

• 3 × NGK BP8H-N-10 spark plugs; BPZ8H-N-10 is the RFI-suppressed alternative where specified by the engine application

• 1 × Inline fuel filter - Mercury 35-877565T / 35-877565T1

• 1 × 110°F / approximately 43°C thermostat - Mercury 850055001

• 1 × Thermostat gasket - Mercury 27-827284

• 2 × Gearcase drain/fill screw sealing washers - Mercury 12-191833 family

• 1 × Complete water-pump repair kit - Mercury 8M0100526, superseding 47-43026Q06

Individually documented 8M0100526 / 47-43026Q06 pump components include:

• 2 × O-rings - Mercury 25-21836

• 1 × Quad ring - Mercury 26-45577-1

• 1 × Faceplate gasket - Mercury 27-8M0050720; earlier 27-43033-1 and later package references may be encountered

• 1 × Impeller - Mercury 47-8M0025709; related 47-43026Q02 / 47-43026T references

• 1 × O-ring - Mercury 25-90196

• 1 × Drive key - Mercury 28-8M0032833; earlier 28-43037

• 1 × Face seal - Mercury 26-8M2014338; earlier 26-816575A2

• 1 × Stainless faceplate - Mercury 8172761

• 1 × Water-pump gasket - Mercury 27-8172771

• 1 × Face-seal setting tool - Mercury 818769

• Remaining minor seals/washers required to complete the catalogued 15-piece repair package, supplied under the current kit revision

Exact minor O-ring, washer and seal counts can change when Mercury consolidates superseded numbers, but the supplied kit must cross-reference to 8M0100526 or 47-43026Q06 and include the large-gearcase impeller, key, faceplate, gaskets and seals.

🔄 Supersession & Cross Reference

OEM Supersession / Related References:

• Mercury 8M0100526 → Supersedes 47-43026Q06

• Related pump-kit references: 47-43026Q5, 47-43026T6, 47-43026T7, 47-43026T8, 47-43026T10 and 47-43026T11

• Mercury 47-8M0025709 / 47-43026Q02 - Impeller family

• Mercury 850055001 - Thermostat

• Mercury 35-877565T / T1 - Fuel-filter family

Verified Aftermarket / Other-Brand Equivalents:

• Sierra 18-3265 - Complete large-gearcase water-pump repair kit equivalent

• GLM 12043 - Complete large-gearcase water-pump repair kit equivalent

• Mallory 9-48313 - Complete water-pump repair kit equivalent

• EMP 75-75011 - Thermostat equivalent for Mercury 850055001

🚤 Compatibility

Commonly used on selected:

• Mercury 60HP three-cylinder carburetted two-stroke BigFoot outboards

• Mariner 60HP versions using the same Mercury-built BigFoot large gearcase

Verified Serial Range:

• 0G590000-0T979999

Gearcase Identification:

• BigFoot / large gearcase

• Uses the 47-43026Q06 / 8M0100526 pump family

• Gear ratio and propeller-shaft housing must be confirmed from the engine serial catalogue because similar powerheads were sold with standard gearcases

Important Exclusions:

• Not for standard 1.64:1 gearcases using the 47-19453T small-gearcase pump family

• Not for 50HP standard gearcases using 821354A2

• Not for EFI four-stroke, OptiMax/DFI or Command Thrust four-stroke applications

🔌 Function

Renews ignition, fuel-filtration, thermostat, gearcase-sealing and complete water-pump components during a scheduled major service. The full pump kit restores sealing and pumping surfaces that an impeller-only service does not address, which is important where the faceplate is scored or shaft seals have hardened.

Common signs service is due include:

• Difficult starting, poor idle or spark-plug fouling

• Restricted fuel delivery

• Overheating or thermostat sticking

• Weak tell-tale flow, damaged impeller blades or pump-housing leakage

• Water contamination or oil leakage around gearcase drain screws

📦 Condition

• Brand-new aftermarket service kit

• New and unused service components

• Supplied components may use current superseding part numbers

• Verify the complete serial number and BigFoot large-gearcase configuration before fitting
