Aftermarket Mercury 70HP 3-Cylinder Service Kit | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket major service kit for selected Mercury and Mariner 70HP inline three-cylinder carburetted two-stroke outboards using the later large-gearcase 47-43026Q06 / 8M0100526 water-pump family. The 70HP designation spans more than one pump generation, so the full serial number and existing pump components must be checked before ordering.

The later service family is catalogued from approximately serial 0A996142 and higher for the applicable 70HP three-cylinder engines. Earlier 70HP models can use the older 89983-series pump system and are not automatically covered by this package.

⚙️ Key Features

• Major service bundle for later 70HP inline-three carburetted two-stroke outboards

• Includes ignition, fuel, thermostat and complete large-gearcase pump components

• Uses the current 8M0100526 pump-kit succession

• Provides spark-plug alternatives across Champion, NGK, Mercury, Denso and Autolite references

• Explicitly identifies the early-pump exclusion

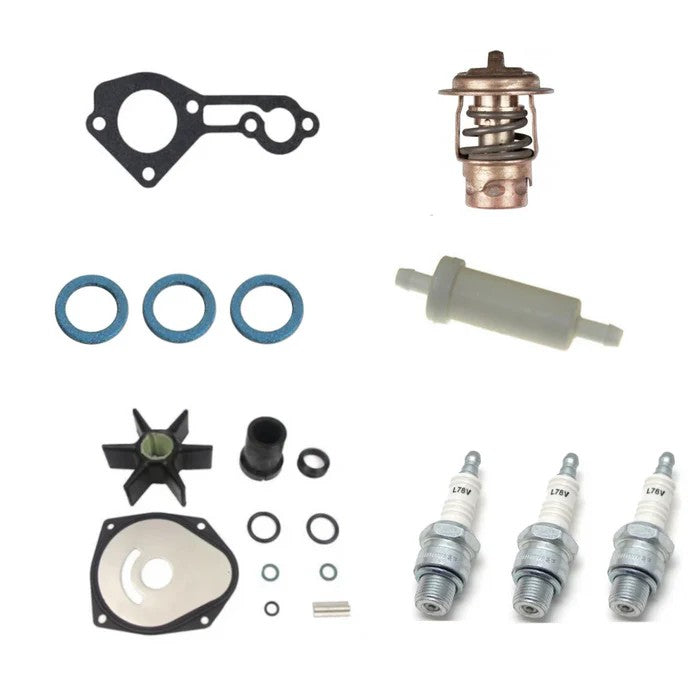

📋 Kit Contents

Kit contents for the later 70HP three-cylinder family:

• 3 × Champion L78V surface-gap spark plugs

• 1 × Inline fuel filter - Mercury 35-877565T / 35-877565T1

• 1 × 120°F / approximately 49°C thermostat - Mercury 14586-series

• 1 × Thermostat gasket - Mercury 27-43006-8

• 2 × Gearcase drain/fill screw sealing washers - Mercury 12-191833 family

• 1 × Complete water-pump repair kit - Mercury 8M0100526, superseding 47-43026Q06

Individually documented pump components include:

• 2 × O-rings - 25-21836

• 1 × Quad ring - 26-45577-1

• 1 × Faceplate gasket - 27-8M0050720 / earlier 27-43033-1

• 1 × Impeller - 47-8M0025709 / 47-43026Q02

• 1 × O-ring - 25-90196

• 1 × Drive key - 28-8M0032833 / earlier 28-43037

• 1 × Face seal - 26-8M2014338 / earlier 26-816575A2

• 1 × Stainless faceplate - 8172761

• 1 × Water-pump gasket - 27-8172771

• 1 × Face-seal setting tool - 818769

• Remaining minor seals/washers included under the current catalogued 15-piece kit revision

🔄 Supersession & Cross Reference

OEM / Related References:

• Mercury 8M0100526 → Supersedes 47-43026Q06

• Related pump references: 47-43026Q5, 47-43026T6, T7, T8, T10 and T11

• Mercury 14586A-series - Thermostat family

• Mercury 33-97182-series - Surface-gap spark-plug reference family

Verified Aftermarket / Other-Brand Equivalents:

• Sierra 18-3265 - Complete water-pump repair kit equivalent

• GLM 12043 - Complete water-pump repair kit equivalent

• Mallory 9-48313 - Complete water-pump repair kit equivalent

• Sierra 18-3549 - 120°F thermostat equivalent for Mercury 14586

• NGK BUHW-2 - Spark-plug equivalent to Champion L78V for applications specifying this surface-gap type

• Denso SF-51 - Surface-gap spark-plug equivalent

• Autolite 2872 - Surface-gap spark-plug equivalent

🚤 Compatibility

Commonly used on selected:

• Mercury 70HP inline three-cylinder carburetted two-stroke outboards

• Mariner 70HP Mercury-built equivalents

• Approximately 1.4-litre inline-three powerhead family, model-year and market dependent

Pump-Family Serial Guidance:

• Later 70HP applications from approximately 0A996142 and higher use the 47-43026Q06 / 8M0100526 pump family

• Earlier engines below this transition may use the 89983T1 / 89983Q1 pump family and require a different kit

Important Exclusions:

• Not for early 70HP engines using the 89983-series pump

• Not for four-cylinder or inline-six 70HP engines from other production eras

• Not for EFI four-stroke, OptiMax/DFI or four-stroke Command Thrust models

• Spark-plug type must match the engine decal and service manual because some serialised applications use a different suppression specification

🔌 Function

Renews the ignition, fuel, thermostat, gearcase-sealing and complete water-pump components used during major maintenance. The complete pump repair kit restores the impeller, sealing surfaces, key, faceplate and associated seals to support reliable cooling-water delivery.

Common signs service is due include:

• Misfire, difficult starting or poor high-load performance

• Restricted fuel flow

• Overheating or thermostat sticking

• Weak tell-tale stream, scored faceplate or damaged impeller

• Gearcase-oil leakage at drain plugs

📦 Condition

• Brand-new aftermarket service kit

• All components supplied new and unused

• Current superseding component numbers may be supplied

• Full serial-number and pump-family verification is essential before installation
