OP-0097-022 NS Trim Gauge | Genuine Used Part

🔧 Product Description

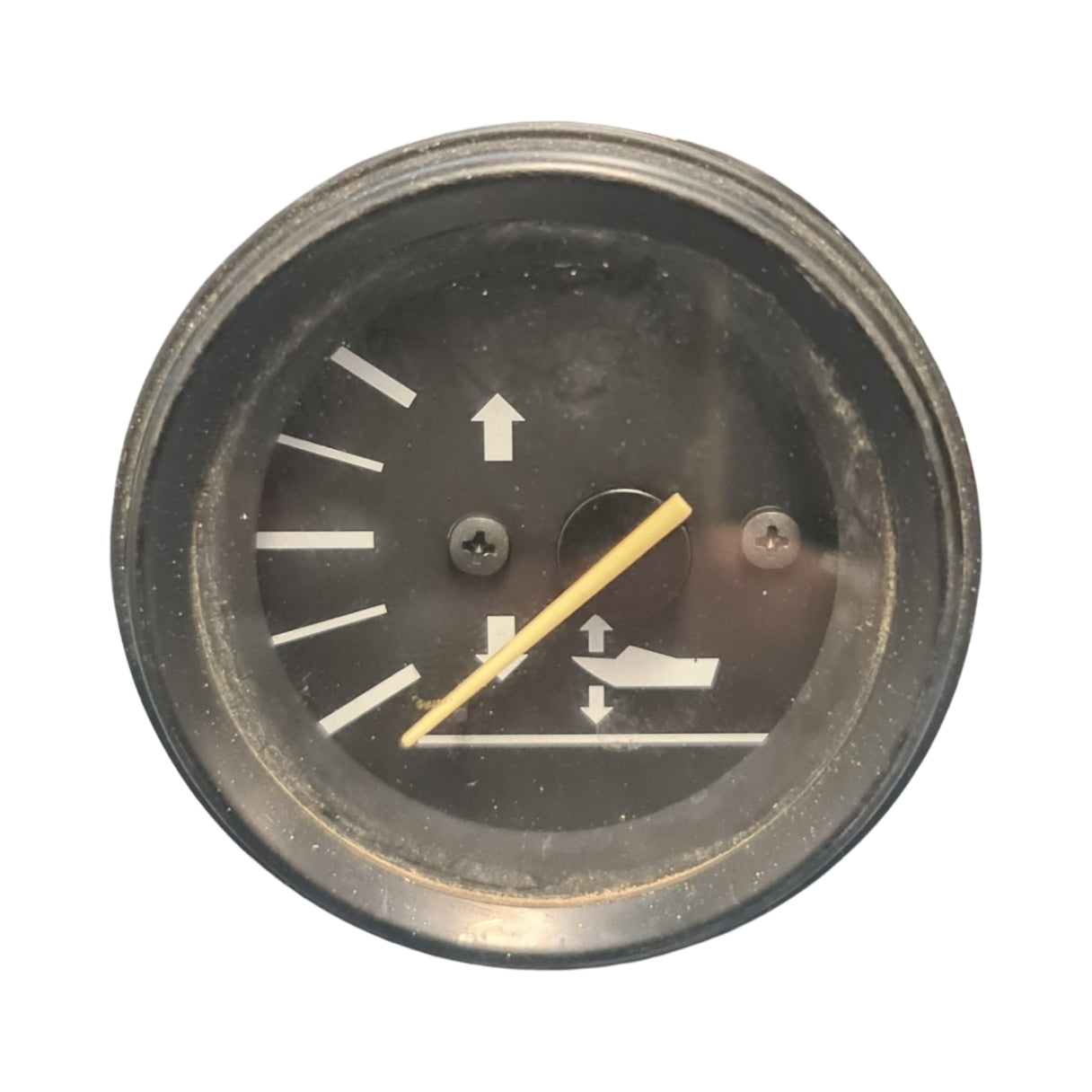

Genuine NS Analogue Trim Position Gauge - Part Number: OP-0097-022

A genuine NS-branded analogue trim gauge identified by part number OP-0097-022. It displays the position of an outboard or sterndrive through a compatible variable-resistance trim sender.

⚙️ Key Features

• NS instrument
• Part number OP-0097-022
• Analogue Up-to-Down trim display
• Electrical sender input
• Vintage marine dashboard application

🚤 Compatibility

• Original boat or engine system from which OP-0097-022 was removed
• 12-volt analogue trim-sender systems
• Fitment controlled by sender resistance, terminal layout and cutout

🔌 Function

The gauge converts variable resistance from the trim sender into a visual indication of engine or drive angle.

⚠️ Common Signs of Failure

• Gauge stays at one end of scale
• Needle travels backwards
• Sender curve is incompatible
• Sender signal or ground is open
• Reading jumps
• Lens or illumination is damaged

🔄 Supersession & Cross Reference

OEM Supersession Chain

• OP-0097-022 is the instrument number
• No verified supersession or manufacturer cross-reference has been located
• Sender calibration cannot be assigned from the number alone

OEM / Related Numbers

• OP-0097-022
• Related trim sender
• Related ignition, ground and sender wiring
• Related mounting clamp and illumination bulb

Aftermarket / Verified Equivalents

• No direct aftermarket equivalent verified
• Faria, Sierra, Teleflex and VDO trim gauges are functional alternatives only when their sender curve matches
• Mercury, OMC, Honda, Suzuki and Volvo trim gauges use different calibrations

📦 Condition

• Genuine used part
• Removed from a running boat or engine where applicable
• In good working condition unless otherwise stated
