PIN121501300 Victron Phoenix Inverter 12/500 230V VE.Direct AU/NZ | Genuine Victron Energy

🔧 Product Description

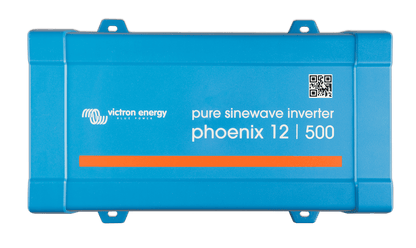

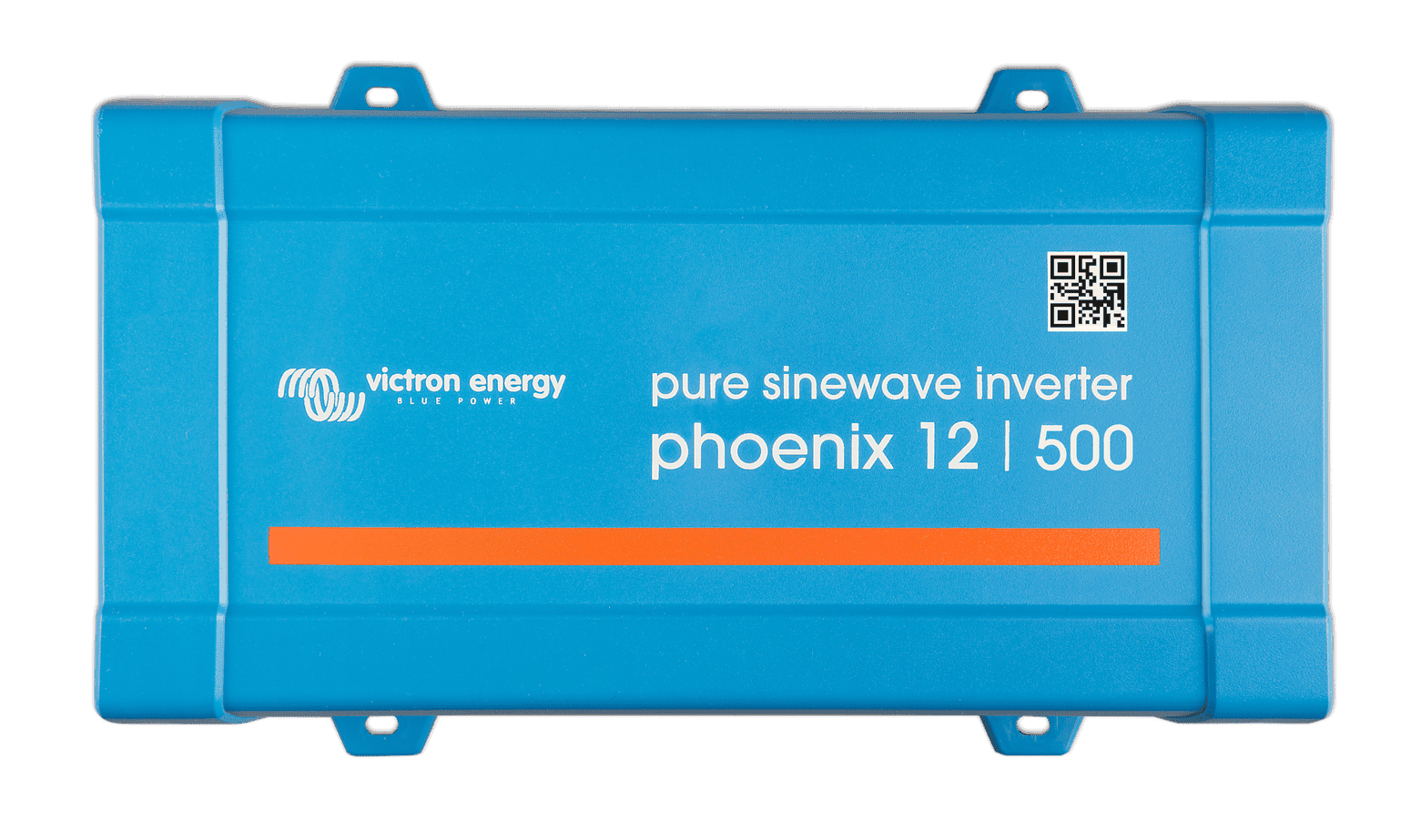

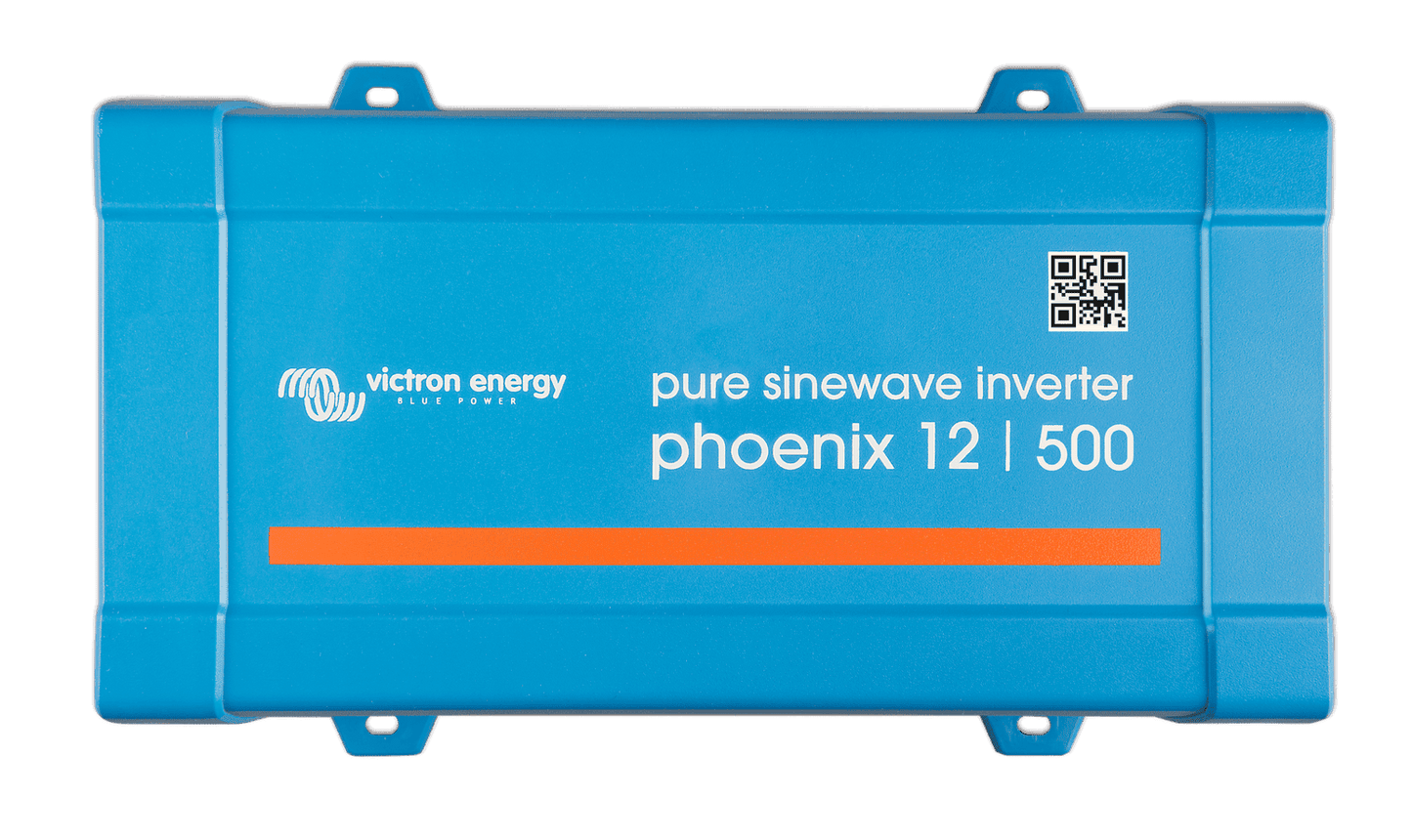

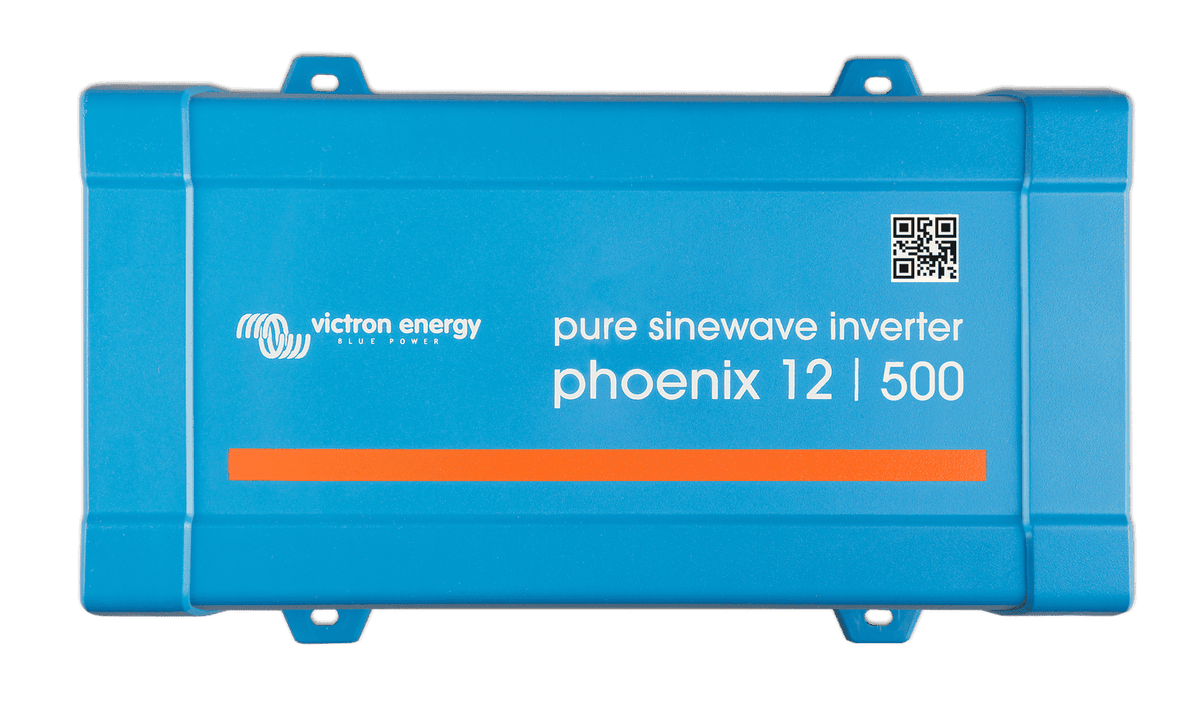

Victron Phoenix Inverter 12/500 230V VE.Direct AU/NZ - Part Number: PIN121501300

The Phoenix Inverter combines a full bridge plus toroidal transformer topology that has proven its reliability over many years, is short-circuit proof and protected against overheating from overload or high ambient temperature, and delivers the high start-up power needed for loads such as LED/halogen lamp power converters or electric tools.

⚙️ Key Features

• VE.Direct communication port for a computer (VE.Direct to USB cable) or, via a VE.Direct Bluetooth Smart dongle, Apple and Android smartphones, tablets and other devices
• Fully configurable low battery voltage alarm/cut-off and restart levels, dynamic load-dependent cut-off, output voltage (210-245V), frequency (50/60 Hz) and ECO mode
• Monitors input/output voltage, % load and alarms
• ECO mode switches to standby below a preset load (min. 15W) and periodically checks for load, remaining on once the preset level is exceeded

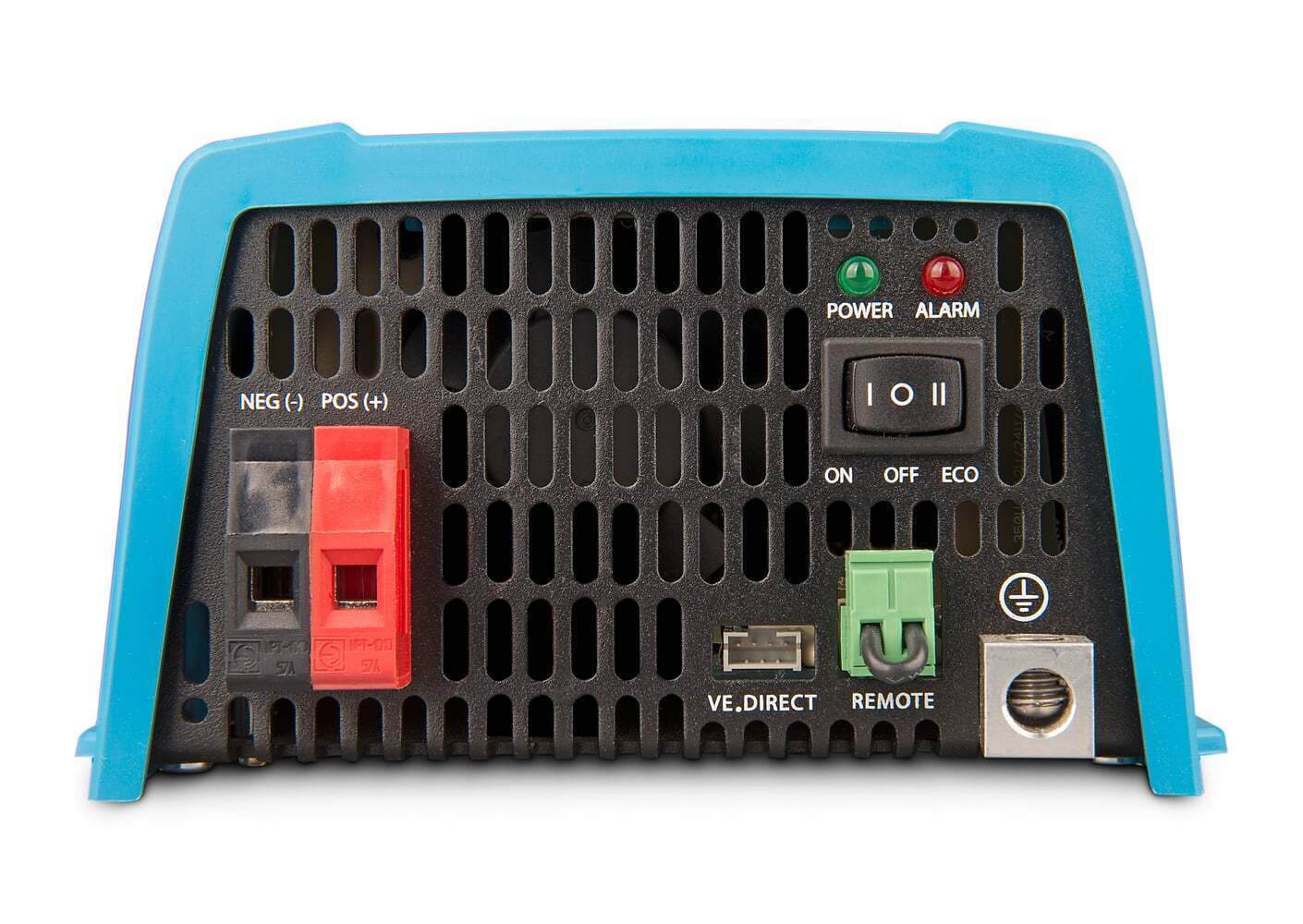

• Remote on/off via a two-pole connector
• Compatible with the Filax Automatic Transfer Switch (under 20 ms switchover) for uninterrupted transfer of the load to another AC source

📏 Specifications

• Battery voltage: 12V
• Continuous output power: 500 VA (model code 12/500)

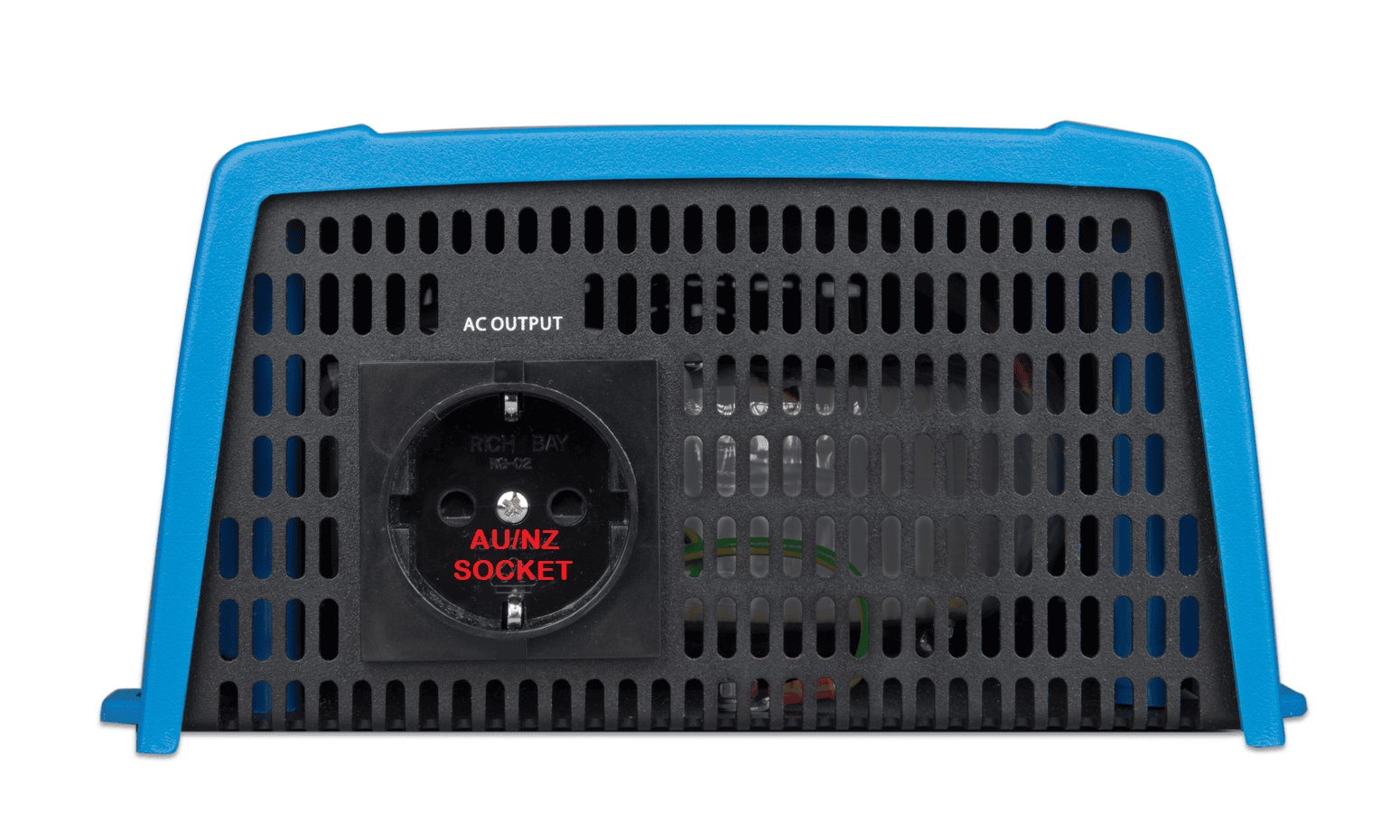

• AC output: 230V

📦 Condition

• Brand new genuine product
• Supplied in original packaging
