PTR5D-10 NGK Platinum Spark Plug | Genuine NGK Spark Plug

PTR5D-10 NGK Platinum Spark Plug | Genuine NGK Spark Plug

$43.00 AUD
$43.00 AUD
Sale Sold out
Shipping calculated at checkout.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

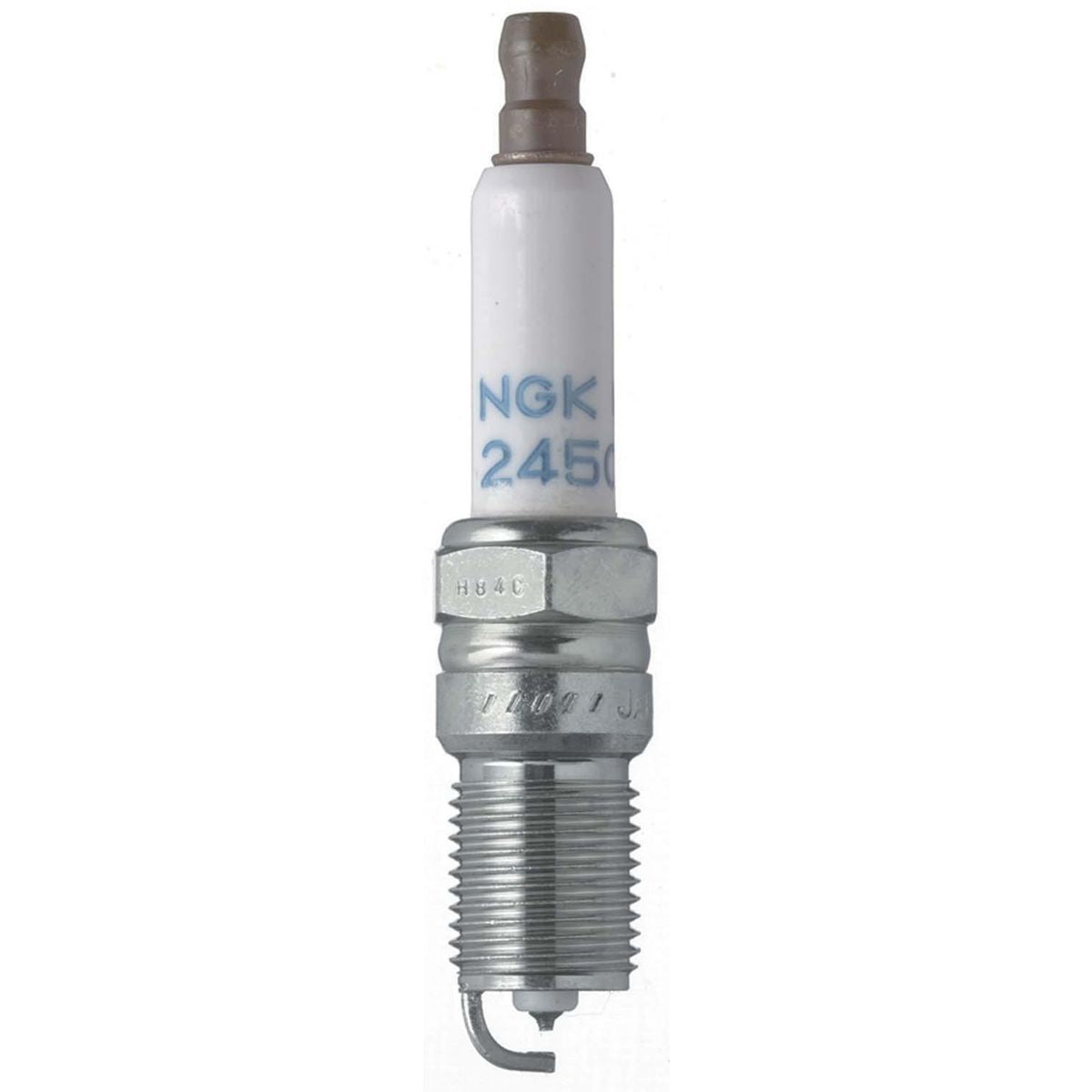

NGK Platinum Spark Plug – Part Number: PTR5D-10

NGK spark plugs are built with technology to get an engine firing; the platinum range offers superior ignitability and improved service life over standard plugs, making a great choice as a replacement or upgrade.

⚙️ Key Features

  • Platinum-tipped centre electrode for extended service life
  • Improved ignitability over standard plugs
  • Trivalent metal plating provides superior anti-corrosion and anti-seizing properties
  • Corrugated ribs reduce the risk of flashover
  • Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
  • Copper core aids in heat removal
  • Triple seals prevent leakage

📏 Specifications

  • NGK stock number: 3784
  • Thread: 14 mm
  • Reach: .708"
  • Hex: 16 mm (5/8 in)
  • Seat: Tapered
  • Terminal: Solid
  • Type: Projected

🚘 Application

Listed in NGK's application charts for automotive vehicles.

  • Aston Martin DB7 (2004) – 4-12 per engine
  • Buick Allure (2009-2008) – 4-12 per engine
  • Buick LaCrosse (2009-2008) – 4-12 per engine
  • Buick Rainier (2007-2004) – 4-12 per engine
  • Cadillac CTS (2007-2004) – 4-12 per engine
  • Cadillac Escalade (2000-1999) – 4-12 per engine
  • Cadillac Escalade (2014-2002) – 4-12 per engine
  • Cadillac Escalade ESV (2014-2003) – 4-12 per engine
  • Cadillac Escalade EXT (2013-2002) – 4-12 per engine
  • Cadillac SRX (2006-2004) – 4-12 per engine
  • Cadillac STS (2006-2005) – 4-12 per engine
  • Cadillac XLR (2006-2004) – 4-12 per engine
  • Chevrolet Avalanche (2013-2007) – 4-12 per engine
  • Chevrolet Avalanche 1500 (2006-2002) – 4-12 per engine
  • Chevrolet C1500 (1999-1998) – 4-12 per engine
  • Chevrolet C1500 Suburban (1999-1998) – 4-12 per engine
  • Chevrolet C2500 (2000-1998) – 4-12 per engine
  • Chevrolet C2500 Suburban (1999-1998) – 4-12 per engine
  • Chevrolet C3500 (2000-1998) – 4-12 per engine
  • Chevrolet Camaro (2002-1998) – 4-12 per engine
  • Chevrolet Camaro (2015-2010) – 4-12 per engine
  • Chevrolet Caprice (2017-2011) – 4-12 per engine
  • Chevrolet Cavalier (2002-1999) – 4-12 per engine
  • Chevrolet Colorado (2012-2009) – 4-12 per engine
  • Chevrolet Corvette (2013-1997) – 4-12 per engine

That is the 25 most common of 105 applications NGK's charts list for this plug – ask us to check yours.

🔄 Supersession & Cross Reference

NGK's cross-reference tables list this plug against these part numbers.

  • Bosch: 4304, 4305, 8104, 8119, HGR8DDP, HGR9DDP, HR8DPP33X, HR8LPP33U
  • Autolite: APP104, APP104DP2, APP105, APP106
  • DENSO: 4511, 4713, IT16TT, PT16TT
  • ACDelco: 41-805, 41-962
  • Motorcraft: AGRF22PP1, AGSF32FEM
  • Champion: 7015-2

📦 Condition

  • Brand new genuine product
  • Supplied in original packaging
