Aftermarket Evinrude 18-28HP 2-Stroke Water Pump Service Kit | Sawley's Select Marine Parts

🔧 Product Description

Aftermarket Johnson/Evinrude 18-28HP Two-Stroke Water Pump Service Kit - Kit Reference: 0395270 / 395270

A complete water-pump assembly kit for selected Johnson and Evinrude 18HP, 20HP, 25HP and 28HP two-stroke outboards. The kit includes the impeller, housing, stainless cup/liner, gasket, water-tube grommet and mounting bolts.

⚙️ Key Features

• Complete pump kit with housing and liner

• Includes the flexible impeller and water-tube grommet

• Covers the listed 18HP-28HP model-year groups

• Cross-references to Sierra, GLM, Mallory and SEI kits

• Supplied for one lower-unit water-pump service

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 0395270 / 395270 → Related to later 0395271 and 0777809 service references

• 0394393, 0394394 and 0391390 → Earlier related OMC water-pump references

OEM / Related Numbers:

• 0395270

• 395270

• 0395271

• 0777809

• 0394393

• 0394394

• 0391390

• Impeller 0395289

• Housing 0330560

• Cup/liner 0328751

• Gasket 0329390

• Grommet 0302497

• Bolt 0331979

Aftermarket / Verified Equivalents:

• Sierra: 18-3383 / 18-3401

• GLM: 12060

• Mallory: 9-48212

• SEI: 96-363-01K

• Recmar: REC0395270

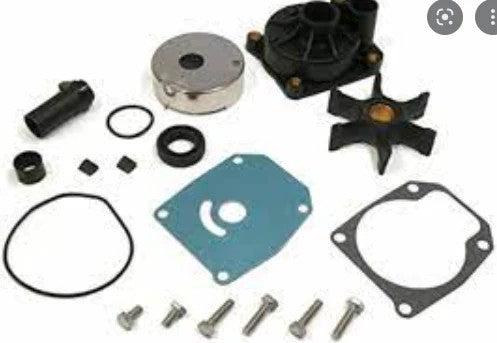

Included Components:

• 1 × Impeller - 0395289

• 1 × Impeller housing - 0330560

• 1 × Stainless pump cup/liner - 0328751

• 1 × Pump gasket - 0329390

• 1 × Water-tube grommet - 0302497

• Mounting bolts - 0331979 / kit-supplied fasteners

• Installation lubricant and thread-locking fasteners where included

🚤 Compatibility

Commonly used on:

• Johnson/Evinrude 18-28HP Two-Stroke Water Pump outboard service applications

Typically suits:

• Engine models:

• Johnson/Evinrude 18HP, approximately 1997-1998

• Johnson/Evinrude 20HP, approximately 1979-1984

• Johnson/Evinrude 25HP, approximately 1979-2005

• Johnson/Evinrude 28HP, approximately 1986-1998

• HP Range: 18HP-28HP

• Engine Type: Carburetted two-stroke outboard

• Year Range: Approximately 1979-2005 depending on horsepower and model

• Serial Range: Confirm by complete Johnson/Evinrude model number

🔌 Function

This kit renews the flexible-impeller water-pump components that draw cooling water through the gearcase and circulate it through the powerhead. Correct pump output protects the engine from overheating at idle, cruise speed and full load.

Common signs service is due:

• Weak or intermittent tell-tale water flow

• Engine temperature rises at cruise speed or under load

• Impeller vanes are cracked, missing, swollen or permanently set

• Pump housing, cup or wear plate is scored or distorted

• Cooling passages contain fragments from a failed impeller

📦 Condition

• Brand new aftermarket service kit

• New and unused components

• Supplied in manufacturer or equivalent protective packaging
