R2176 Mackay Soft Poly Cotton Keel Roller 8" with Insert | Marine Trailer Part

🔧 Product Description

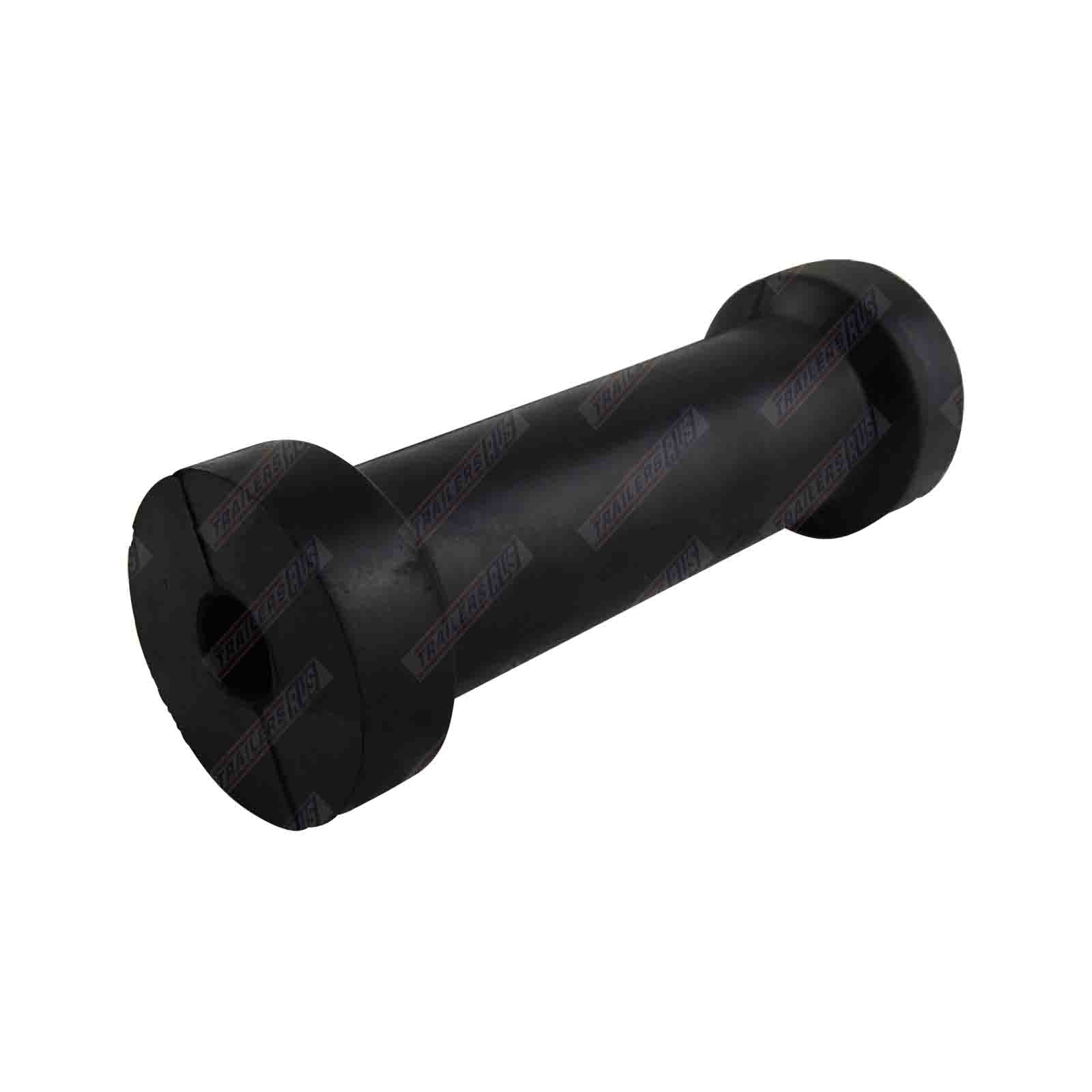

Mackay Soft-Poly Cotton-Reel Keel Roller 8 Inch with Aluminium Insert – Part Number: R2176

A soft poly cotton-reel boat-trailer roller designed to support and guide the hull during launching, retrieval and road transport. The profile helps keep the keel or lower hull aligned while the roller turns on the matching shaft.

⚙️ Key Features

• Soft Poly construction
• Cotton-Reel support profile
• Designed for repeated marine trailer immersion
• Replaceable independently of a serviceable bracket
• Matched to a defined shaft diameter and bracket width

📏 Specifications

• Approximate roller dimensions: 200 × 55mm
• Centre bore: Approximately 20mm
• Matching shaft: R2191G 20 × 255mm
• Aluminium reinforcing insert

🔄 Cross Reference & Related Parts

• Mackay: R2176
• Other roller profiles and materials are not direct replacements unless length, bore, end diameter and hull suitability match

🚤 Trailer Compatibility & Application

• Suitable for fibreglass, painted and other hulls where a resilient or softer contact surface is preferred
• The roller should contact a structurally supported hull area rather than a fitting, strake or unsupported panel
• Confirm bracket width and side clearance before installation

🔌 Function

• Supports the hull and provides a rolling path as the boat moves on or off the trailer.

⚠️ Common Signs of Failure

• Roller is cracked, split, flattened or permanently distorted
• Centre bore is elongated
• Roller does not turn freely
• Material is hardened, softened or UV-degraded
• Hull develops marks from a damaged or contaminated roller surface

🛠️ Installation & Safety

• Support the boat before removing any load-bearing roller
• Use the correct shaft, washers and retention hardware
• Align the roller to share load with adjacent supports
• Confirm free rotation without excessive side movement
• Recheck the complete hull-support setup after replacement

📦 Condition

• Brand new Mackay trailer component
• Supplied as one roller
• Supplied in original or equivalent packaging
