🔧 Product Description

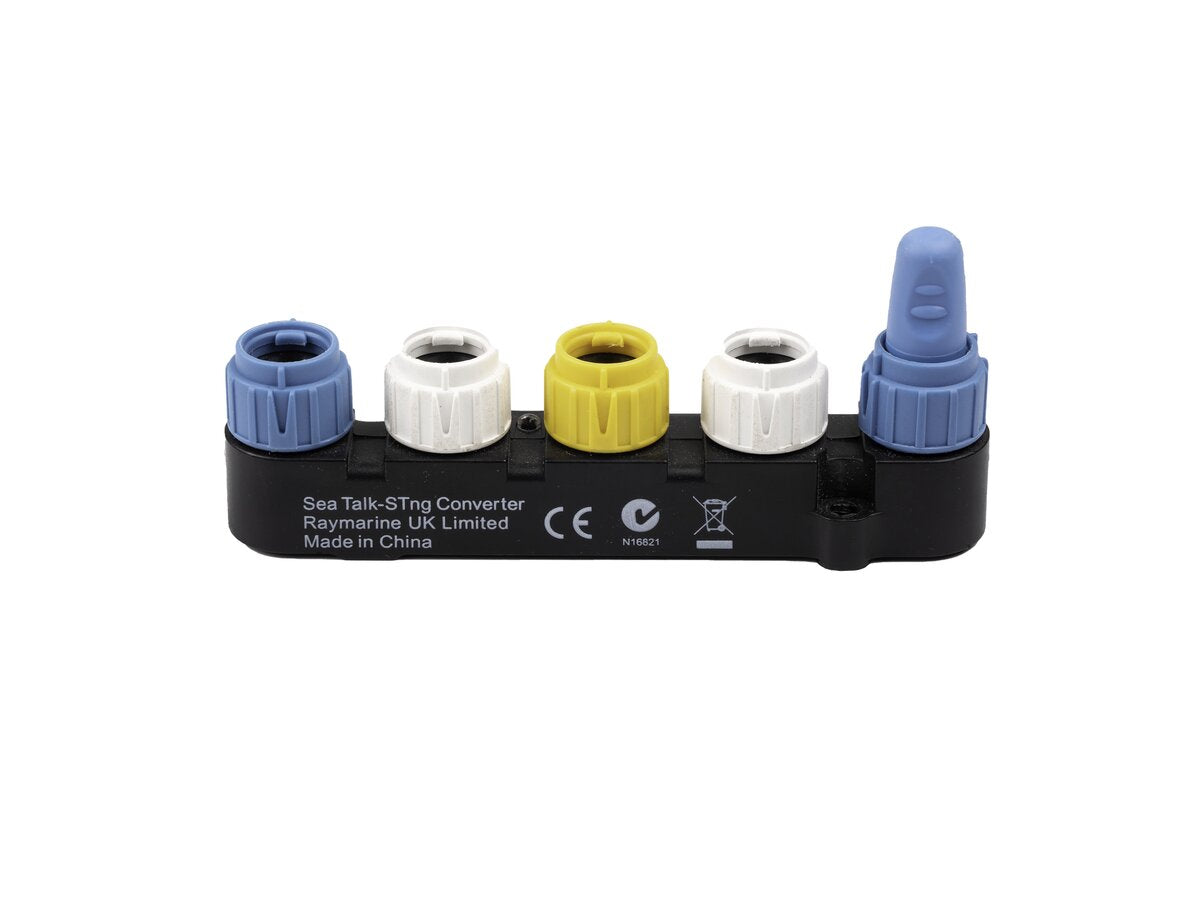

R52131 Raymarine ST1 to STNG Convertor only - Part Number: R52131
The SeaTalk NG to SeaTalk 1 adaptor kit allows older SeaTalk 1 products to communicate with newer SeaTalk NG devices. Older autopilot systems, instruments, GPS receivers, Smart Controllers, and LifeTag systems can be integrated into a modern SeaTalk NG network.
Model: SeaTalk 1 to SeaTalk NG Convertor only
Genuine Raymarine product for the Australian market, with Australian warranty support.
📏 Specifications
| Environmental | |
|---|---|
| Relative humidity | Up to 95% |
| Waterproof rating | IPx6 |
| Storage temperature | -20°C to +65°C (-4°F to 149°F) |
| Operating temperature | -10°C to +50°C (14°F to 122°F) |
| Physical | |
| Connections | SeaTalkng backbone x 2, SeaTalkng spur x 2, SeaTalk spur x 1 |
| Dimensions | Height: 30.2 mm (1.19 in), Width: 109.45 mm (4.3 in), Depth: 21.45 mm (0.84 in) |
| Power | |
| Current | Peak operating current: 50 mA, Peak supply current: 950 mA |
| Operating voltage range | 9 V dc to 16 V dc |
| Nominal supply voltage | 12 V dc |
| LEN (NMEA 2000 Load Equivalency Number) | 1 (plus LEN 3 for each powered evice) |
| Conformance | |
| Standards | EMC Directive 2014/30/EU, Australia and New Zealand: C-Tick, Compliance Level 2 |
📦 What's in the box
- SeaTalk-SeaTalkng convertor
- SeaTalkng backbone terminator x 2
- SeaTalkng blanking plugs x 2
- SeaTalk-SeaTalkng converter cable 400 mm (15 in)
- SeaTalkng power cable 1 m (3.3 ft)
- SeaTalkng spur cable 1 m (3.3 ft)
✅ Condition
- Brand new genuine product
- Supplied in original packaging
- Full Australian manufacturer warranty
