RC0128RZ-30 SuperPro Rear Sway bar - 30mm 3 point adjustable to Suit Toyota Tundra XK70 | Genuine SuperPro Sway Bar
RC0128RZ-30 SuperPro Rear Sway bar - 30mm 3 point adjustable to Suit Toyota Tundra XK70 | Genuine SuperPro Sway Bar
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
Benefit Note: If you are looking for increased cornering capabilities with decreased body roll, Roll Control sway bars are the answer! By being adjustable the Sway bar rates can be increased between 30-50% over OE sway bars by simply changing the end link position on the sway bar.
Kit Specifications
| Diameter (mm) | 30 |
|---|---|
| Diameter (in) Fraction | 1 3/16" |
| Diameter (in) Decimal | 1.181 |
| Material | Solid Spring Steel |

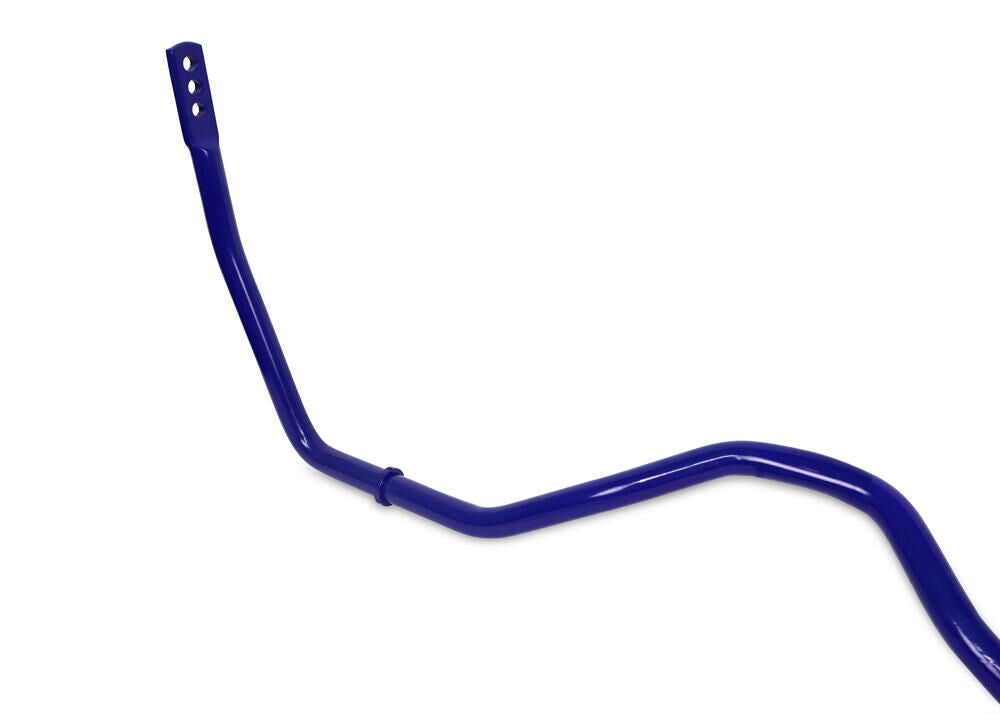

| Sway Bar Adjustment Type | 3 Point Adjustable |
Adjusting the sway bar's soft to hard setting will modify its torsion regidity, causing the sway bar to operate as per the size below.
Sway Bar Adjustment Settings
| Setting | Effective Bar Size (mm) | % Change vs Previous Setting | % Stiffer Than OE |
|---|---|---|---|
| Soft - Comfort / low grip | 29 mm | - | +113.2% |
| Medium - Balanced | 30 mm | +14.5% | +144.1% |
| Hard - Maximum roll control | 31 mm | +14.0% | +178.4% |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 11.2kg | 24.69lbs |
| Length | 150cm | 59.06" |
| Width | 20cm | 7.87" |
| Height | 50cm | 19.69" |
Misc. Product Information
 SKU |
RC0128RZ-30 |
|---|---|
 Kit Contents |

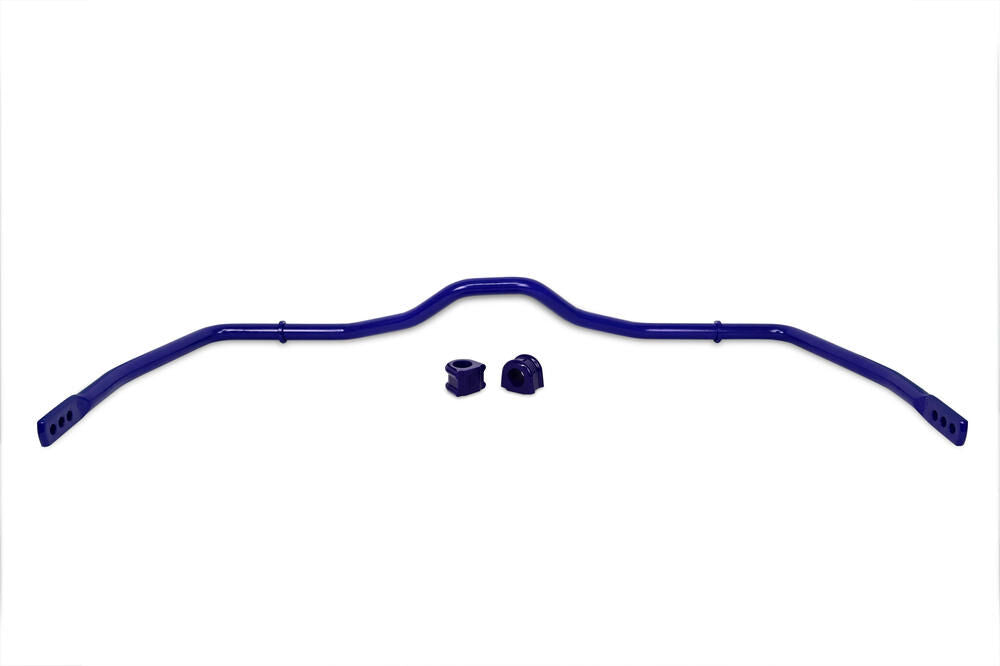

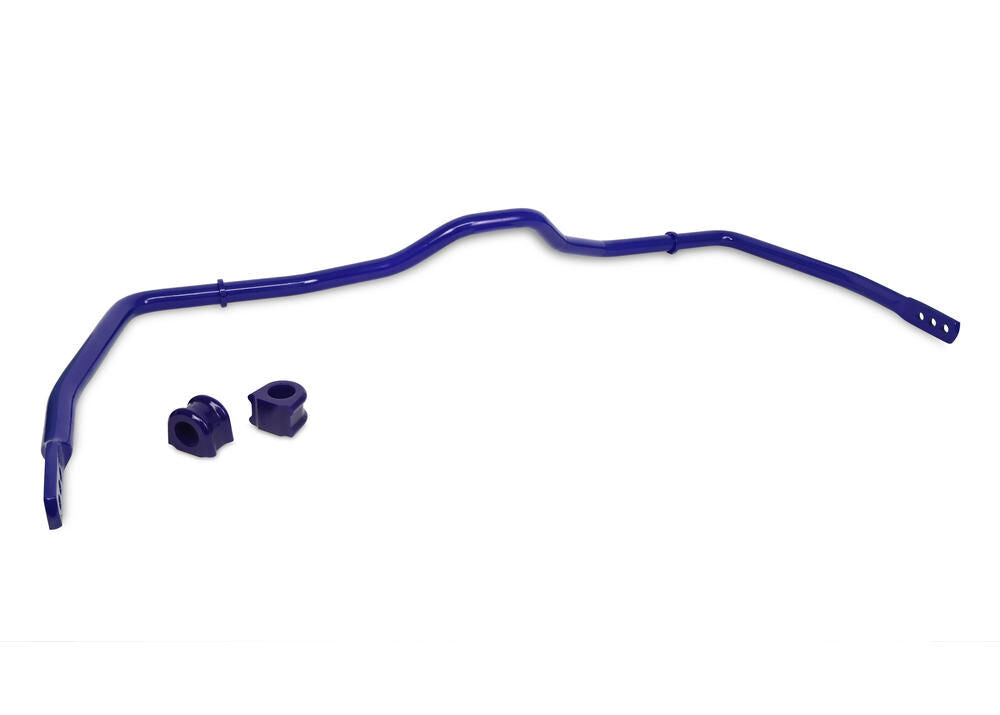

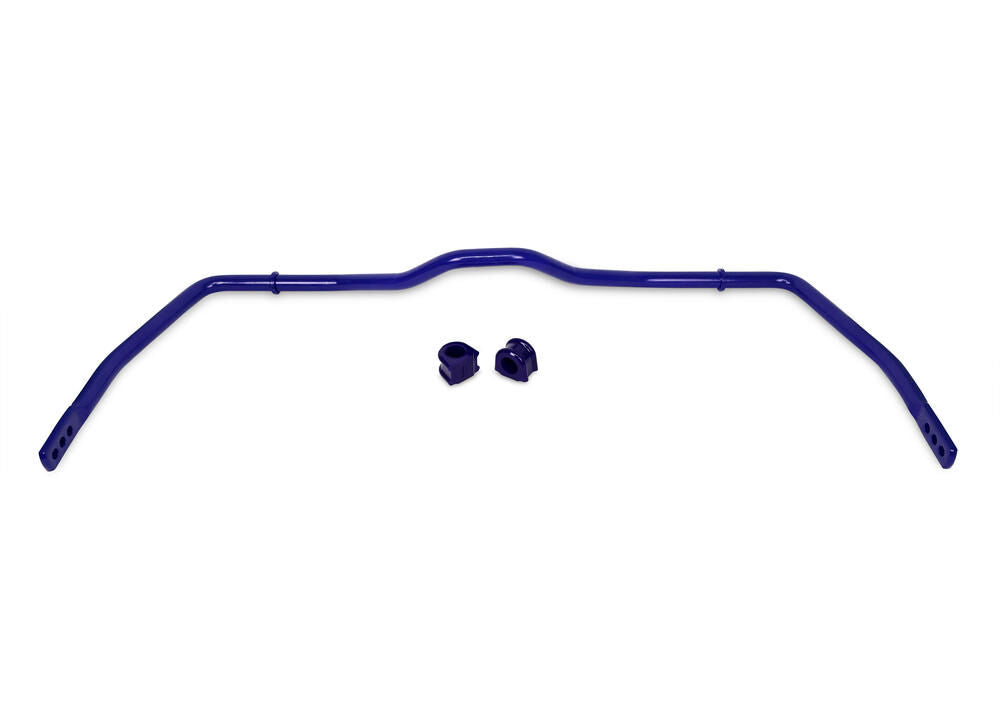

1 Sway Bar, 2 Bushings |
| Kits Required |
1 |
 Fitting Position |
Rear Axle |
| Foot Note 3 |
3 years warranty or up to 60,000km |
| Sub brand |
Roll Control |
| EAN |
9317745817475 |
| Product Note |
Boosts Vehicle Performance and responsiveness; a complete, premium upgrade. Includes: 1 Sway Bar, 2 Bushings |
