RWB2079 Battery Isolator 4 Pole | Marine Electrical Part

🔧 Product Description

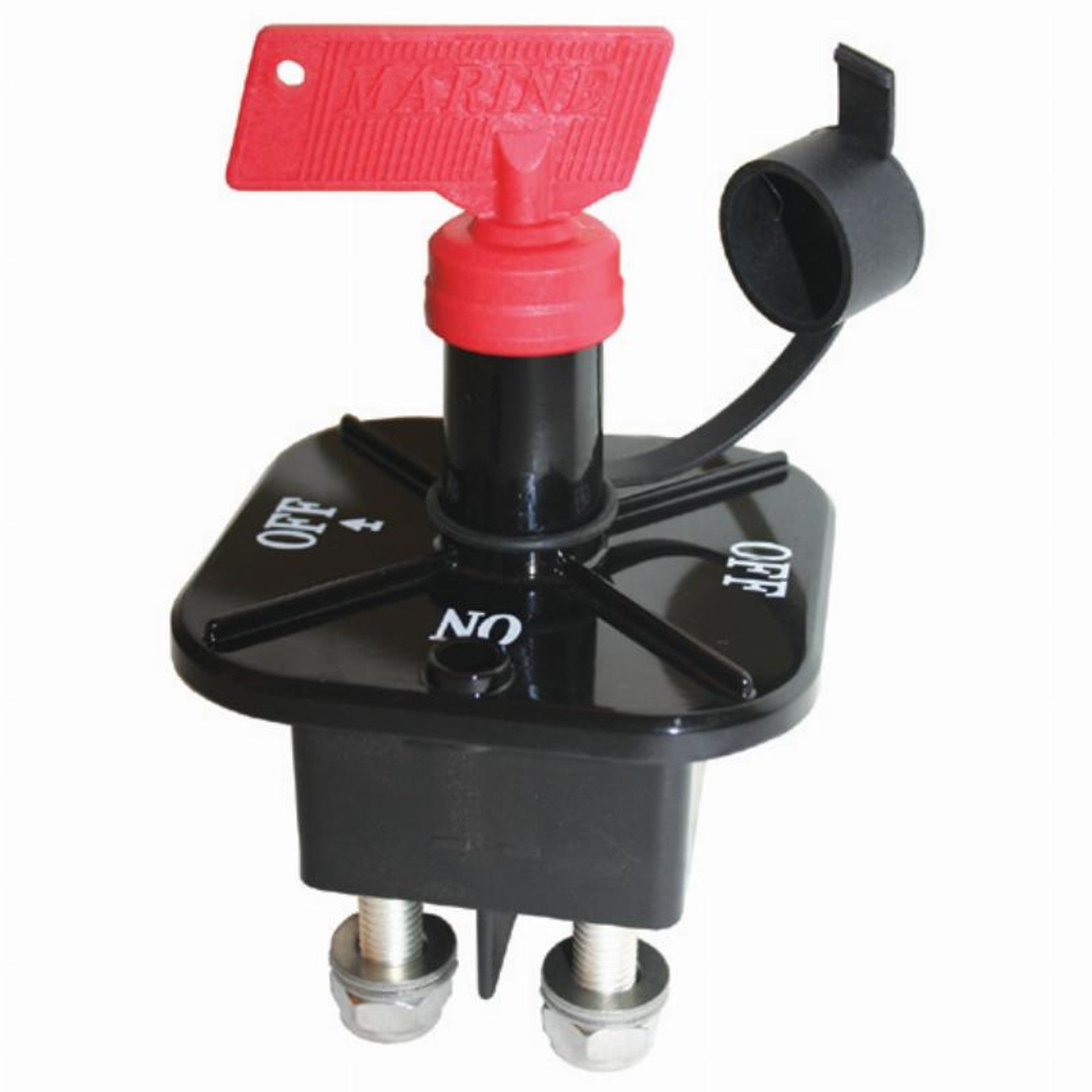

Battery Isolator 4 Pole - Part Number: RWB2079

An RWB four pole battery isolator with a removable key, for 12V or 24V.

Four pole means it isolates both the positive and the negative circuits rather than just the positive — the arrangement asked for in commercial and survey work, because it breaks the circuit at both ends and leaves nothing live behind the switch.

RWB rate it at 1,200 amps momentary and 240 amps continuous at 12V, or 120 amps continuous at 24V, on four 10mm brass bolts and nuts. The key comes out, and there is a rubber sealing cap over it.

⚙️ Key Features

• Four pole — isolates both positive and negative
• 1,200A momentary, 240A continuous at 12V
• 120A continuous at 24V
• 4 x 10mm brass bolts and nuts
• Removable key with a rubber sealing cap
• 12V and 24V

📏 Specifications

• Voltage: 12V / 24V
• Rating: 1,200A momentary, 240A continuous at 12V
• Rating at 24V: 120A continuous
• Poles: 4
• Terminals: 4 x 10mm brass bolts and nuts
• Key: removable, with rubber sealing cap

🔌 Function

Isolates the battery at both poles and locks out with the key, so the boat is dead and stays dead while it is worked on or left unattended.

📦 Condition

• Brand new genuine product
• Supplied in original packaging
