🔧 Product Description

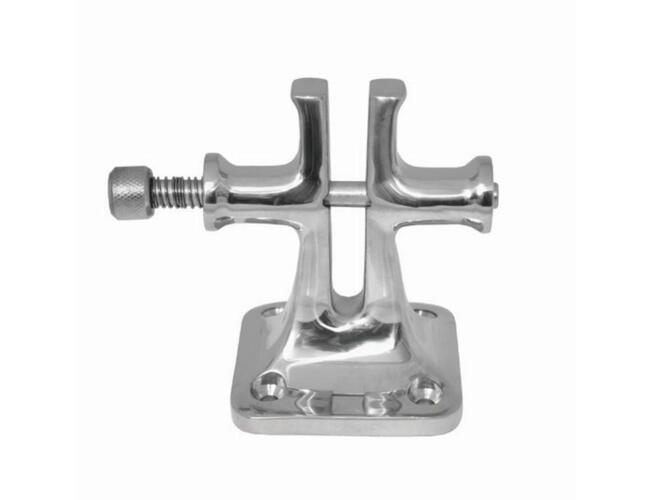

RWB 316 Stainless Steel Split Anchor Bollard with Captive Pin - Part Number: RWB2247

A cast 316 stainless-steel split anchor bollard with a spring-loaded captive pin for securing 8-10mm anchor chain. The removable pin allows a chain link to be placed into the split post without feeding the complete rode through the fitting.

⚙️ Key Features

• Cast 316 stainless-steel body
• Spring-loaded captive retaining pin
• Split-post design for direct chain placement
• Polished marine finish
• Compact four-hole mounting base

📏 Specifications

• Recommended chain size: 8-10mm
• Overall height: Approximately 84mm
• Base dimensions: Approximately 60 × 60mm
• Mounting holes: Four, for approximately 6mm countersunk fasteners
• UPC: 9324608083762

🔄 Cross Reference & Comparable Options

• Pinless version: RWB2246
• Comparable captive-pin split bollard: 402201

🛠️ Installation & Use

• Through-bolt to a reinforced bow structure
• Place the chain fully into the split post before inserting the pin
• Confirm the spring-loaded pin locks positively
• Use as an independent chain-securing point rather than relying on windlass braking
• Rinse and lubricate the pin mechanism periodically

📦 Condition

• Brand new
• Supplied as one split anchor bollard with captive pin
• Supplied in original or equivalent packaging
