🔧 Product Description

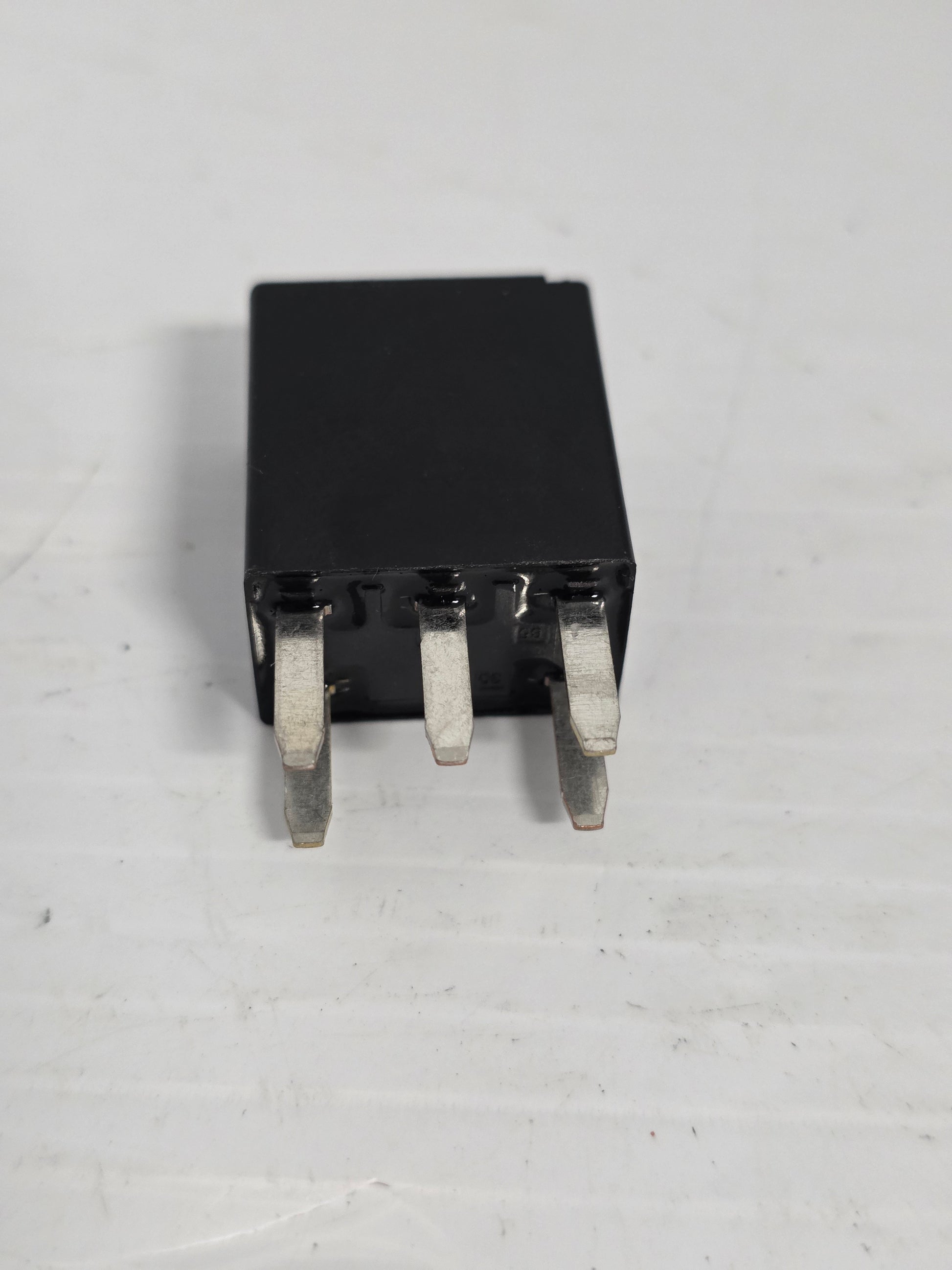

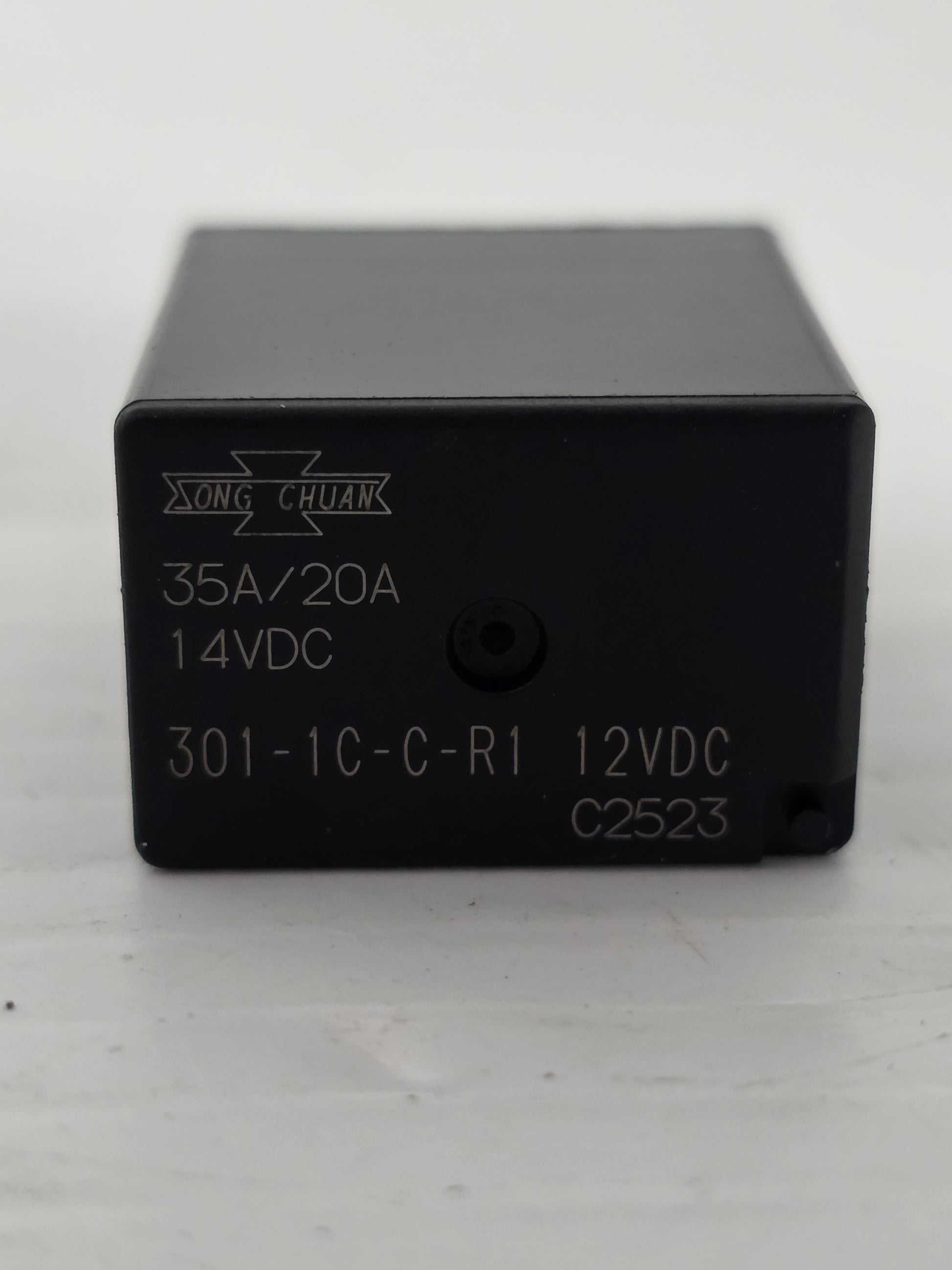

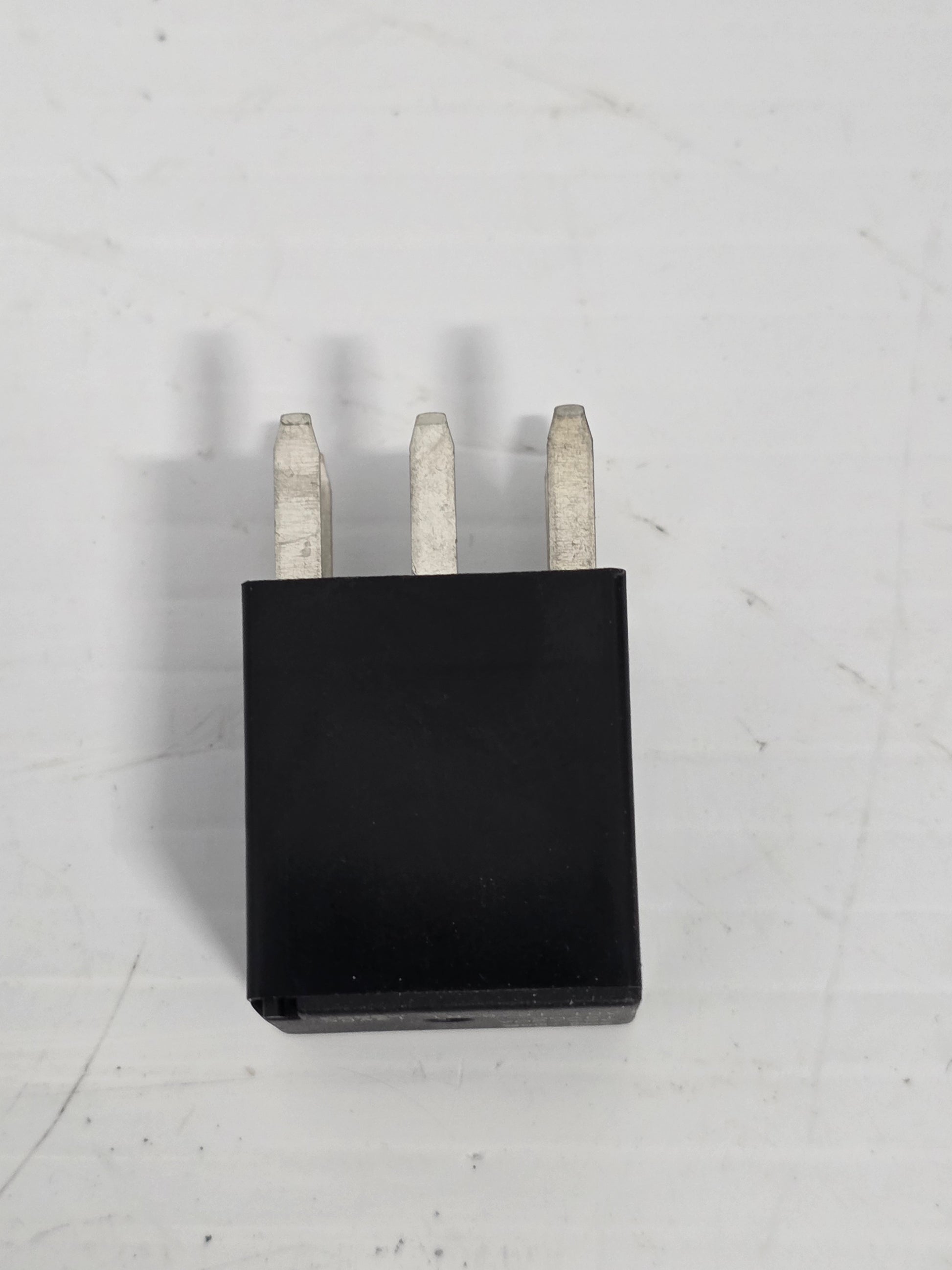

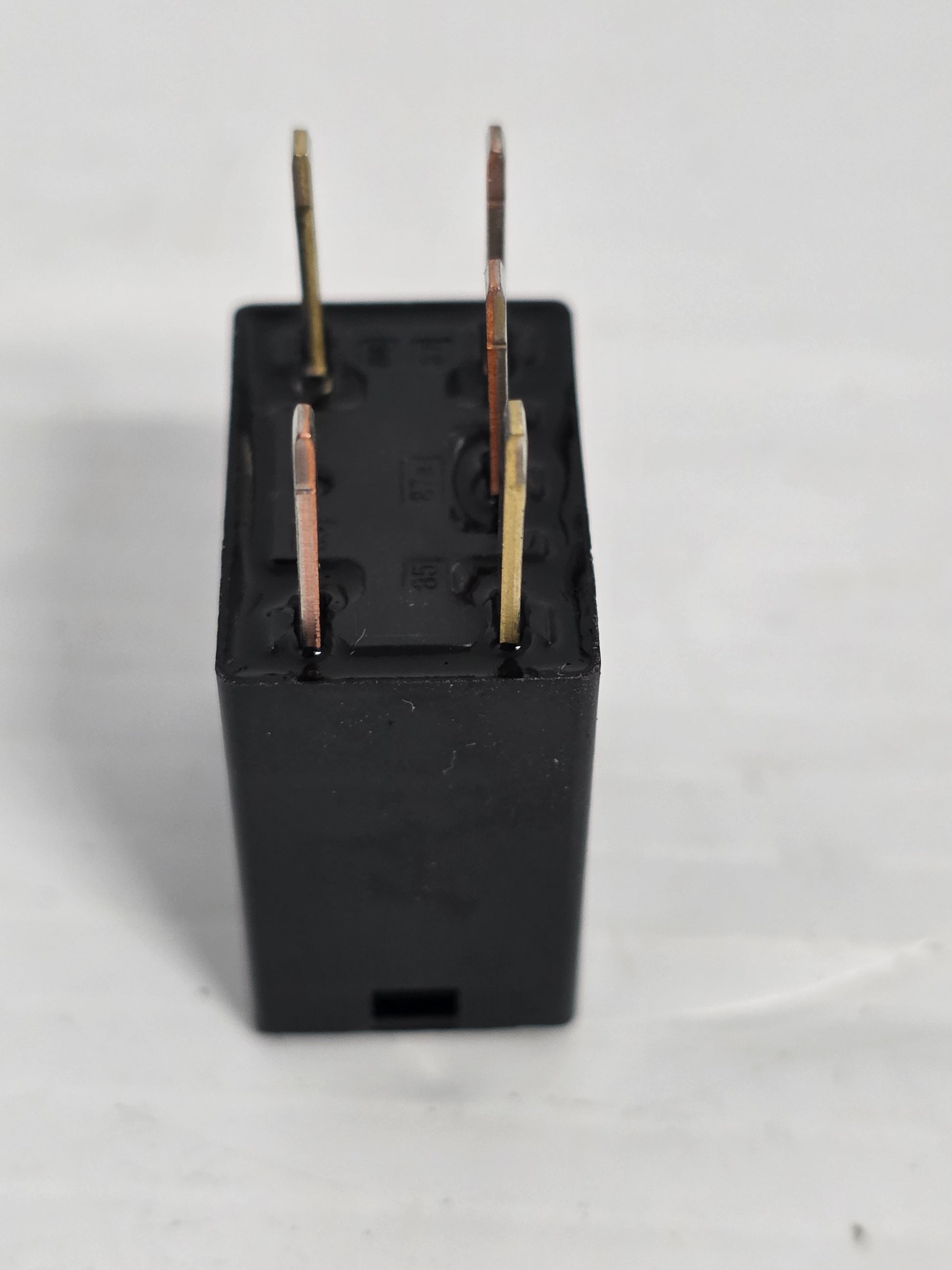

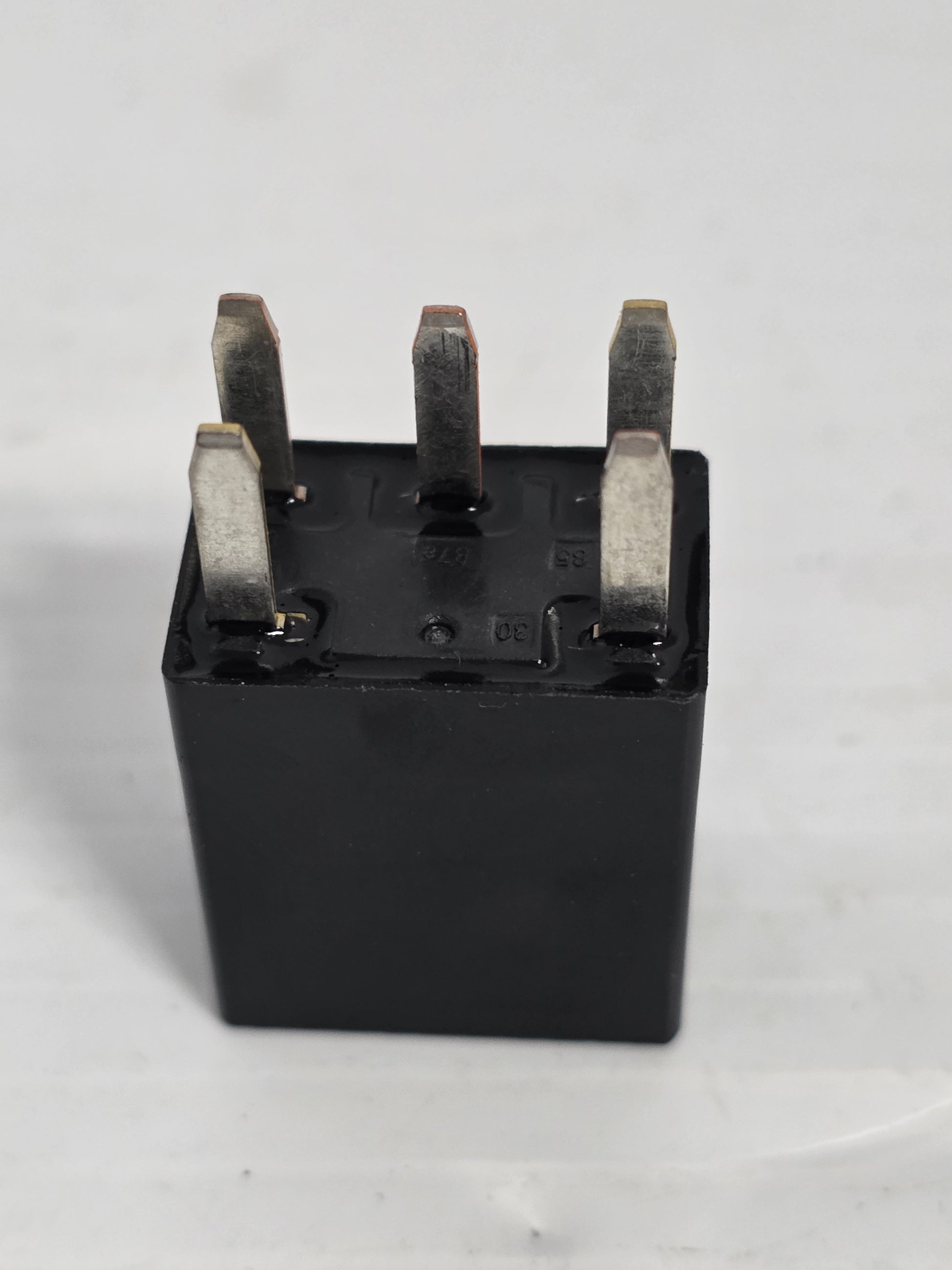

Aftermarket Sea-Doo Main-Harness 30/35-Amp Micro Relay - Part Number: PR8015

Restricted Type-280 five-pin changeover micro relay used as a main-harness/ignition relay on numerous Sea-Doo 4-TEC and ACE watercraft. Jaylec PR8015 is rated 12 V, 35/20 A and cross-references the BRP 30 A relay family.

⚙️ Key Features

• 12 V five-pin changeover micro relay

• 35 A normally-open / 20 A normally-closed Jaylec rating

• Type-280 restricted terminal layout

• Fits the main electrical/fuse-box relay position on supported Sea-Doo models

• Direct cross-reference to 278002822 and later 278003828 where the terminal layout matches

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• 278003828 → Supersedes 278002822

• 278002822 → Supersedes/relates to earlier 278002168

• PR8015 → Jaylec cross-reference relay

OEM / Related Numbers:

• PR8015

• 278003828

• 278002822

• 278002168

• AM278002822

• AM278003828

Aftermarket / Verified Equivalents:

• Jaylec: PR8015

• Australian Jet Ski Parts: AM278002822

• Aftermarket Sea-Doo 278002822/278003828 relay assemblies

🚤 Compatibility

Commonly used on:

• Sea-Doo main-harness, ignition and accessory relay circuits

Typically suits:

• Engine / drive models:

• GTI, GTI 130/155 and GTI SE/Limited families

• GTR 215, GTS and GTS 130

• GTX 155/215 and GTX Limited/iS 260

• RXP-X and RXT-X 260

• Spark/Spark HO ACE 900 and Wake/Wake Pro models

• Sea-Doo boats such as the 2008 180 Challenger SE 215 where 278002822 is listed

• HP Range: PWC/boat electrical application; power rating depends on the model

• Engine / Drive Type: 12 V main-harness changeover micro relay

• Year Range: Approximately 2007 onward; 278003828 continues on later models

• Serial / Identification Range: Confirm fuse-box position, five-pin Type-280 terminal layout and the OEM number. Some applications use several identical relays for different circuits.

🔌 Function

Switches battery power to the assigned ignition, main-harness, starter-control or accessory circuit when energised by the control system.

Common signs of failure or replacement requirement:

• No start or intermittent starting

• Craft will not power up or shut down correctly

• Intermittent electrical faults that change when relay is moved

• Heat-discoloured or corroded relay pins

• Relay clicks but does not pass current

📦 Condition

• Brand-new aftermarket replacement part

• Supplied as a new replacement component

• Supplied in suitable retail or equivalent packaging
