🔧 Product Description

Recmar aftermarket stainless steel exhaust elbow - Replaces Part Number: SED3093210 / 3093210

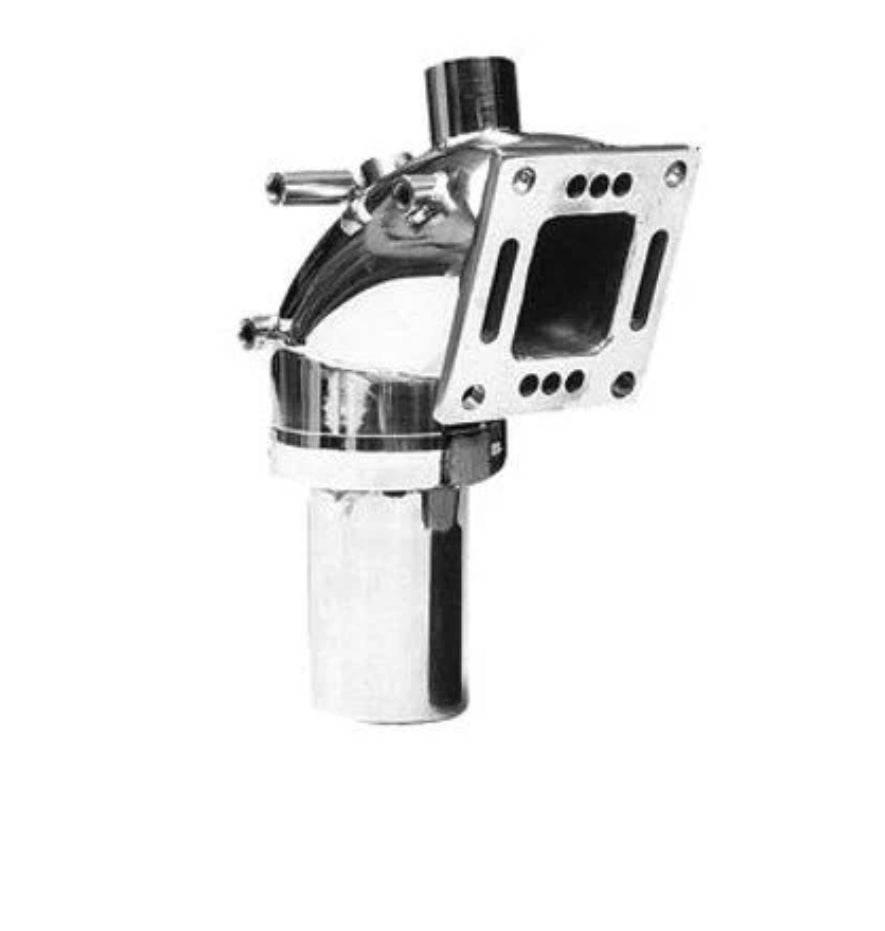

New Recmar aftermarket stainless steel exhaust elbow for Yamaha marine engine exhaust systems. This heavy-duty INOX elbow routes combustion gases from the exhaust manifold or collector into the downstream marine exhaust system while maintaining the designed exhaust path and backpressure.

The stainless steel construction provides substantially improved resistance to saltwater corrosion, exhaust heat and internal moisture compared with conventional cast exhaust components. It is intended as a direct replacement only where the original Yamaha or existing aftermarket elbow matches part number SED3093210 / 3093210 and the same flange, outlet and water-injection configuration.

⚙️ Key Features

• Recmar aftermarket replacement exhaust elbow

• Manufactured from corrosion-resistant stainless steel / INOX

• Designed for Yamaha marine petrol and diesel engine exhaust installations

• Routes exhaust gases from the manifold or collector to the exhaust outlet

• Resistant to saltwater corrosion, exhaust heat and internal condensation

• Approximate dimensions: 350mm long × 240mm wide × 150mm high

• Approximate weight: 3.34kg

• Direct replacement only after confirming flange, outlet, water-injection port and overall dimensions

🧰 Kit / Assembly Contents

• 1 × Complete stainless steel exhaust elbow - Recmar P/N SED3093210

• Exhaust-manifold gasket - not confirmed as included; order separately if required

• Exhaust-hose clamps, mounting fasteners and external fittings - transferred or renewed separately unless supplied

🔄 Supersession & Cross Reference

OEM Supersession Chain:

• SED3093210 ↔ Yamaha / OEM reference 3093210

OEM / Related Numbers:

• 3093210

• SED3093210

• SED3093210 (OE)

Aftermarket / Verified Equivalents:

• Recmar: SED3093210

• Recmar alternate catalogue reference: RM-SED3093210

• BoatParts replacement reference: BP-ED3093210

🚤 Compatibility

Commonly used on:

• Yamaha marine petrol and diesel engine exhaust systems whose original elbow is identified as 3093210 or SED3093210

Typically suits:

• Engine Models:

• Exact Yamaha engine-model compatibility is not published in the available manufacturer and distributor data

• Fitment must be confirmed using the original elbow number, flange pattern, outlet direction, hose diameter, water-injection connection and overall dimensions

• Engine Type: Yamaha marine petrol or diesel engine, application dependent

• Year Range: Not reliably documented

• Component Identification: Approx. 350 × 240 × 150mm and 3.34kg; compare the complete casting and connection layout before ordering

🔌 Function

The exhaust elbow transfers hot combustion gases from the exhaust manifold or collector into the vessel's exhaust hose or downstream exhaust system. On a wet-exhaust installation, it also forms part of the point where cooling water is introduced into the exhaust stream.

Correct elbow geometry is important for exhaust flow, backpressure and protection against seawater entering the engine. A corroded, internally restricted or cracked elbow can reduce performance and may allow exhaust gas or cooling water to leak into the engine compartment or combustion system.

Common signs of failure:

• Visible external rust staining, pitting, cracking or salt deposits

• Exhaust gas or cooling-water leakage around the elbow

• Reduced engine power caused by an internally restricted exhaust passage

• Abnormal exhaust noise or fumes inside the engine compartment

• Engine overheating or poor exhaust-water discharge

• Water intrusion into the exhaust manifold or engine cylinders

• Corroded flange faces or damaged hose connections

📦 Condition

• New Recmar aftermarket replacement part

• Brand new

• Stainless steel / INOX construction

• Supplied in original or equivalent packaging
