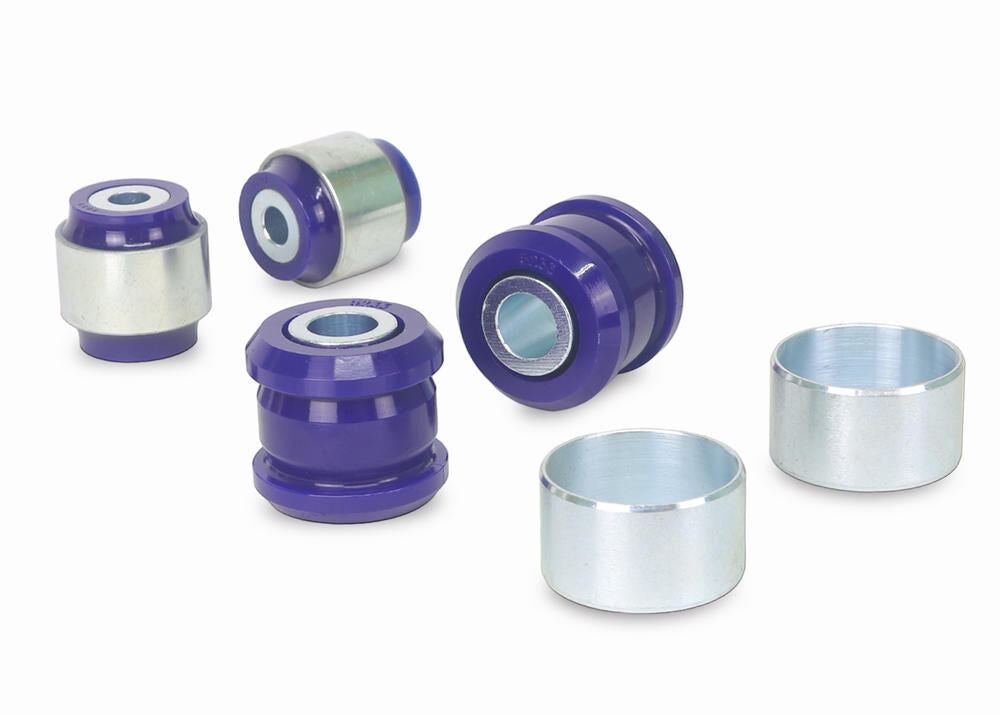

SPF5233K SuperPro Front Control Arm Lower Front & Rear Bush Kit to suit Nissan Micra K13 & Note E12 | Genuine SuperPro Suspension Component
SPF5233K SuperPro Front Control Arm Lower Front & Rear Bush Kit to suit Nissan Micra K13 & Note E12 | Genuine SuperPro Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Holds vehicle alignment, boosting performance; a complete, premium upgrade. Includes: 4 Control Arm Bushings, Tubes & Sleeves
Kit Specifications
| Bush Type | 10 - Cotton Reel With & Without Tapper Bushing | 17 - Shell With Flange Bushing |
|---|---|---|
| Bush Quantity | 2 mm | 2 mm |
| OD (A) | 49 mm | 44.5 mm |
| ID (B) | BI=33.8 BII=29.8 mm | 23.9 mm |
| Length (C) | 49 mm | 45 mm |
| Flange Thickness (D) | 10.4 mm | 9.5 mm |
| Flange OD (E) | 56 mm | 33.9 mm |
| C/Tube Quantity | 2 / 2 | 2 / 2 |
| C/Tube ODxIDxL | 24x12.3x45 / 30x19.20x50 mm | 24x12.3x45 / 30x19.20x50 mm |
Bushing Design Dimensions (mm)
| Bush Type | 10 | 17 |
|---|---|---|
| QTY | 2 | 2 |
| OD (A) | 49 | 44.5 |
| ID (B) | BI=33.8 BII=29.8 | 23.9 |
| Length (C) | 49.0 | 45.0 |
| FL (D) | 10.4 | 9.5 |
| FLOD (E) | 56 | 33.9 |
| C/Tube Qty | 2 / 2 | 2 / 2 |
| C/Tube Size | 24x12.3x45 / 30x19.20x50 | 24x12.3x45 / 30x19.20x50 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 1.1kg | 2.43lbs |
| Length | 5cm | 1.97" |
| Width | 26cm | 10.24" |
| Height | 18.5cm | 7.28" |
Misc. Product Information
 SKU |
SPF5233K |
|---|---|
 Kit Contents |
4B,4T,2S |
| Kits Required |
1 |
 Fitting Position |
Front Axle |
| Foot Note 1 |
Standard replacement |
| Foot Note 3 |
lifetime warranty |
| Sub brand |
SuperPro SPF |
| EAN |
9317745052333 |
| Product Note |
Holds vehicle alignment, boosting performance; a complete, premium upgrade. Includes: 4 Control Arm Bushings, Tubes & Sleeves |
