SPF5788K SuperPro Rear Leaf Spring - Rear Eye Bushing Kit to Suit Ford F150 12th Gen | Genuine SuperPro Suspension Component
SPF5788K SuperPro Rear Leaf Spring - Rear Eye Bushing Kit to Suit Ford F150 12th Gen | Genuine SuperPro Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

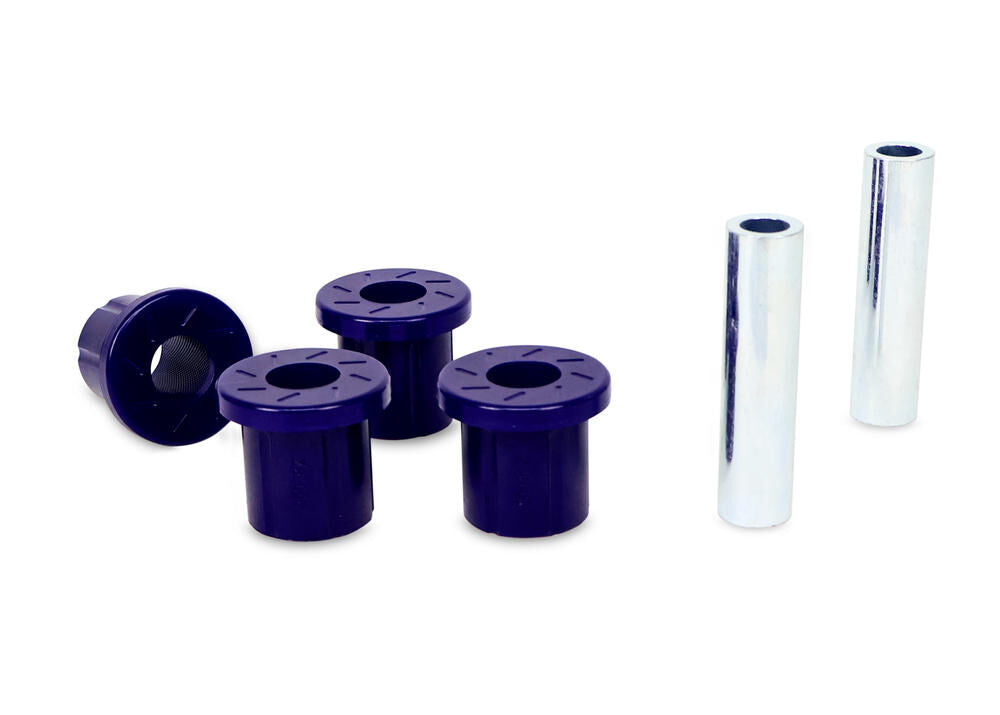

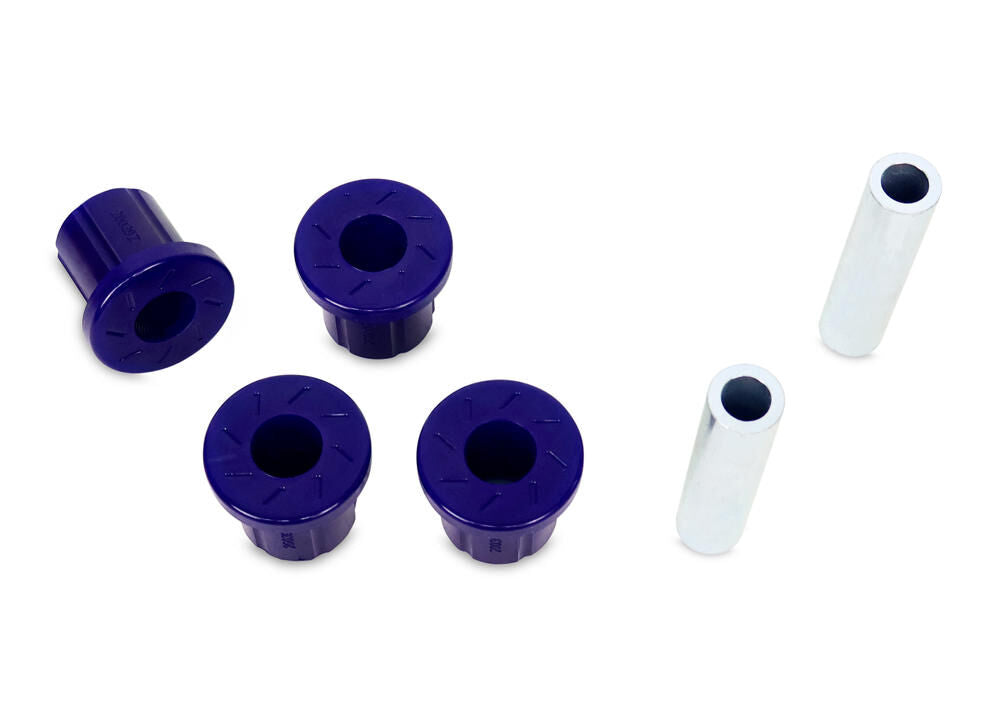

- Boost precision and control; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings & 2 Tubes
Benefit Note: These bushings are often overlooked when upgrading the suspension.
Leaf spring bushings stabilise the movement of the rear axle, inferior bushings in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle. It also causes the vehicle to "wander" all over the road and be unstable under heavy braking. This can be especially noticeable carrying a load or towing.
Kit Specifications
| Bush Type | 1 - Shackle Bushing |
|---|---|
| Bush Quantity | 4 mm |
| OD (A) | 38 mm |
| ID (B) | 22.2 mm |
| Length (C) | 44.5 mm |
| Flange Thickness (D) | 7.4 mm |
| Flange OD (E) | 51 mm |
| C/Tube Quantity | 2 |
| C/Tube ODxIDxL | 22.2x14.3x90.5 mm |
Bushing Design Dimensions (mm)
| Bush Type | 1 |
|---|---|
| QTY | 4 |
| OD (A) | 38 |
| ID (B) | 22.2 |
| Length (C) | 44.5 |
| FL (D) | 7.4 |
| FLOD (E) | 51 |
| C/Tube Qty | 2 |
| C/Tube Size | 22.2x14.3x90.5 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.524kg | 1.16lbs |
| Length | 5cm | 1.97" |
| Width | 26cm | 10.24" |
| Height | 18.5cm | 7.28" |
Misc. Product Information
 SKU |
SPF5788K |
|---|---|
 Kit Contents |
4 Bushings, 2 Tubes |
| Kits Required |
1 |
 Fitting Position |
Rear Axle |
| Foot Note 3 |
lifetime warranty |
| Sub brand |
SuperPro SPF |
| EAN |
9317745057888 |
| Product Note |
Boost precision and control; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings & 2 Tubes |
