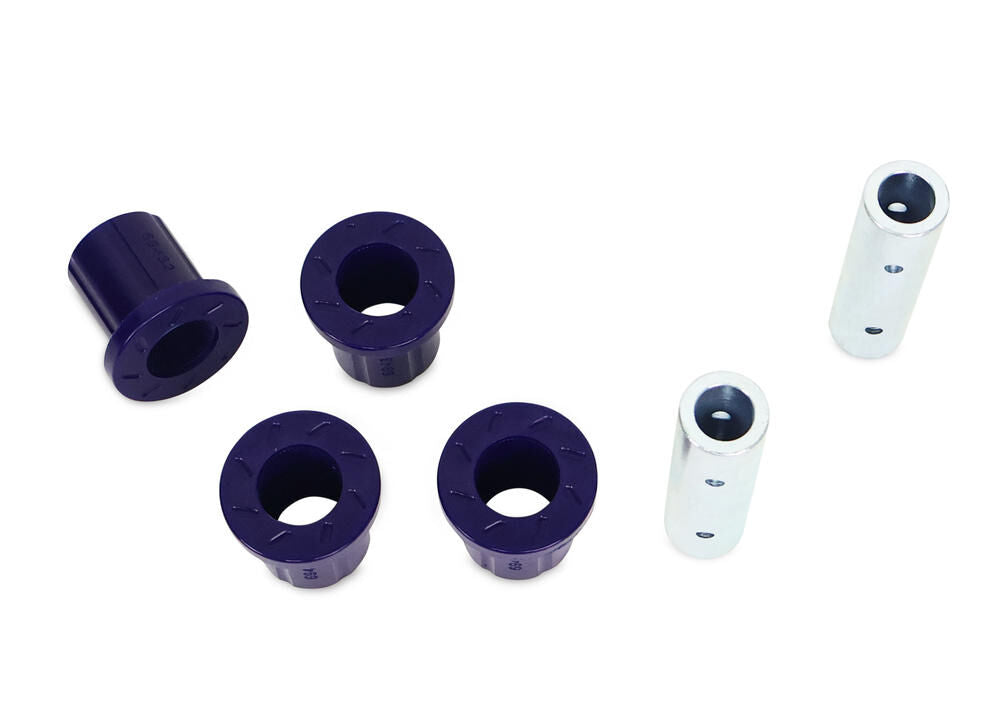

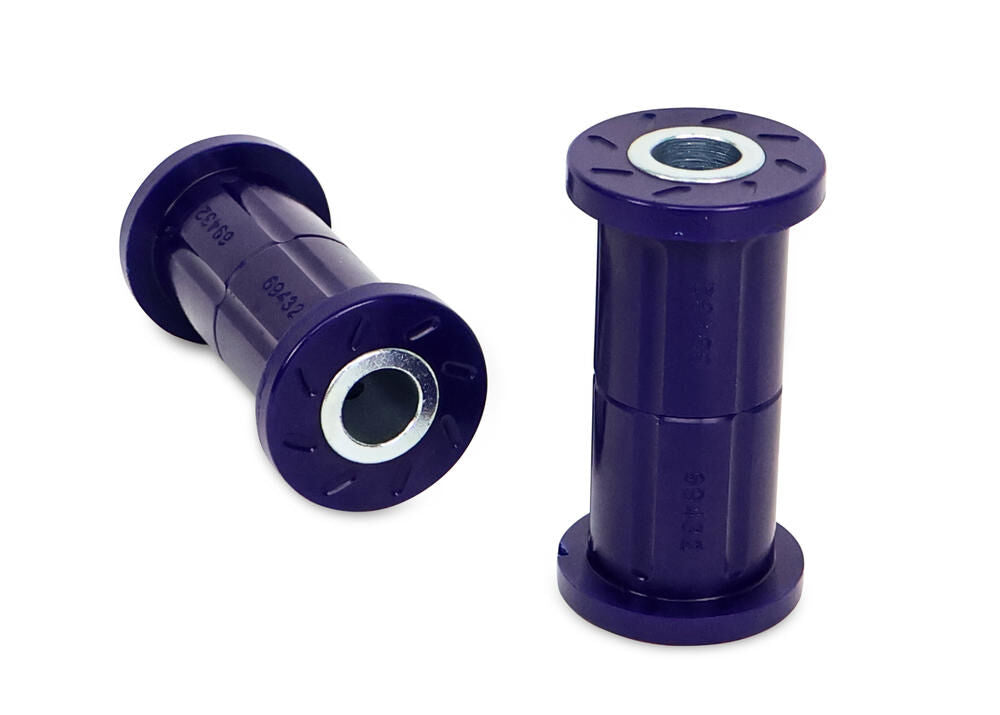

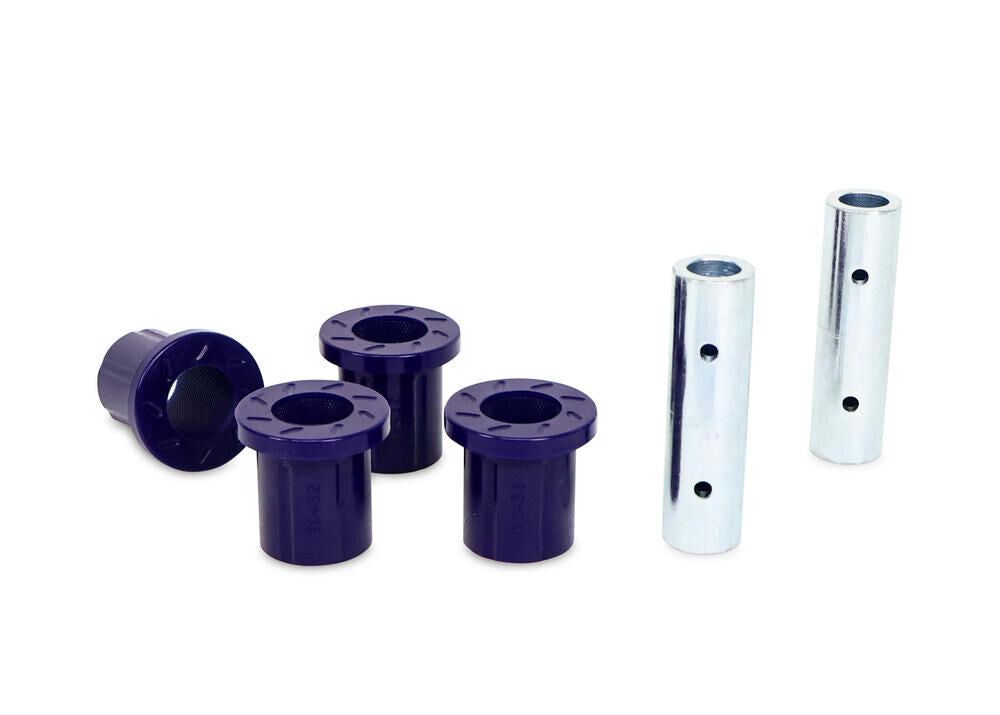

SPF5794K SuperPro Leaf Spring Front Eye - Bushing Kit to Suit Mitsubishi Triton MV | Genuine SuperPro Suspension Component
SPF5794K SuperPro Leaf Spring Front Eye - Bushing Kit to Suit Mitsubishi Triton MV | Genuine SuperPro Suspension Component
Couldn't load pickup availability
✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide
- Enhance performance and traction; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings & 2 Tubes
Benefit Note: These bushings are often overlooked when upgrading the suspension. Leaf spring bushings stabilise the movement of the rear axle, inferior bushes in this area will cause the solid rear axle to move and impart rear end passive steer to the vehicle. It also causes the vehicle to 'wander' all over the road and be unstable under heavy braking. This can be especially noticeable carrying a load or towing a boat or caravan. The OE rubber style bushes are designed to work at standard height with standard tyres and with standard loads. By fitting SuperPro Bushings the rear end of your vehicle will handle just about anything you can throw at it!
Kit Specifications
| Bush Type | 1 - Shackle Bushing |
|---|---|
| Bush Quantity | 4 mm |
| OD (A) | 31.1 mm |
| ID (B) | 22 mm |
| Length (C) | 39.7 mm |
| Flange Thickness (D) | 5.7 mm |
| Flange OD (E) | |
| C/Tube Quantity | 2 |
| C/Tube ODxIDxL | 22.2x14.3x80 mm |
Bushing Design Dimensions (mm)
| Bush Type | 1 |
|---|---|
| QTY | 4 |
| OD (A) | 31.1 |
| ID (B) | 22 |
| Length (C) | 39.7 |
| FL (D) | 5.7 |
| FLOD (E) | |
| C/Tube Qty | 2 |
| C/Tube Size | 22.2x14.3x80 |
Packaged Weight and Dimensions
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 0.4kg | 0.88lbs |
| Length | 5cm | 1.97" |
| Width | 21cm | 8.27" |
| Height | 15.5cm | 6.1" |
Misc. Product Information
 SKU |
SPF5794K |
|---|---|
 Kit Contents |
4 Bushings, 2 Tubes |
| Kits Required |
1 |
 Fitting Position |
Rear Axle |
| Foot Note 3 |
lifetime warranty |
| Sub brand |
SuperPro SPF |
| EAN |
9317745057949 |
| Product Note |
Enhance performance and traction; a complete, premium upgrade. Includes: 4 Leaf Spring Bushings & 2 Tubes |
