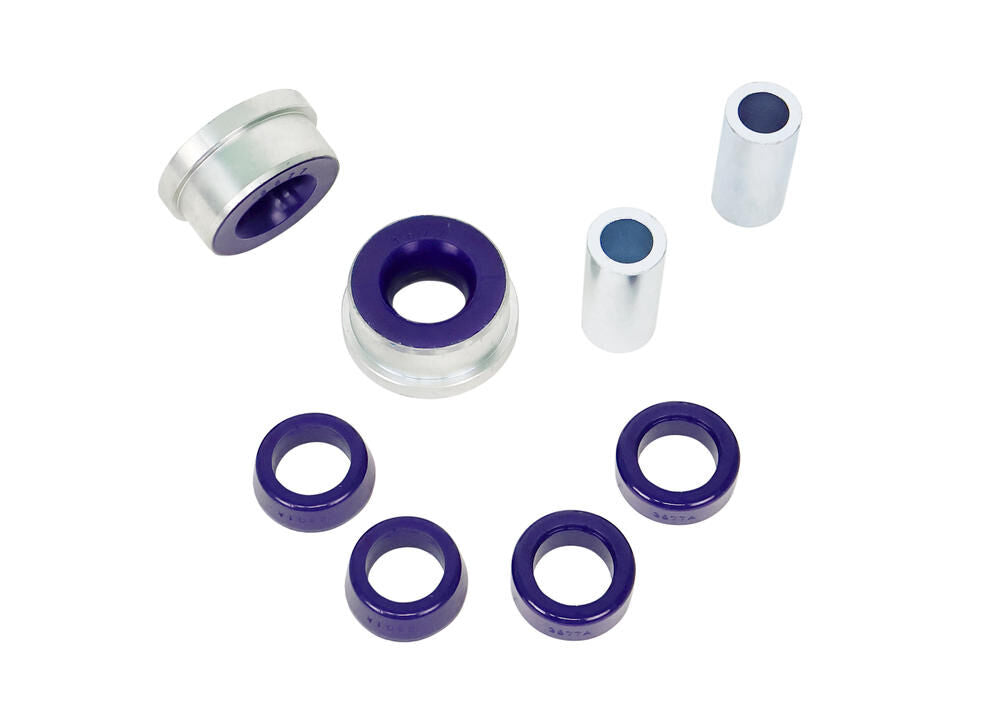

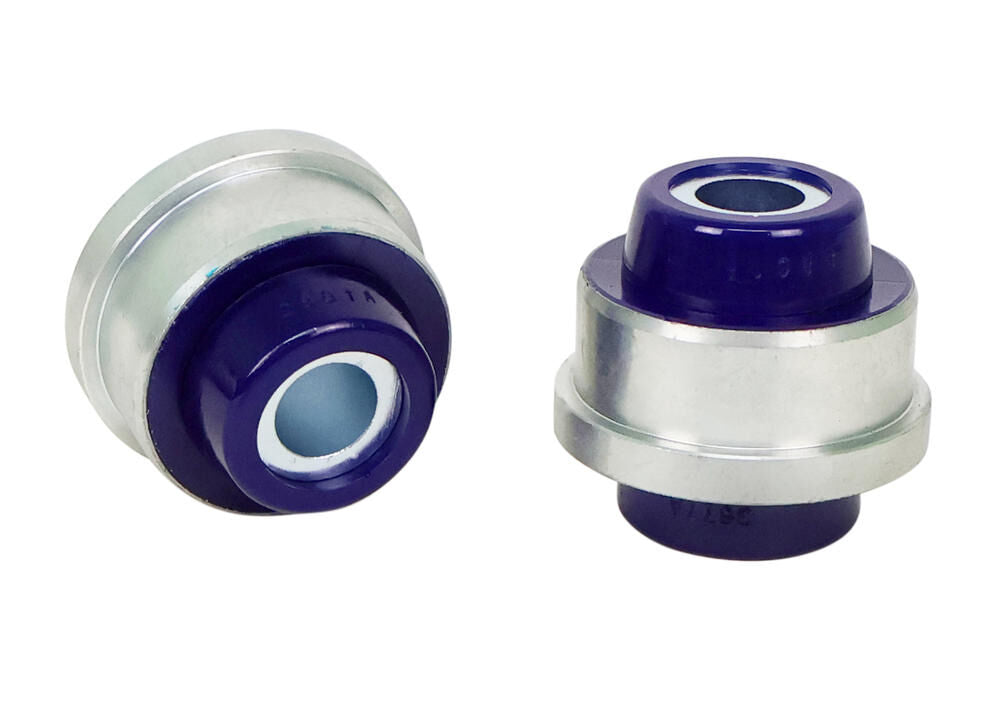

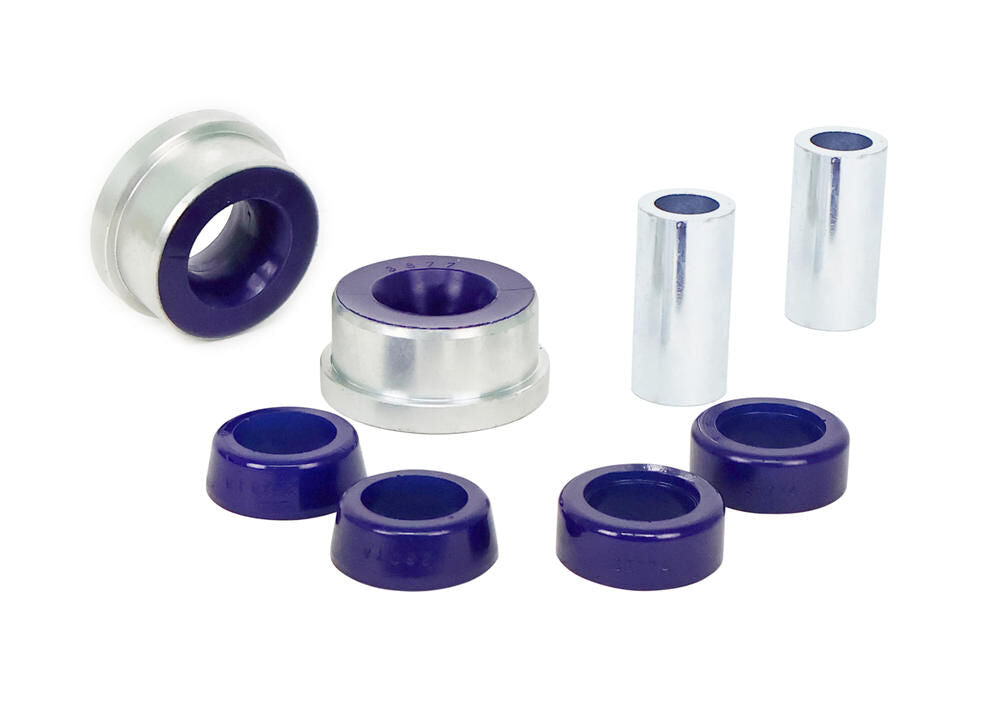

SPF5795K SuperPro Front Control Arm Lower - Inner Front Bushing Kit to Suit Subaru BRZ and Toyota 86 | Genuine SuperPro Suspension Component

SPF5795K SuperPro Front Control Arm Lower - Inner Front Bushing Kit to Suit Subaru BRZ and Toyota 86 | Genuine SuperPro Suspension Component

$190.00 AUD
$190.00 AUD
Sale Sold out
Flat $14.99 shipping Australia-wide.

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

  • Maintains optimal alignment and makes handling consistent; a complete, premium upgrade. Includes: 6 Control Arm Bushings & 2 Tubes

Benefit Note: Control arm bushes stabilise the movement of the arms to ensure the correct geometry is maintained in all situations. Worn or rubber bushes in these locations lead to dynamic changes in wheel alignment that effect the handling of a vehicle as well as the tyre life. SuperPro Bushings solve this issue and are the perfect repair or repair upgrade solution.


Kit Specifications

Bush Type 3 - Half Tapered Cotton Reel Bush 17 - Shell With Flange Bushing 7 - Pin Bush With & Without Spigot
Bush Quantity 2 mm 2 mm 2 mm
OD (A) AI=43 AII=38 mm 60 mm 2 mm
ID (B) 28 mm 27 mm 28 mm
Length (C) 15 mm 30 mm 16 mm
Flange Thickness (D) 2 mm 9 mm
Flange OD (E) 43 mm 67 mm
C/Tube Quantity 2 2 2
C/Tube ODxIDxL 28.57x19.3x57 mm 28.57x19.3x57 mm 28.57x19.3x57 mm
Bushing Type 3 - Half Tapered Cotton Reel Bush
Bushing Type 17 - Shell With Flange Bushing
Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

Bush Type 3 17 7
QTY 2 2 2
OD (A) AI=43 AII=38 60 2
ID (B) 28 27 28
Length (C) 15.0 30.0 16.0
FL (D) 2 9
FLOD (E) 43 67
C/Tube Qty 2 2 2
C/Tube Size 28.57x19.3x57 28.57x19.3x57 28.57x19.3x57
Bushing Type 3
Bushing Type 7
Bushing Type 17

Packaged Weight and Dimensions

Units cm/kg in/lbs
Weight 0.76kg 1.68lbs
Length 22cm 8.66"
Width 11.5cm 4.53"
Height 13.5cm 5.31"

Misc. Product Information

More Information
SKU IconSKU
 SPF5795K
Kit Contents IconKit Contents
 6 Bushings, 2 Tubes
Kits Required IconKits Required
 1
Fitting Position IconFitting Position
 Front Axle
Foot Note 3 IconFoot Note 3
 lifetime warranty
Sub brand IconSub brand
 SuperPro SPF
EAN IconEAN
 9317745057956
Product Note IconProduct Note
 Maintains optimal alignment and makes handling consistent; a complete, premium upgrade. Includes: 6 Control Arm Bushings & 2 Tubes
