🔧 Product Description

Multi-purpose harmonic-balancer and pulley puller supplied with five screw sets for a range of bolt patterns. Recmar SSP4600 is commonly used as an aftermarket alternative to Yamaha special tool YB-06117, but it can also service compatible automotive and marine pulleys where the bolt pattern and forcing-screw capacity match.

It is not limited to one Yamaha engine model and should be configured from the relevant service manual.

⚙️ Key Features

• Multi-slot puller body accommodates varied bolt circles

• Five screw sets provide multiple thread options

• Central forcing screw applies controlled removal force

• Useful for harmonic balancers, crank pulleys and related hubs

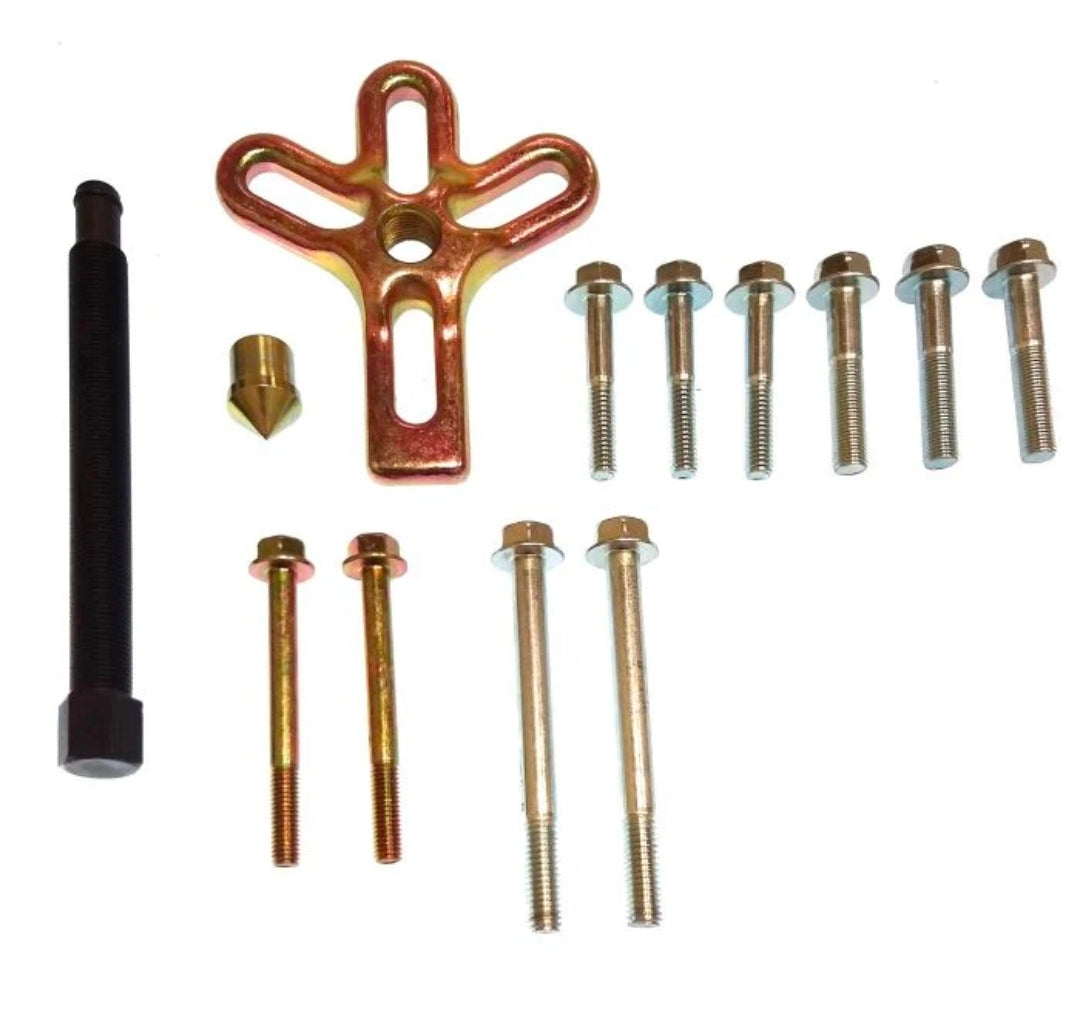

📋 Kit Contents

• 1 × Puller yoke/body - SSP4600

• 1 × Central forcing screw

• 5 × Puller screw sets in the manufacturer-supplied thread sizes

• Associated washers/adaptors supplied with the current kit

🔄 Supersession & Cross Reference

• Recmar reference: SSP4600

• Yamaha functional special-tool reference: YB-06117

• No verified Sierra, GLM or Mercury direct equivalent

🚤 Compatibility

• Selected Yamaha marine engines calling for YB-06117-type pulling equipment

• GM, Ford and other engines only where bolt pattern, thread and puller capacity match

• Harmonic balancers and pulleys with accessible threaded holes

• Not for hubs requiring a jaw puller or proprietary threaded adaptor

🔌 Function

Bolts to the balancer or pulley and uses the central screw against the crankshaft centre to draw the component off squarely. This avoids levering against the timing cover or striking the crankshaft.

📦 Condition

• Brand-new aftermarket puller kit

• Supplied with five screw sets

• Protect crankshaft threads and follow the engine manufacturer's removal procedure
