12 Inch LED Light Bar - Part Number: LEDST-X-12-4L

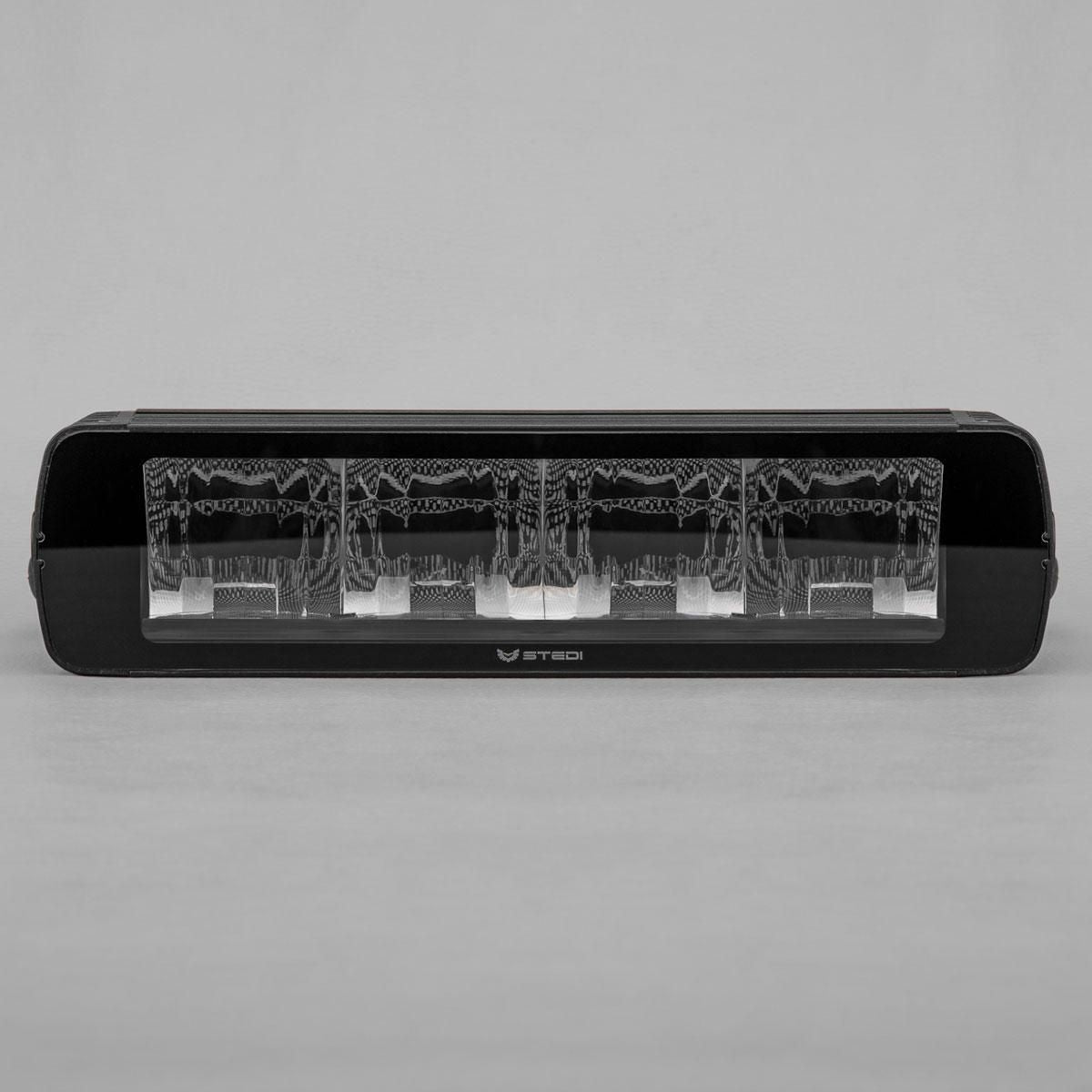

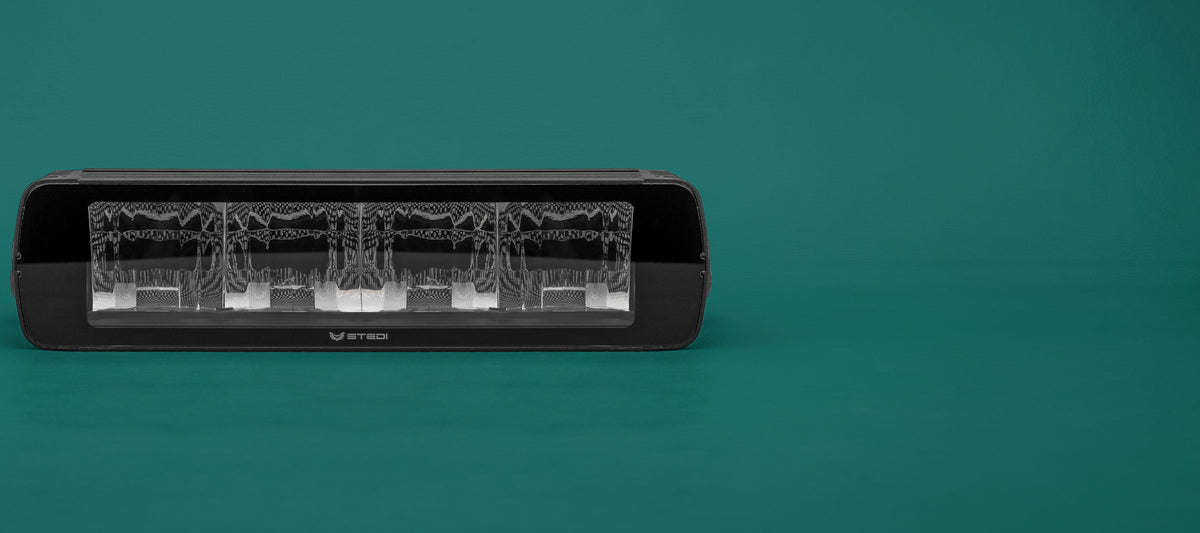

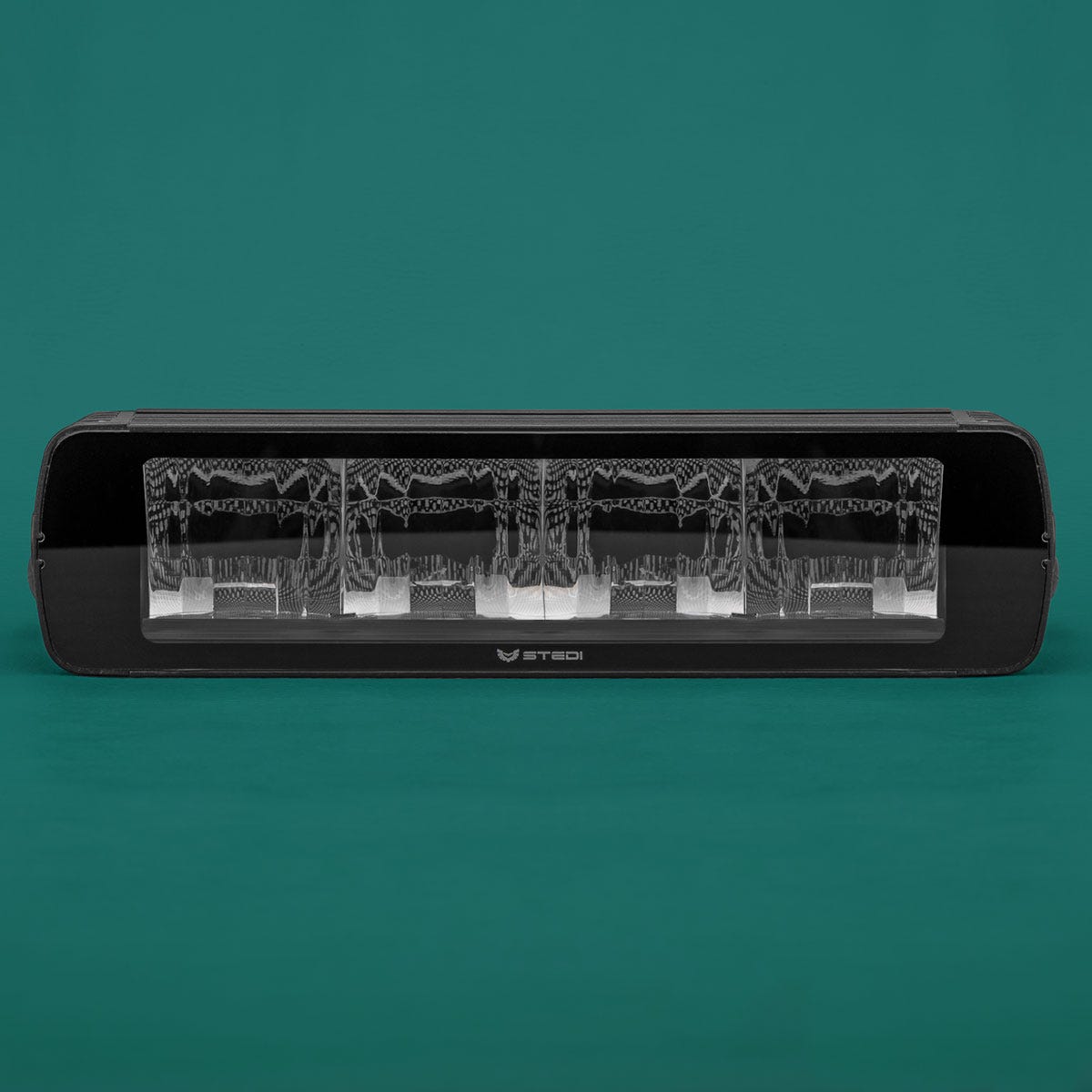

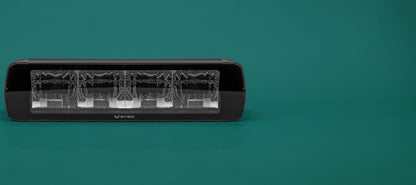

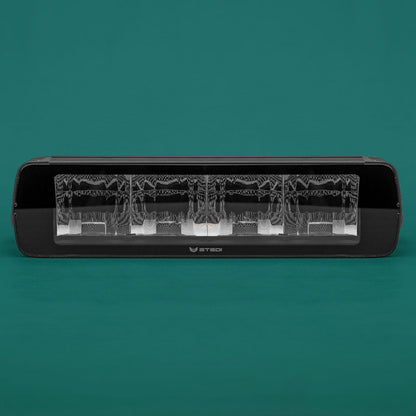

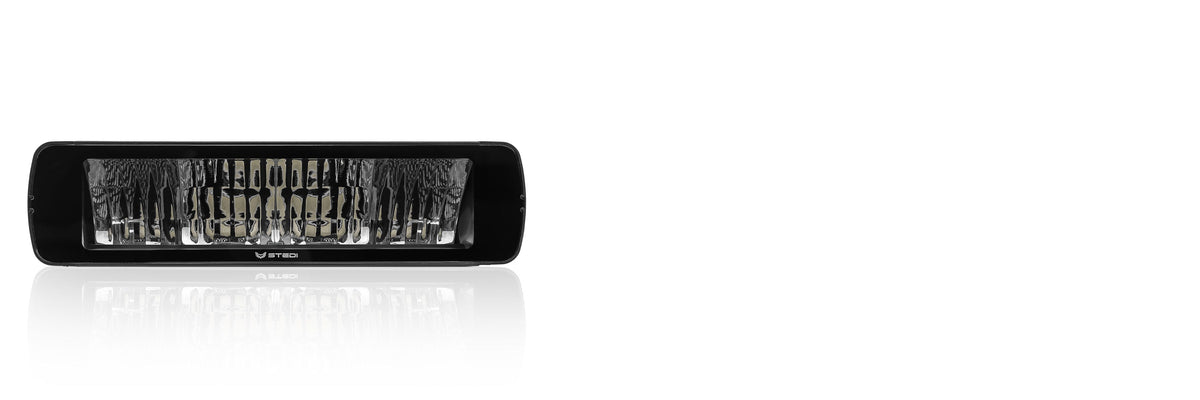

The STEDI ST-X 12 inch LED light bar uses 4 x 15W LEDs behind hooded reflectors. STEDI is clear about its purpose: this is not a near-field spread bar but a long-range driving light, built for highway and high-speed touring where mid to long range visibility matters most.
The controlled vertical spread cuts glare reflected back off high-mounted road signs, and a built-in LED parking or position light function, in amber or white, gives the bar a running-light look when the main beam is off.

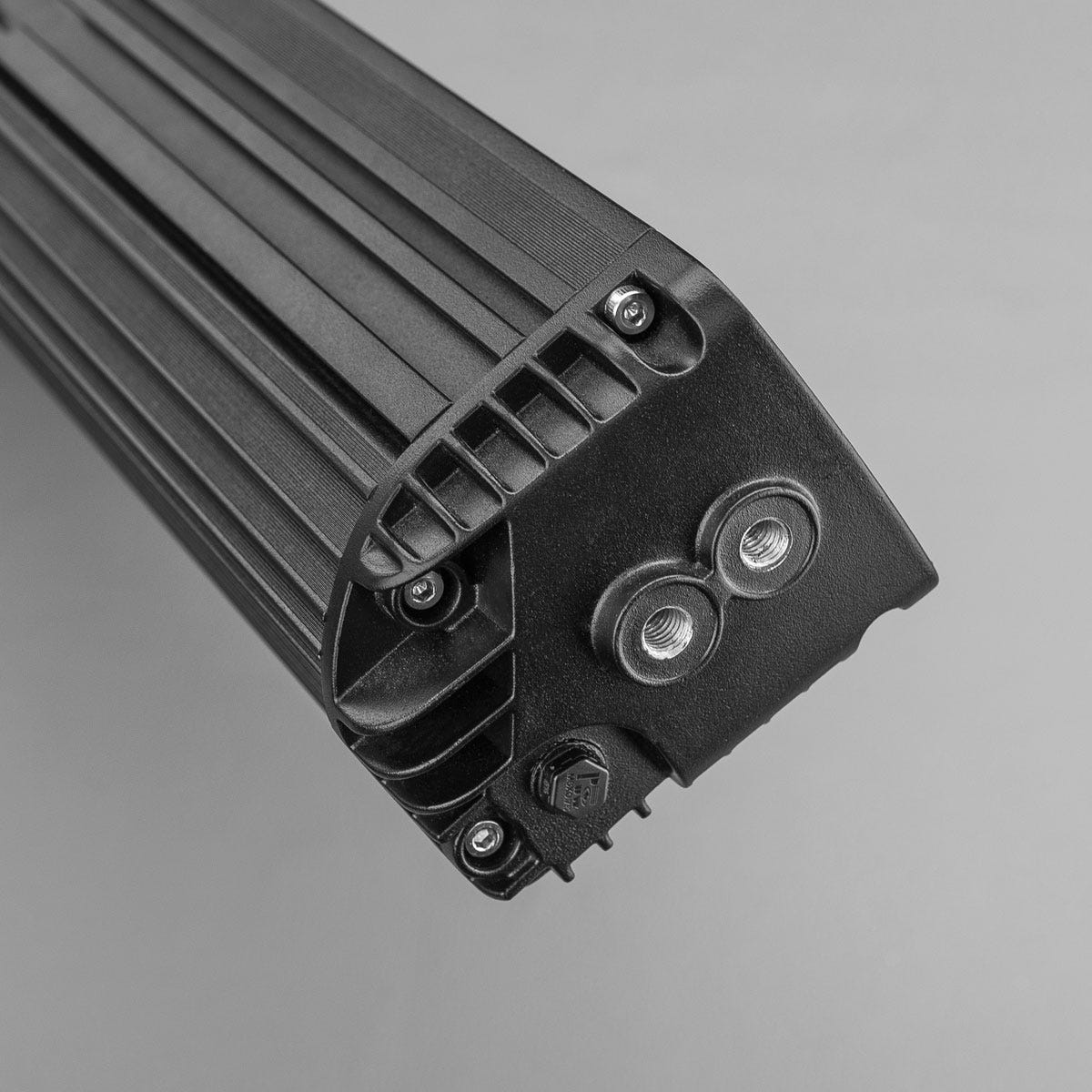

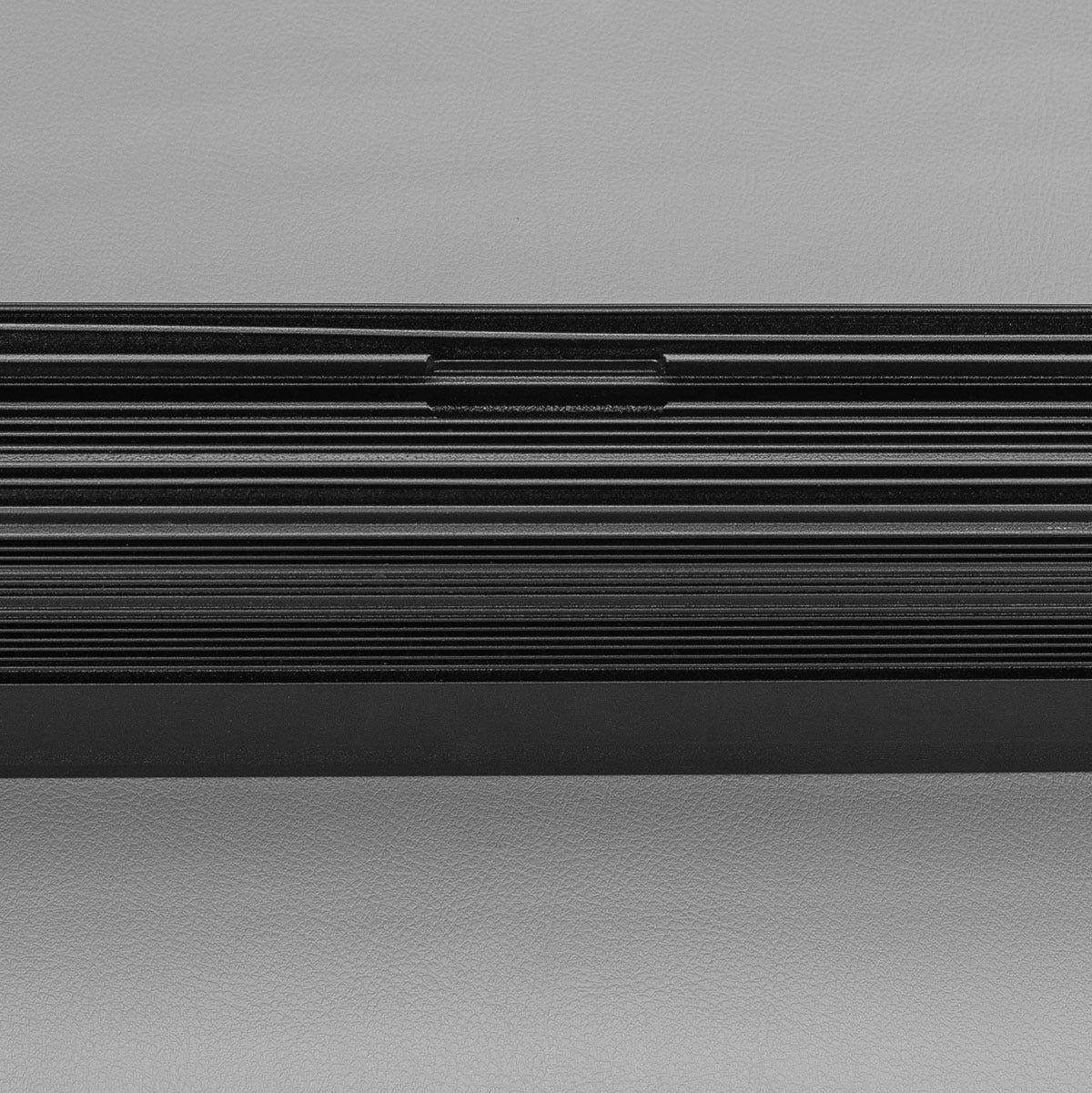

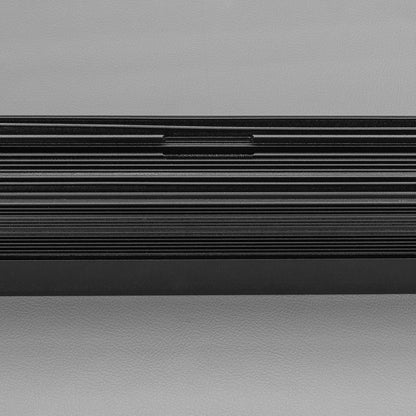

The housing is finished in anodised polyester powder coat, with a breather that equalises pressure through rapid heat-up and cool-down cycles. The bar is IP68 waterproof, shockproof and UV shielded, with protection against reverse polarity, voltage and current surges and RFI/EMC interference, plus pulse width modulation thermal management.
⚙️ Key Features

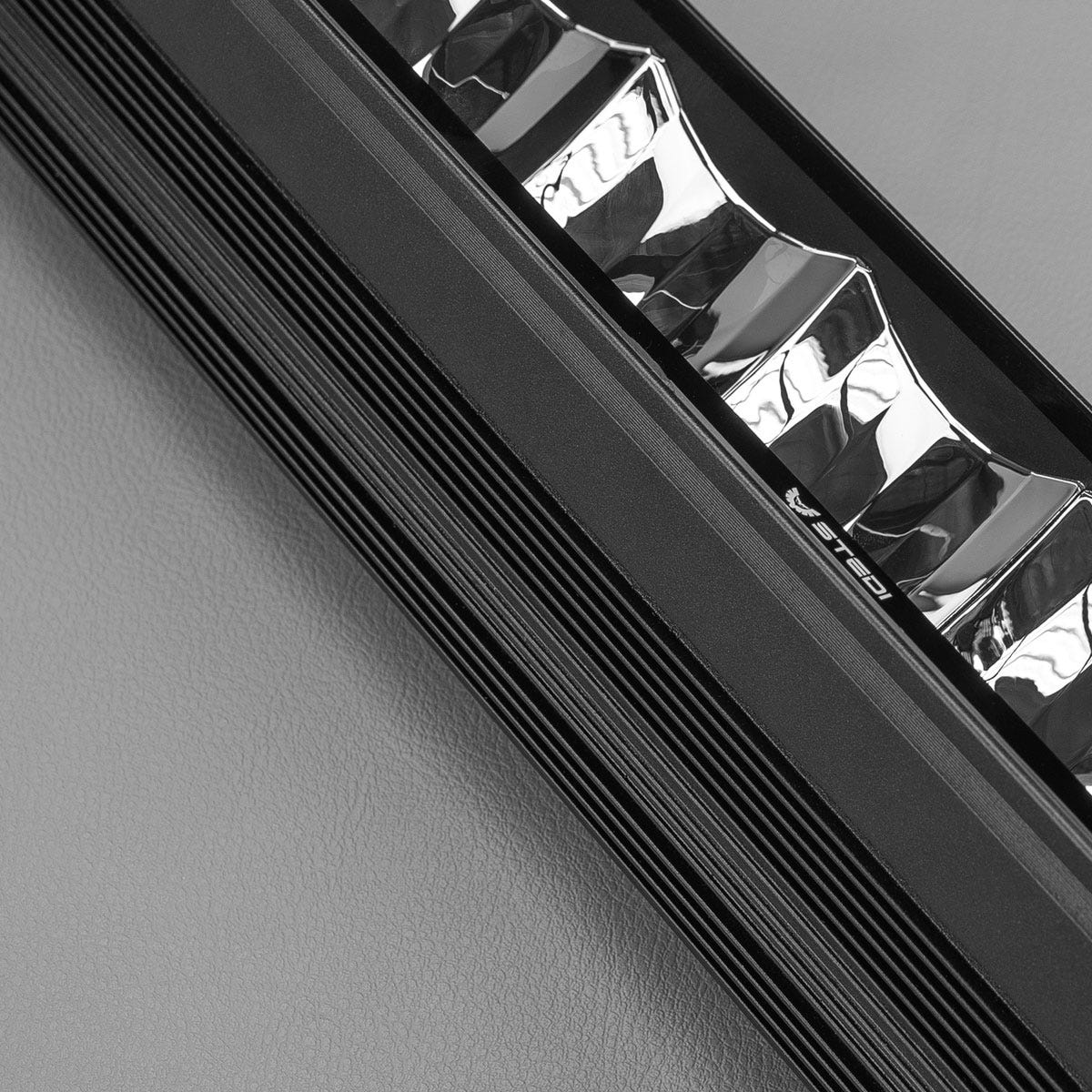

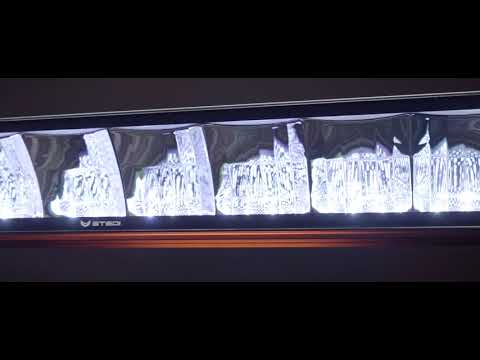

4 x 15W LEDs with hooded reflectors

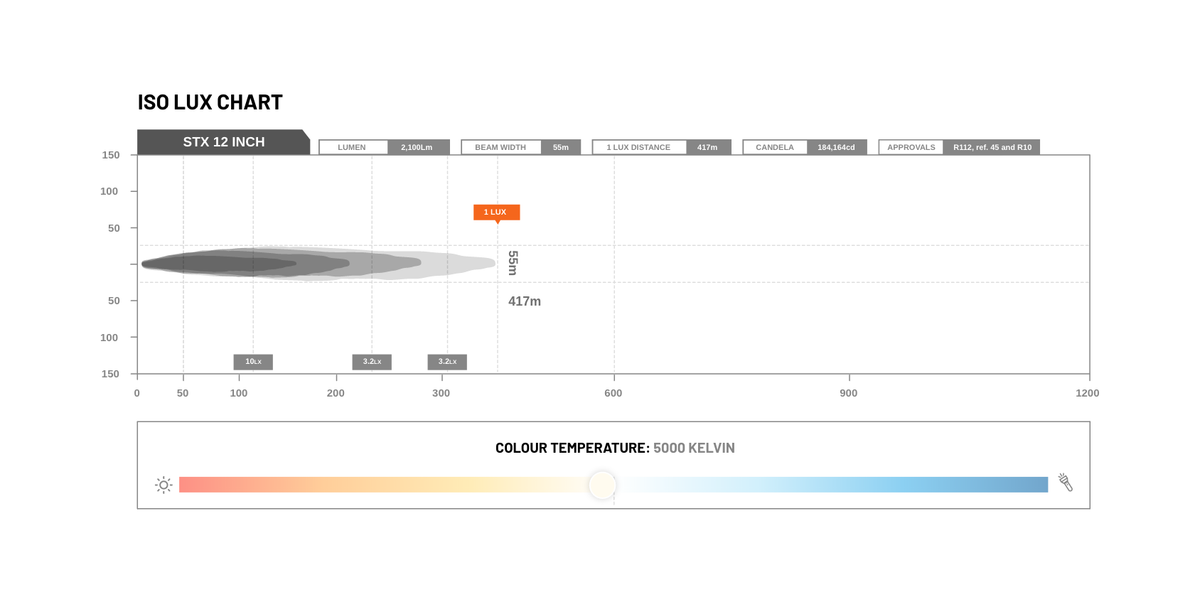

Long-range beam with controlled vertical spread

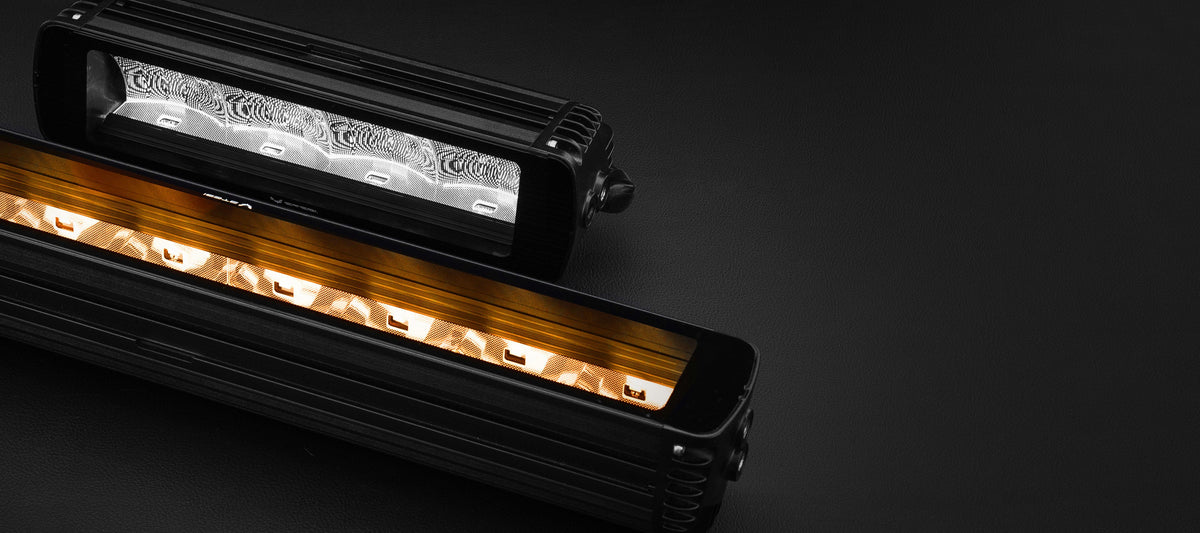

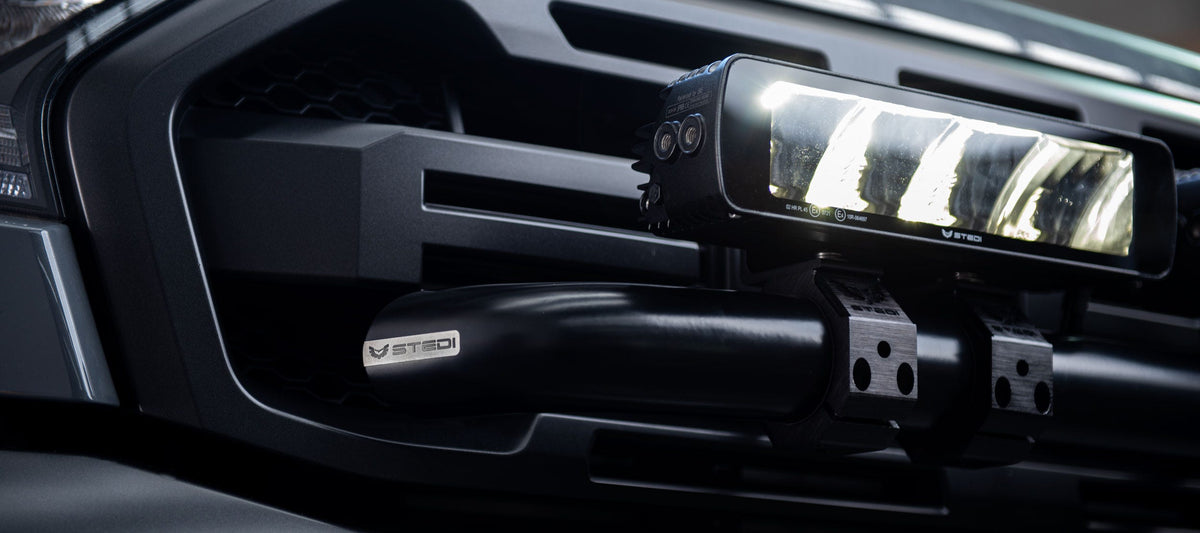

Built-in LED parking / position light (amber or white)
IP68, shockproof and UV shielded
Weatherproof Deutsch DTP connector
Reverse polarity, surge and RFI/EMC protection
PWM thermal management

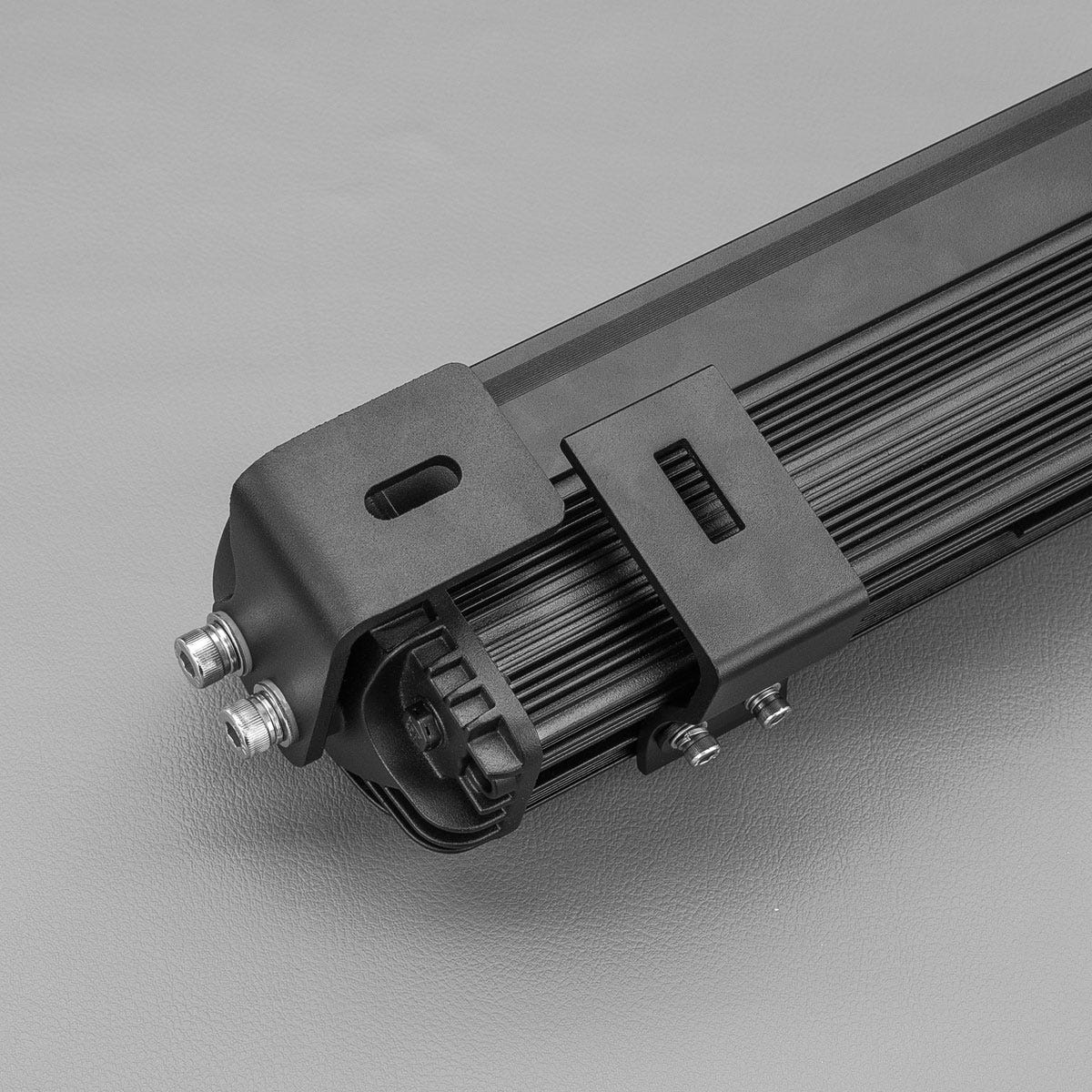

Adjustable side brackets and sliding bottom brackets included

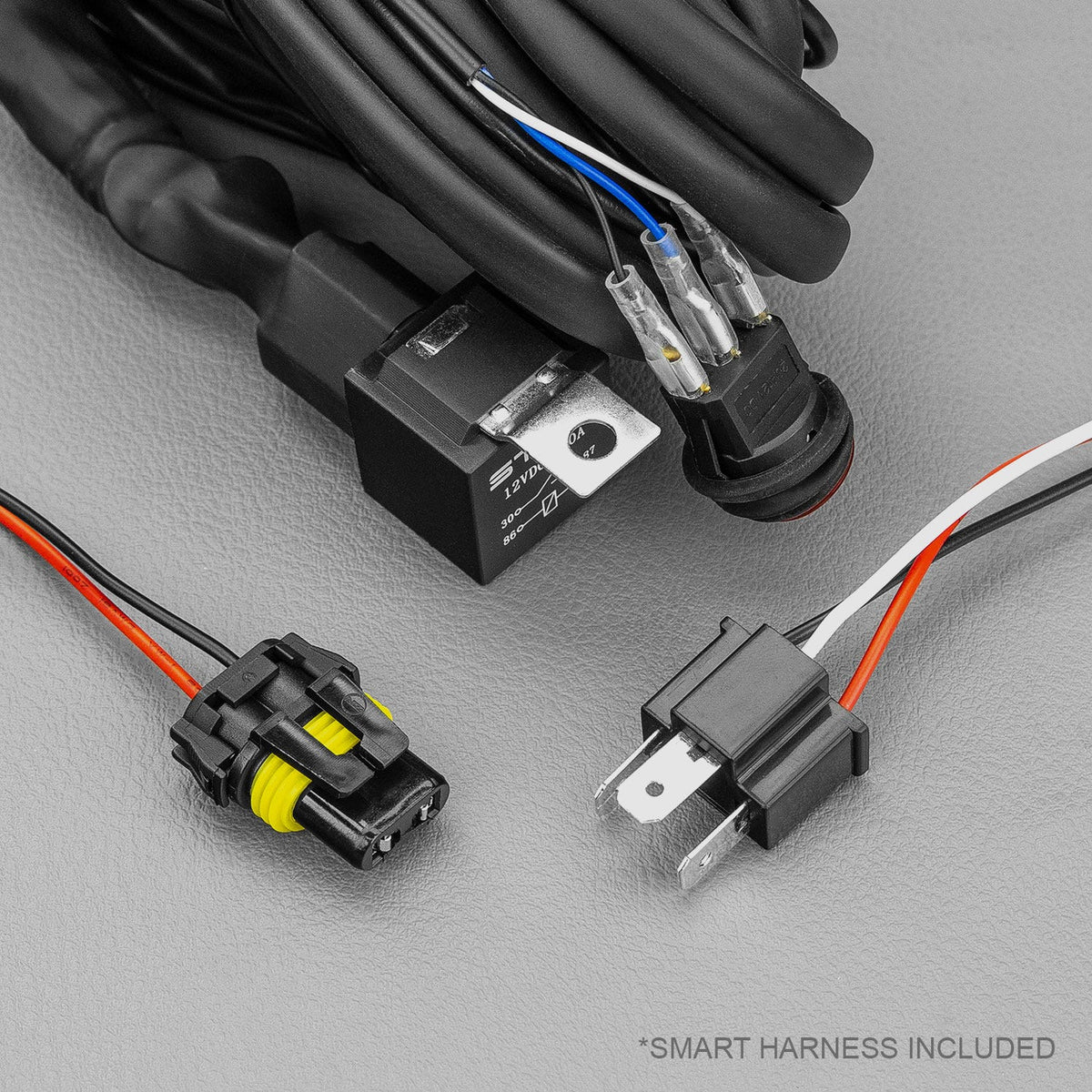

Easy-Fit plug and play high beam harness with HB3 and H4 adapters included; STEDI states it suits negative and positive switched vehicles
📏 Specifications
Series: ST-X
Nominal length: 12 inch
LEDs: 4 x 15W
Ingress protection: IP68
Part number: LEDST-X-12-4L
🚘 Application

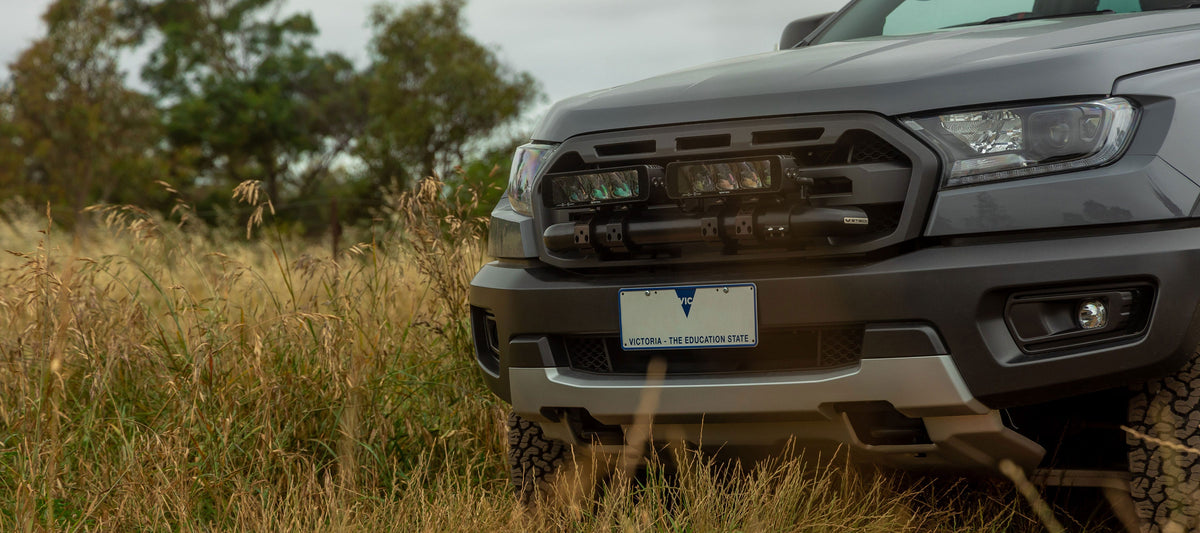

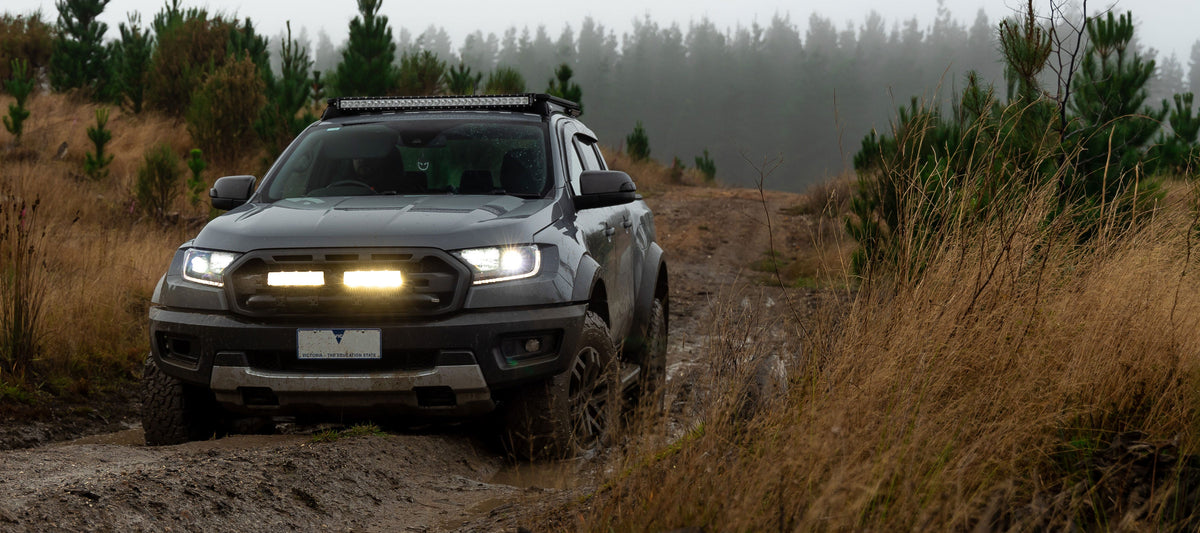

Vehicle-agnostic: mounts to a bull bar, roof rack, light bar bracket or UHF aerial tabs on most 4WDs, utes and trucks using the supplied brackets. Vehicle-specific mounting brackets are separate products, and some late-model vehicles need a model-specific STEDI piggyback adapter to connect the harness to high beam.
📦 Condition
Brand new genuine STEDI product
Supplied in original packaging
