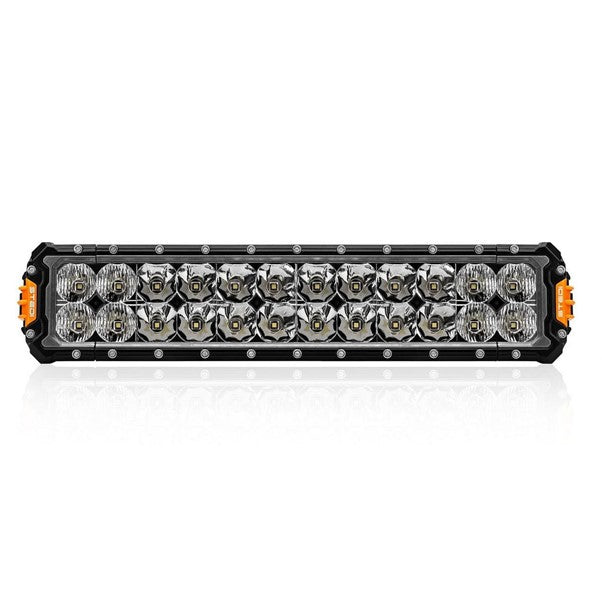

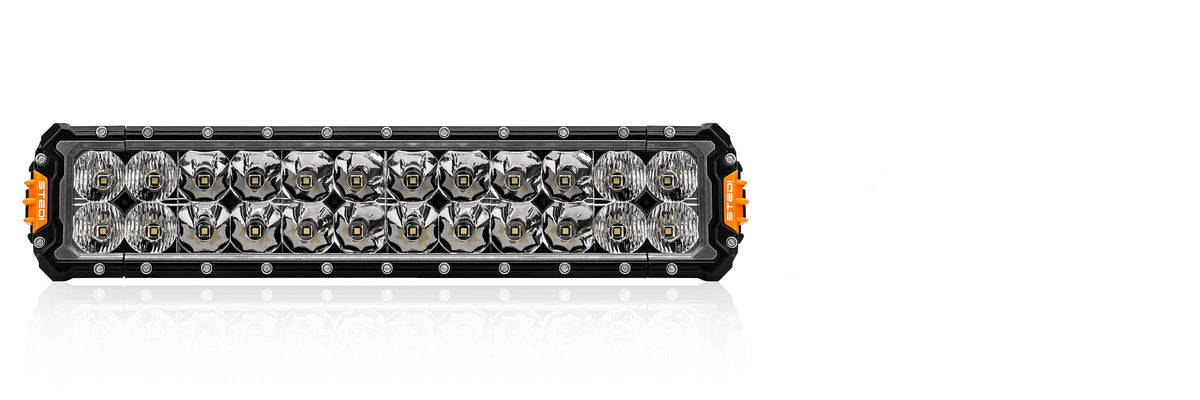

Pro Double Row 18.4 Inch 24 LED Light Bar - Part Number: LED3303-PRO-24L

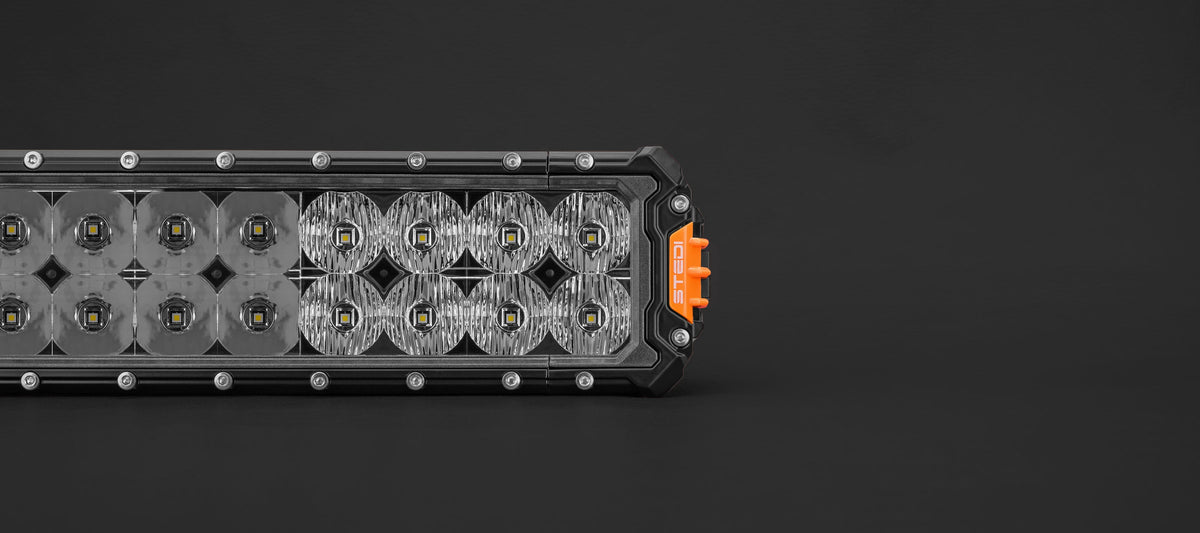

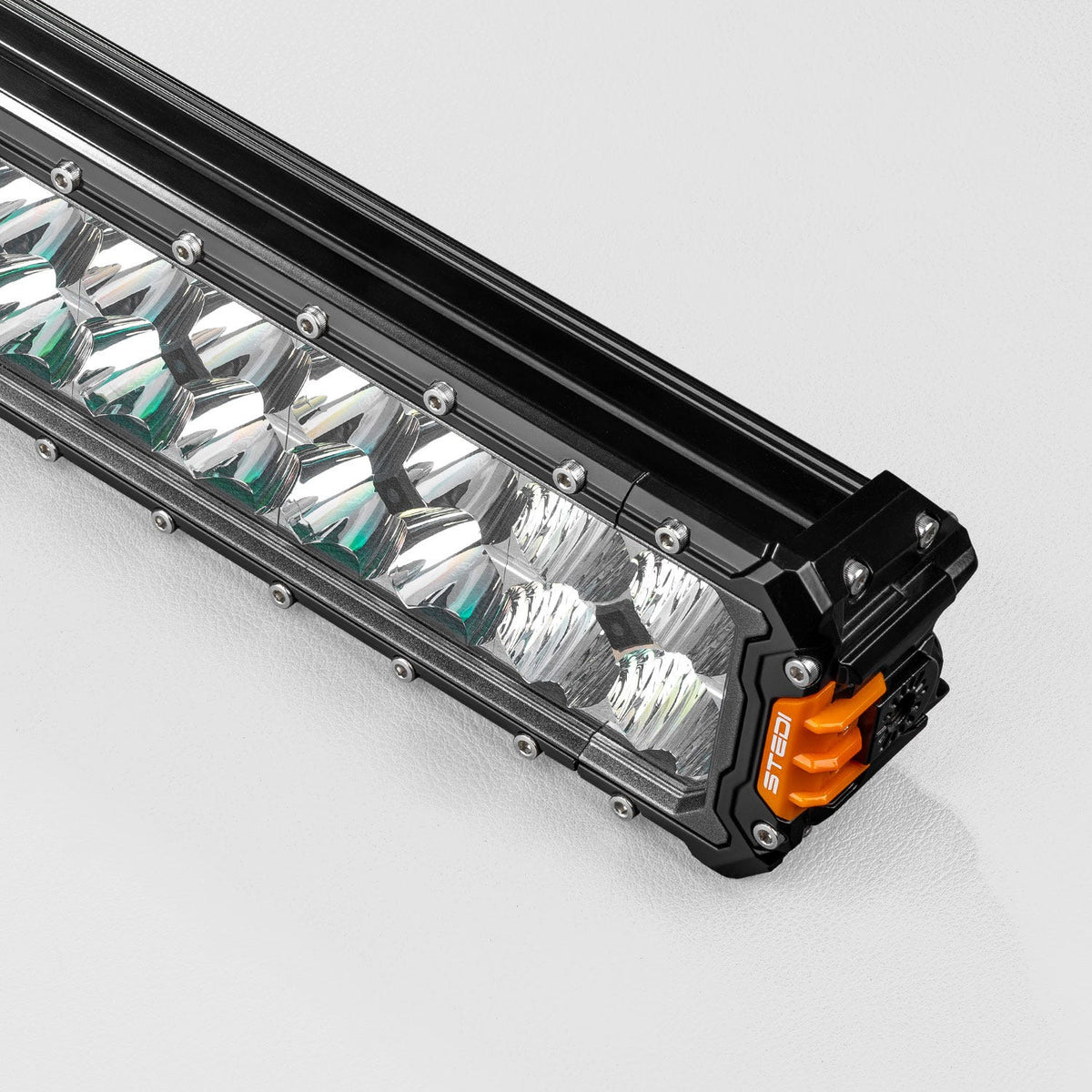

The STEDI ST3303 Pro 18.4 inch is a double-row LED light bar carrying 24 CREE XLamp XP-L HI LEDs behind 32mm parabolic reflectors. STEDI positions the ST3303 as its high-performance double-row bar, built for big light volume and long beam throw on touring rigs, work utes and dedicated off-road vehicles.
A combined spread and spot beam lights the road edges and the distance ahead at the same time, which helps most on unlit highways, corrugated outback roads and in rain or dust.
The face plate is A360 cast alloy over an extruded aluminium heat sink, the lens is optical grade hard-coated Lexan, and the bar is rated IP68, submersible to 3m. A heavy-duty Smart Plug and Play wiring harness, which STEDI states is ADR compliant, comes in the box with a switch, fuse and relay, plus HB3 and H4 piggyback adaptors for a clean high-beam connection.
⚙️ Key Features
24 x CREE XLamp XP-L HI undomed LEDs using CREE SC5 technology
32mm diameter parabolic reflectors

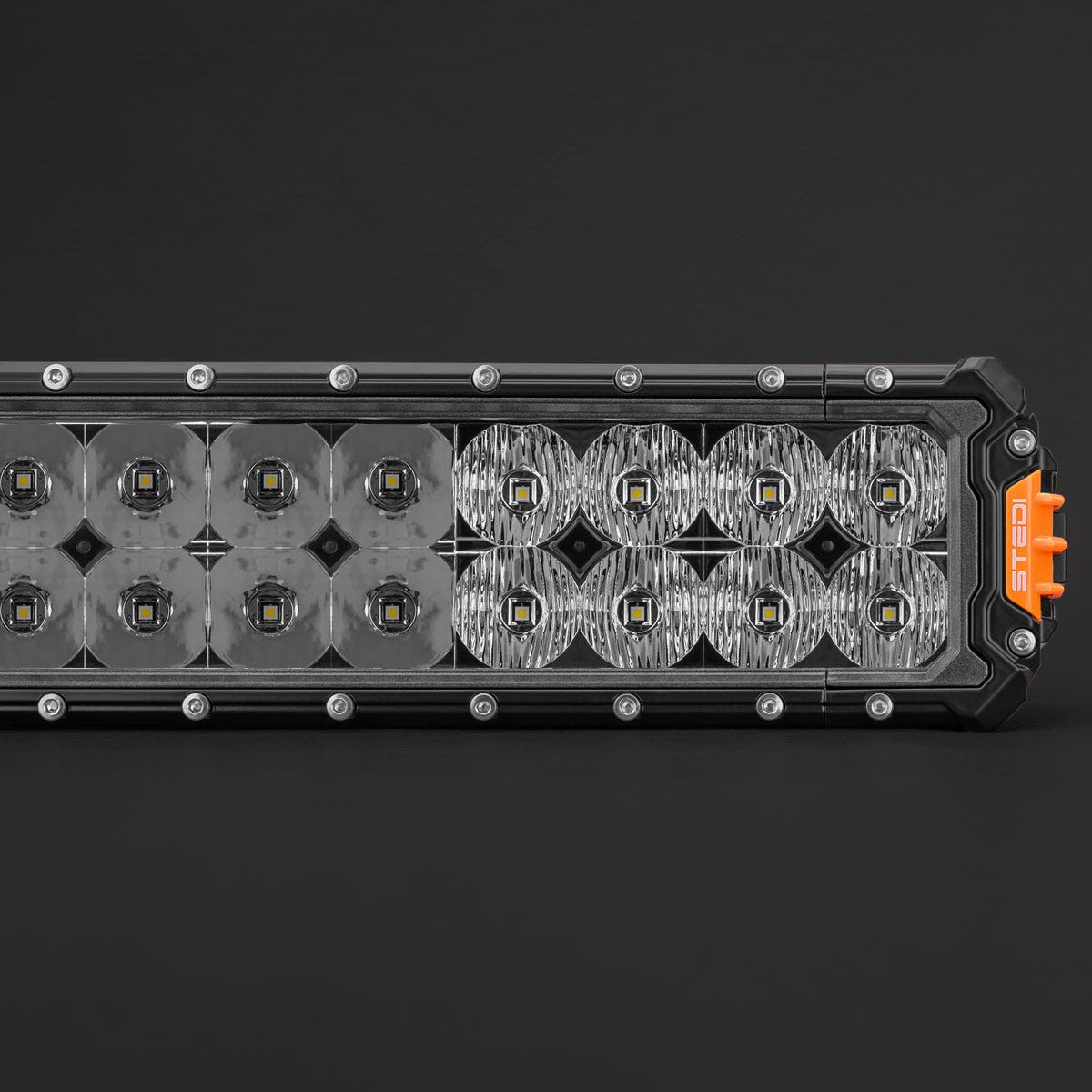

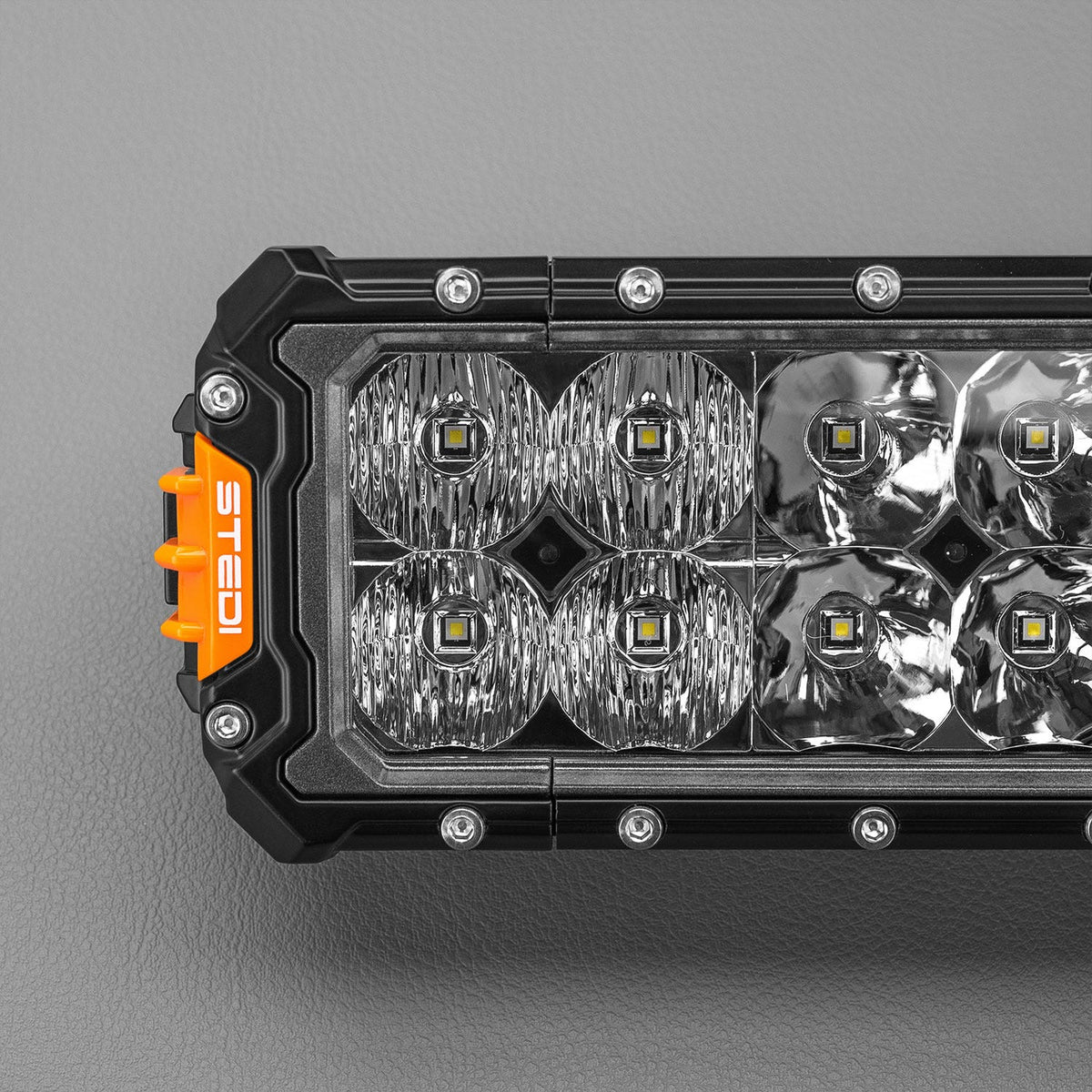

Spread and spot combination beam
IP68 rated, submersible to 3m
RFI and EMI suppression circuit; STEDI guarantees no interference with radio or GPS equipment
Single high-current Deutsch DTP-2 25A connector

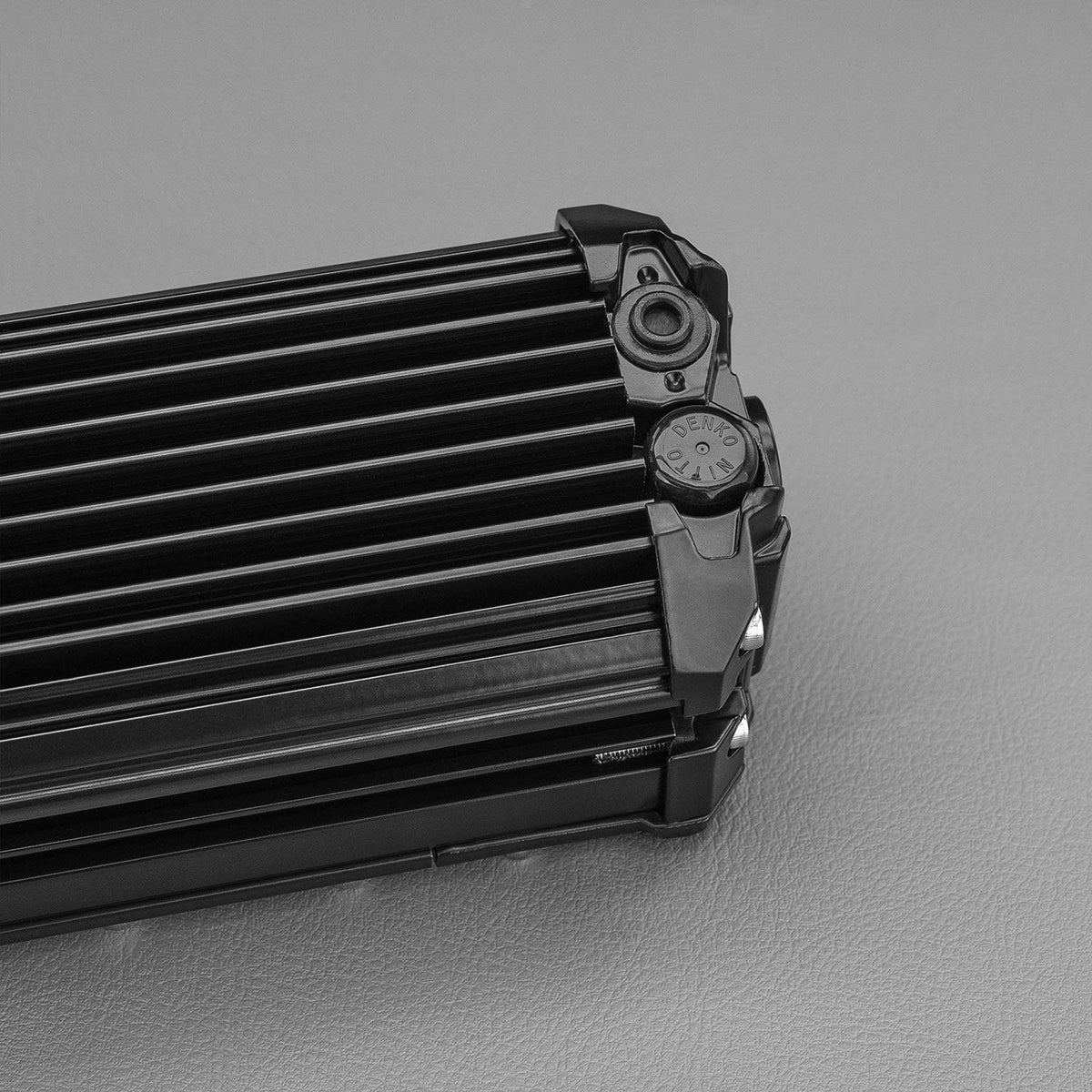

Nitto Denko breather with PTFE microporous membrane

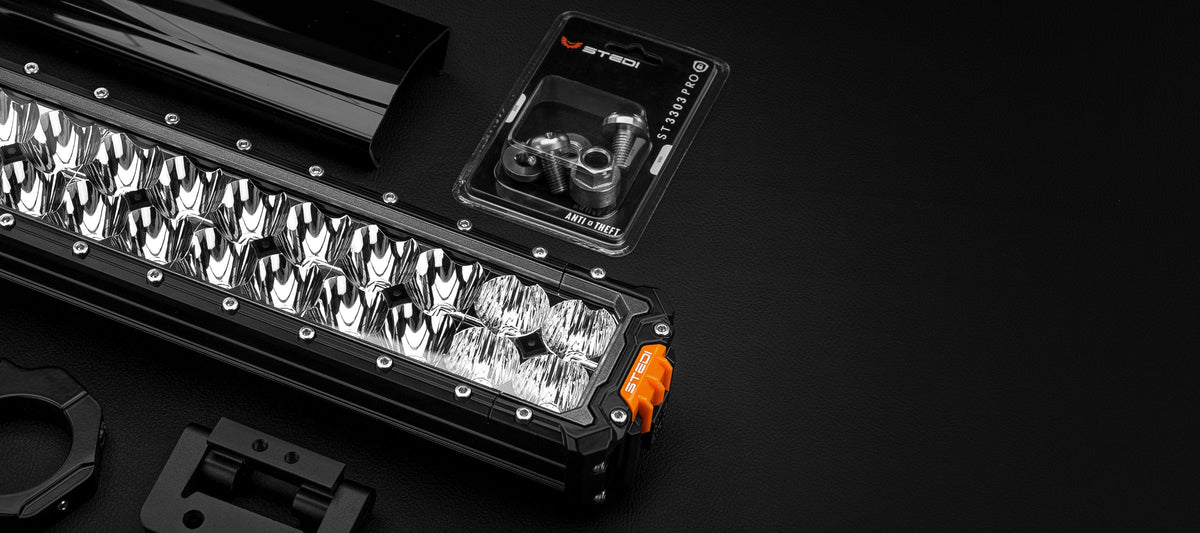

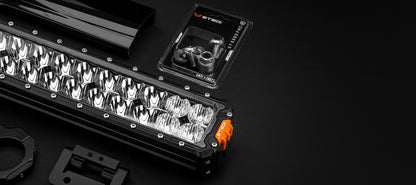

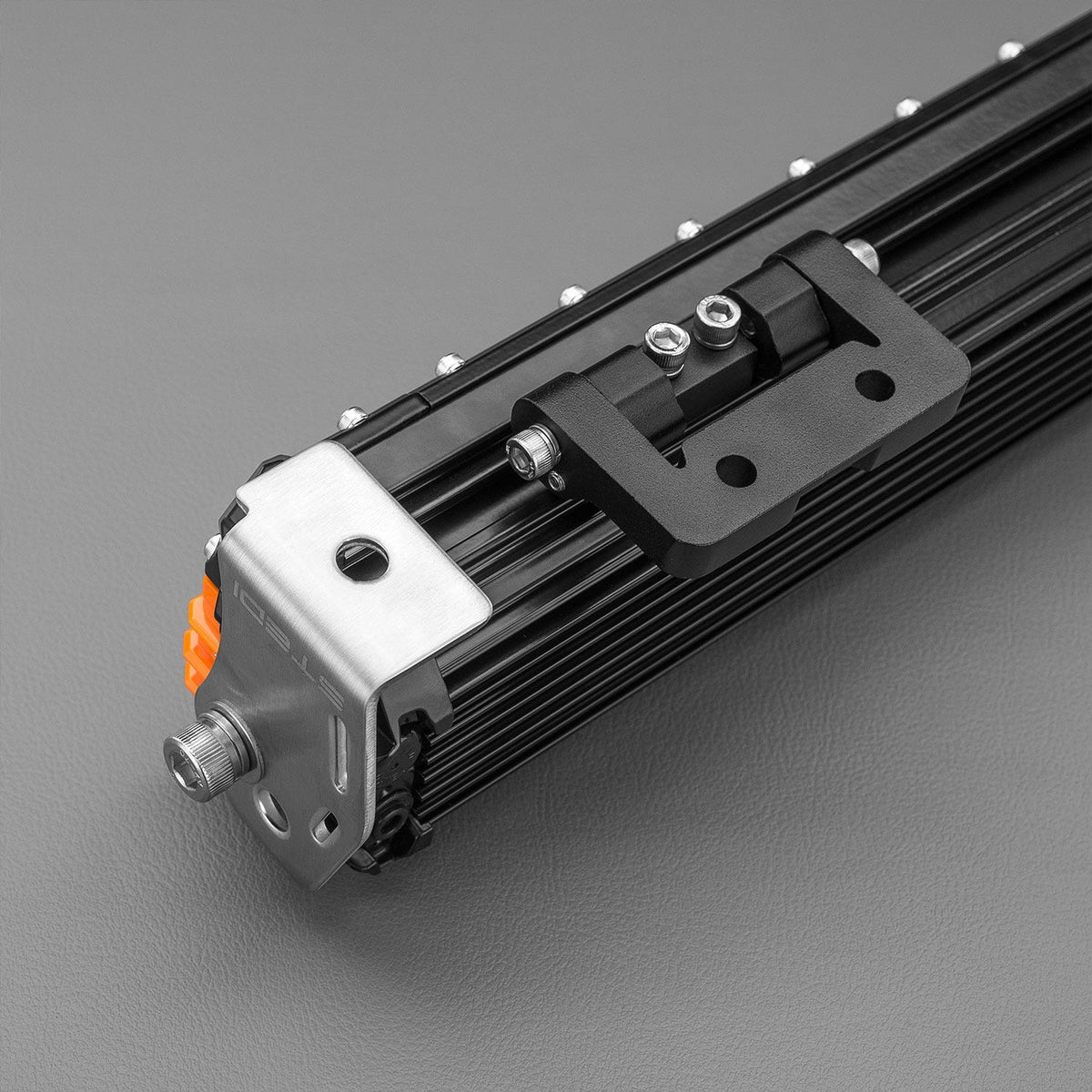

4mm thick 304 stainless steel side brackets and a cast alloy adjustable sliding bracket included

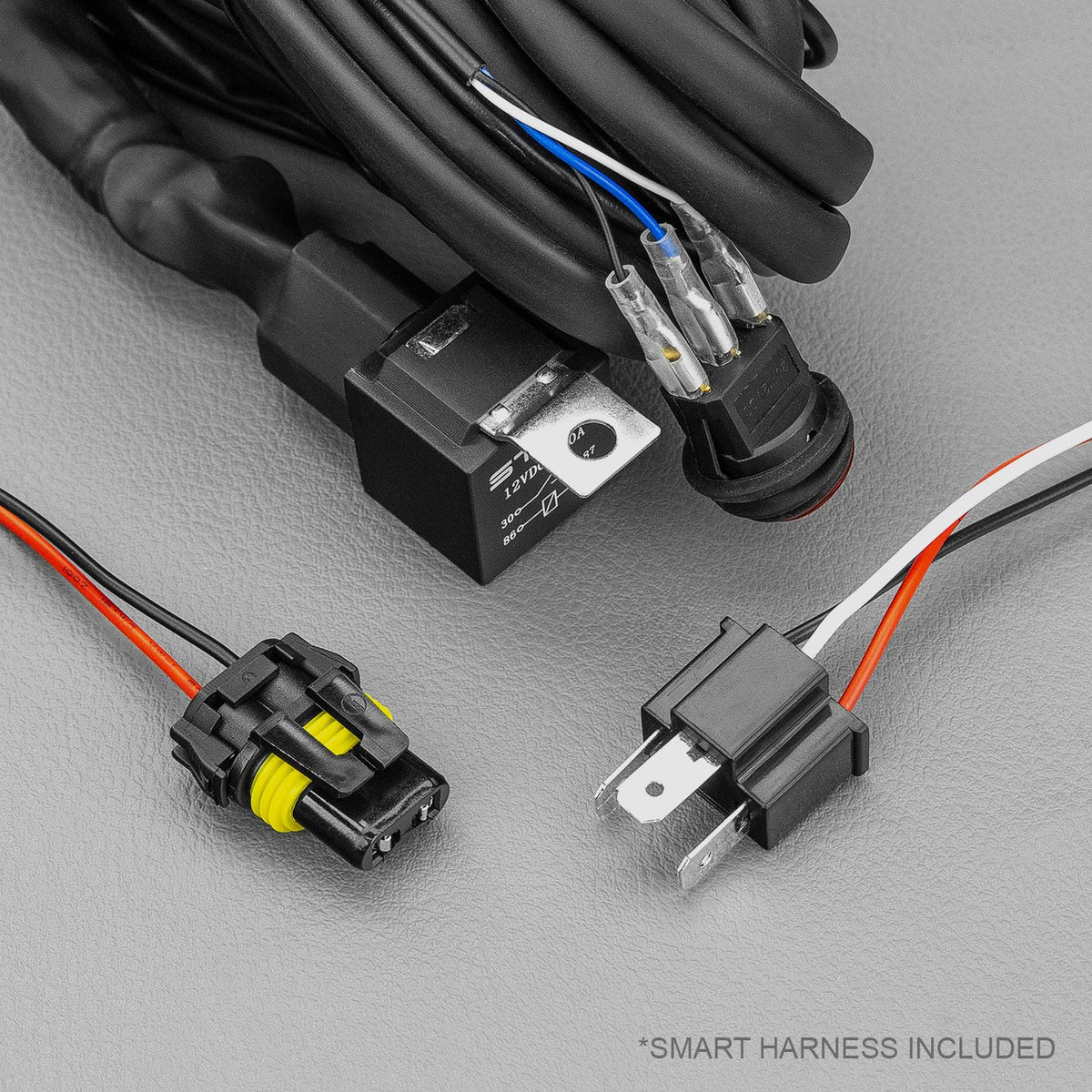

Smart Plug and Play harness with a switch, fuse and relay, plus HB3/H4 piggyback adaptors, included

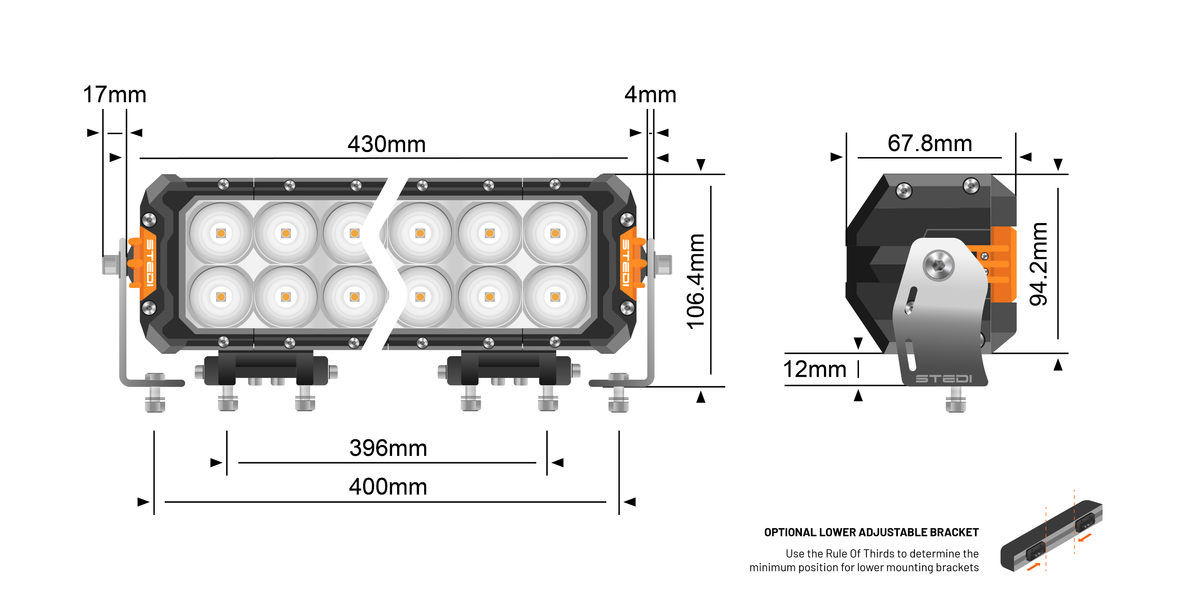

📏 Specifications
Series: ST3303 Pro (double row)
Nominal length: 18.4 inch
LEDs: 24
Lens: optical grade hard-coated Lexan
Housing: A360 cast face plate, extruded aluminium heat sink
Part number: LED3303-PRO-24L
🚘 Application

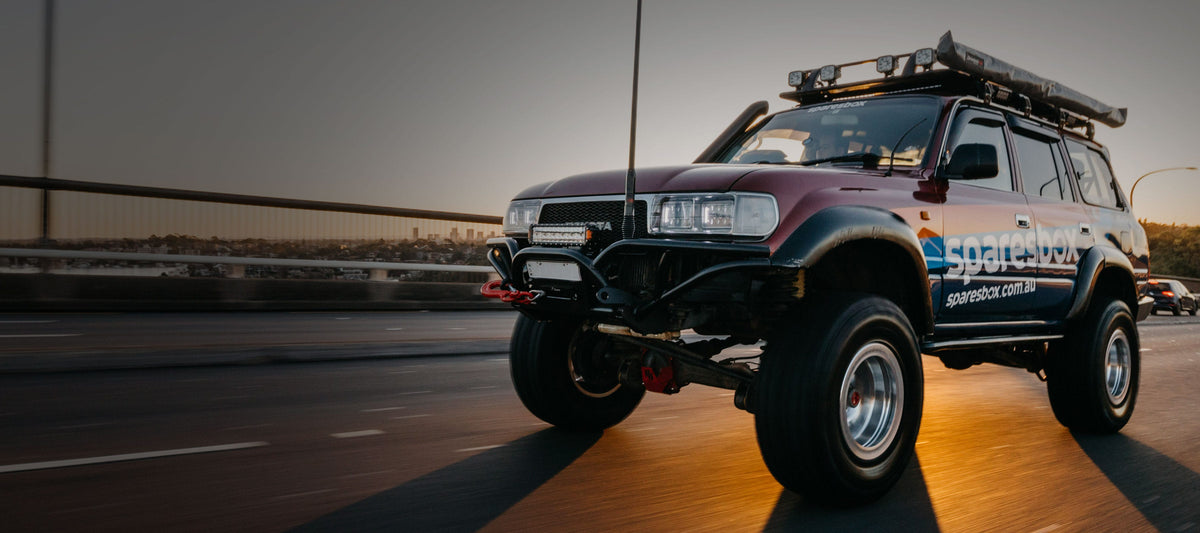

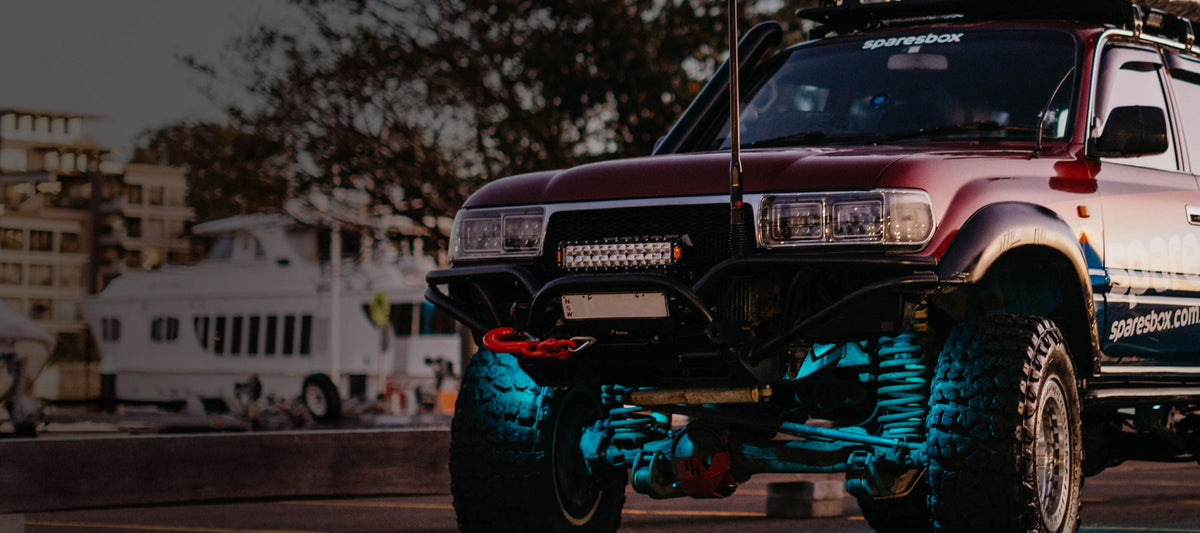

Vehicle-agnostic: mounts to a bull bar, roof rack, light bar bracket or UHF aerial tabs on most 4WDs, utes and trucks using the supplied brackets. Vehicle-specific mounting brackets are separate products, and some late-model vehicles need a model-specific STEDI piggyback adapter to connect the harness to high beam.
📦 Condition
Brand new genuine STEDI product
Supplied in original packaging
