LEDST4K-14-24L Stedi 14inch Double Row Light Bar | Genuine STEDI Product

LEDST4K-14-24L Stedi 14inch Double Row Light Bar | Genuine STEDI Product

Regular price $185.00 AUD
Regular price Sale price $185.00 AUD
Sale Sold out
Flat $14.99 shipping Australia-wide.
Quantity

✓ Authorised Volvo Penta Dealer · Marine & auto specialists · Ships Australia-wide

🔧 Product Description

Stedi 14inch Double Row Light Bar - Part Number: LEDST4K-14-24L

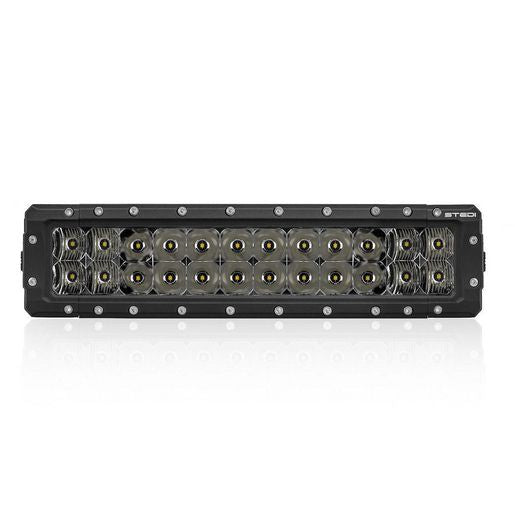

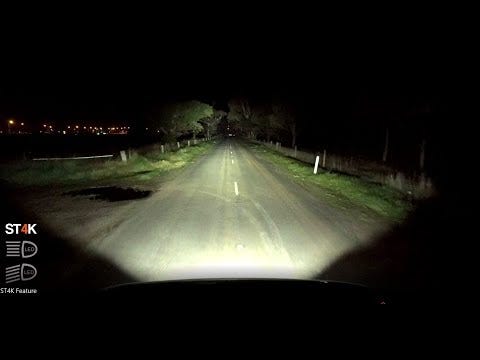

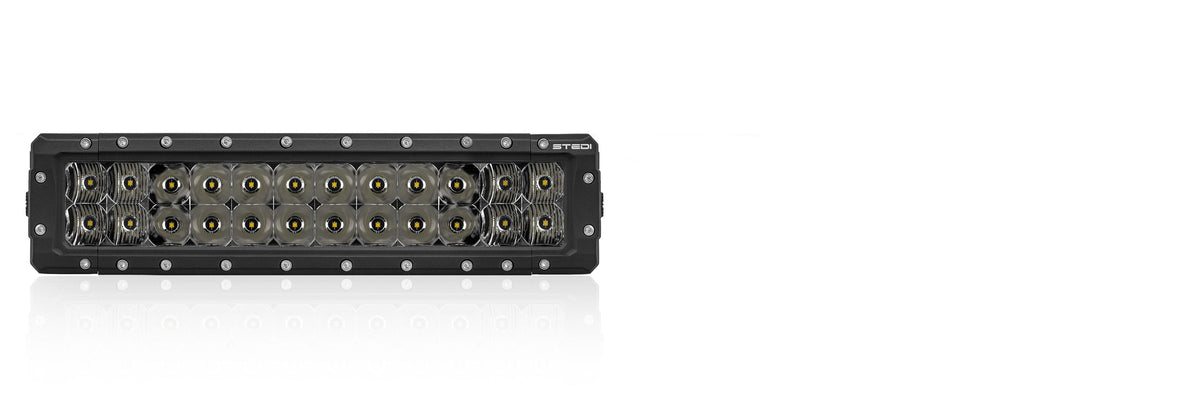

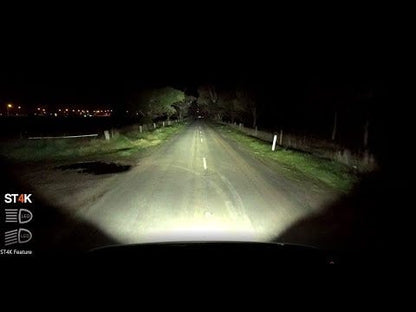

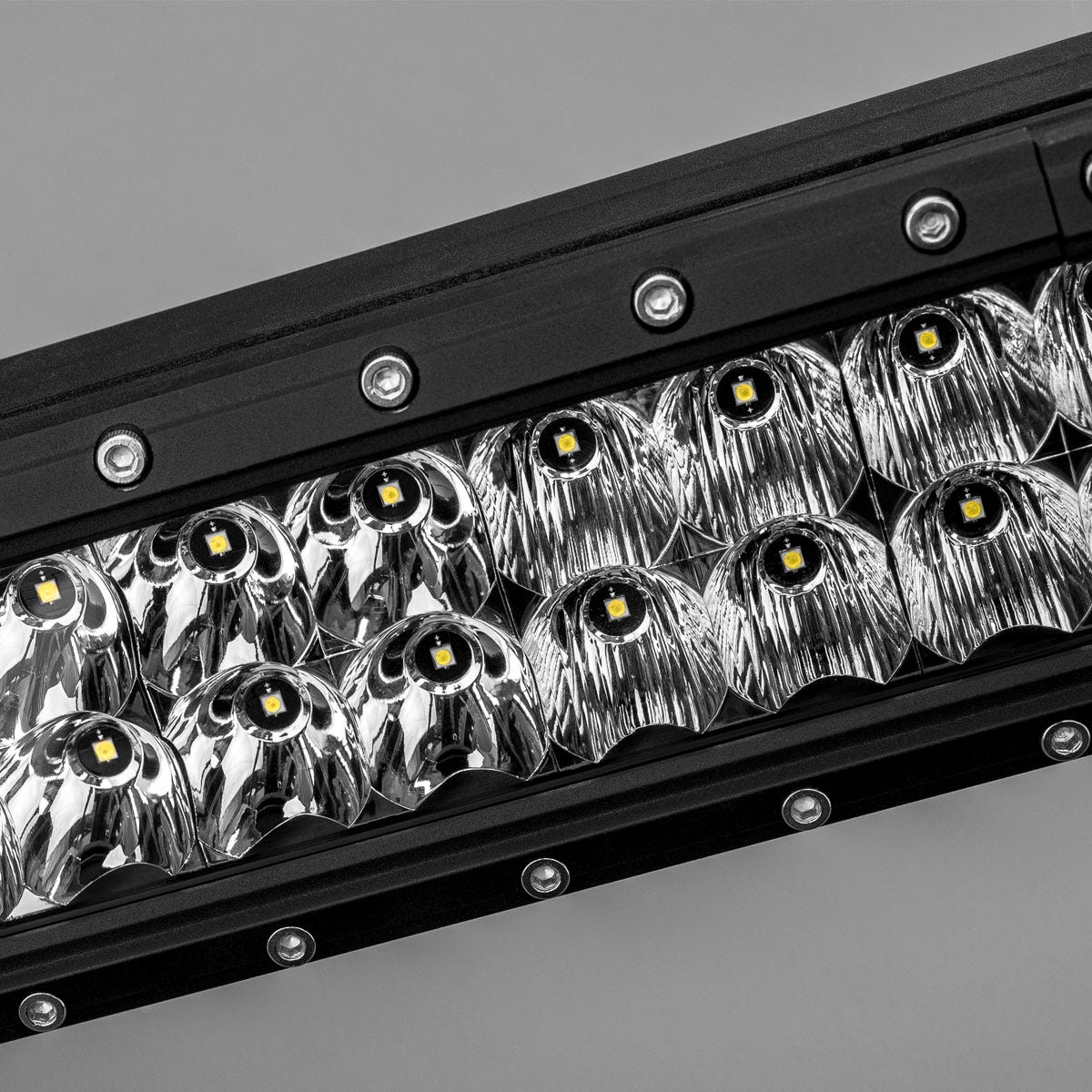

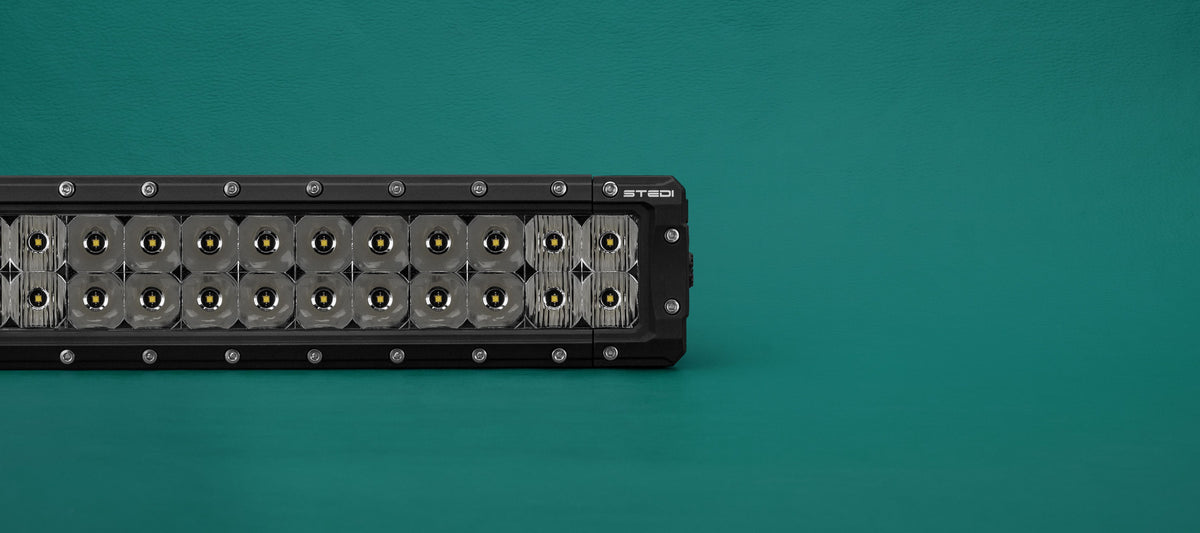

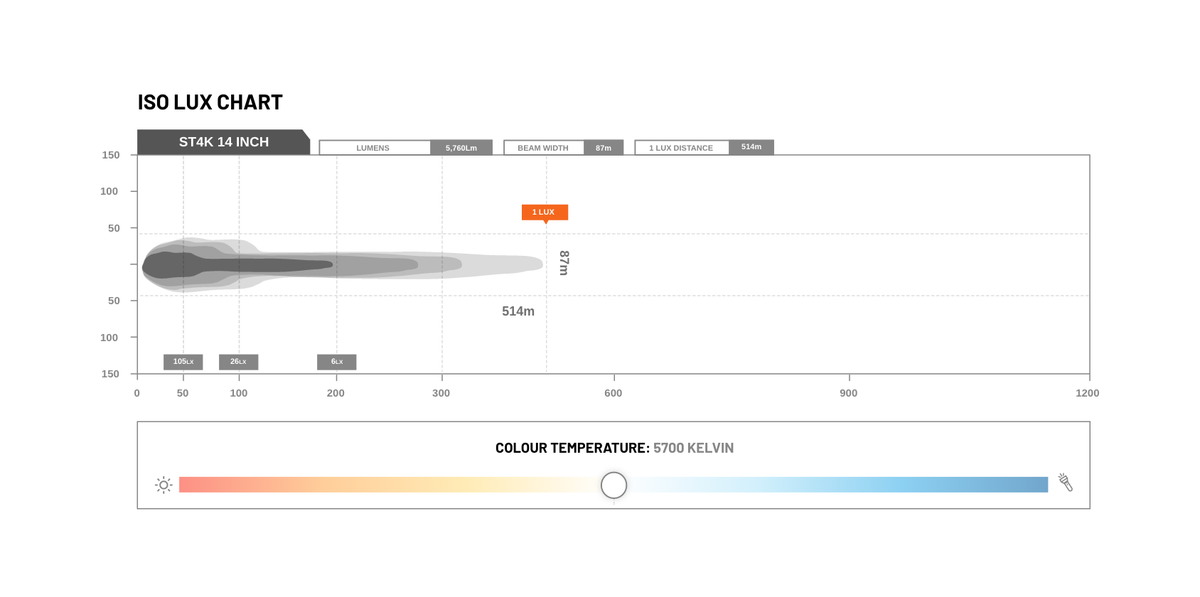

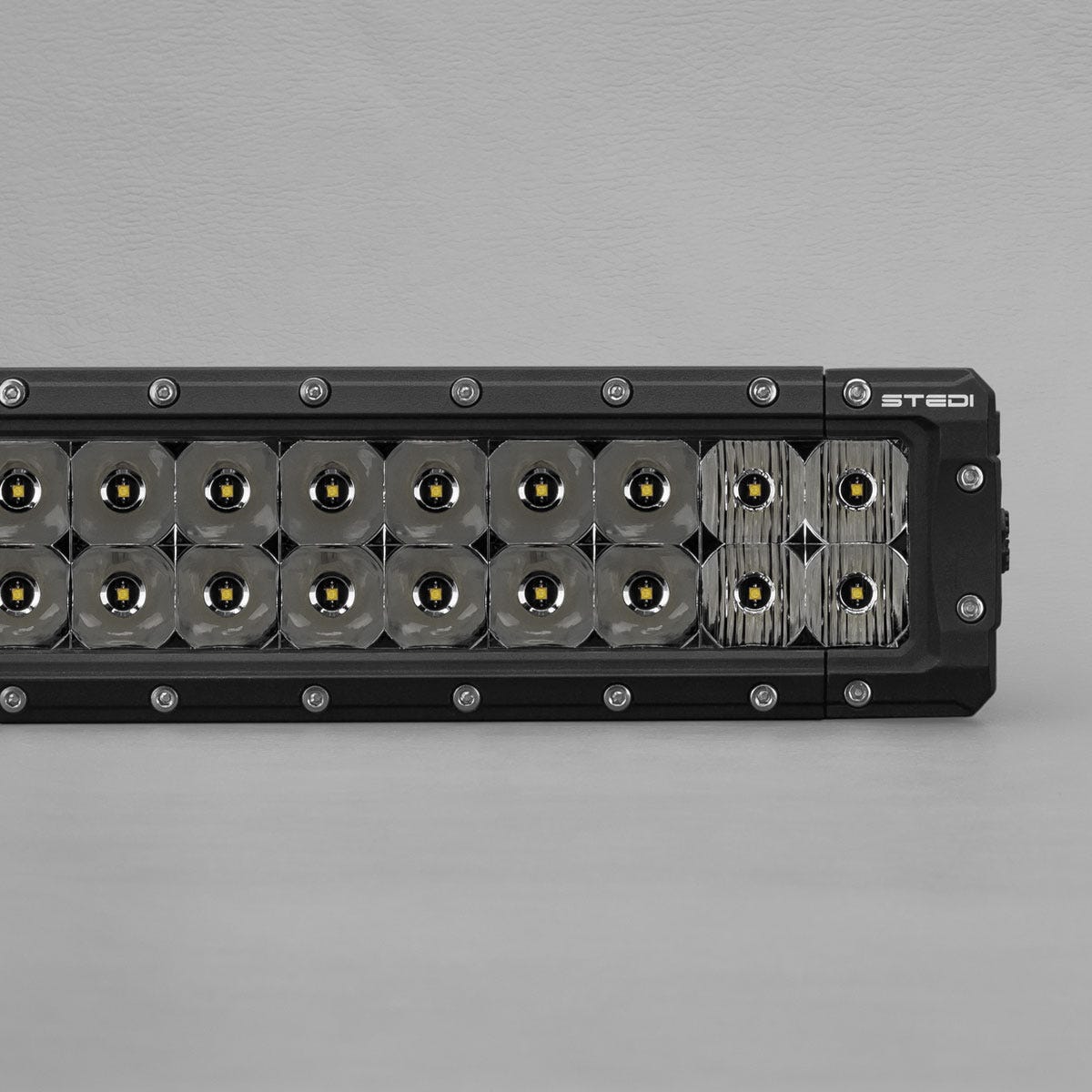

The STEDI ST4K 14 inch is a double-row LED light bar fitted with 24 OSRAM OSLON LEDs in a flood, spot, flood reflector layout (4 flood + 16 spot + 4 flood). STEDI rates it at 1 lux at 514m, with the wide beam spreading to 50 degrees and the spot beam held to 5.8 degrees, lighting the verges and the road well ahead.

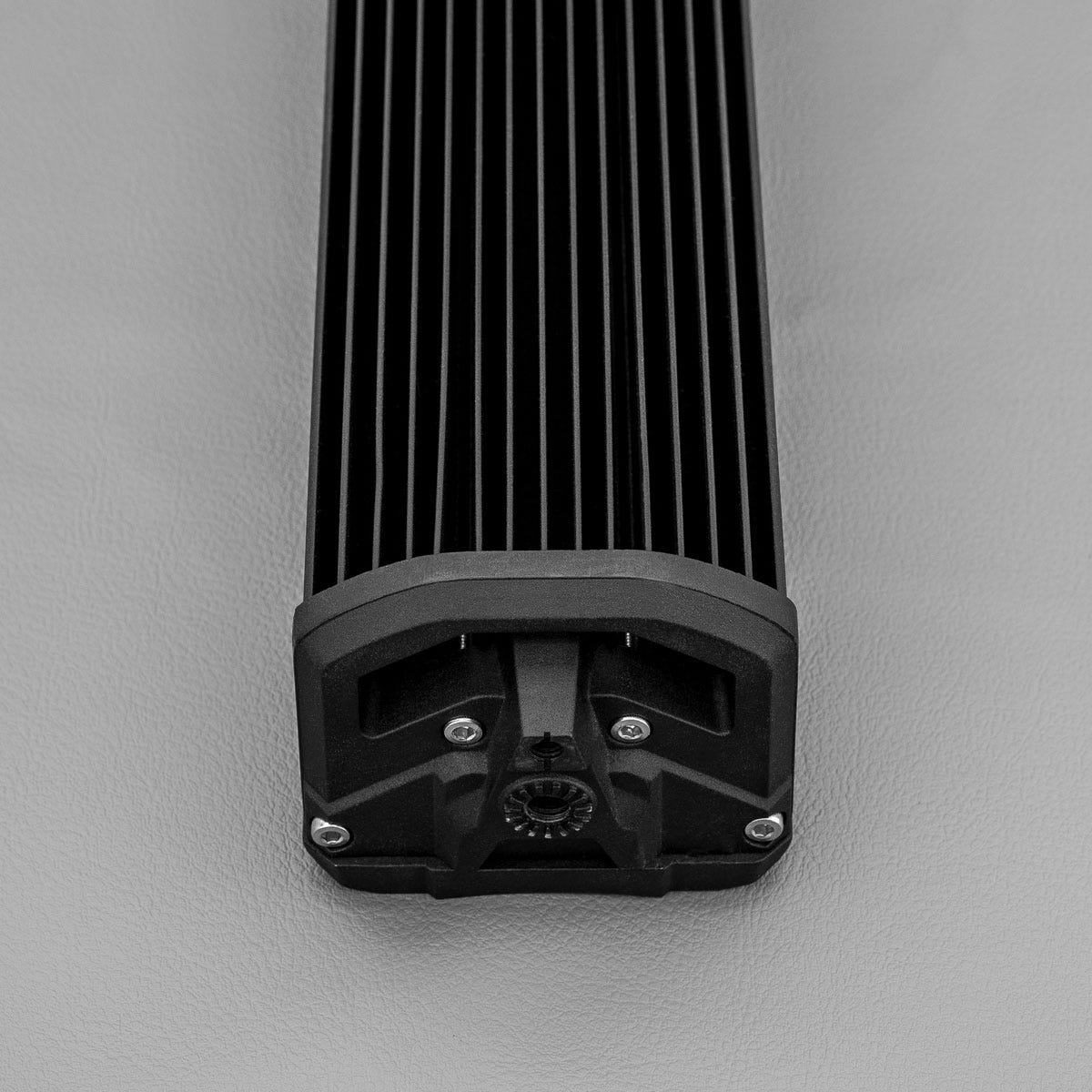

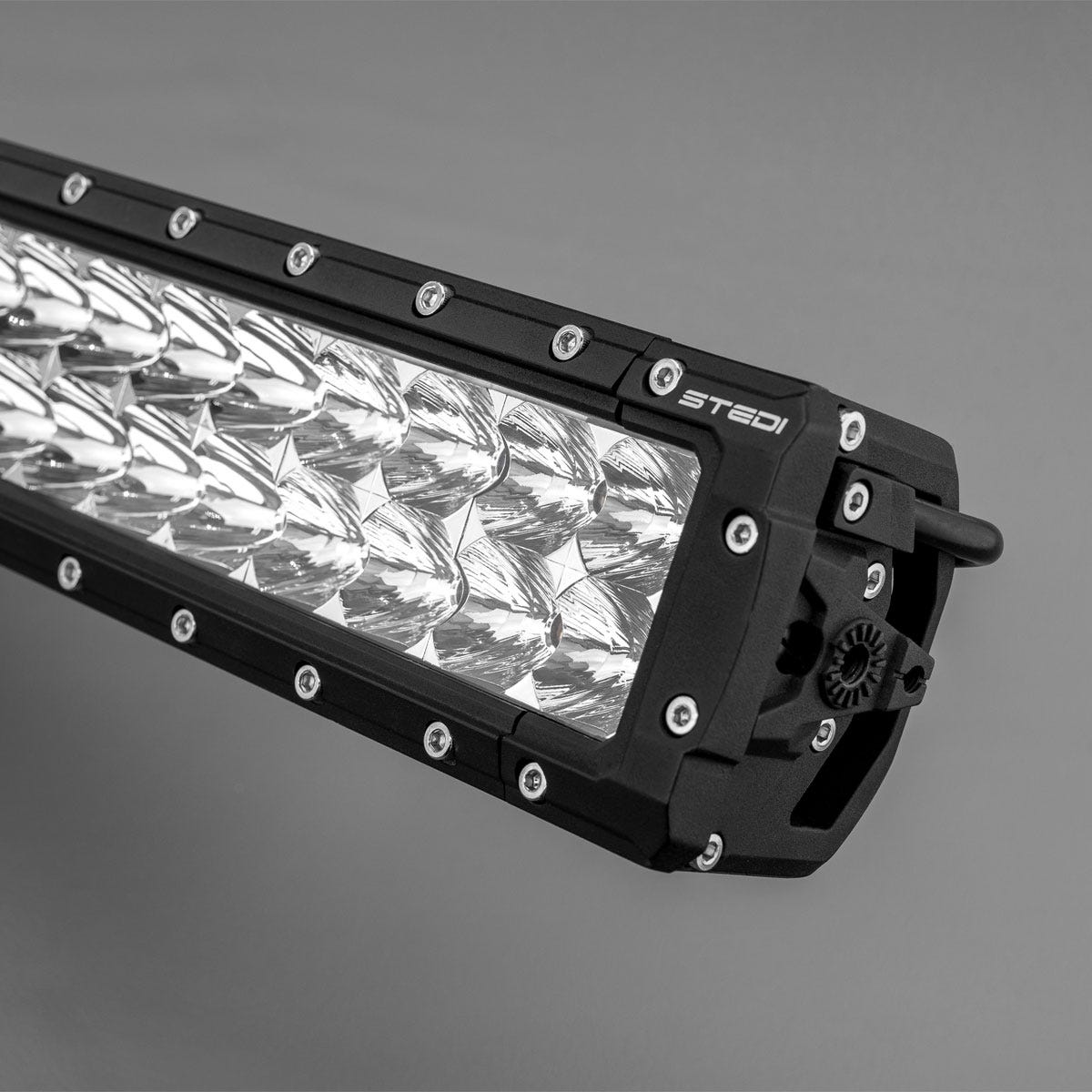

The 5700K crystal white output gives clean colour and contrast, and STEDI's Pure-Drive circuit design sends 97 percent of input power to the LEDs. The cast face plate and extruded aluminium heat sink are finished in polyester UV and abrasion resistant powder coat, and the bar is IP68 rated, waterproof to 3 metres.

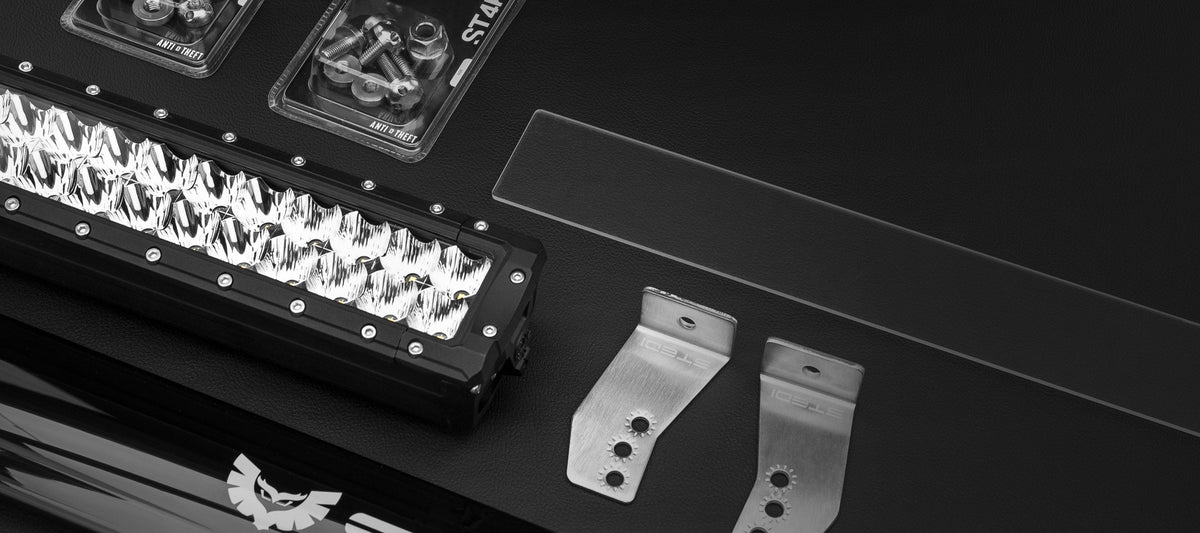

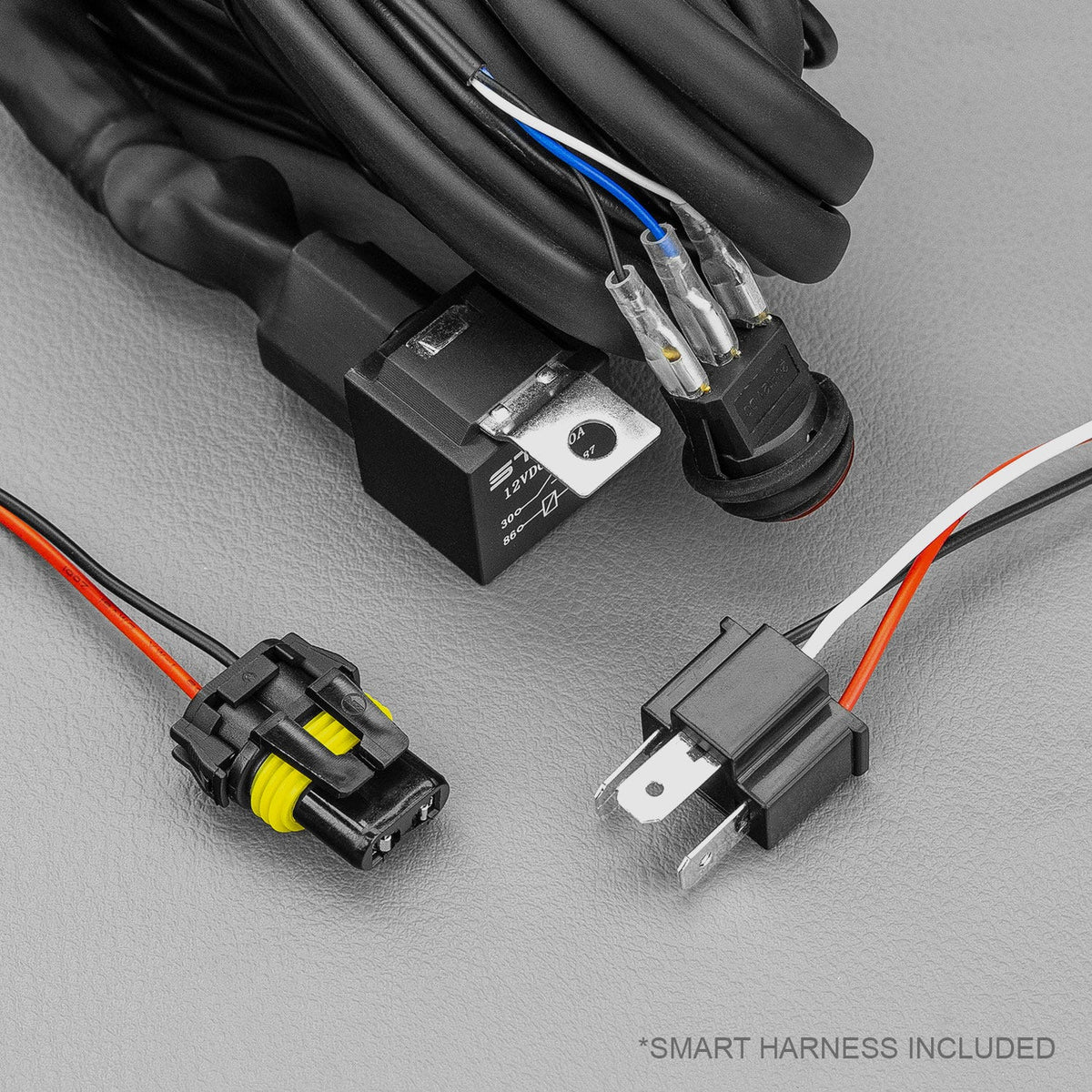

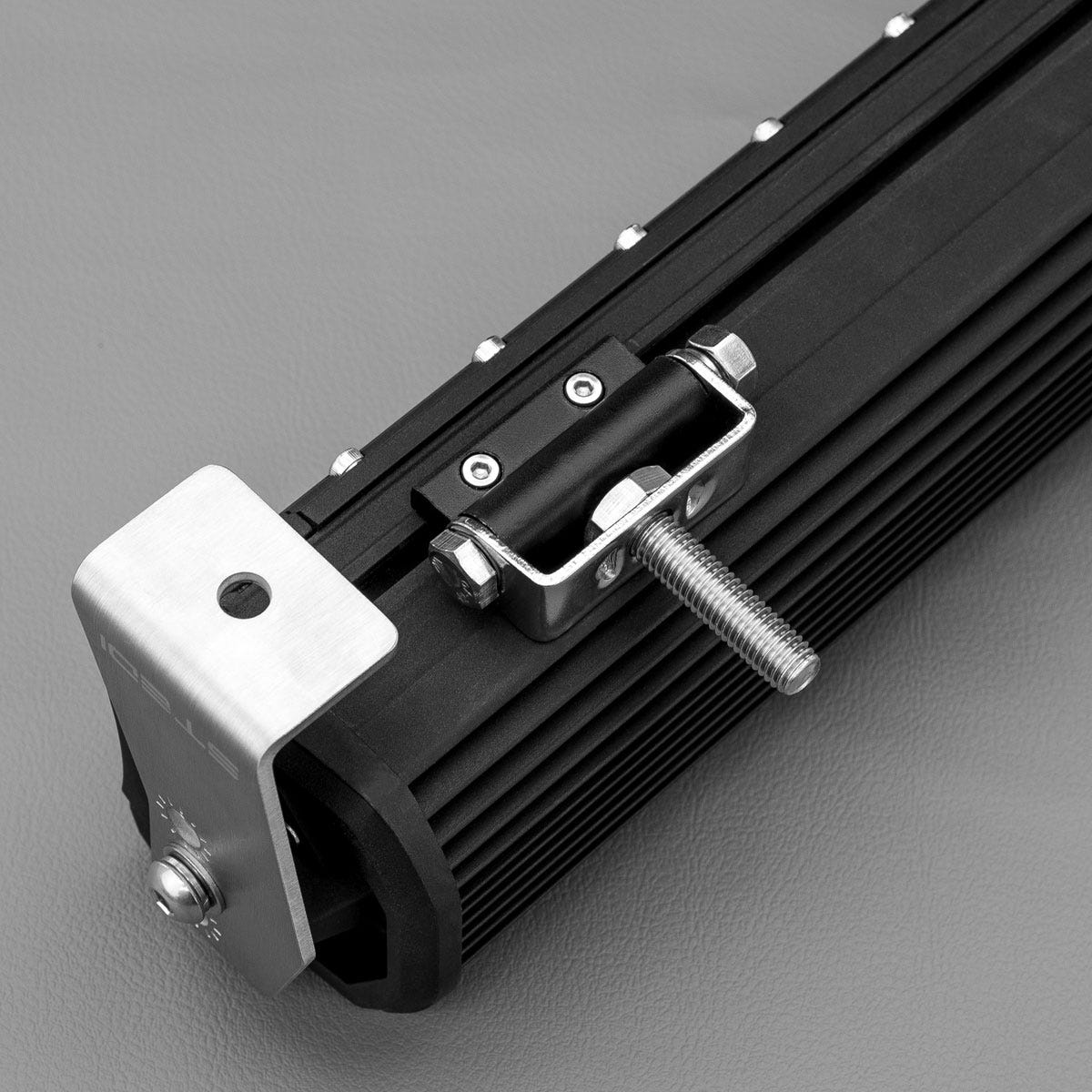

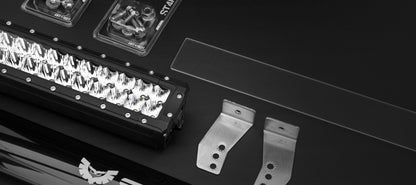

Two mounting options come with it: adjustable sliding mounts that line up with existing holes such as UHF tabs or a bull bar deck, or 3mm 304 stainless side brackets with plus or minus 15mm of height adjustment. STEDI's Easy-Fit plug and play high beam harness with H4 and HB3 adapters is included.

⚙️ Key Features

  • 24 x OSRAM OSLON LEDs

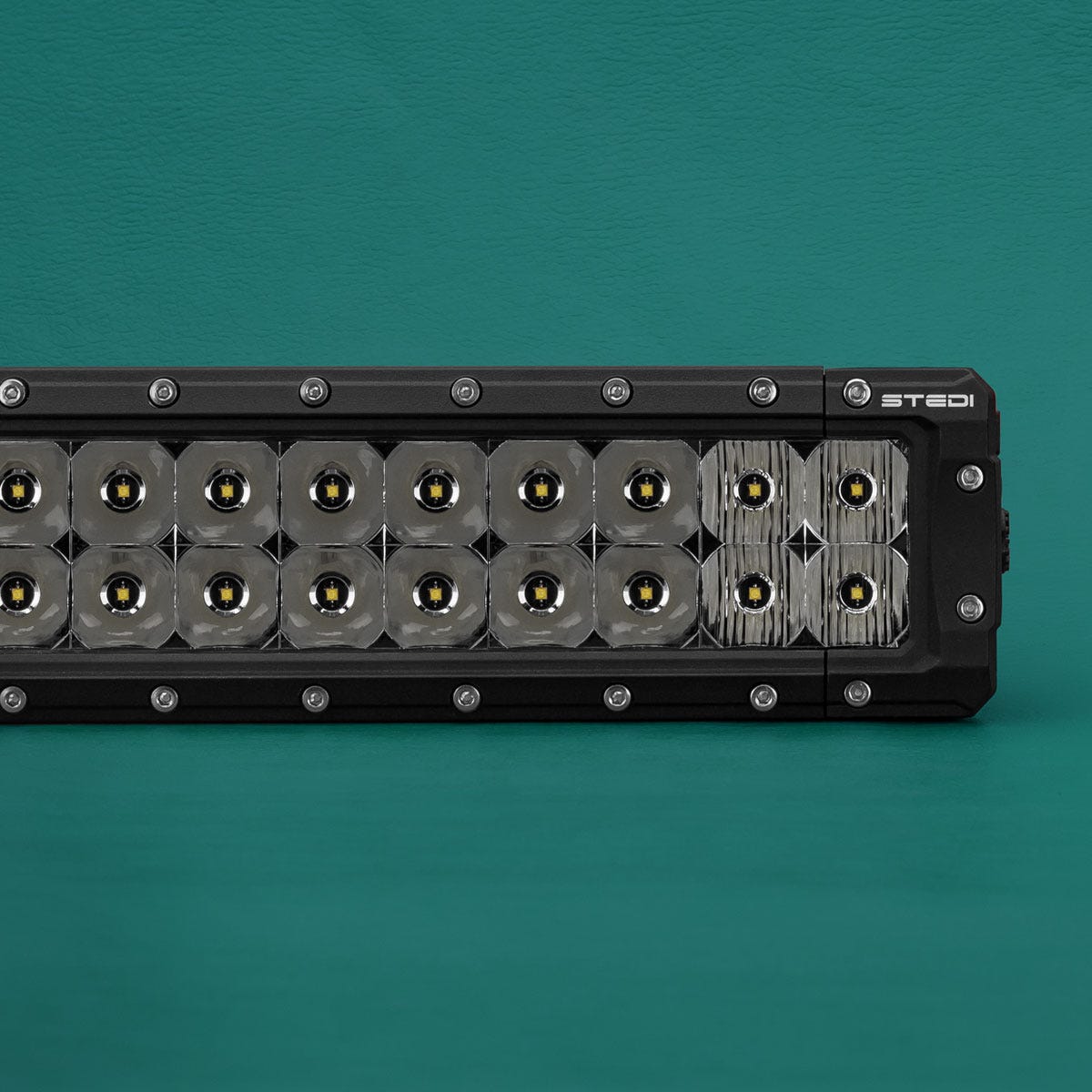

  • 4 flood + 16 spot + 4 flood reflector distribution
  • Wide beam 50 degrees, spot beam 5.8 degrees
  • 1 lux at 514m (STEDI rating)
  • IP68: dust tight and waterproof to 3m
  • Environmentally sealed Deutsch DT connector
  • Adjustable sliding mounts and 3mm 304 stainless side brackets included
  • Easy-Fit plug and play high beam harness with H4 and HB3 adapters included

📏 Specifications

  • Series: ST4K (double row)
  • Nominal length: 14 inch
  • LEDs: 24
  • Colour temperature: 5700K
  • Ingress protection: IP68
  • Part number: LEDST4K-14-24L

🚘 Application

Vehicle-agnostic: mounts to a bull bar, roof rack, light bar bracket or UHF aerial tabs on most 4WDs, utes and trucks using the supplied brackets. Vehicle-specific mounting brackets are separate products, and some late-model vehicles need a model-specific STEDI piggyback adapter to connect the harness to high beam.

📦 Condition

  • Brand new genuine STEDI product
  • Supplied in original packaging
  • STEDI backs the ST4K with a 5-year replacement warranty
